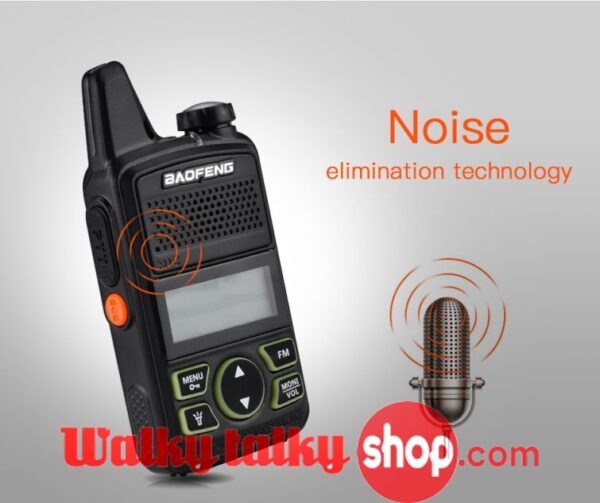

BAOFENG BF-T1 MINI Radio UHF 400-470MHz FM Transceiver With PTT Earpiece

$49.00 $25.00

1. Frequency Range:UHF: 400-470MHZ
2. Channel No.:20

Free Shipping !

SKU: 180114 Category:

Description

BAOFENG BF-T1 MINI Radio UHF 400-470MHz FM Transceiver With PTT Earpiece

Feature:
1. Broadcast FM radio receiver (65-108Mhz)
2. Alarm and built-in LED flashlight
3. Max 20 channels
4. Time count down (0.5 / 1hr / … / 8hrs)
5. Voice prompt
6. VOX (voice activated transmission)
7. 50 CTCSS tone / 104 DCS code / nonstandard tone available
8. Tail tone elimination
9. Battery saving
10. Width / Narrow band selection
11. SOS call notice
12. PC programming only (programming cable not included)



Specifications:


General:
1. Frequency Range:UHF: 400-470MHZ
2. Channel No.:20
3. Frequency Stability:±2.5ppm
4. Step Frequency:12.5 / 25Kz
5. Antenna Impedance:50Ω
6. Operating Voltage:DC 3.7V
7. Work Temperature:-20℃ to +60℃
8. Battery Capacity:H-1500mAH (Li-ion battery)
9. Battery Lift:About 12 Hours



Transmitter:
1. Output power:0.5W / 1W
2. Modulation Mode:16kΦF3E / 11kΦF3E
3. Maximum deviation:≤œ5kHz(Wide) / ≤2.5kHz(Narrow)
4. Spurious Radiation:≤7.5μW
5. Adjacent Ch. power:≤-65dB(Wide) / ≤-60dB(Narrow)
6. Audio Distortion:< 5%
7. SNR:≥ -45dB / ≥ -40dB
8. CTCSS/DCS Frequency deviation (W/N Band):0.7±0.1kHz(Wide) / 0.4±0.1kHz(Narrow)
9. Intermediation sensitivity:8-12mV
10. Transmitting Current:≤ 1000mA



Receiver:
1. Sensitivity:< 0.25μ V (12dB SINAD)
2. Audio Power:1W
3. Inter modulation Interference Resistance:≥ 65dB (W) , ≥ 60dB (N)
4. Adjacent channel Selectivity (W/N Band):≥ 65dB (W) , ≥ 55dB (N)
5. Audio Distortion:5%
6. Receiving current:≤ 380m A



Package included:
1 X BF-T1 walkie-talkie
1 X Li-ion Battery Pack
1 X Belt Clip
1 X User Manual
1 X EU/US Charger ( 100V ~ 240V,A free adapter will be sent according to your country.)
1 X PTT Earpiece
1 X Hand Strap



Additional information

Weight 0.18 kg
Dimensions 300 × 180 × 90 cm
