CH10A07 Rapid Charger MCU 12V DC 1A 850mAh for Hytera Two Way Radio

$42.00 $20.90

Sale!

CH10A07 Rapid Charger MCU 12V DC 1A 850mAh for Hytera Two Way Radio

$42.00 $20.90

SKU: 180966 Category: Tags: ,

Description

CH10A07 Rapid Charger MCU 12V DC 1A 850mAh for Hytera Two Way Radio

Features:

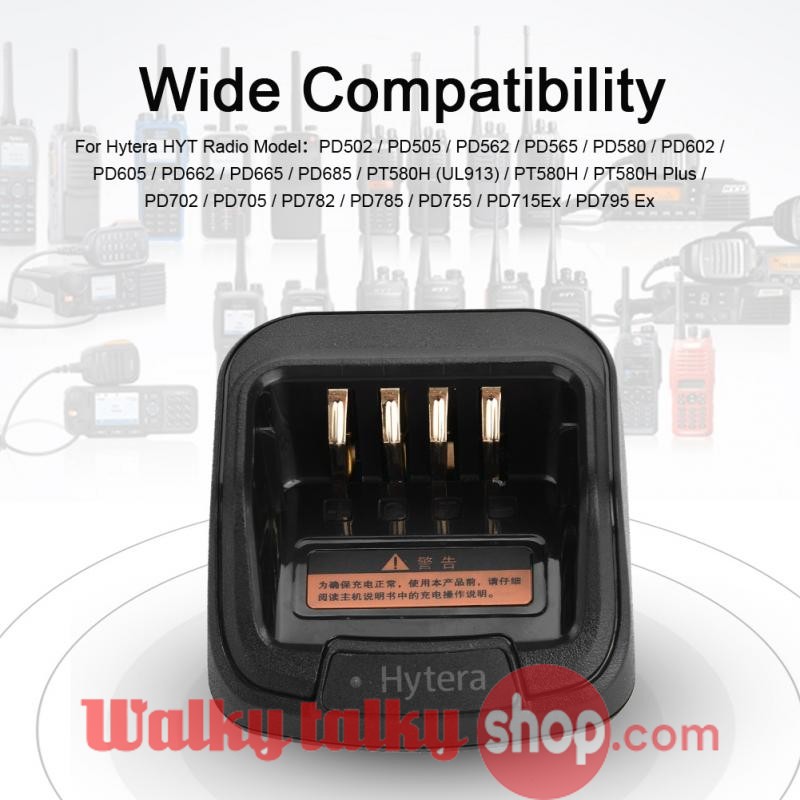

  • Wide Compatibility – For Hytera HYT Radio Model: PD502 / PD505 / PD562 / PD565 / PD580 / PD602 / PD605 / PD662 / PD665 / PD685 / PT580H (UL913) / PT580H / PT580H Plus / PD702 / PD705 / PD782 / PD785 / PD755 / PD715Ex / PD795 Ex

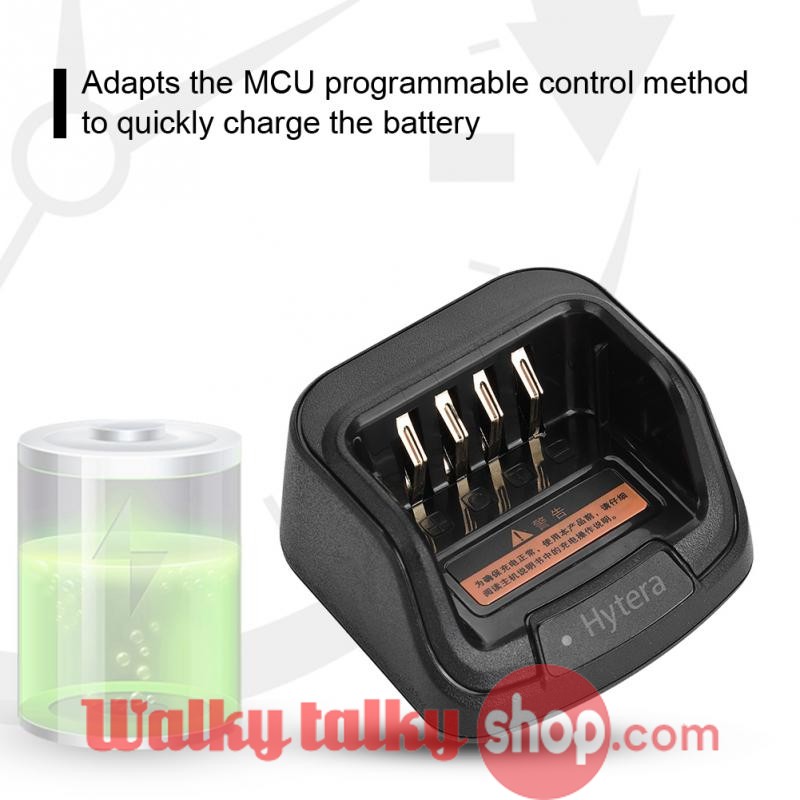

  • Adapts the MCU programmable control method to quickly charge the battery.
  • Automatically choose the appropriate algorithm to charge different batteries.
  • Monitor the voltage and temperature of NiMH  and Ni-Cd batteries while charging.
  • Able to control the charging by setting voltage detection, maximum charging time, minimum current, and battery temperature, etc. Providing good protection for charging the battery fully.

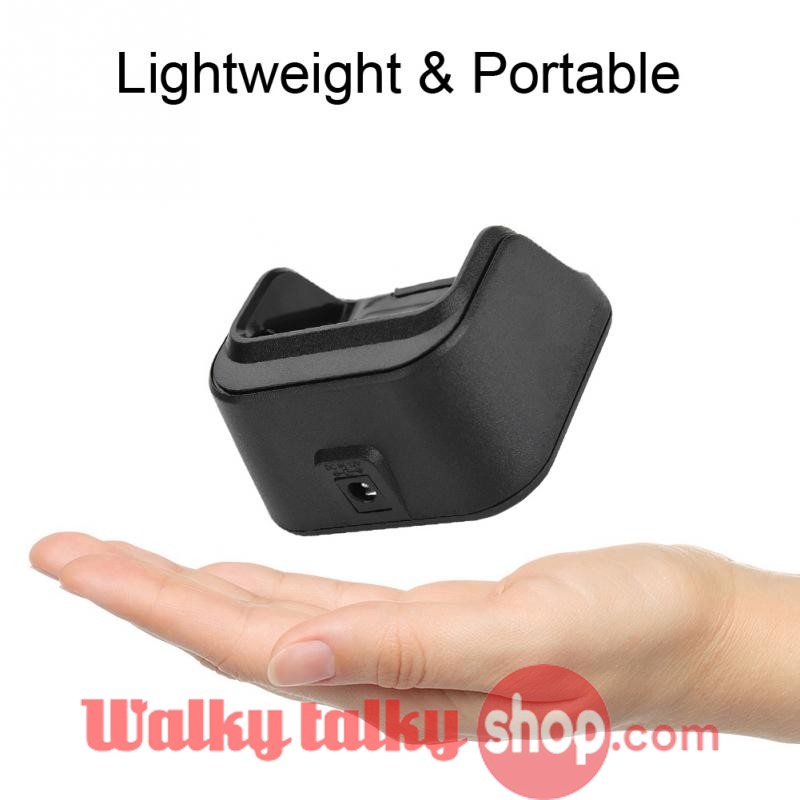

  • Lightweight & Portable.

Functions:
This charger adopts MCU programmable control approach to charge the battery rapidly. Then MCU can automatically determine the appropriate algorithm to charge different batteries. In process of charging Ni-MH and Ni-Cd batteries,their voltage and temperature are monitored. And it is possible to control charging by setting voltage detection, the maximum charge time, battery temperature, – △ V, 0 △ V , for fully charging the battery with good protection.  In process of charging Li-Ion battery, it is possible to control charging by the minimum current, voltage detection and the maximum charging time detection for fully charging the battery with good protection.

Type of rechargeable battery: Li-Ion/Li-polymer/Ni-MH/Ni-Cd battery;

Specifications:

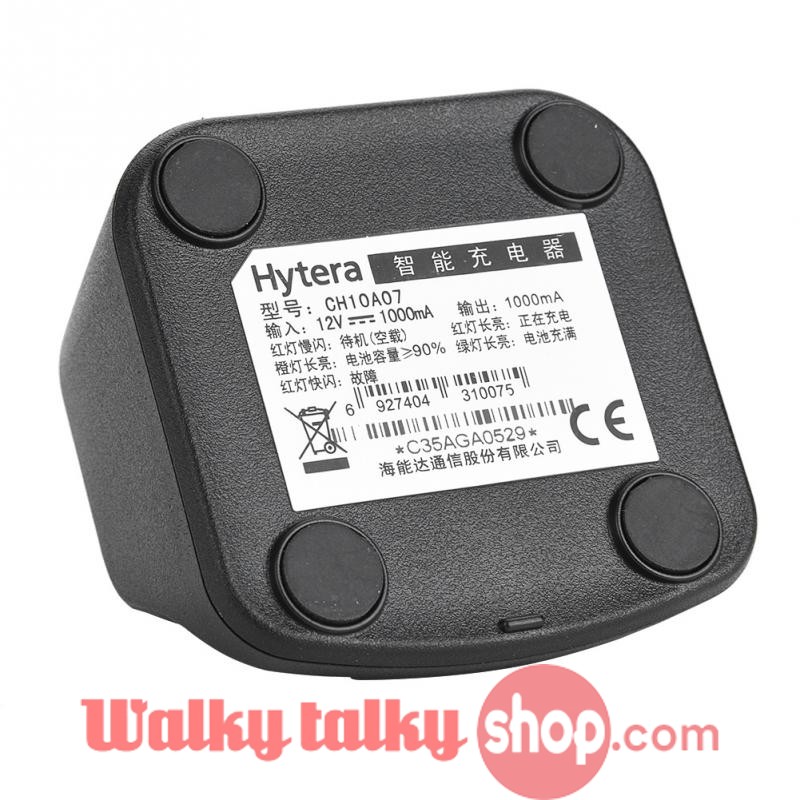

Type: CH10A07 Charger
Brand: For Hytera (HYT)
Model Number: CH10A07
Material : ABS
Input: DC 12V 1A
Recharging Current: 850mAh
Working Temperature: 0 – 40°
Rechargeable Battery Type: Lithium Ion / Lithium Polymer / NiMH / Nickel Cadmium Battery
Item Color: Black
Item Weight: 98g
Item Size: Approx. 7.8 * 7.7 * 4.5cm/ 3.07 * 3.03 * 1.77in

Compatible for Hytera HYT Radio Model:
PD502 PD505 PD562 PD565 PD580
PD602 PD605 PD662 PD665 PD685
PT580H (UL913) PT580H PT580H Plus
PD702 PD705 PD782 PD785 PD755 PD715Ex PD795 Ex

Compatible Battery Model:
BL2502 BL2503 BL2006 BL2008 BL1504

Package Include:

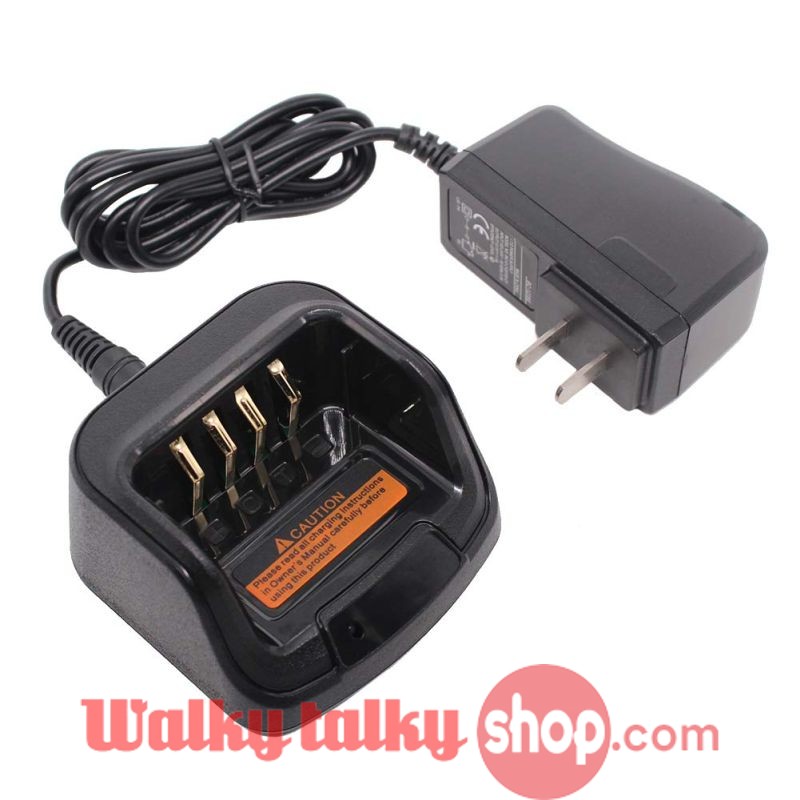

1 * CH10A07 Desktop Charger
1 * Power Adapter ( with correct plug for your country)

Additional information

Weight 0.8 kg
Dimensions 320 × 320 × 100 cm
