Sale!

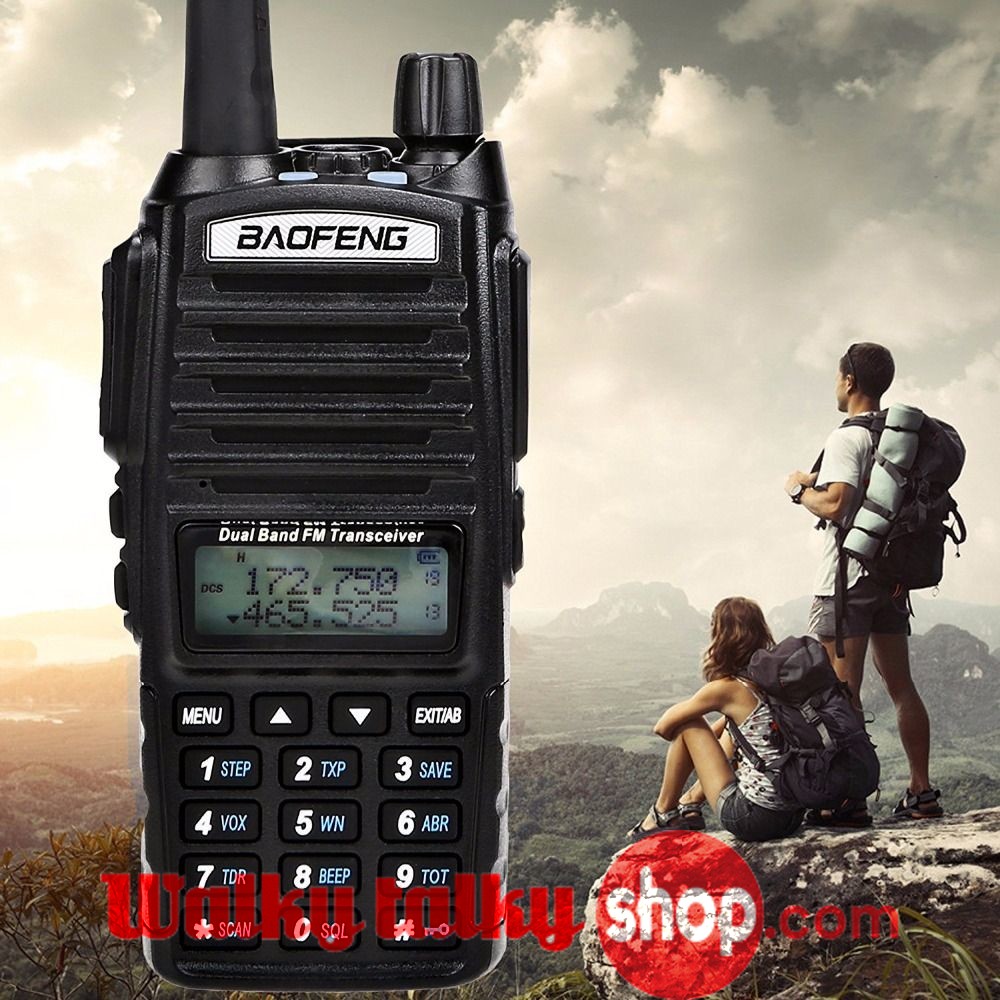

Cheap Baofeng UV-82 5W/1W Dual Band UHF VHF Handheld Walky-Talky

$45.00 $38.00

  1. Dual PTT keys
  2. Frequency Range: 136-174MHz & 400-520MHz
  1. A/B band independent operation
  2. 128 groups channels storage
SKU: 180406 Category:

Description

Function:

Dual Band, Dual Display, Dual Frequency, Dual Standby

  1. Dual PTT keys
  2. Frequency Range: 136-174MHz & 400-520MHz
  1. A/B band independent operation
  2. 128 groups channels storage
  3. Shortcut menu operation mode
  4. VFO & Memory channels scan
  5. Emergency Alarm
  6. Tri-color background light selectable
  7. 0~9 grades VOX selectable

10.PTT & ANI ID

11.FM radio and 25 stations storage

12.1750Hz Brust

13.Tone Time-out Timer

14.Channel Monitor

15.Battery Saver

16.Keypad Lock

17.Channel Step: 2.5/5/6.25/10/12.5/25KHz

18.Low Battery Alert

19.ROGER SET

20.Emergency Alert

21.25KHz/12.5KHz Switchable

22.FM Radio (65.0MHz-108.0MHz)

23.Large LCD Display

24.LED Flashlight

25.Hight /Low RF Power Switchable

26.Voice companding

27.50 CTCSS/ 104DCS coder & tone searching

28.PC programmable

29.Wide/Narrow Band(25kHz/12.5kHz)

30.Transmitter time-out timer(TOT)

31.High/Low TX power selectable

32.Busy channel lock-out(BCLO)

Specification:

Brand  BaoFeng
Function introduction  LCD has a dual display function
Automatic search and display functions of CTCSS/DCS signaling
The new radio
Flashlight lighting function
U-U, V-V, U-V function
The channel name edit function
Dual band intercom function
Computer programming function
VOX voice function
Frequency, channel scanning
Channel scanning table editing function (which can be freely selected channel involved in scanning)
General index
The frequency range
FM  65-108MHz (radio, can receive, cannot transmit)
VHF 136.000-174.00MHz (VHF, transmitting and receiving are)
UHF  400-520.00MHz (UHF, transmitting and receiving are)
Memory channels Up to 128 channels
Working voltage  7.4V DC 2800mAh Long battery
Step frequency  2.5/6.25/10/12.5/20/25KHz
Frequency stability  + 2.5PPM
The 50 ohm antenna
Size  (110mm x 58mm x 32mm) (height x width x thickness)
Emission
Output power  5W/ 1W (MAX:5W)
Current  less than 1.4A (4W)
Modulation sensitivity  8-12mV
Modulation distortion  <10%
Modulation restrictions
<5KHz broadband, narrowband <2.5KHz
The sub audio / digital sub audio frequency offset
0.75KHz + 50Hz, 0.37KHz + 30Hz
The stray radiation  <7 W
Modulation mode  16K phi F3E/11K phi F3E
Modulation characteristics  6dB/ per times frequency increasing
Receiver
Reference sensitivity  -122dBm (12dB SINAD)
Audio Power  1W
Audio distortion  <10%
Modulation of receiving bandwidth  5K
Clutter suppression  greater than or equal to 65dB
Adjacent channel selectivity (broadband, narrowband)  = 65dB = 60dB
Intermodulation (broadband, narrowband)  = 60dB = 55dB
Blocking  = 85dB
Standard configuration  a host, antenna, battery charger root block, a sleeve, a hand belt clip and lanyard a, book, package box a.



Package included:

1 Baofeng UV-82  5W/1W Transceiver

1 x 7.4V 2800mAh Li-ion Battery Pack.

1 x Antenna

1 x Dual PTT Earphone

1 x Belt Clip

1 x Hand Strap

1 x AC Adapter

1 x Desktop Charger (100V~240V)

1 x User Manual

Additional information

Weight 0.9 kg
Dimensions 200 × 150 × 60 cm
