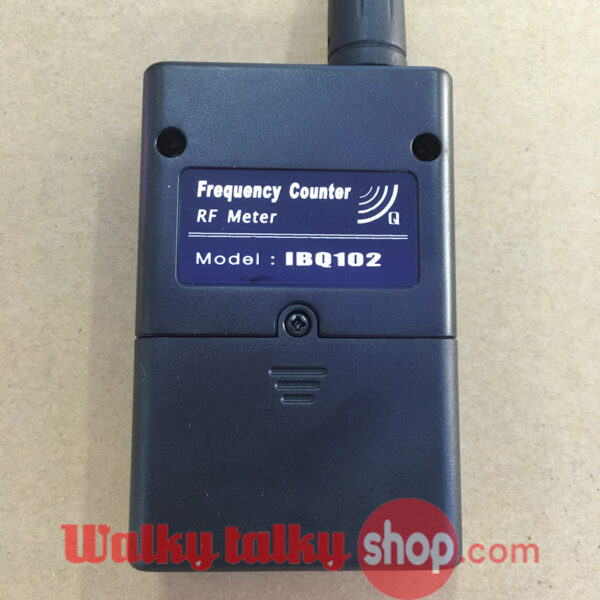

IBQ102 RF Meter Frequency Counter for Baofeng Yaesu Kenwood CB Radios

$74.00 $49.00

SKU: 180867 Category:

Description

IBQ102 RF Meter Frequency Counter Tester for Baofeng Yaesu Kenwood CB Radios



*Count continuous frequency comes from your Transceiver.

*Count continuous wave signal strength of your Transceiver.

*Upgraded based on IBQ101,get wider test range.

*Designed for counting continuous wave signal comes from Two-way Radio.
Its three-button control is easy to use and its small size allows you to carry it anywhere you like.

Features:

1. Multi-function LCD Display

2. 9-Digit Display

3. Analog bar and digit signal strength indicator

4. Display holding

5. 50 display reading saving

6. Power indicator

7. Interactive user menu

8. Equipped with UHF antenna and USB power adapter

9. Auto switch off, Auto backlight Battery Indicator

Specifications:

Range 10Hz-100MHz 50MHz-2.6GHz
Amplifier 1 Meg ohm 50ohm
Impedance 1 Meg ohm 50ohm
30pF VSWR<2:1
Features RF signal strength (50MHz-2.6GHz)
Display Screen Holding
50 Display Readings Saving
Auto switch off, Auto backlight
Battery Indicator
Sensitivity <30mV@10Hz-50MHz <5mV@100MHz
<5mV@400MHz
<35mV@50MHz-100MHz <5mV@1GHz
Gate 0.01s 0.01s
0.1s 0.1s
1s 1s
Time Base <+/-5ppm
LSD 1Hz/1s (10Hz-100MHz)
100Hz/1s (50MHz-2.6GHz)
Battery 3 x AAA Ni-MH
Power DC (5V,1A)
Cabinet ABS
Size 85mm x 55mm x 24mm
Net Weight 115g
Color Grey
ANT UHF

Package Including:

1 x IBQ102 Freuqncy Counter(10MHz-2.6GHz)

1 x Intelligent charger(European Plug/US Plug  UK/AU/ZA adaptors all available)

1 x Antenna

1 x User Munual

Please kindly note: to avoid shipping checking, it is without of 3*AAA battery

Comparison:

IBQ-101   Vs    IBQ-102

Model

IBQ-101

IBQ-102

Range 50MHz-2.6GHz 10Hz-100MHz 50MHz-2.6GHz
Amplifier 50ohm 1 Meg ohm 50ohm
Impedance VSWR<2:1 1 Meg ohm 50ohm
30pF VSWR<2:1
Sensitivity <5mV@100MHz <30mV@10Hz-50MHz <5mV@100MHz
<5mV@400MHz <5mV@400MHz
<5mV@1GHz <35mV@50MHz-100MHz <5mV@1GHz
Gate 0.01s 0.01s 0.01s
0.1s 0.1s 0.1s
1s 1s 1s
Time Base <+/-5ppm TCXO <+/-5ppm
LSD 100Hz/1s 1Hz/1s (10Hz-100MHz)
100Hz/1s (50MHz-2.6GHz)
Battery 3 x AAA Ni-MH
Power DC 5V~1A
Cabinet ABS
Size 85mm x 55mm x 24mm
Net Weight 115g
Antenna UHF

Additional information

Weight 0.5 kg
Dimensions 200 × 200 × 100 cm
