Sale!

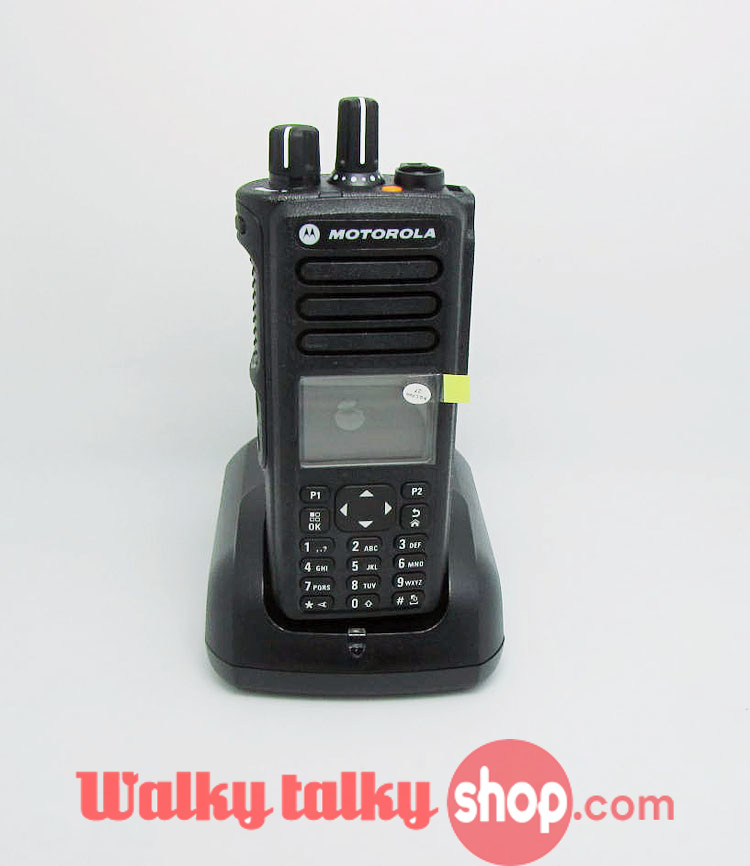

Motorola Digital Walkie Talkie Phone XIR P8668 UHF VHF Free Shipping

$859.00 $789.00

Super  big color LED

Day or night display mode

Integrated GPS

Bluetooth data

SMS

Capacity Plus

Embedded Bluetooth Audio

IP Site Connect

Durable Design

Enhanced privacy protection

Emergency Button
Transmission interruption

Clear

Motorola Digital Walkie Talkie Phone XIR P8668 UHF VHF Free Shipping

Class audio
Front loud speaker and intelligent audio feature that automatically adjust the intercom volume according to ambient noise levels

Super  big color LED
Five full-color display for easy viewing contact lists, text messages and work orders, large icons and navigation keys are easy to read and use.

Day or night display mode
Display mode can be day or night , even at night can easily read

Integrated GPS
Use the integrated GPS to find the location of a mobile workforce

Bluetooth data
The intercom is connected to a Bluetooth-enabled devices to real-time data sharing of information

Increased productivity application data

SMS
When the need for wireless communication without interfering with staff or guests , you can send pre-programmed feature updates via SMS messages to team members

Capacity Plus
MOTOTRBO systems can maximize the capacity of a single-site digital trunking system . Through this system, you do not need to add new frequencies to make the site more than a thousand users to rely on a single high-density voice and data communications

Embedded Bluetooth Audio *
Embedded in the transceiver , connect using wireless accessories , such as Motorola designed to achieve a stable and reliable communication and to build critical operating wireless headphones

IP Site Connect
The digital solutions can use the Internet to expand MOTOTRBO voice and data capabilities . With this solution, you may be distributed in up to 15 sites across the communication link together to form a large area coverage , or to enhance the degree of physical barriers covered with a single site

Durable Design
Seal design that can withstand rigorous moisture and dust invasion, immersed in one meter of water for 30 minutes without water (IP57).

Enhanced privacy protection
Built-in encryption features to enhance security

Emergency Button
Walkie-talkie at the top of the orange button can be programmed to send an alert to your supervisor or dispatcher in an emergency situation

Transmission interruption
Users can interrupt another radio call, in order to accurately transmit critical communications when necessary.



Specifications
GENERAL SPECIFICATIONS
Channel Capacity 1000
Frequency 136-174 MHz   403-527 MHz
Dimensions (HxWxL) with NiMH Battery 1400Mah  130.3 x 55.2 x 38.7 mm
IMPRES Li-ion Slim (1600mAh) battery  130.3 x 55.2 x 35.8 mm
IMPRES Hi-Cap Li-ion (2250 mAh) battery  130.3 x 55.2 x 41.1 mm
IMPRES Hi-Cap Li-ion FM (2350 mAh) battery  130.3 x 55.2 x 41.1 mm
Weight with battery: with NiMH Battery 1400Mah  425.5 g (15.01 oz)
IMPRES Li-ion Slim (1600mAh) battery  335.5 g (11.83 oz)
IMPRES Hi-Cap Li-ion (2250 mAh) battery  355.5 g (12.54 oz)
IMPRES Hi-Cap Li-ion FM (2350 mAh) battery  365.5 g (12.89 oz)
Power Supply 7.5 V (Nominal)
Average battery life at 5/5/90 duty cycle with battery saver enabled in carrier squelch and transmitter in high power
IMPRES LiIon Std Battery Analogue: 8 hrs/Digital: 11.8 hrs
IMPRES LiIon HiCap Battery Analogue: 11.5 hrs/Digital: 17 hrs
IMPRES FM LiIon Battery Analogue: 12.3 hrs/Digital: 18.1 hrs
NiMH Battery Analogue: 7 hrs/ Digital: 10.2 hrs
RECEIVER
Frequency 136-174 MHz;403-527 MHz
Channel Spacing 12.5 kHz/ 20/25 kHz
Frequency Stability +/- 0.5 ppm
Analogue Sensitivity 0.30 uV (12 dB SINAD);0.22 uV (typical) (12 dB SINAD);
0.4 uV (20 dB SINAD)
Digital Sensitivity 5% BER: 0.3 uV
Intermodulation 70 dB
Adjacent Channel Selectivity 60 dB @ 12.5 kHz,;70 dB @ 20/25 kHz
Spurious Rejection 70 dB
Rated Audio 500 mW
Audio Distortion @ Rated Audio 3% (typical)
Hum and Noise -40 dB @ 12.5 kHz; -45 dB @ 20/25 kHz
Audio Response  +1, -3 dB
Conducted Spurious Emission  -57 dBm
TRANSMITTER
Frequency  136-174 MHz;403-512 MHz
Channel Spacing  12.5 kHz/ 20/25 kHz
Frequency Stability +/- 1.5 ppm (DP3600)
Power Output
UHF 1-5 W
VHF 1-4W
Modulation Limiting +/- 2.5 kHz @ 12.5 kHz
+/- 4 kHz @ 20 kHz
+/- 5.0 kHz @ 25 kHz
FM Hum and Noise -40 dB @ 12.5 kHz; A41-45 dB @ 20/25 kHz
Conducted / Radiated Emission -36 dBm < 1 GHz;-30 dBm > 1 GHz
Adjacent Channel Power -60 dB @ 12.5 kHz;-70 dB @ 20/25 kHz
Audio Response +1, -3 dB
Audio Distortion 3%
Digital Vocoder Type AMBE+2
Digital Protocol ETSI-TS 102 361-1, 2 & 3
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature  -30° C / +60° C
Storage Temperature -40° C / +85° C
Temperature Shock Per MIL-STD
Humidity Per MIL-STD
Water and Dust Intrusion IP57, MIL-STD
GPS
Accuracy specs are for long-term tracking (95th percentile values > 5 satellites visible at a nominal -130 dBm signal strength)
TTFF (Time To First Fix) Cold Start < 2 minutes
TTFF (Time To First Fix) Hot Start < 10 seconds
Horizontal Accuracy < 10 meters
Bluetooth
Version Supports Bluetooth? 2.1 + EDR Specification
Profiles   Supported Bluetooth Headset Profile (HSP), Serial Port Profile

(SPP), Motorola fast push-to-talk.

Devices  Supported Radio supports 1 Bluetooth audio accessory and 1

Bluetooth data device simultaneously

Range Class 2, 10 metres





Weight 1 kg
Dimensions 300 × 200 × 70 cm
Frequency Range

UHF 403-527MHZ, VHF 136-174MHZ
