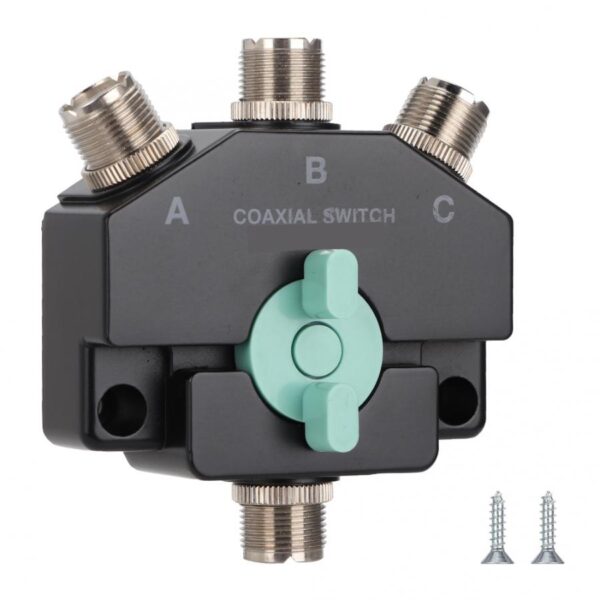

CX-310 1 Circuit 3 Antenna Switcher Multi-Functional Antenna

$89.68

Quantity Price
1 $89.68
2 - 4 $88.56
5 - 9 $86.55
10+ $43.26

CX-310 1 Circuit 3 Antenna Switcher Multi-Functional Antenna Short- Base

Features:

  1. It is made of high quality metal material, strong and durable.
  2. It can adjust the received signal by switching the antenna, convenient and practical.
  3. The interface with the antenna is made by precise technology, and there is no problem of bad contact.
  4. It can be connected to three antennas, outstanding performance.
  5. The impedance is only 50 ohms and the loss is very low.
Specifications:
Material: Metal
Size: Approx. 9.5*7.7*2.9cm/3.74*3.03*1.14inch
Frequency: DC-800MHz
2 Position Switch 1-Input -3-Outputs
Insertion loss: less than 0.1dB (DC-500MHz), more than 0.15dB (500-1000MHz)
Isolation: more than 60dB (DC-500MHz), over 50dB (500-800MHz)
VSWR: less than 1.1 (DC-500MHz), less than 1.2 (500-1000MHz)
Through power: (less than SWR1.2), 1.5KW (DC-30MHz), 1KW (30-150MHz), 500W (150-800MHz)
Impedance: 50 Ohm
Interface: M-J Interface

Package list:
1 x Switcher
2 x Screw

Weight 0.5 kg
Dimensions 40 × 60 × 60 cm
