Alafone ALF308 High Quality 26MHz -27MHz Amateur AM FM CB Radio

Sale!
, , ,

Alafone ALF308 High Quality 26MHz -27MHz Amateur AM FM CB Radio

Original price was: $99.00.Current price is: $49.98.

& Free Shipping
Quantity Discount (%) Price
1 $49.98
2 - 4 2.08 % $48.94
5 - 9 6.2 % $46.88
10+ 11.6 % $44.18

Alafone ALF308 26MHz -27MHz Amateur AM FM CB Radio

Features:

• Frequency: 25.615~30.105MHz

• 4Watts or 10Watts CB radio

• Channels: E D EU EC PL UK US NZ

• Expand Mode Freq: RU PO PC

• Emergency call channel available (CH9).

• SQ function.

• ASQ function.

Specifications:

General
Modulation modes AM/FM
Frequency range 26.965-27.405MHz
Antenna impedance 50 Ohms
Power supply 13.2V

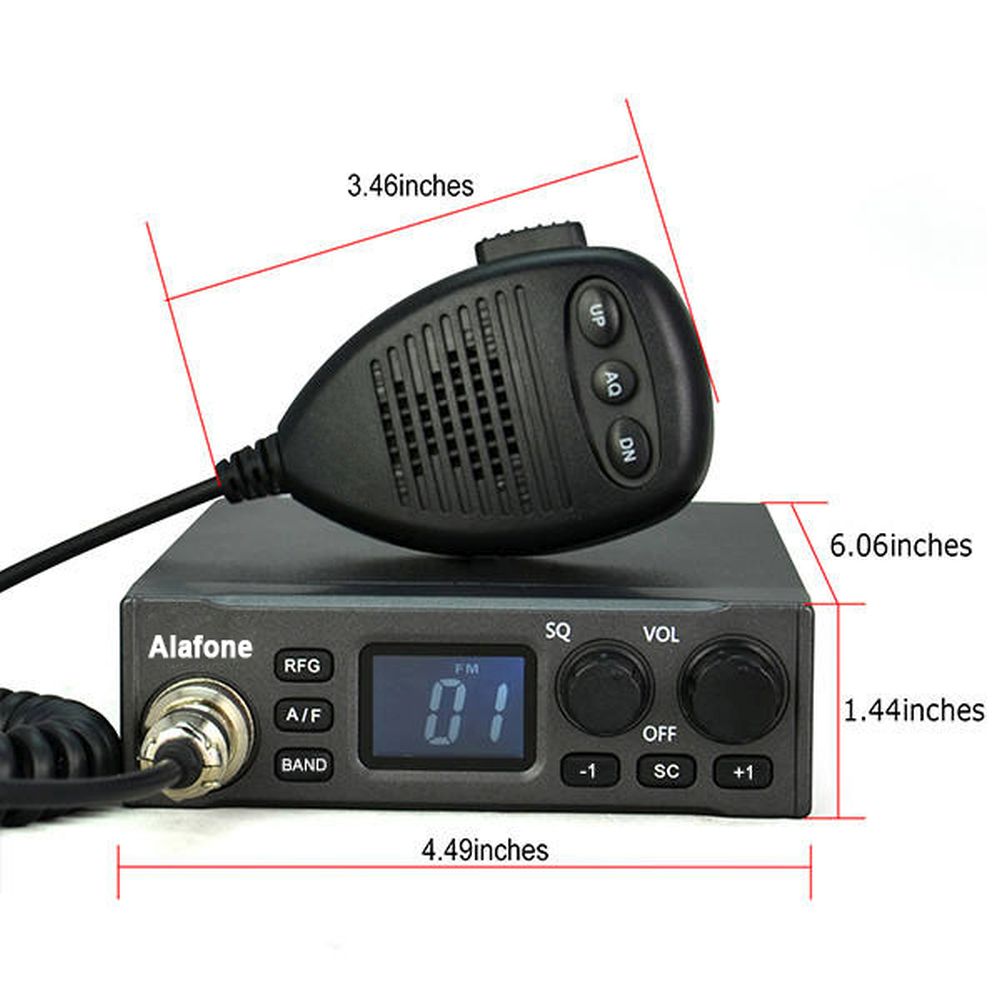

Dimensions 115(L)×38(A)×150(P)mm
Weight 0.8kg
Transmission
Frequency error +/-300HZ
Carrier power 1W/4W
Transmission interference Inferior to 4nW(-54dBm)
Audio response 300HZ to 3KHZ in AM/FM
Emitted power in the adj. channel inferior to 20uW
Microphone sensitivity 3mV
Maximum current max 3A
Modulated single distortion inferior ro 5%
Reception
Max sensitivity at 20dB sinad 0.8μV-113 dBm FM
  1.5μV-103 dBm AM
Frequency response 300HZ to 3KHZ in AM/FM
Adjacent channel selectivity 60dB
Maximum audio power 3W
Squelch sensitivity Minimum 0.2μV -120dBm
  Minimum 1mV -47dBm
Maximum current 0.3A nominal/1.2A maximum

Package Inclued:

1 x CB Radio

1 x Microphone

1 x Manual​

Weight 1 kg
Dimensions 40 × 30 × 30 cm
