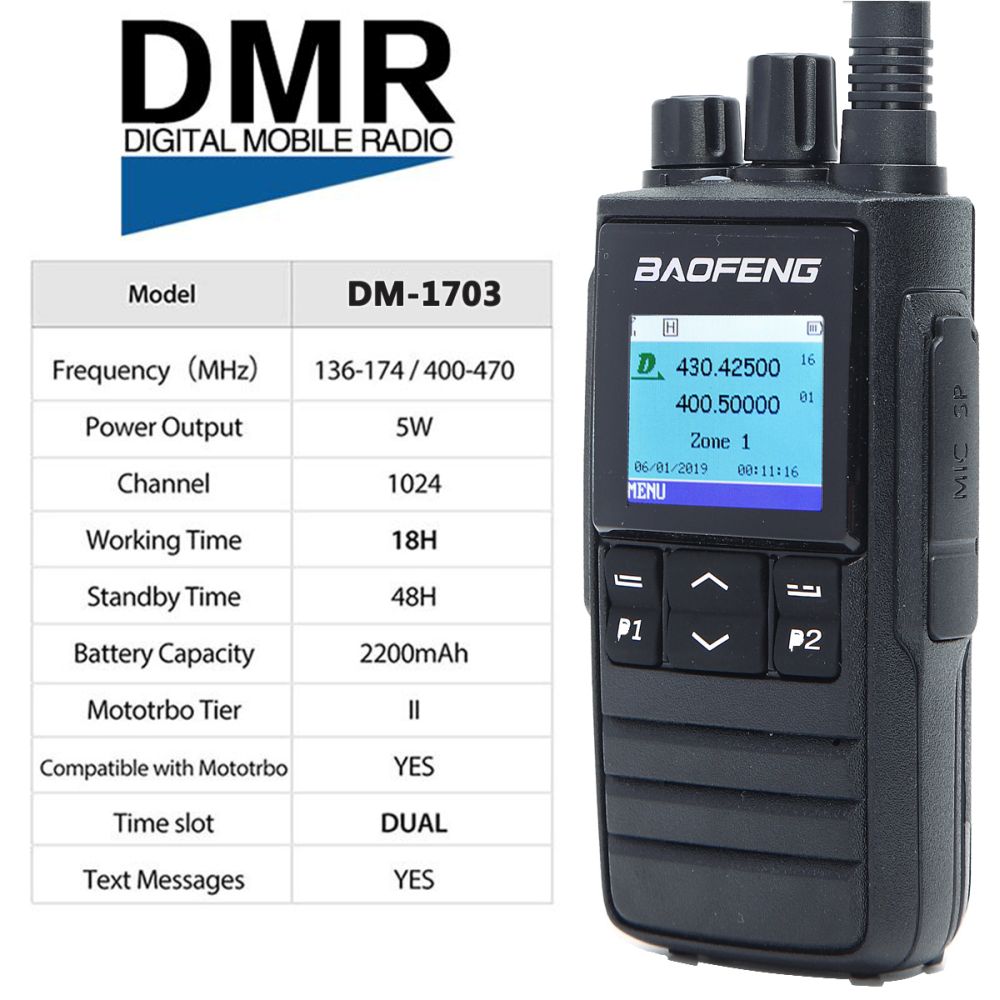

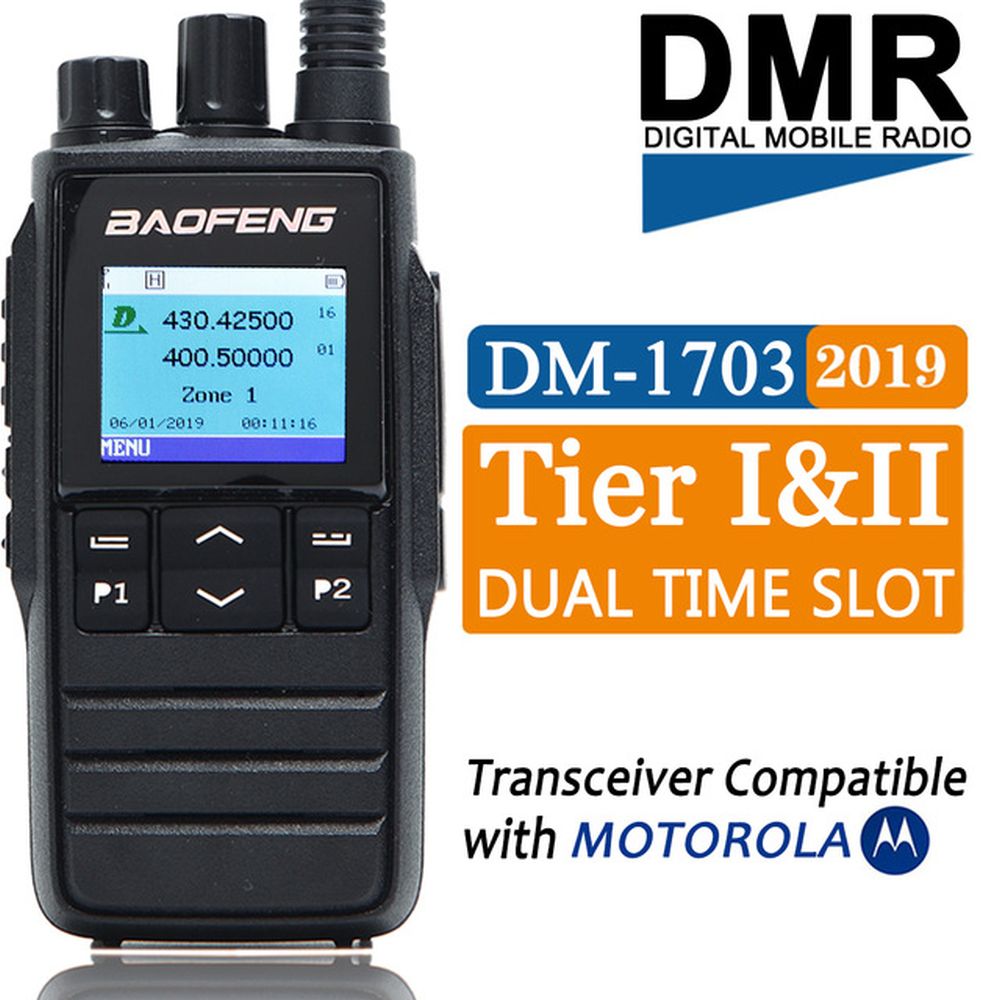

Baofeng DM-1703 VHF UHF Dual Band DMR Transceiver
Baofeng DMR DM-1703 Walkie Talkie VHF UHF Dual Band 136-174 & 400-470MHz Dual Time Slot Tier 1&2 Digital/Analog Radio
Features:
1. Compatible with MOTOTRBO Hytera Tier II Radio and its repeater perfectly
2. Dual Band VHF 137-174MHz & UHF 400-470MHz

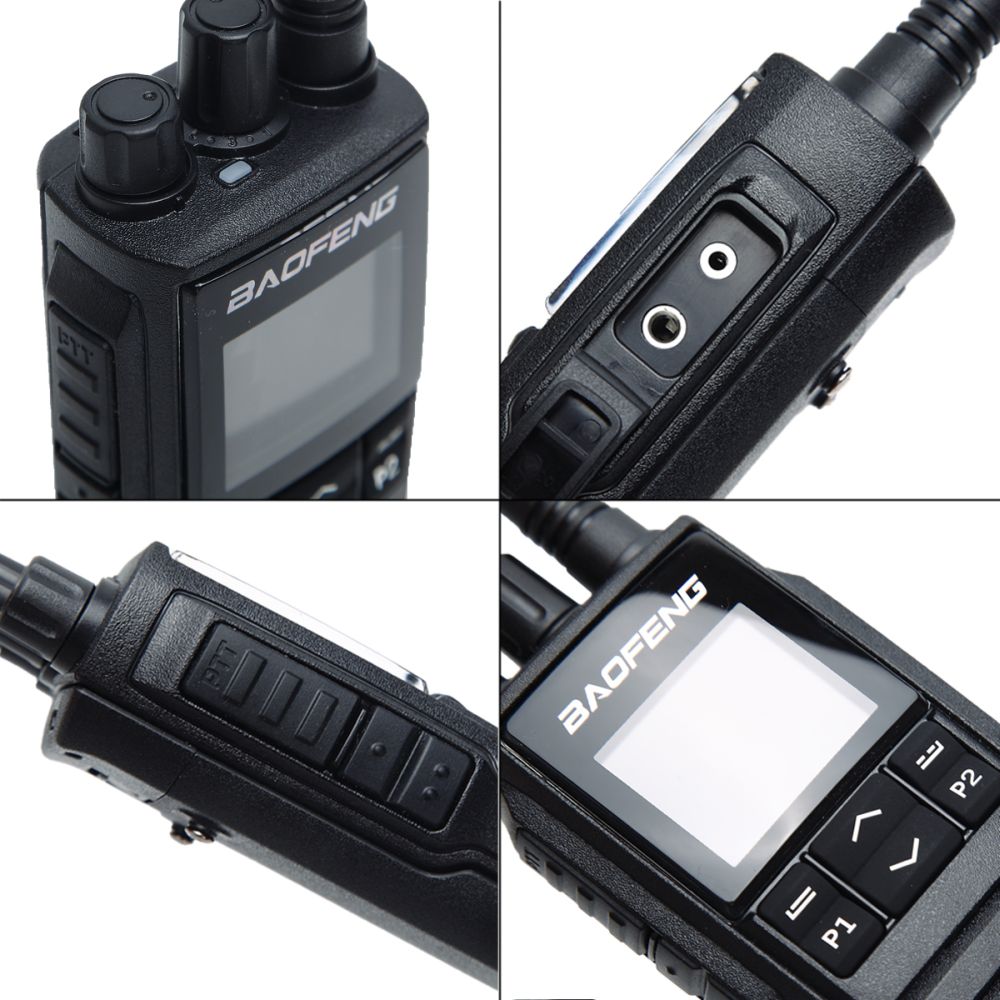

3. Dual Knob: Power/Votume Knob, Channel Knob
3. Dual Knob: Power/Votume Knob, Channel Knob
4. Analogue & Digital Mode
5. 1024 Storage Channel
6. Dual Time Slot, Tier I &II
7. Group Call/Private call
8. Dual Display
9. VOX Function
10. Frequency Step:2.5/5/6.25/10/12.5/20/25/k
11. Scan
12. 16 groups color code seletable
13. 2200mAh 7.4V 16.28Wh High Capacity Li-ion battery Pack
14. SMS message
15. Support manually programming and PC programming
16. High/Medium/Low Power seletable
17. Frequency/Channel Mode Selectable
Specifications:
General | |
Frequency Range | VHF:136-174MHz, UHF:400-470MHz (Dual Band) |
Memory Channel | 1024 |
Operating Voltage | DC 7.4V |
Frequency stability | ±1.0ppm |
Demission | 132*63*36mm (no including the antenna) |
Operating environment | -30℃-+60℃ |
Weight | Approach.250g(including the battery and antenna) |
Transmitter | |
Output power | High:5W Low:1W |
Adjacent channel power | ≤65dB ≤60dB |
Output consumption | Analog≤1.6A Digital≤0.9A |
Audio response | +1~3dB |
Standby current consumption | ≤0.18A |
Digital Protocol | ETSI-TS102 361-1,-2,-3 |
Modulation distortion | ≤5% |
Vocoder type | AMBE+2 TM |
FM/FM modulation: | 16K¢F3E,25KHz 141K¢F3E,20KHz 11K¢F3E,12.5KHz |
4FSK/4FSK digital modulation | 12.5KHz for data:7K60FXD 12.5KHz for data and voice:7K60FXE |
Signal-to-noise(wide/narrow) | ≥45dB,25KHz ≥40dB,12.5KHz |
Antenna Port Spurious | 9KHz-1GHz ≤-36dBm 1GHz-12.75GHz: ≤-30dBm |
Receiver | |
Analog receive sensitivity | -122dBm (12dB SINAD) |
Digital receive sensitivity | -122dBm (BER≤5%) |
Audio power | 1W |
Audio distortion | <10% |
Signal imitation | ≥70dB |
Audio response | +1~3dB |
Receive current | ≤380mA |
Intermediation(wide/narrow) | ≥62dB/≥58dB |
Adjacent channel selectivity | ≥65dB/≥60dB |
PM noise | ≥45dB,25KHz / ≥40dB,12.5KHz |

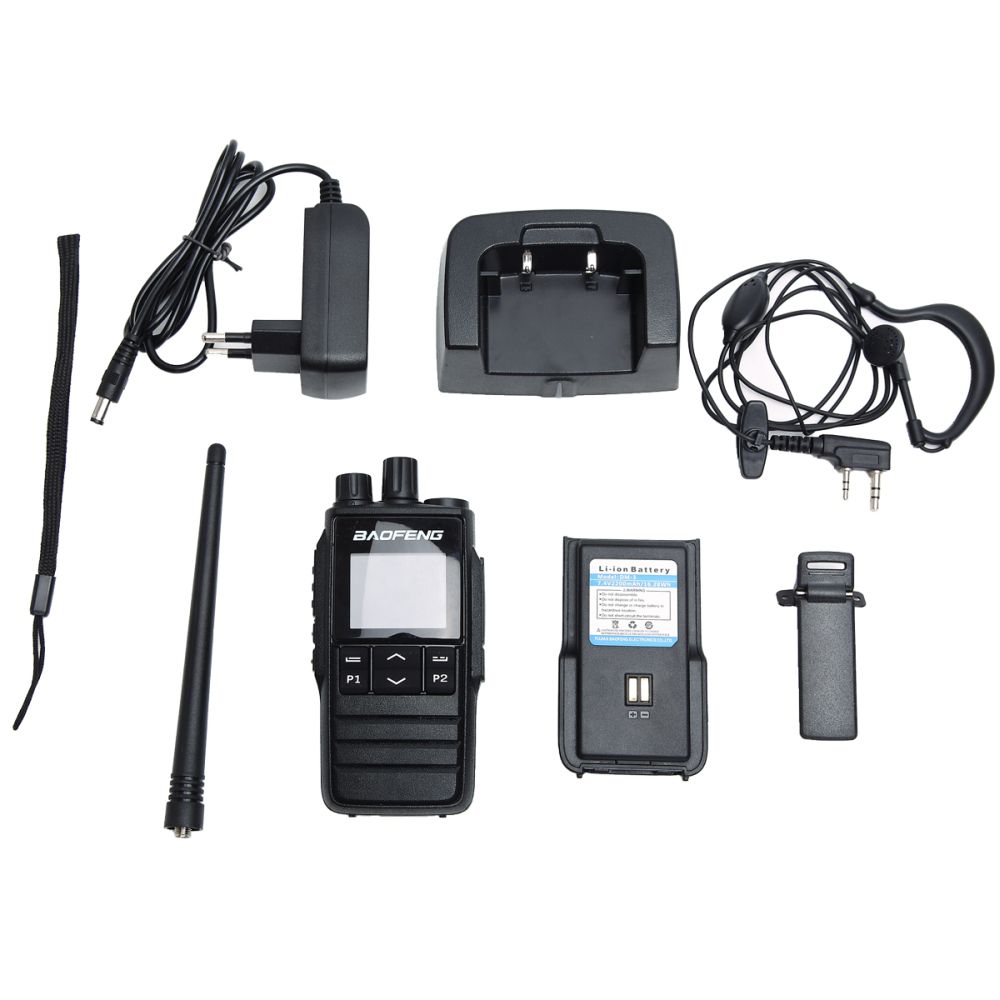

Package Contain:
1× BAOFENG DM-1703 Dual Band DMR Transceiver
1× 2200mAh Li-ion Battery Pack
1× Charger Unit with AC Adapter
1× Antenna
1× Hand Strap
1× Belt Clip
1× Earpiece
1× User Manual
