VHF/UHF
136-174MHz &220-260MHz & 400-480MHz &480-520mhz& FM: 65-108MHz
1.77 inch LCD Frequency Copy Two Way radio
UV-25L BF-X5 PRO Ham Radio
1. Speaker Volume Increased 2 Times
2. Radio steel face shell,more stronger, suitable for harsh scenarios, warrior/firefighting/earthquake rescue
3. Expand Channel Storage 999 Channels
4. FM radio

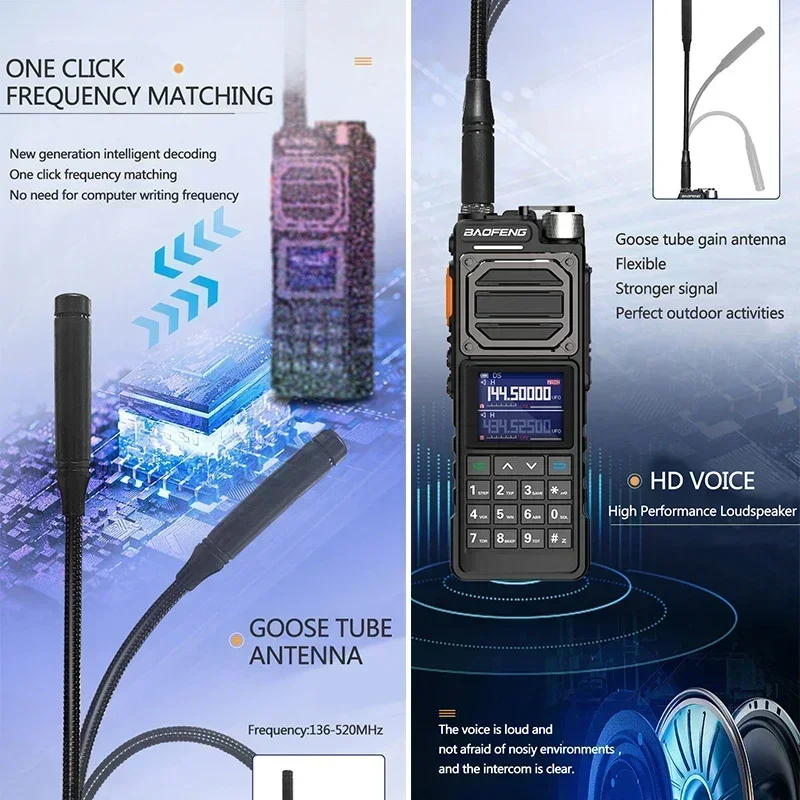

5. Wireless Copy Frequency
6. Larger Capacity,45 Days Standby
7. NOAA Weather Channel
8. 1.77 inch LCD Dispaly

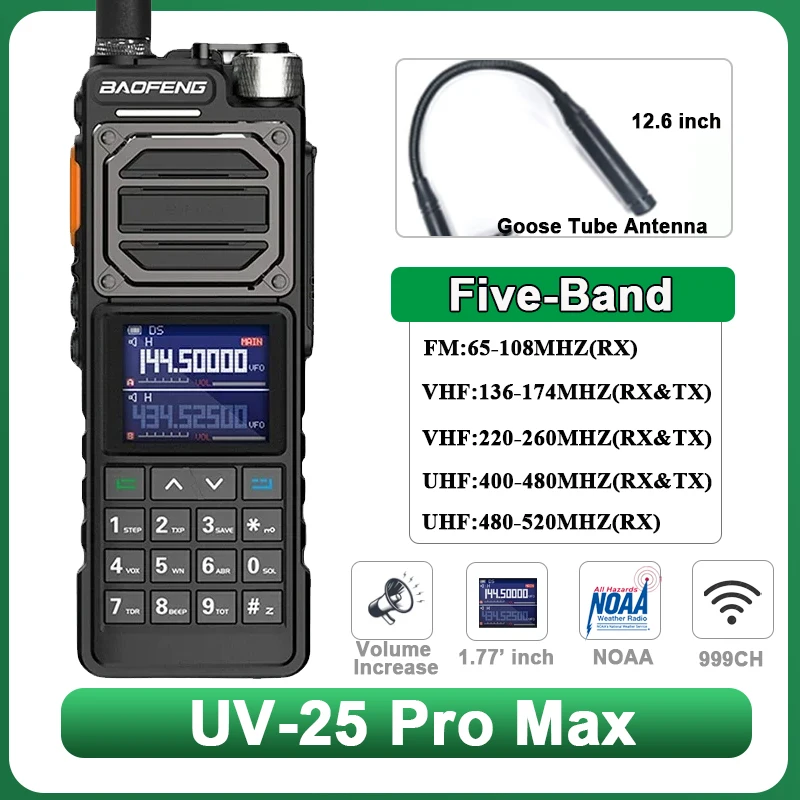

9. Five-Band
FM:65-108mHz(RX)
VHF:220-260mHz(TX&RX)
VHF:136-174mHz(TX&RX)
UHF:400-480mHz(TX&RX)
UHF:480mHz-520mHz(RX)
GENERAL
Channel Capacity:999
Channel Spacing:25.0 KHz/12.5 KHz
Input Voltage:7.4 VDC
Battery Life: 5% TX, 5% RX, 90% Standby
Li-ON: 10 hours @ 5 watts
Current Drain: Stand-by:45 mA
Receive: 200 mA
Transmit:1.6 A @ High Power,1 A @ Low Power
Operating temperature:-10˚C to 60˚C
Antenna Impedance:50Ω

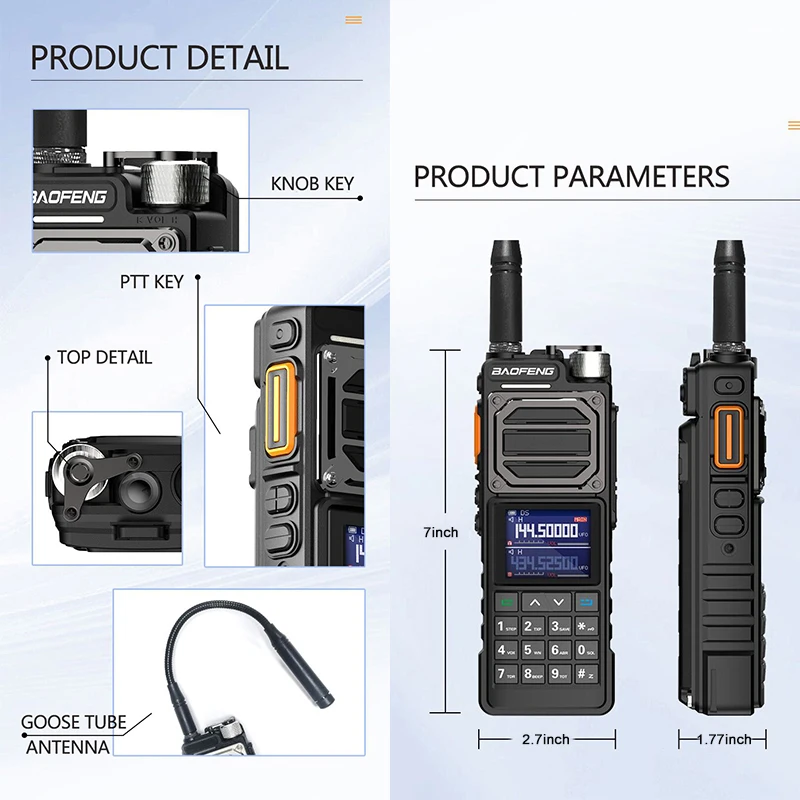

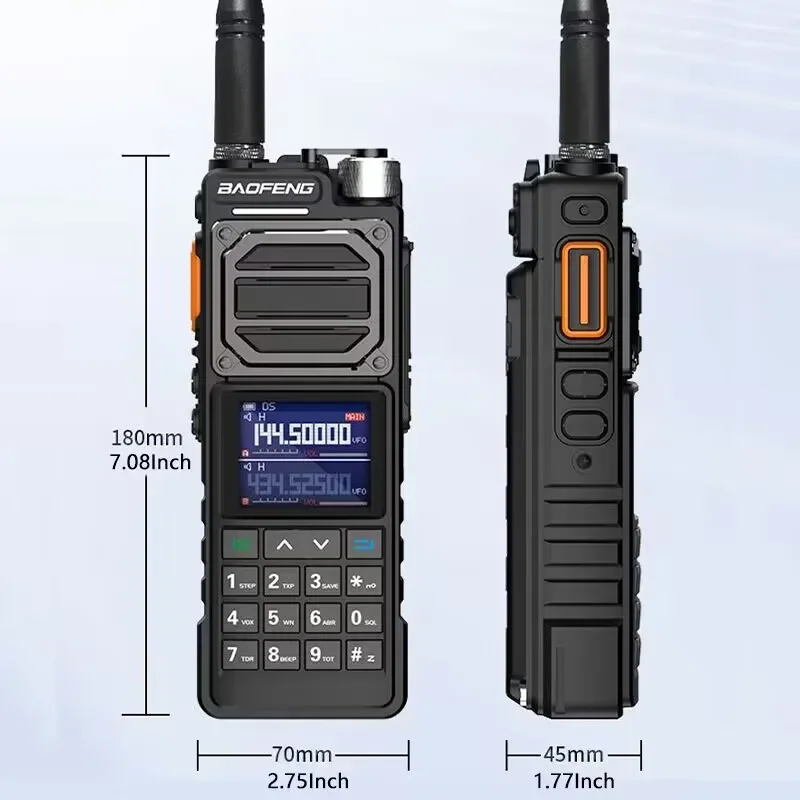

Radio Dimensions:170mm X 70mm X 45mm (not including antenna)
TRANSMITTER
Frequency Range (TX):136 – 174 MHz/220-260MHz/400 – 480 MHz
Modulation:16K0F3E/11K0F3E
Spurious and Harmonics:-36dBm<1GHz -30dBm>1GHz
Frequency Stability:±2.5 ppm
Audio Distortion:≤5%
FM Hum & Noise:40 dB
RECEIVER
Frequency Range:136 – 174 MHz/220-260MHz/400 – 520MHz/FM: 65-108MHz (RX)
Sensitivity: 12 dB Sinad-120 dBm
Adjacent Channel Selectivity:-60 dBm
Intermodulation and Rejection:-70 dBm
Rated Audio Power Output :0.75 Watts @ 16 Ohms
Rated Audio Distortion:≤5%

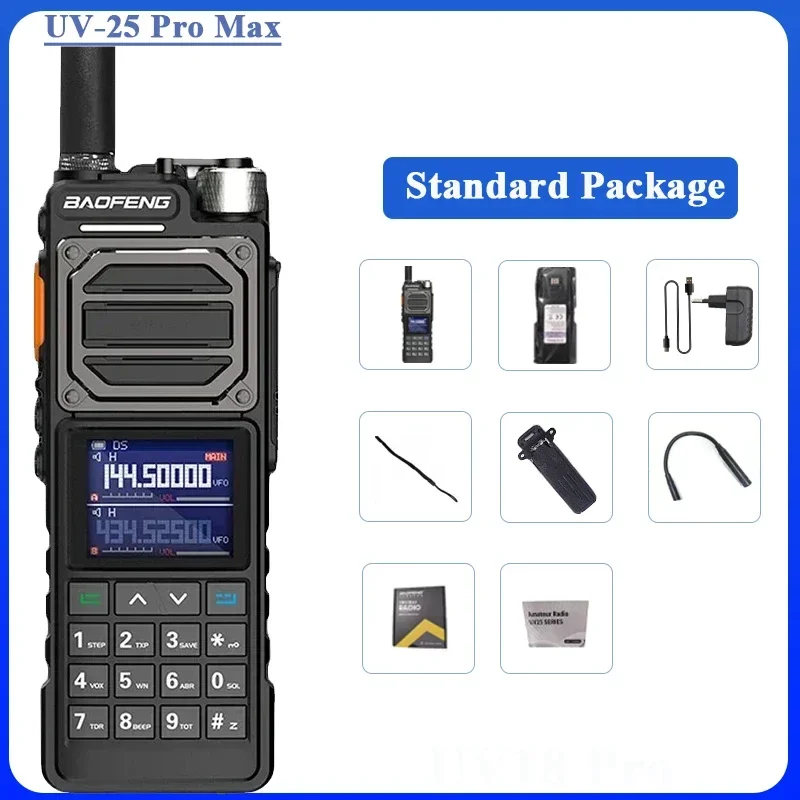

Package include:
1x Radio
1x Goose Tube Antenna
1x Li-ion Battery
1x Belt Clip
1x Type-C Charging Cable+Plug
1x User Manual
Note:We will send you the item of your choice. (Please check your selected carefully before placing your order)
