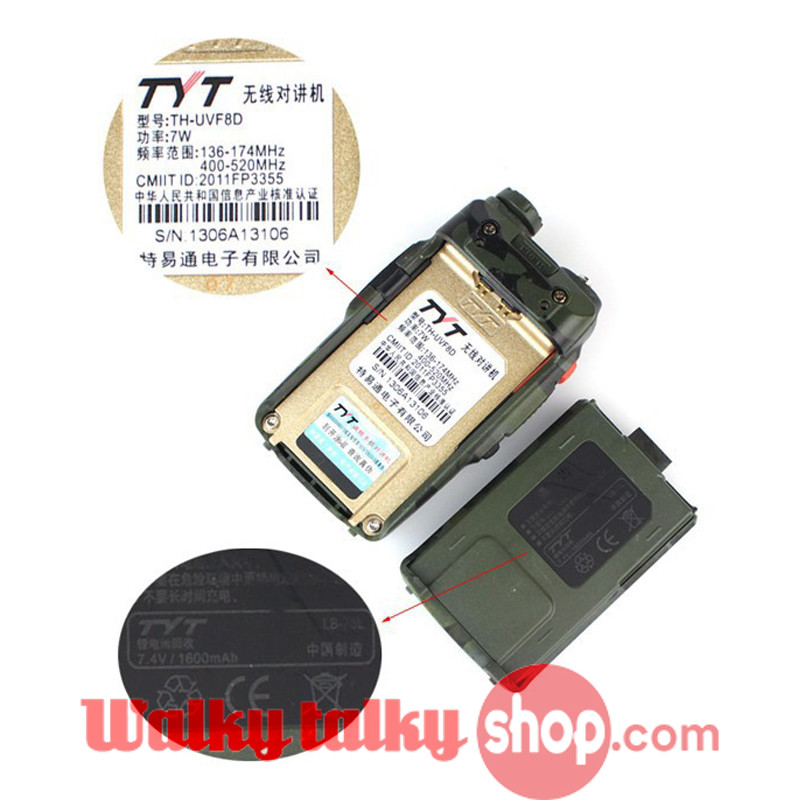

TYT TH-UVF8D Dual Band 2-way Radio
Features:
2 x 128 channels to store
FM radio receiver and 20 channels
Channel spacing selectable (25/12.5 kHz)
Handsfree VOX function
50 CTCSS tones and 210 DCS codes
Scan of frequencies with CTCSS/DCS
Low battery vocal indication
SOS emergency function
Shift repeater function
ANI Function
DTMF & Remote kill/stun function
Talkaround function
Reverse frequency function
Compander & 8 groups Scrambler
| Dual band, dual display, dual standby | A/B band independent operation |
| 8 groups Scrambler | COMP |
| Talkaround function | Multi-display mode |
| 128 groups channels storage | FM radio and 25 stations storage |
| Wide/Narrow Band(25kHz/12.5kHz) | 0~9 grades VOX selectable |
| Chinese/English voice prompt | CTCSS/DCS and scanning |
| 1750Hz tone | PTT & ANI ID |
| Priority transmit selectable | 0~9 grades squelch level setting |
| LED display mode | Keypad beeper setting |
| Transmit over beeper | Dual watch/monitor |
| Receive saving function | Auto keypad lock |
| Power-on display | Battery power voltage |
| Power-on message | Repeater offset function |
| Channel name display and setting | Reapter shift direction |
| VFO step function | Shortcut menu operation mode |
| Emergency Alarm | DTMF encoder & decoder |
| Remote skill/stun/activate(optional) | High/Low TX power selectable |
| Busy channel lock-out(BCLO) | Transmitter time-out timer(TOT) |
| Voice companding | Tri-color background light selectable |
| PC programmable | Wire clone |
Specifications:
| Item number | TH-UVF8D |
| General | |
| Frequency Range | 70-108MHz(FM Receive only)
136-174MHz 400-520MHz
|
| Channel No. | 128 |
| Frequency Stability | ±2.5ppm |
| Antenna | High gain antenna |
| Antenna Impedance | 50Ω |
| Operating Voltage | DC 7.2V |
| Mode of operation | Simple or semi-duplex |
| Dimension(W x H x D) | 110 x 58 x 32 mm |
| Weight | 250g(including battery, antenna) |
| Transmitter | |
| Output power | ≥4W(H) ≥0.5W(L) |
| Modulation Mode | 16kΦF3E / 11kΦF3E |
| Maximum deviation | <5kHz(Wide) / <2.5kHz(Narrow) |
| Spurious Radiation | <7μW |
| Adjacent Ch. power | ≤-65dB(Wide) / ≤-60dB(Narrow) |
| Pre-emphasis characteristics | 6dB |
| Current | ≤1.6A(5W) |
| CTCSS/DCS deviation | 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow) |
| Intermediation sensitivity | 8-12mv |
| Intermediation distortion | <10% |
| Receiver | |
| RF Sensitivity | -122dbm(12db SINAD) |
| Audio power | ≥0.5W |
| Audio Distortion | ≤10% |
| Intermediation | ≤-65dB(Wide) / ≤-60dB(Narrow) |
| Selectivity | ≤-65dB(Wide) / ≤-60dB(Narrow) |
| Spurious Rejection | ≤-65dB |
| Blocking | ≥85dBuv/m |
Package Including:
1 X TH-UVF8D 136-174MHz & 400-520MHz Dual Band Walkie Talkie
1 X 7.4V 1600mAh Battery Li-ion Battery Pack
1 X SMA-Male Radio Antenna
1 X 110V~260V Charger(EU/US/AU/UK Charger Adaptors available)
1 X Belt Clip
1 X Hand Strap
1 X Manual
