2PCS CB-40M ANYSECU Amateur Mini Mobie CB Radio 8W 25.615-30.105MHz 10M

Sale!

2PCS CB-40M ANYSECU Amateur Mini Mobie CB Radio 8W 25.615-30.105MHz 10M

Original price was: $179.00.Current price is: $109.00.

& Free Shipping

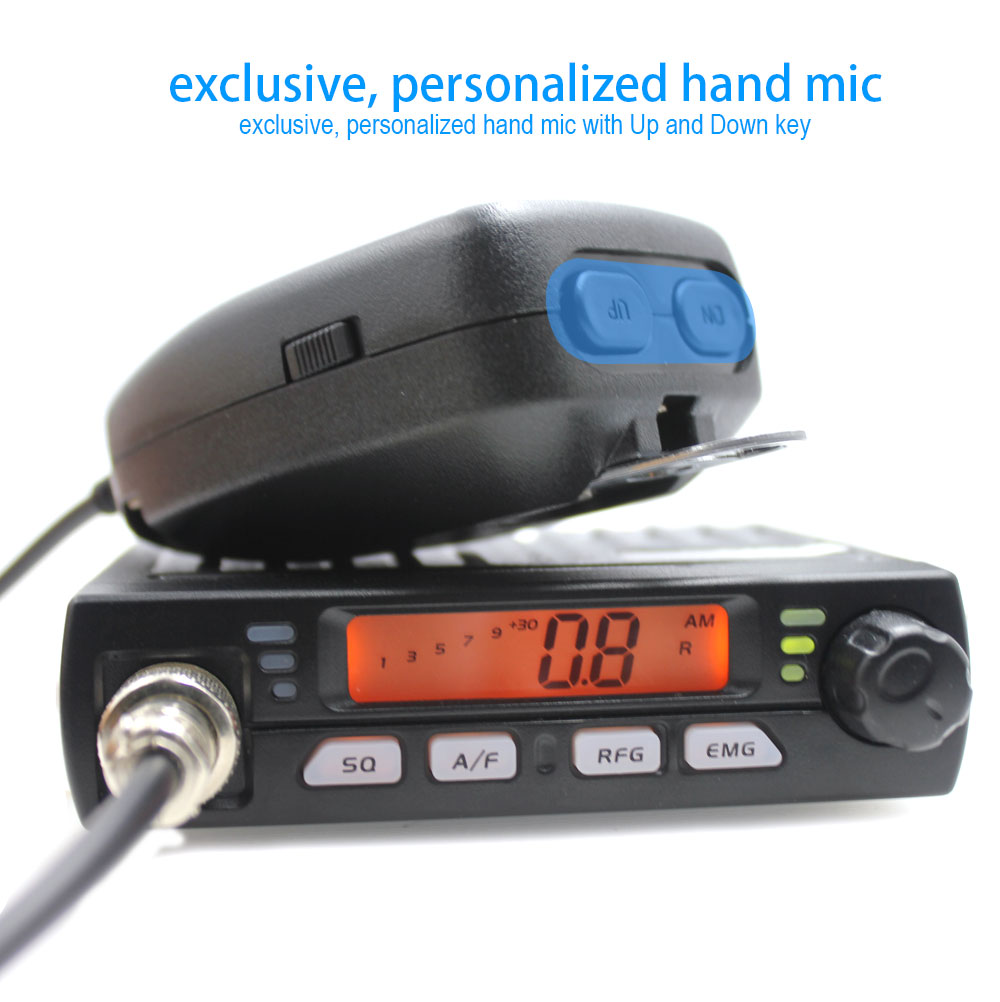

New ANYSECU Mini Mobie Radio CB-40M 25.615-30.105MHz 10M Amateur 8W AM/FM Citizen Band Radio AR-925

Note: this CB radio CB-40M can’t program

How to select frequency band
1. press A/F keys + turn on, LCD will show frequency band amount
2. press UP or DN, can to select you need the frequency band
3. Shut down again and boot

CB-40M CB Radio Main features:

  • 25.615–30.105MHz

*Mini and compact

* AM/FM mode switchable

* 9/19 emergency channel

* 10groups of channel for choose

* squelch

* ASQ control

* RF gain control

* keypad lock

* scan function

* High low power

* Reset function

* 40Ch fixed Can not program

CB-40M-F

CB-40M CB Radio features:

Specification

Brand Anysecu
Model CB-40M
Modulation Mode AM/FM
Frequency Range 25.615–30.105MHz
Emergency channel 9/19
Frequency Tolerance ±5.0ppm
Input Voltage 13.2 V
Dimensions 109x109x28mm
Weight 310g with power cable
Frequency Control PLL Synthesizer
Operating Temperature Range -20℃ – +50℃

Current Drain

Transmit 2A MAX
Receive Squelched 0.3A
VOL Max 0.8A
Antenna Connector UHF,S0239,M

Transmitter

Power Output L4/H8Watts FM/AM
Transmission interference inferior to 4nW(-54dBm)
Frequency Response 300-3000Hz
Modulated signal distortion inferior to 5%
Output Impedance 50 ohms

Receiver

Sensitivity Less than luV for 10dB (S+N)/N
Image Rejection 70dB
Adjacent Channel Rejection 60dB
IF Frequencies 1st 10.695MHz
2nd 455KHz
Automatic Gain Control(AGC) Less than 10dB change in audio
Output for inputs from 10 to 50000uV
Squelch less than luv
Audio Output Power 1 Watts
Frequency Response 300-3000Hz

Standard package:

2*ANYSECU CB-40M Radio;

2*Microphone;

2*bracket;

2*screw set

2*Manual in EN

Optional Matching Antenna:

Citizen Band Radio Antenna Mag-1345 Magnet Base High Gain PL259 4M Coaxial cable

Weight 0.8 kg
Dimensions 400 × 200 × 100 cm
Color

CB-40M(Blue Display), CB-40M(Orange Display)
