Diamond MX-72H HF Base Station Antenna Combiner Dual Band Duplexer

Sale!

Diamond MX-72H HF Base Station Antenna Combiner Dual Band Duplexer

Original price was: $115.00.Current price is: $75.99.

& Free Shipping

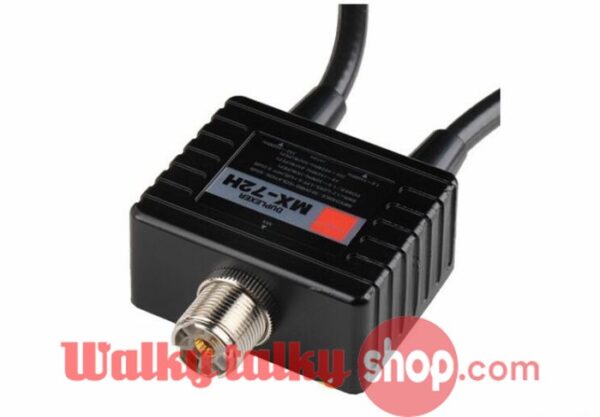

Diamond MX-72H HF Base Station Antenna Combiner Dual Band Duplexer

Diamond MX-72H Diamond VHF-UHF Duplexer
Diamond duplexer feature quality aluminum construction and black finish (not designed for outdoor use)
DUPLEXER WITH TWO OUTPUTS (OP-1 /OP-2) AND ONE INPUT:  SO-239 (1.6-460MHz)
OP-1: 1.6- 150MHz (PL-259)
OP-2: : 400-460MHz (pl-259)
MAX POWER: 400W (PEP)



Specification:

MX72H: HF 144/430MHz
Dimensions(mm):46 Wx25 Hx57 D
Weight:220g
Frequency:LPF/1.6 to 30MHz 49 to 150MHz,HPF/400 to 460MHz (LPF:1.6 to 225MHz,HPF:340 to 1000MHz receiving only)
Power rating:1.6 to 30MHz:400W(CW)/1kW(PEP),
49 to 150MHz:150W(CW)/400W(PEP),
400 to 460MHz:100W(CW)/250W(PEP)
Insertion loss:LPF/Less than 0.15dB,HPF/Less than 0.25dB
Isolation:LPF:More than 60dB
Impedance:50ohms / VSWR:Less than 1.2:1
Connector:(MIX)M-J/(144)M-P/(430)M-P
Coaxial cable:5D-2VS(35cm)
Package included:
1* Diamond MX-72H Combiner Duplexer
Weight 0.5 kg
Dimensions 100 × 100 × 100 cm
