Dual Band Diamond RH-771 Antenna SMA BNC For Icom Baofeng Kenwood


Dual Band Diamond RH-771 Antenna SMA BNC For Icom Baofeng Kenwood

Original price was: $32.00.Current price is: $17.00.

& Free Shipping

Diamond RH-771 Antenna Dual Band SMA-Female/Male/BNC For Handheld Radio Baofeng UV-5R UV-82 BF-888S

Diamond RH-771 Specifications:

  1.  RH-771 Frequency: 144 / 430 / (2m / 70cm)
  2. Gain (MAX): 2.15dBi( 144 MHz), 3.0 dBi( 430MHz)
  3. Max power: 10W
  4. V.S.W.R : Less 1.5
  5. Colour: Black
  6. Impedance: 50 OHM
  7. Length: 15 inch (38 cm)

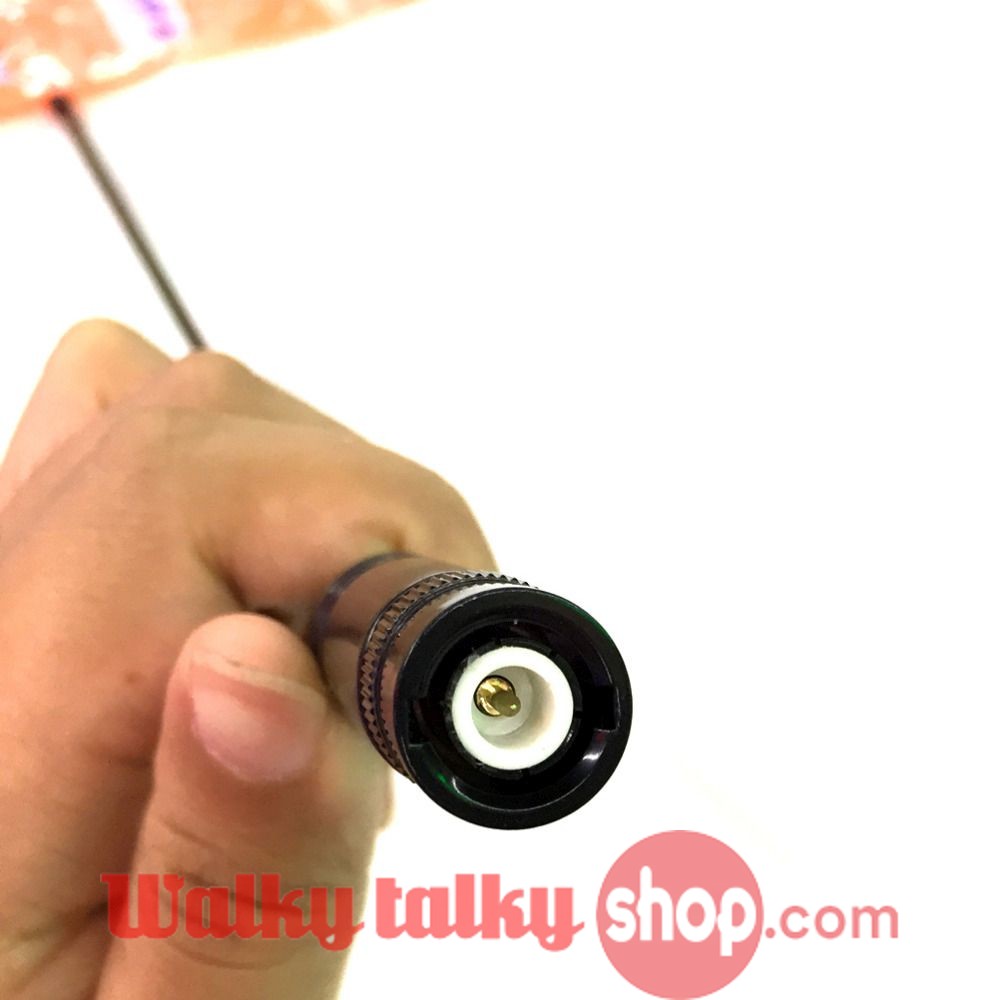

  8.  RH-771 Antenna Connector: SMA-Female/Male/BNC
  9. Weight: 42g

Diamond RH-771 Compatible with Two-way handheld radio:

Kenwood handheld Radio :      TK-240, TK-250, TK-255, TK-260, TK-260G, TK-270, TK-270G, TK-272G, TK-278, TK-278G, TK-340, TK-349, TK-350, TK-353, TK-360, TK-360G, TK-370, TK-370G, TK-373G, TK-378, TK-378G, TK-430, TK-431, TK-715, TK-2100, TK-2102, TK-2107, TK-2118, TK-2160, TK-3100, TK-3101, TK-3102, TK-3107, TK-3118, TK-3160 ..

LINTON handheld Radio : LT-2288, LT-3288, LT-6288, LT-5288, LT-3188, LT-2188, LT-3260, LT-2268, LT-3268, LT6188, LT3288…

PUXING handheld Radio:         PX-777, PX-777 PLUS, PX-666, PX-3288, PX-888, PX-888K ..

 HYT handheld Radio :   TC-268, TC-268S, TC-270, TC-270S….

WEIERWEI handheld Radio:   VEV-3288S,VEV-6288,VEV-3288, V-1000..

QUANSHENG handheld Radio: TG-K4AT, TG-2AT, TG-45AT, TG-42AT, TG-22AT, TG-25AT, TG-UV ..

WOUXUN handheld Radio: KG-UVD1P, KG-659, KG-669 , KG-669 PLUS, KG-679, KG-679 Plus, KG-689, KG-689 PLUS, KG-699EBAOFENG handheld Radio: UV-3R PLUS, UV-5R ..
HYT Radio:  TC-500, TC-600, TC-700KST Radio: KST V6…
Wanhua Radio

ICOM Radio:  for IC-V82 V85 V80 Ham Radio BNC Connector…

Package contains:

1X Diamond RH-771 (SMA-Female/Male/BNC)

Weight 0.7 kg
Dimensions 200 × 100 × 100 cm
Connector Type

SMA-Female, Male, BNC
