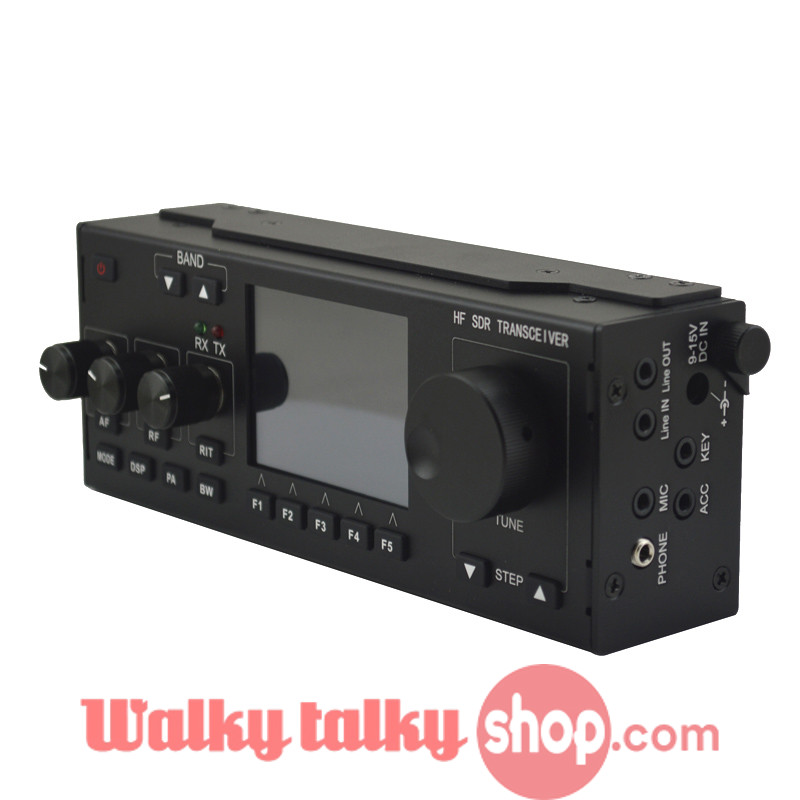

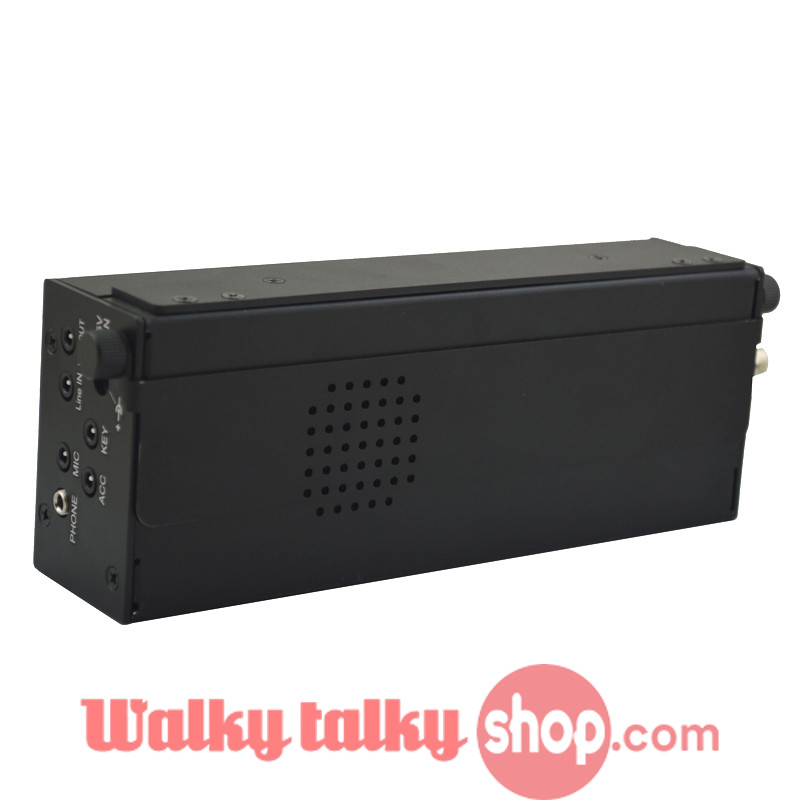

HF SDR HAM MOBILE TRANSCEIVER RECENT RS-918SSB 1.8-30MHZ AMATEUR VEHICLE MOBILE RADIO

Description



Main functions:

Spectrum Dynamic Waterfall Display

Multiple Working Modes: Receive Mode, Transmit Mode, TUNE Mode, VFO Mode, SPLIT Mode

DSP Digital Signal Processing Noise Reduction

Automatic Notch Filter

Humanized Interface Color Display

Receive Fine Tuning Function, Changeable MIC Gain Value

VCC Power Supply Voltage Indication Table

Transmit Signal Strength Display Table

Multifunctional Instrument: SWR Standing Wave Ratio Meter, AVD Audio Frequency Meter, ALC Signal Modulation Meter



Specification:

Frequency Range – RX:1.8-30MHz TX:All HAM HF BANDS

Operating Mode – SSB(J3E)，CW，AM(RX Only), FM, FREE-DV

TX Power – 5W (Standard, DC 13.8V) , 15W (Full,DC 13.8V)

Receiving Sensitivity – 0.11~0.89μV(RFC 50-20)

Minimum Frequency Step – 1Hz

Operating Voltage – DC9~15V

Antenna Impedance – 50Ω

Frequency Stability –  ±1.5PPM @ Power on 5 Minutes (Standard) ; ±0.5PPM if Optional TCXO Used

Product Dimension (W × H × D) – 215×74×62mm（Mounting Bracket Included）

Weight – 623g

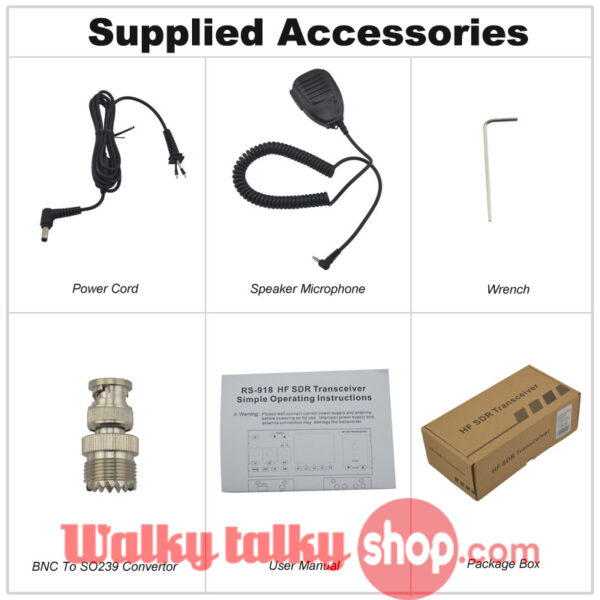

Standard Accessories:

RS-918SSB HF SDR Transceiver * 1

HM-918 Hand Microphone * 1

MB-918 Mounting Bracket * 1

PL-918 DC Power Cable * 1
