Hytera DMR HYT PD-365 Digital Walkie Talkie UHF 400-440MHz FM Handheld Transceiver

Feature:

Pocket-size design and easy to carry

Four programmable buttons

Micro USB port for easy charging

Radio more compact through creative antenna design

In digital mode, radio operates up to 12 hours using a duty cycle of 5-5-90

Dual mode ensures smooth migration from analogue to digital

Voice communication includes private, group and all call

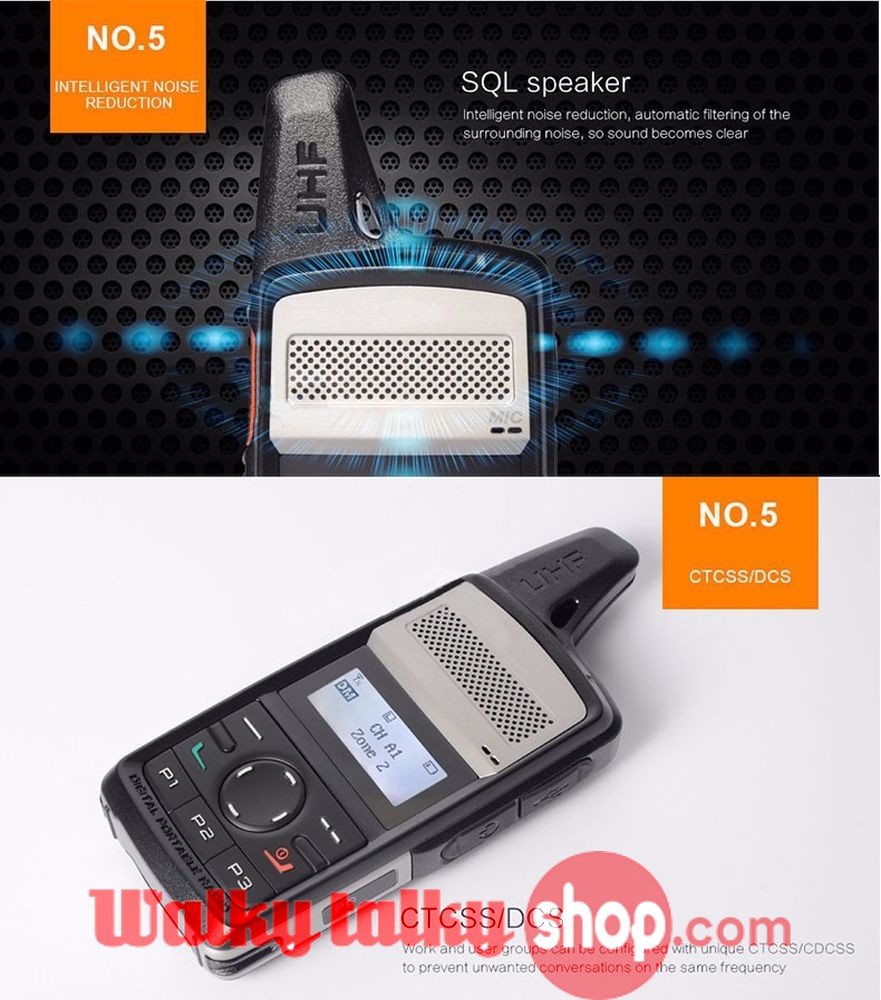

Work and user groups can be configured with unique CTCSS/CDCSS to prevent unwanted conversations on the same frequency

Radios can be enabled to continuously scan each analogue and digital channel

Supports messaging with up to 64 characters

Supports a one touch feature for pre-programmed text messages and voice calls

High quality speaker for clear audio

Cost-effective digital experience

General

Frequency Range：UHF  400-440MHz

Channel Capacity：256

Channel Spacing：25/12.5KHz

Zone Capacity：3

Operating Voltage：3.7

Battery (5-5-90 Duty Cycle, High TX Power)：2000mAh (Li-Ion)

Battery Life (5/5/90 )

Digital : approximately 12 hours;

Analogue: approximately 10 hours

Frequency Stability：0.5ppm

Antenna Impedance：50

Dimensions：106mm x 54mm x 23mm

Weight：160g

Transmitter

RF Power Output：UHF High 3W; UHF Low 1.5W

FM Modulation：11K0F3E @ 12.5KHz, 16K0F3E @ 25KHz

4FSK Digital Modulation：12.5kHz Data Only: 7K60FXD 12.5kHz Data & Voice: 7K60FXW

Conducted/Radiated Emission：-36dBm<1GHz -30dBm>1GHz

Modulation Limiting：2.5KHz @ 12.5KHz, 5.0KHz @ 25KHz

FM Noise：40dB @ 12.5KHz, 45dB @ 25KHz

Adjacent Channel Power：60dB @ 12.5KHz 70dB @ 25KHz

Audio Response：+1 ~ -3dB

Audio Distortion：≤3%

Digital Vocoder Type：AMBE++

Digital Protocol：ETSI-TS102 361-1,2&3

Receiver

Sensitivity

Analog：0.22μV (12dB SINAD) 0.22μV (Typical) (12dB SINAD) 0.4μV (20dB SINAD)

Digital：0.22μV /BER5%

Adjacent Selectivity

TIA-603：60dB @ 12.5KHz / 70dB @ 25KHz

ETSI：60dB @ 12.5KHz / 70dB @ 25KHz

Spurious Response Rejection

TIA-603：70dB @ 12.5/25KHz

ETSI：70dB @ 12.5/25KHz

Inter-modulation

TIA-603：70dB @ 12.5/25KHz

ETSI：65dB @ 12.5/25KHz

Hum & Noise ：40dB @ 12.5KHz, 45dB @ 25KHz

Rated Audio Power Output：0.4W

Rated Audio Distortion：<5%

Audio Response：+1 ~ -3dB

Conducted Spurious Emission：< -57dBm

Environmental Specifications

Operating Temperature：-30 ~ +60

Storage Temperature：-40 ~ +85

ESD：IEC 61000-4-2 (level 4) 8kV (contact) 15kV (air)

Dust & Water Intrusion：IP54 Standard

Humidity：Per MIL-STD-810 C/D/E/F/G Standard

Shock & Vibration：Per MIL-STD-810 C/D/E/F/G Standard

Package Contain:

1 x UHF 400-440MHz radio

1 x UHF 400-440MHz Antenna

1 x Li-ion battery pack

1 x Li-ion charger

1 x Belt clip

1 x Holding cable

1 x User’s manual EN
