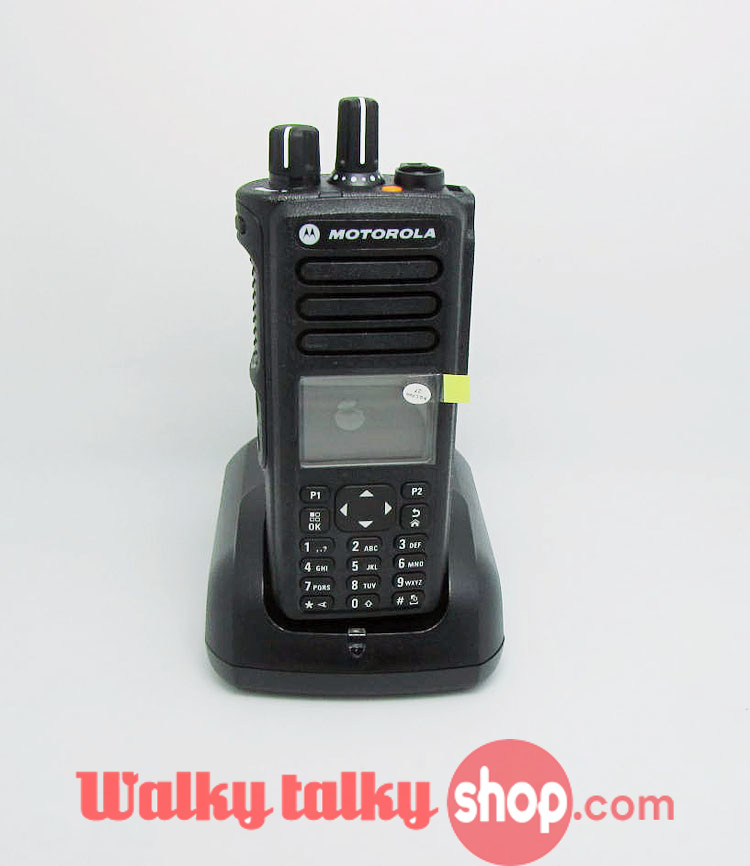

Motorola Digital Walkie Talkie Phone XIR P8668 UHF VHF Free Shipping
Class audio
Front loud speaker and intelligent audio feature that automatically adjust the intercom volume according to ambient noise levels
Super big color LED
Five full-color display for easy viewing contact lists, text messages and work orders, large icons and navigation keys are easy to read and use.
Day or night display mode
Display mode can be day or night , even at night can easily read
Integrated GPS
Use the integrated GPS to find the location of a mobile workforce
Bluetooth data
The intercom is connected to a Bluetooth-enabled devices to real-time data sharing of information
Increased productivity application data
SMS
When the need for wireless communication without interfering with staff or guests , you can send pre-programmed feature updates via SMS messages to team members
Capacity Plus
MOTOTRBO systems can maximize the capacity of a single-site digital trunking system . Through this system, you do not need to add new frequencies to make the site more than a thousand users to rely on a single high-density voice and data communications
Embedded Bluetooth Audio *
Embedded in the transceiver , connect using wireless accessories , such as Motorola designed to achieve a stable and reliable communication and to build critical operating wireless headphones
IP Site Connect
The digital solutions can use the Internet to expand MOTOTRBO voice and data capabilities . With this solution, you may be distributed in up to 15 sites across the communication link together to form a large area coverage , or to enhance the degree of physical barriers covered with a single site
Durable Design
Seal design that can withstand rigorous moisture and dust invasion, immersed in one meter of water for 30 minutes without water (IP57).
Enhanced privacy protection
Built-in encryption features to enhance security
Emergency Button
Walkie-talkie at the top of the orange button can be programmed to send an alert to your supervisor or dispatcher in an emergency situation
Transmission interruption
Users can interrupt another radio call, in order to accurately transmit critical communications when necessary.
| Specifications | |
| GENERAL SPECIFICATIONS | |
| Channel Capacity | 1000 |
| Frequency | 136-174 MHz 403-527 MHz |
| Dimensions (HxWxL) | with NiMH Battery 1400Mah 130.3 x 55.2 x 38.7 mm |
| IMPRES Li-ion Slim (1600mAh) battery 130.3 x 55.2 x 35.8 mm | |
| IMPRES Hi-Cap Li-ion (2250 mAh) battery 130.3 x 55.2 x 41.1 mm | |
| IMPRES Hi-Cap Li-ion FM (2350 mAh) battery 130.3 x 55.2 x 41.1 mm | |
| Weight with battery: | with NiMH Battery 1400Mah 425.5 g (15.01 oz) |
| IMPRES Li-ion Slim (1600mAh) battery 335.5 g (11.83 oz) | |
| IMPRES Hi-Cap Li-ion (2250 mAh) battery 355.5 g (12.54 oz) | |
| IMPRES Hi-Cap Li-ion FM (2350 mAh) battery 365.5 g (12.89 oz) | |
| Power Supply | 7.5 V (Nominal) |
| Average battery life at 5/5/90 duty cycle with battery saver enabled in carrier squelch and transmitter in high power | |
| IMPRES LiIon Std Battery | Analogue: 8 hrs/Digital: 11.8 hrs |
| IMPRES LiIon HiCap Battery | Analogue: 11.5 hrs/Digital: 17 hrs |
| IMPRES FM LiIon Battery | Analogue: 12.3 hrs/Digital: 18.1 hrs |
| NiMH Battery | Analogue: 7 hrs/ Digital: 10.2 hrs |
| RECEIVER | |
| Frequency | 136-174 MHz;403-527 MHz |
| Channel Spacing | 12.5 kHz/ 20/25 kHz |
| Frequency Stability | +/- 0.5 ppm |
| Analogue Sensitivity | 0.30 uV (12 dB SINAD);0.22 uV (typical) (12 dB SINAD); 0.4 uV (20 dB SINAD) |
| Digital Sensitivity | 5% BER: 0.3 uV |
| Intermodulation | 70 dB |
| Adjacent Channel Selectivity | 60 dB @ 12.5 kHz,;70 dB @ 20/25 kHz |
| Spurious Rejection | 70 dB |
| Rated Audio | 500 mW |
| Audio Distortion @ Rated Audio | 3% (typical) |
| Hum and Noise | -40 dB @ 12.5 kHz; -45 dB @ 20/25 kHz |
| Audio Response | +1, -3 dB |
| Conducted Spurious Emission | -57 dBm |
| TRANSMITTER | |
| Frequency | 136-174 MHz;403-512 MHz |
| Channel Spacing | 12.5 kHz/ 20/25 kHz |
| Frequency Stability | +/- 1.5 ppm (DP3600) |
| Power Output | |
| UHF | 1-5 W |
| VHF | 1-4W |
| Modulation Limiting | +/- 2.5 kHz @ 12.5 kHz |
| +/- 4 kHz @ 20 kHz | |
| +/- 5.0 kHz @ 25 kHz | |
| FM Hum and Noise | -40 dB @ 12.5 kHz; A41-45 dB @ 20/25 kHz |
| Conducted / Radiated Emission | -36 dBm < 1 GHz;-30 dBm > 1 GHz |
| Adjacent Channel Power | -60 dB @ 12.5 kHz;-70 dB @ 20/25 kHz |
| Audio Response | +1, -3 dB |
| Audio Distortion | 3% |
| Digital Vocoder Type | AMBE+2 |
| Digital Protocol | ETSI-TS 102 361-1, 2 & 3 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -30° C / +60° C |
| Storage Temperature | -40° C / +85° C |
| Temperature Shock | Per MIL-STD |
| Humidity | Per MIL-STD |
| Water and Dust Intrusion | IP57, MIL-STD |
| GPS | |
| Accuracy specs are for long-term tracking (95th percentile values > 5 satellites visible at a nominal -130 dBm signal strength) | |
| TTFF (Time To First Fix) Cold Start | < 2 minutes |
| TTFF (Time To First Fix) Hot Start | < 10 seconds |
| Horizontal Accuracy | < 10 meters |
| Bluetooth | |
| Version | Supports Bluetooth? 2.1 + EDR Specification |
| Profiles Supported | Bluetooth Headset Profile (HSP), Serial Port Profile
(SPP), Motorola fast push-to-talk. |
| Devices Supported | Radio supports 1 Bluetooth audio accessory and 1
Bluetooth data device simultaneously |
| Range | Class 2, 10 metres |
