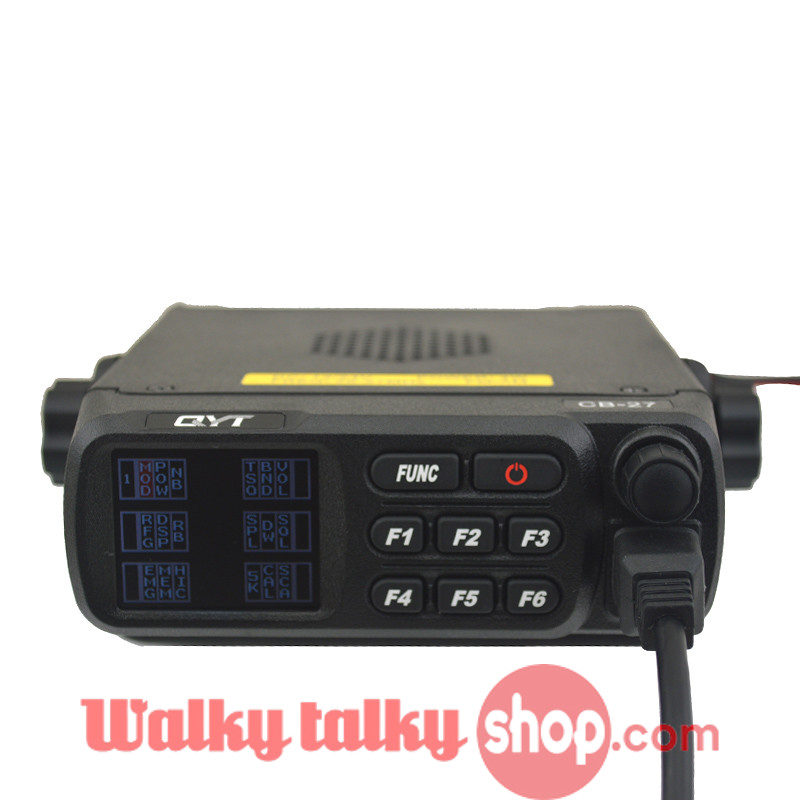

QYT CB-27 CB Mobile Car Radio

All European Norms Mobile/In-Vehicle CB Mobile Radio

CE Cetification 0700

FUNCTIONS & FEATURES

FTF LCD display

12/24V voltage

Full alloy body for heat radiation

Programmable keypad

CTCSS/DCS (Optional)

Wireless microphone control (optional)

Cell-phone APP control (optional)

AM/FM multi norms

Flexible menu and programming software

DTMF

SQ,ASQ

SQ,ASQ open/close value setting

RF Gain

Scan

Dual watch

Programmable RB

CH9/19

NB/ANL

HI-CUT

Voltage protection

9 memory channel

TOT

Backlight control

Automatic power on

Keypad lock



SPECIFICATIONS

GENERAL
Modulation Mode		AM/FM
Frequency Range		26.965-27.405MHz
Frequency Tolerance		±5.0ppm
Input Voltage		12/24V
Dimensions (mm)		123(W) x 158(D) x 44(H)
Weight		Approx.660g
Frequency Control		PLL Synthesizer
Operating Temperature Range		-20°c ~ +55°c
Current Drain	Transmit	2A Max
	Receiver	Squelched 0.3A
	VOL Max	0.8A
Antenna Conector		UHF,SO-239
TRANSMITTER
Output Power		4Watt FM/AM
Transmission interference		Inferior to 4nW(-54dBm)
Frequency Response		300-3000Hz
Modulated signal distortion		Inferior to 5%
Output Impedance		50 ohm
RECEIVER
Sensitivity		Less than 1uV for 10dB(S+N)/N
Image rejection		70dB
Adjacent channel rejection		60dB
IF Frequency		1st 10.695MHz
		2nd 455KHz
Automatic Gain Control (AGC)		Less than 10dB change in audio
		Output for inputs from 10 to 50000uV
Squelch		Less than 1uV
Audio Output Power		3 watt into 8ohm
Frequency Response		300-3000Hz

Package Contains:

1 x CB-27 CB band Mobile Transceiver body

1 x Speaker Microphone

1 x Plastic Bracket

1 x Fuse

2 x Fixing Screw sets

1 x ENG USERS’ Manual
