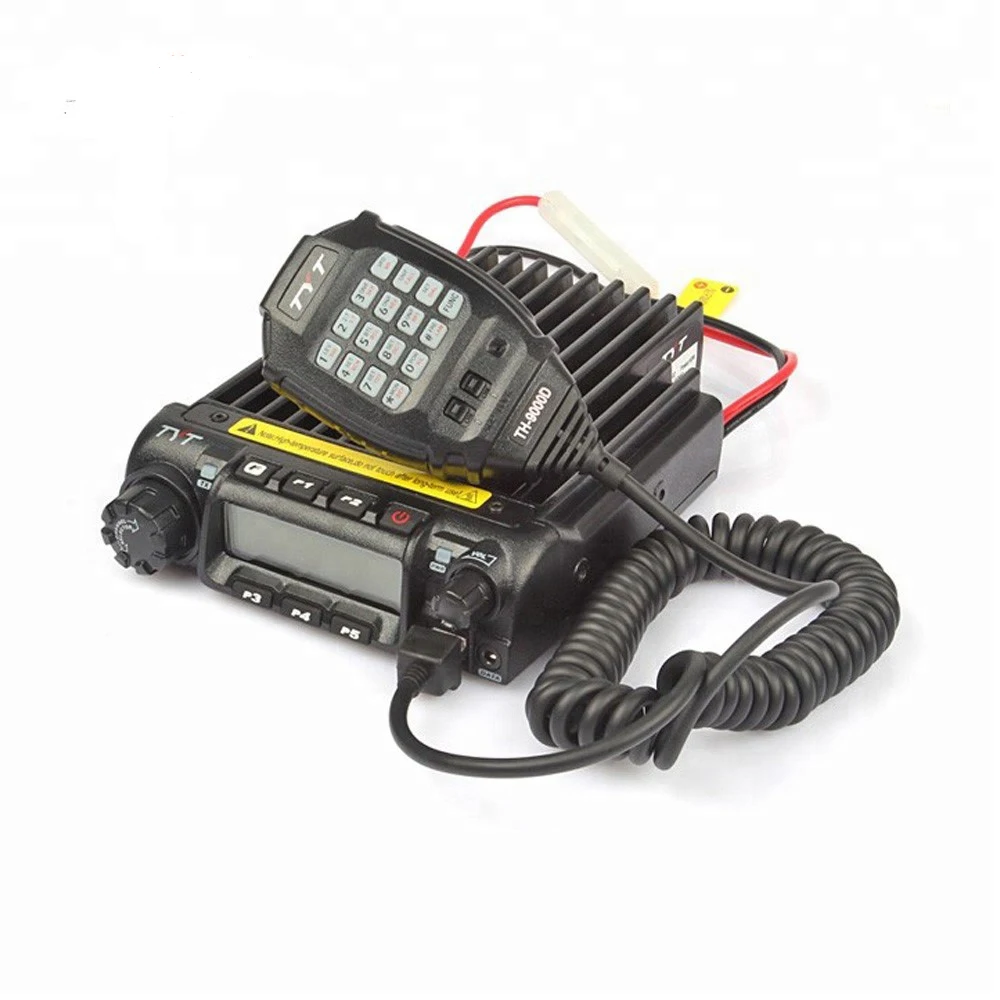

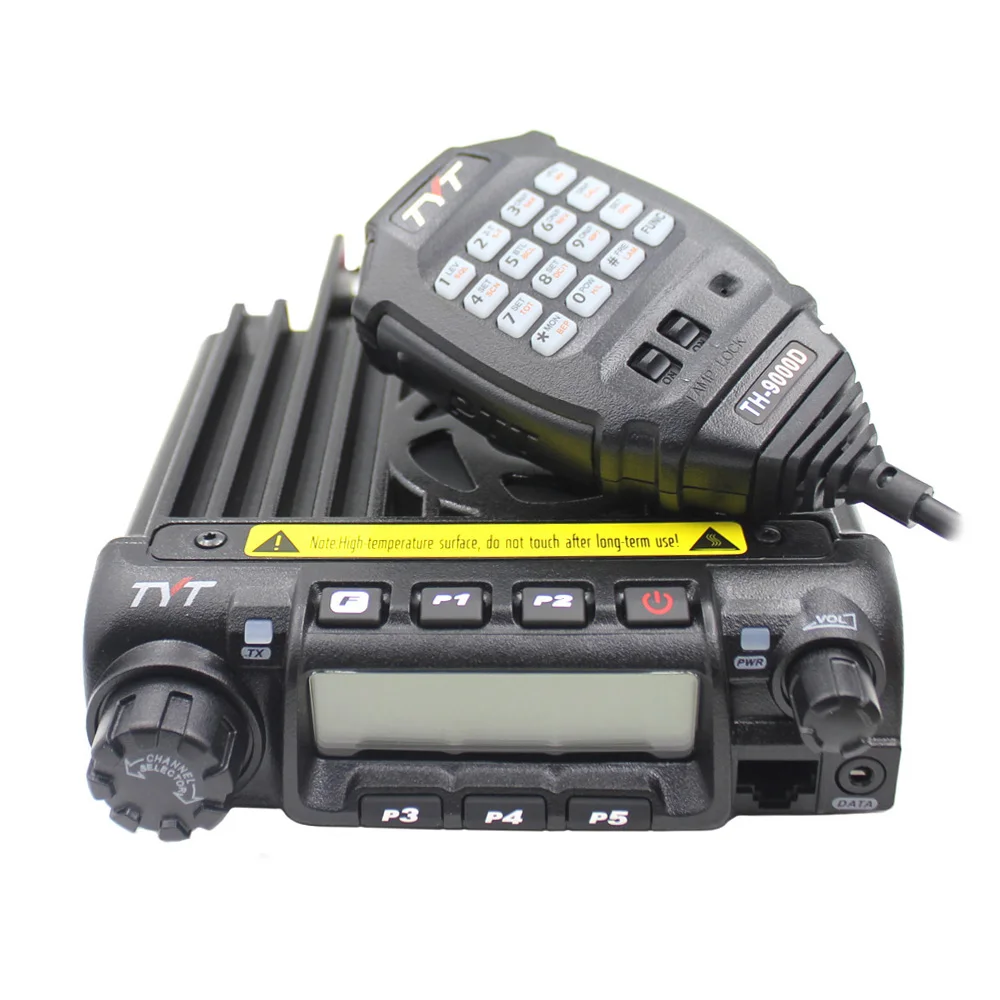

TYT TH-9000D PLUS 65W 200CHS SINGLE BAND Car RADIO

Sale!

TYT TH-9000D PLUS 65W 200CHS SINGLE BAND Car RADIO

$140.53$145.70

& Free Shipping

TYT  TH-9000D PLUS  65W 200 Channels SINGLE BAND RADIO  136-174Mhz or 220-260Mhz or 400-490 MHz

Main Features:

Functions:

Frequency Range: 136-174MHz or 220-260MHz or 400-490MHz

– Output Power: VHF: 10W/25W/65W UHF: 45W/25W/10W

– 8 Group’s of Scrambler

– 1750Hz Tone CTCSS/DCS setting & scanning

– 0-9 SQL grade setting

– Frequency/Channel scanning

– High/Mid/Low power selectable

– Voice commander

– Repeater offset shift

– Keypad lock function

– Contact book

– Battery voltage display

– DTMF/2 tone/5 tone

– ANI ID

– Remote kill/ stun/ activate/ revive

– Emergency alarm

– Wide/Narrow band setting

– TX inhibit

– Busy Channel Lock-Out

– Channel name editing

– Reverse frequency

– Talk around

– Scrambler(Optional)

– Voice prompt

– Time-out Timer

– Auto Power off

– VFO step setting:5/6.25/10/12.5/20/25/50kHz

Specification:

General:

Frequenvy Range: 136-174/245-246/400-490MHz

Channel Capacity: 200

Channel Spacing: 5/6.25/8.33/10/12.5/15/20/25/30/50KHz

Freruency Stability: 2.5ppm

Operating Temperature: -20℃ ~ + 60℃

Operating Voltage: 13.8V DC ± 15%

Dimension(HxWxD): 145mm x190mm x47mm

Weight(with bracket): 1200g

Receiver:

Reference Sensitivity: 0.2μV @ 12dB SINAD

Operating Bandwidth: 60dB@12.5KHz /70dB@25KHz

Adjacent Channel Selectivity: 60dB@12.5KHz 70dB@25KHz

Inter-modulation Rejection: ≥60dB/ ≥65dB

Spurious Response Rejection: ≥70dB

Rated Audio Response: +1-+3dB

Rated Audio Distortion: <5%

FM Hum&Noise: ≥40dB@25KHz /≥45KHz @12.5KHz

Transmitter:

RF Power: 45W/25W/10W (UHF)/60W/25W/10W (VHF)

Frequency Modulation: 11kΦF3E / 16kΦF3E

Modulation Distortion :< 5% FM Noise: ≥36dB@25KHz /≥40KHz @12.5KHz

Adjacent Channel Power: ≥60dB@12.5KHz /≥70KHz @25KHz

Audio Response: +1-+3dB

Audio Distortion: <5%

Weight 1.5 kg
Dimensions 500 × 400 × 180 cm
