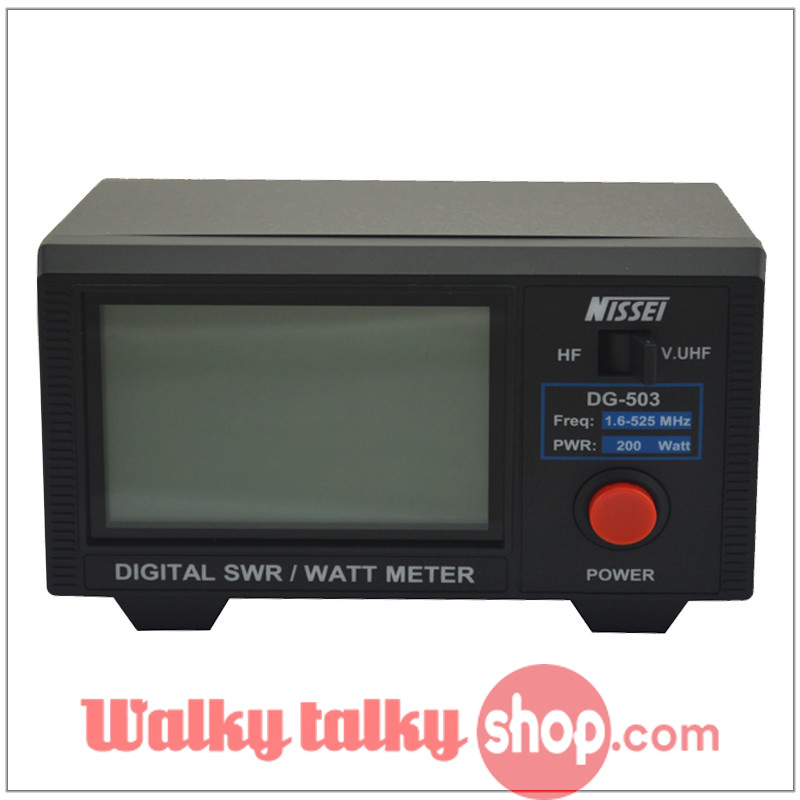

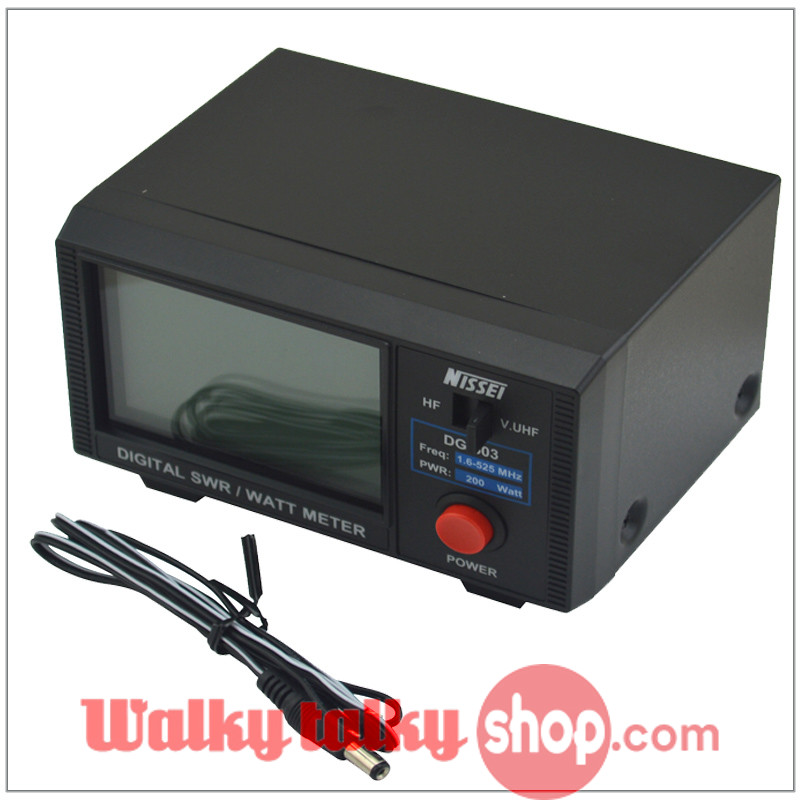

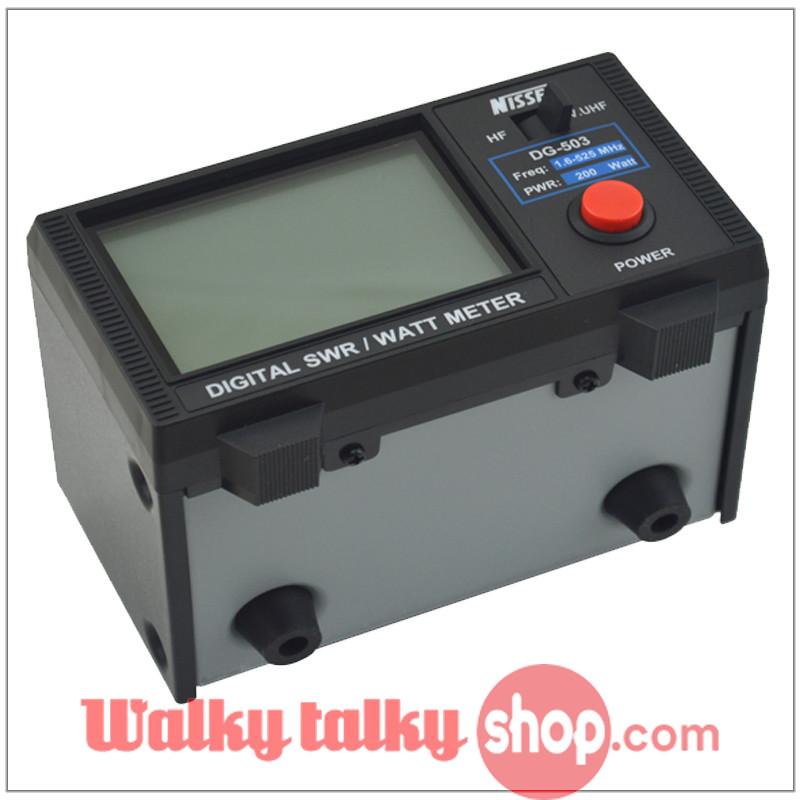

Nissei DG-503 Digital SWR & Watt Meter
Introduction:
This digital SWR/Watt meter is highly accurate for measuring Forward Power, Reflected Power, and VSWR.
DG – 503 digital type standing wave ratio table is 2017 latest, especially designed for the amateur radio design.
Large 3.5 “LCD display,easy and convenient to use,operation can be showed at the same time [progressive wave] [by] the reflection (SWR) accurate read value, it is the most distinctive feature of the product.
Main Features:
- Large LCD (3.5″) display for easy of reading
- Forward/Reflected power/VSWR Ratio in one push button
- LCD Backligh display
- Convenient control layout for easy operation
- Packing gift box and DC 12V Wire
Specifications:
| Model | DG-503 |
| Frequency Range | 1.6-60MHz/125-525MHz |
| Caibration point | 14MHz/50MHz/145MHz/435MHz |
| Power Range | 0-200W |
| Accuracy | (±5%) |
| Minimum Power of SWR | 1W |

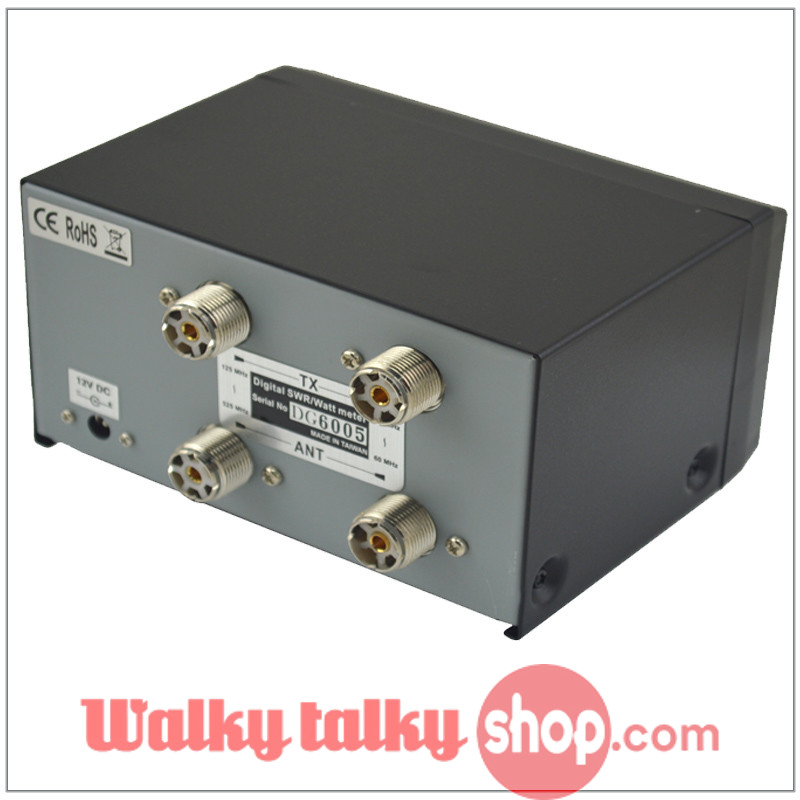

| Input/Output Connector | SO239 |
| Weight (Net) | 750g |
| Insertion Loss | Less than 0.1dB |
| Testing Function | Fwd/ref Power & VSWR ratio |
| Input/Output Impedance | 50ohm |
| Dimension (W/H/D)mm | 140 ×84 ×122 |
| Accessories | Operation Manual,12V DC wire |
Package Contains:
1×DG-503 Digtial SWR/Watt Meter
1× Operation Manual
1× 12V DC wire
