Baofeng DM-1701 Dual Band DMR Portable Digital Two Way Radio

Baofeng new UHF VHF Dual Band DMR Radio DMO True 2-slot with AMBE+2TM technology 136-174/400-480Mhz ham amateur radio

Features:

Specifications:

1.Wide band intercom

Supports UV dual-band, frequency range UHF 400.000- 480.000MHz/VHF 136.000-174.000MHz

2.DMO True2-Slot dual slots

3.Digital-analog compatible, smooth over

4.Digital signaling function

5.SMS function

6.High fidelity quality

7.Manual Programmable

8.High and low power selection

9.CTCSS/CDCSS and tail cancellation

10.Alarm function

11.Digital mode supports the use of relays

Side key custom settings, do not change the user’s operating habits on the machine

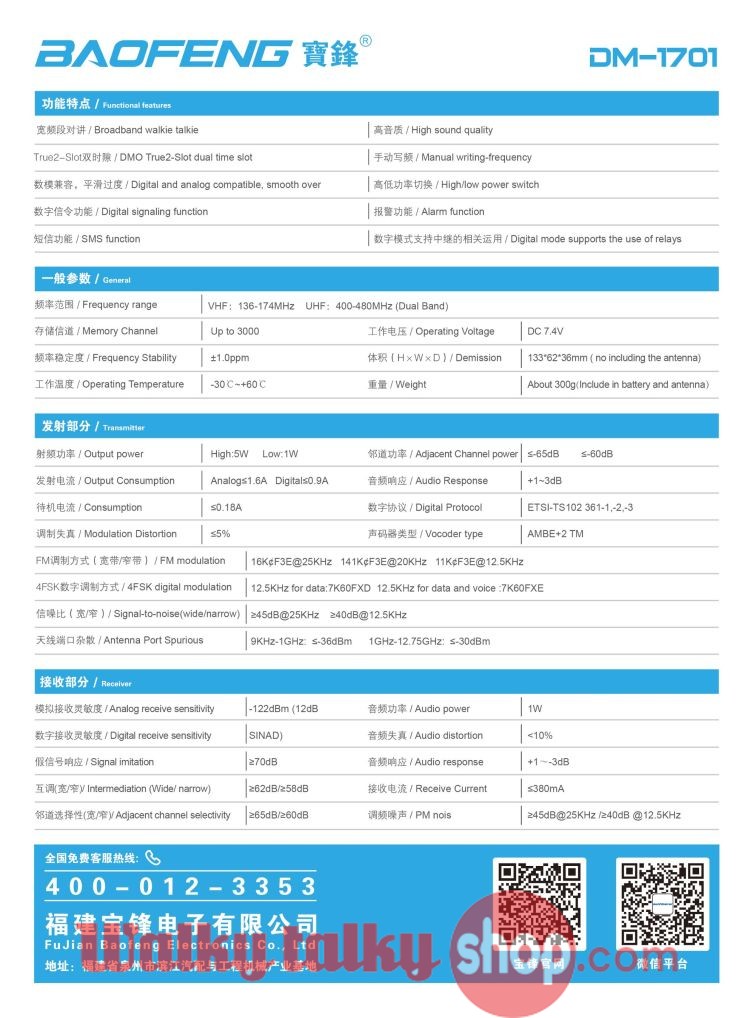

Specifications:

Frequency Range:	VHF:136-174MHz /UHF:400-480MHz (Dual Band)
Storage Channel	3000
Frequency Stability	±1.0ppm
Work Temperature	-30ºC-+60ºC
Rated Voltage	DC7.4V
Dimension(H×W×D)	133×62×36mm (not including Antenna)
weight

Transmitter:

Output Power	High:5W    Low:1W
Emission Current	ANALOGUE≤1.6A   Digit≤0.9A
Standby Current	≤0.18A
FM Modulation Mode(W/N Band)	16K¢F3E 25KHz   141K¢F3E 20KHz   11K¢F3E 12.5KHz
4FSK Digital modulation mode	12.5KHz Date:7K60FXD           12.5KHz Data and voice:7K60FXE
Audio Distortion	<5%
SNR (wide / narrow)	≥45dB 25KHz    ≥40dB 12.5KHz
Adjacent Channel Power	≤-65dB        ≤-60dB
Acoustic Frequency Response	+1~-3dB
Antenna Port Stray	9KHz-1GHz:  ≤-36dBm      1GHz-12.75GHz:  ≤-30dBm
Digital Protocol	ETSI-TS102 361-1, -2, -3
Voice Coder Type	AMBE+2 TM

Receiver

Analogue receive Sensitivity	-122dBm (12dB SINAD)
Digit  receive Sensitivity	-120dBm (BER≤5%)
Audio Power	1W
Audio Distortion	<10%
Acoustic Frequency Response	+1~-3dB
Spurious Response	≥70dB
Inter modulation (width / narrow)	≥62dB/≥58dB
Adjacent channel selectivity (wide / narrow)	≥65dB/≥60dB
Receive Current	≤380mA
FM Noise	≥45dB 25KHz /≥40dB 12.5KHz

Package Contain

• 1x Baofeng DM-1701 Dual Band Radio
• 1x Radio Battery
• 1x Belt Clip
• 1x Antenna
• 1x Charger
• 1x synopsis
• 1x PTT Headset
