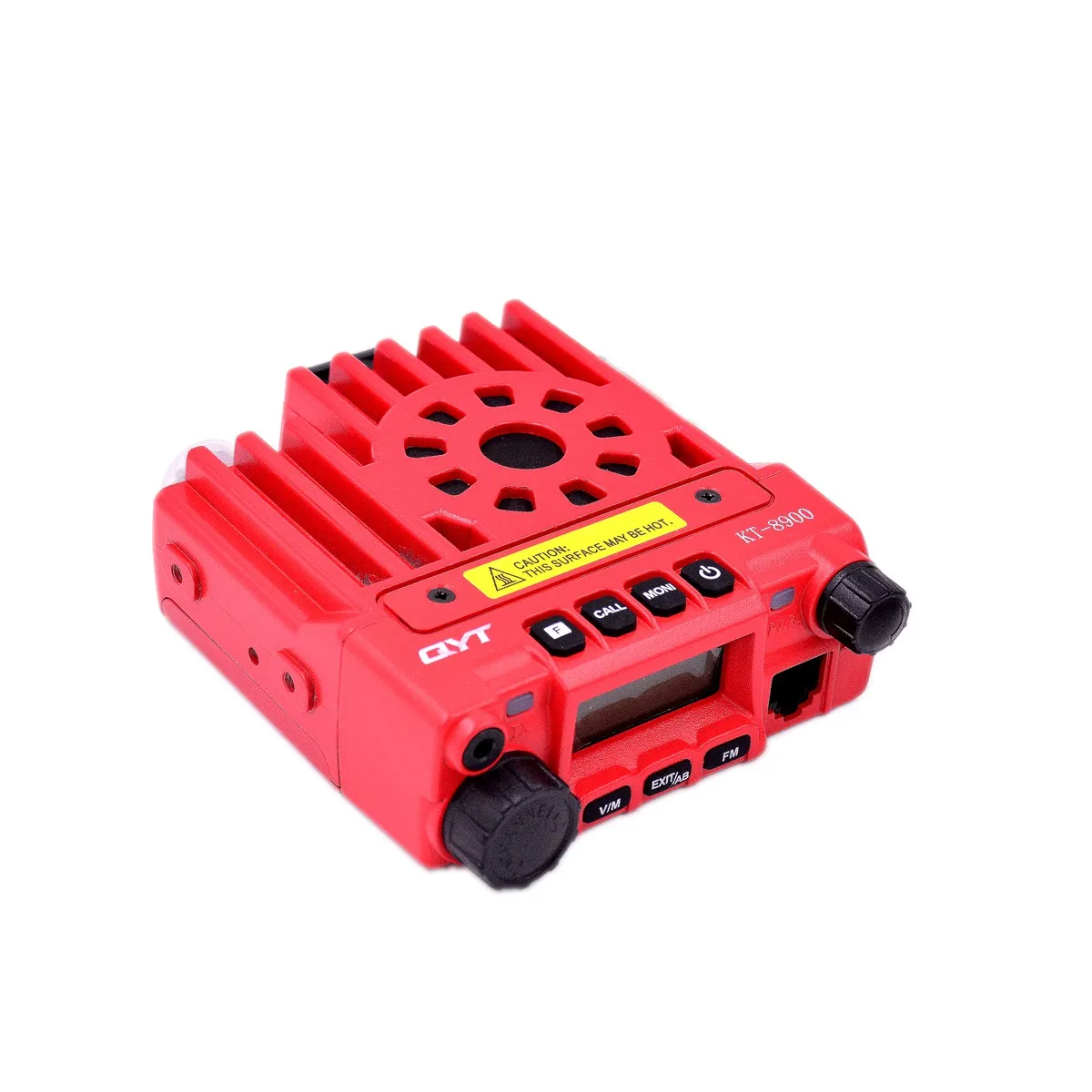

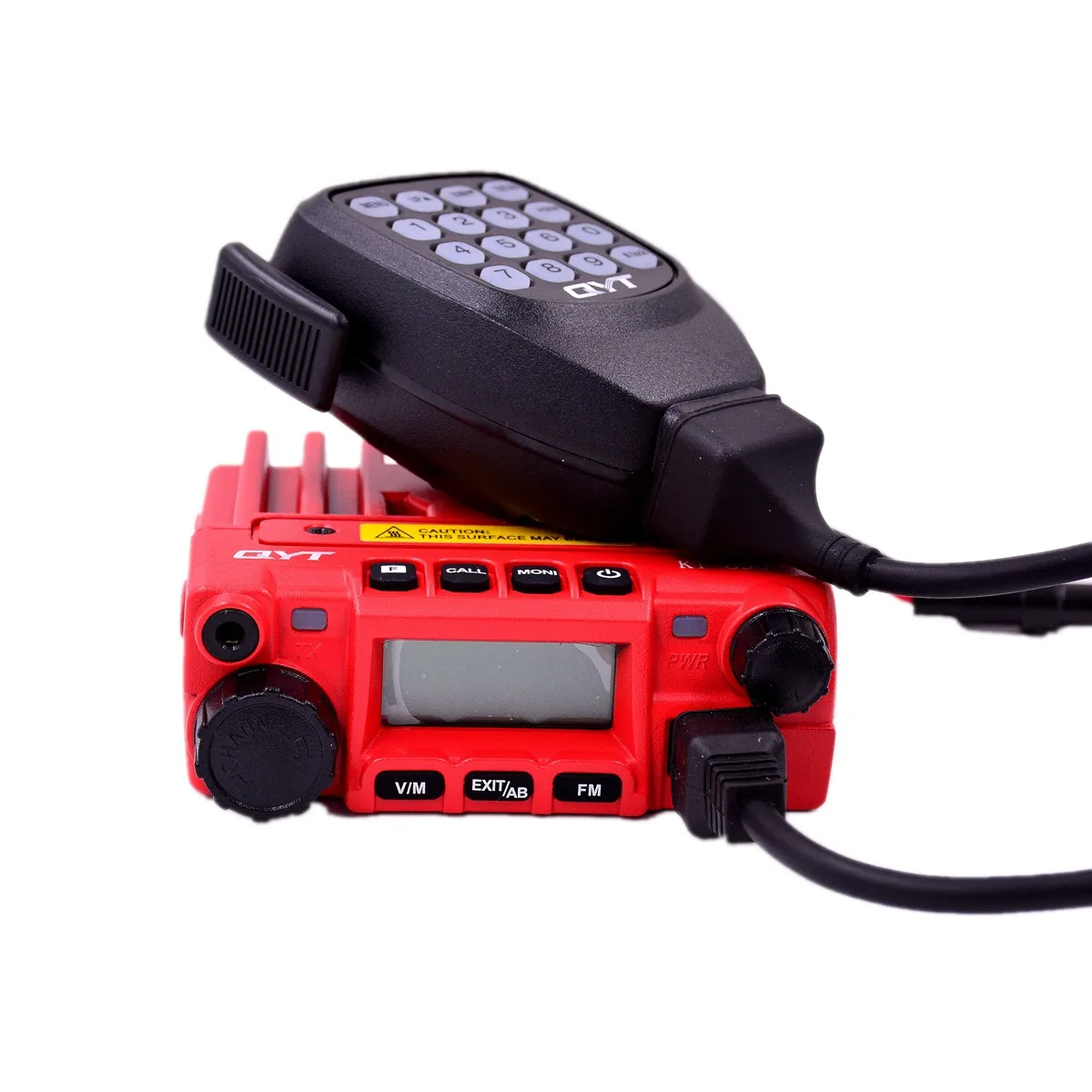

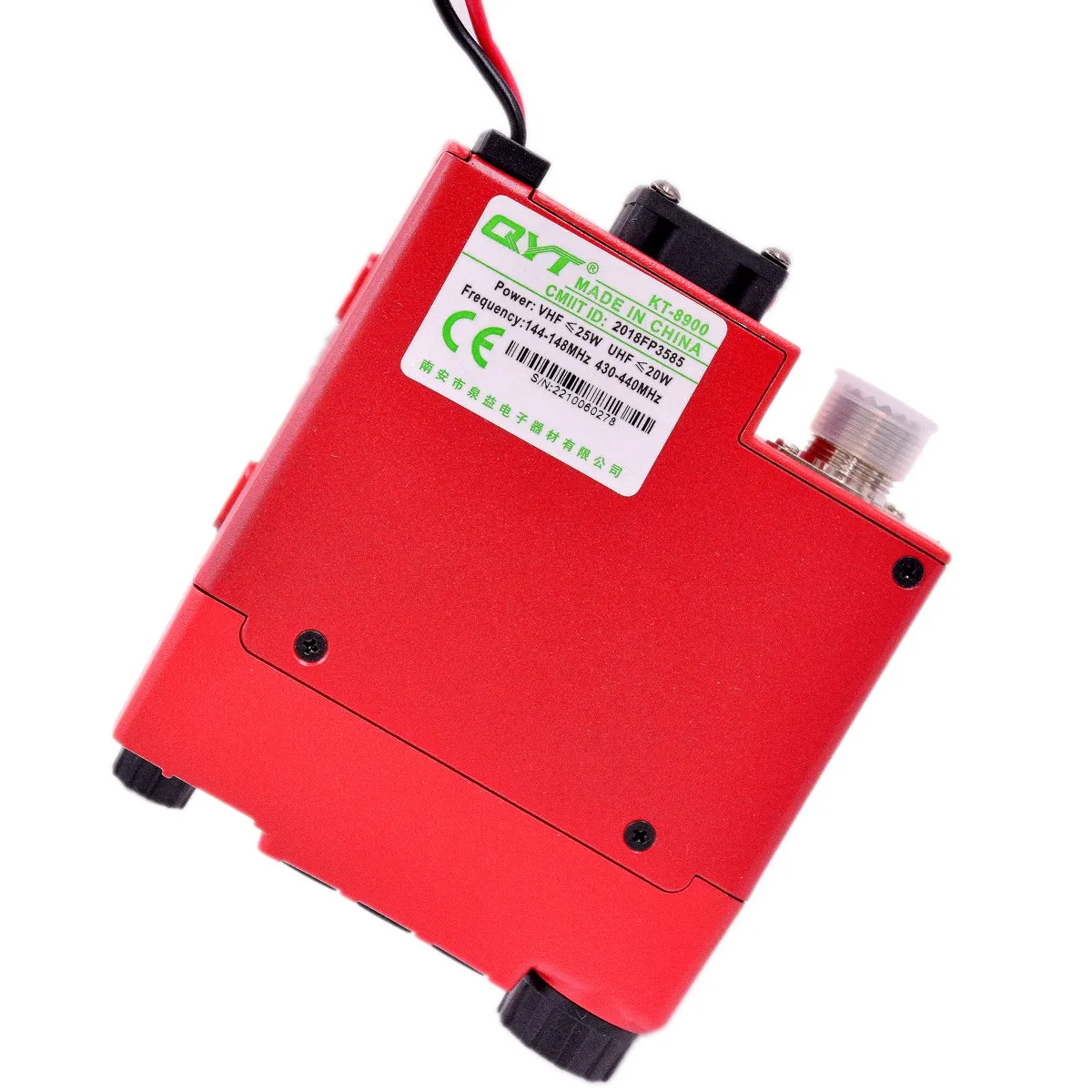

8900 Mobile Radio Dual Band Pure RED 25W VHF UHF Mini Amateur Commercial Public Taxi Car Charger Wireless Communication Intercom
1. Upgrade: Bulit with COOL FAN, External (3.5mm) Speaker Jack on the Back, Program Jack at the Front. Program Software to download (contact us, send you the link freely )
2. ONE of typical SMALL radio, compact and basic, the cost factor makes it a good fine. MINI Size: 4.7*3.9*1.4 in, Lightweight: about 2.0 lb
3. Frequency Range: VHF 136-174MHz (Rx/Tx) UHF 400-480MHz (Rx/Tx); Output Power: VHF 25Watt UHF 20Watt
4. FM Radio Function, PTT ID, DTMF, Remote stun, Remote Kill, High/Low Power Settings (25W/10W)
5. Kit Includes: KT-8900, Speaker Microphone, 6 ft DC Cable with Cigarette Plug Connector, Radio & Mic Brackets, Mounting Hardware and User Guide
Product Description:
Features & Functions

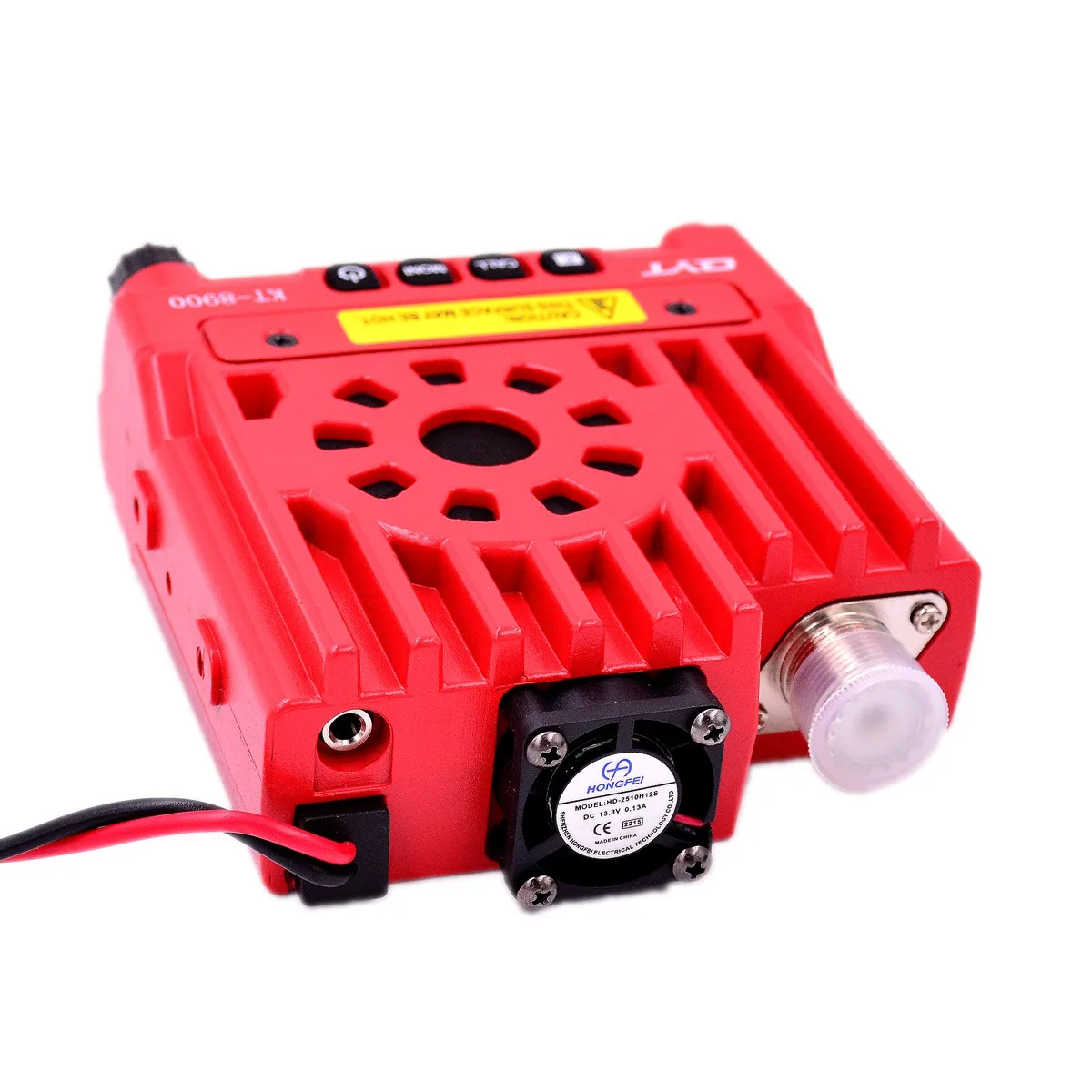

- QYT-KT8900 upgraded with Cooling Fan
1. Frequency Range: VHF 136-174MHZ UHF:400-480MHz
2. Output Power: VHF 25Watt, UHF 20Watt
3. MSK/5Tone/2Tone/DTMF/CTCSS/DCS
4. Optional signal setting
5. FM Radio Function
6. PTT ID
7. Auto Lock
8. Remote stun
9. Remote Kill
10. Channel Name set
11. 200 Channels
| Item number |
KT8900 |
| General | |
| Frequency Range |
VHF:136-174MHz UHF:400-480MHz |
| Number of Channel |
200 |
| Channel Spacing |
25KHz 20K 12.5 |
| Phase lock step |
5KHz,6.25 KHz,10 KHz,12.5 KHz,15 KHz,25 KHz |
| Working Voltage |
13.8V DC±15% |
| Squelch way |
CTCSS/DCS/5Tone/2Tone/DTMF |
| Frequency Stability |
±2.5ppm |
| Operating Temperature |
-20~+60 |
| Dimension(W x H x D) |
98(W) x 35(H) x 118(D)mm |
| Weight |
408g |
| Receiver | ||
| Broadband | Narrow band | |
| Sensitivity | ≤ 0.25μV | ≤ 0.35μV |
| Channel choice | ≥70dB | ≥60dB |
| Intermodulation | ≥65dB | ≥60dB |
| Spurious Rejection | ≥70dB | ≥70dB |
| Audio response | +1~ -3dB(0.3~3KHz) | +1~ -3dB(0.3~2.55KHz) |
| Signal to noise ratio | ≥45dB | ≥40dB |
| Audio distortion |
≤5% |
|
| Audio output power |
≥2W@10% |
|
| Transmitter | ||
| Broadband | Narrow band | |
| Output power |
25W/20W(VHF/UHF) |
|
| Modulation Mode | 16KΦF3E | 11KΦF3E |
| Channel Power | ≥70dB | ≥60B |
| Signal to noise ratio | ≥40dB | ≥36dB |
| Parasitic harmonic | ≥60dB | ≥60dB |
| Audio response | +1~ -3dB(0.3~3KHz) | +1~ -3dB(0.3~2.55KHz) |
| Audio distortion |
≤5% |
|

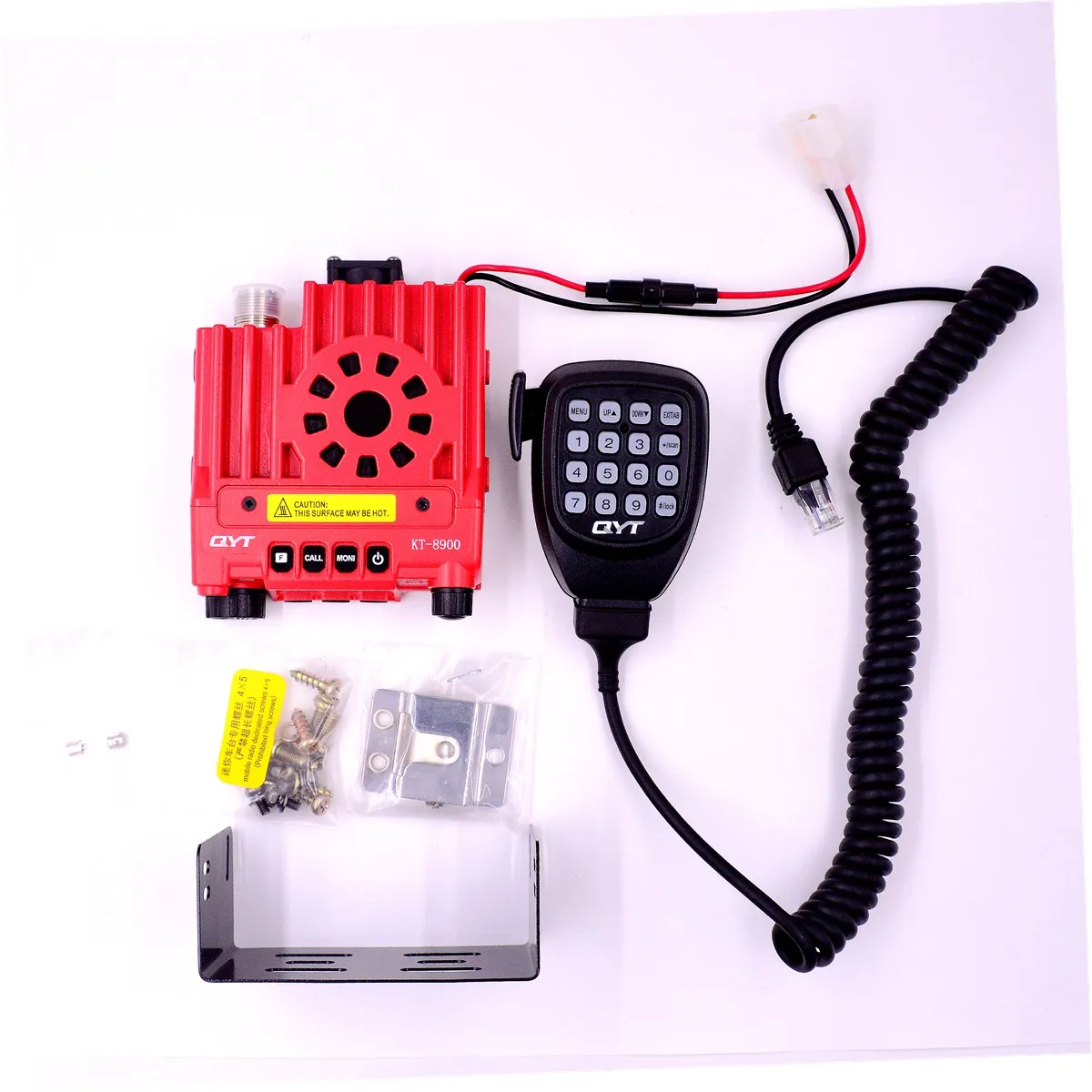

PACKAGE CONTAIN
- 1 x QYT KT8900 136-174/400-480MHz Mini Mobile Radio Transceiver
- 1 x Microphone
- 1 x Car Power Cable
- 1 x Fuse
- 1 x Mounting bracket
- 1 x Screw
- 1 x User”s Manual
