Features
SR-628 Duplex Repeater Controller,SR-628 +2X 46-S2
The SR-628 is a multi-function and cheaper device that connects any handheld or mobile radio.
By equipment and so on our assemble the build, the new generation trunk-line board, the internal structure design are finer, the outward appearance is more attractive. Besides can provide a the basic repeater function which has following the receiver transmitter, furthermore has the Simple connection, provides the more ideal 2-way radio conversation region for you, causes you maintains the relation in the bigger operating region.

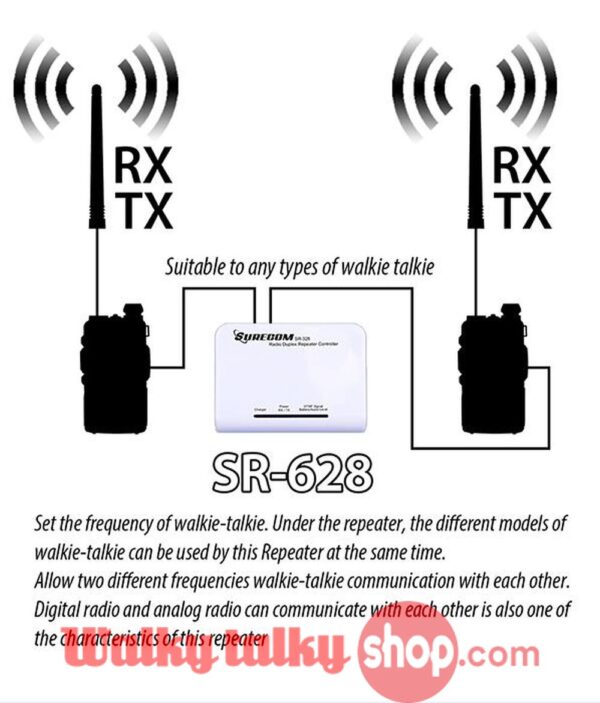

When the radio units are connected, the received signal on a radio unit will be real time transmit on the other radio unit.
e.g. VHF/VHF, UHF/UHF, VHF/UHF or UHF/VHF modes
Input A: Channel A is TX When channal B is RX.
Input B :Channel B is TX When channel A is RX .
The purpose can be done in two different places and using different frequency bands intercom, through our mutual communication relay station.
This is a radio cross band duplex repeater controller. It is an easy of operation and cost effective and highly flexible platform for setting up bi-direction cross band duplex repeater with mobile radio and handheld radio.

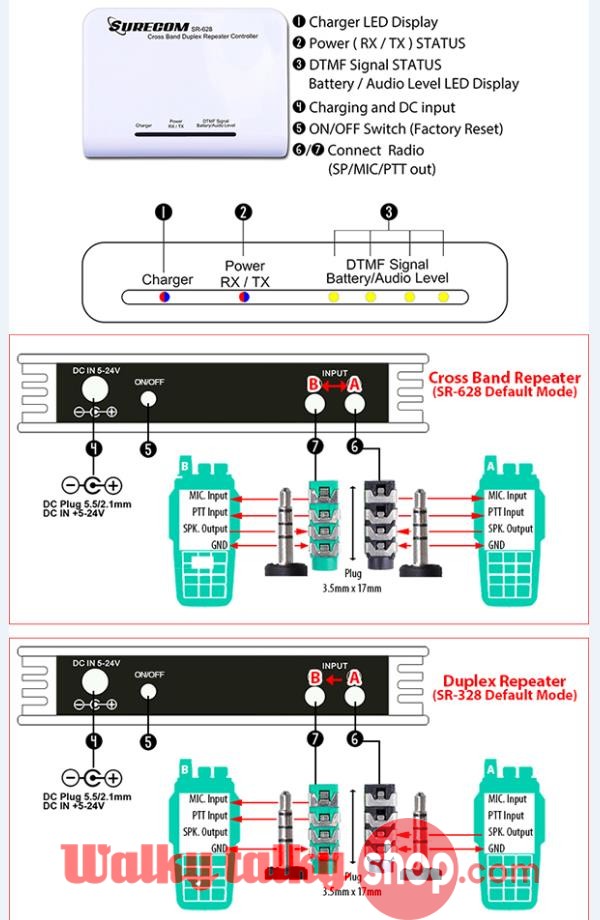

The SR-628 has 2 audio ports input and out , they are used to connect with mobile and handheld radio. DTMF remote control function with password protection is available in the . User can control the repeater ON or OFF remotely by DTMF. Multi-LED display 2 of radio status , and build-in battery Level.
Major Features
Works with most popular handheld radios
Multi- LED display 2 radio status , And controller Battery Level
Real time duplex repeater with link radio
Allows user to change the DTMF remote control password by radio
Operates on both build-in Li-ion battery 72 hours long life operation
External DC 5~24V power supply
DTMF remote control repeater function ON and OFF with password protection
Professional manufacturer low power consumption .
| Connector Radio unit: | 2 |
| Build in 3.7V Li-ion Battery: | 900maH |
| Ext.DC Jack 5.5/2.1mm: | DC5V~24V |
| Standby Time: | 180hours |
| Standby Current: | 4mA |
| Work Current: | 20-30mA |
| Size: | 110x80x25mm |
| Operating temperature: | -10°C to +50°C |
| LED DISPLAY | |
| Charge | Red Charge/DC in |
| Blue Full | |
| Power | Red Power on |
| Red flash Sleep mode | |
| Status | Red Radio A RX , B TX |
| Blue Radio B RX , A TX | |
| Battery Life | Yellow LED 100% |
| Yellow LED*** 80% | |
| Yellow LED** 50% | |
| Yellow LED* 40% | |
| Yellow LED*Flash 10~30% | |
| S-Plug Compatible Radio Models | |
| ICOM | IC-T7H ,IC-W32A,IC-F3,IC- F3S,IC- F4, IC-F4S,IC- F4TR, IC-F10, IC-H2,IC- H6,IC- J12, IC-M5, IC-U12, IC-U16, IC-4008, IC-4088A |
| Cobra (All 2-Pin) Motorola Talkabout |
200, 250 Distance, Distance DPS |
| Ritron Patriots Series |
RTX, SST, Jobcom, JMX, MBX, JMX-102, JMX-141, JMX-144,JMX-146,JMX-152, JMX-441, JMX-444,JMX-446, JMX-452, Patriot SST plus |
| Motorola | 5500 |
| Vertex | VX200-VX500- VX510-VX52OUD |
| M-Plug Compatible Radio Models | |
| MOTOROLA | CP88, CP100, CP150, CP200, CT150, CT250, CT450, CT450LS , ECP100, GP68, GP88S, GP308, GP350, GP2000, GP3688, GP3188, GTI, GTX, LTS2000, P040, P080, P110, P200, P1225, P1225LS, PR400, PRO1150,PRO2150, PRO3150, PMR446, SP10, SP21, VL50, VL130, |
| Feidaxin | FD-150A, FD-160A, FD-450A, FD-460A |
| HYT | TC-500 |
| PUXING | PX-508U , PX-999 |
| KIRISUN | PT578U , S760U , S765U , S780U , S785U |
| MT-Plug Compatible Radio Models | |
| MOTOROLA TALKABOUT |
Motorola MOTO TLKR T5, Talk about 270, 280, 289, FR50, FR60, FV200, FV300, FV500, FV700, FV750, FV800, T4500, T4800, T4900, T5000, T5100, T5146, T5200, T5300, T5320,T5400, T5410, T5412, T5420, T5422, T5432, T5500, T5512, T5522, T5532, T5550, T5600 |
| MYT | MYTQ2V , MYTQ2U |
| RONSON | RT-88 |
| TYT | TH-2R , TH-UV3R |
| S2-Plug Compatible Radio Models | |
| Maxon | SP14, SP130, SP120, SP130, SPI140, SP300, SP310, SP320, SP330, SP340, SL25, SL55, SL55+, SL100K |
| Midland – All 2-Pin |
75-785, 75440, GTX-200, GTX-250, GTX-300, GTX-325, GTX-400, GTX-444, GTX-450, G-225, G-227, G-300, GXT500VP |
| Y-Plug Compatible Radio Models | |
| YAESU | FT-50,FT-60R,VXF-1,VX-1R, VX-2R. VX-3R, VX-5R,VX-8GR , VX-10, VX-110,VX-131, VX-150 ,VX-300, VX-410, VX-420, |
| Vertex Standard | VX-130,VX160, VX-168,VX180, VX-210, VX-210A, VX-400 ,VX-420, VX-427 |
| SCONOV | TM-800 , TM-810 |
| Motorola | 5500 |
| HUITONG | HT222 , HT333 |
| Nanfone | NF-6600 , NF-369 |
| K-Plug Compatible Radio Models | |
| BAOFENG | BF-490, BF-568, BF-758S,BF-777S, BF-888S, BFF8-PLUS, BF-F9, BFK5,BF-V6, BF-V85, BJUV-6 ,C150, UV-3R+, UV-5R,UV-5RA-plus, UV-5RB, UV5RC, UV5RD, UV-5RE,UV-5RG, UV-5RQ , UV-5RT ,UV-5S , UV-5RU UV-B5, UV-B6 |
| BAOJIE | BJ-UV88 , BJ-UV99 |
| HYT | TC-268, TC-268S, TC-270, TC-270S.etc.. |
| Kenwood | TK-240, TK-250, TK-255, TK-260, TK-260G, TK-270, TK-270G, TK-272G, TK-278, TK-278G, TK-340, TK-349, TK-350, TK-353, TK-360, TK-360G, TK-370, TK-370G, TK-373G, TK-378, TK-378G, TK-430, TK-431, TK-715, TK-2100, TK-2102, TK-2107, TK-2118, TK-2160, TK-31 |
| Linton | LT-2188, LT-2268, LT-2288, LT-3188,LT-3260, LT-3268,LT-3288,LT-5288, LT-6000, LT-6100,LT-6100plus,LT-6188, LT-6288, LT-6600, LT-9000, LT-9800 |
| PUXING | PX-325, PX-328, PX-333, PX-358, PX-555,PX-666, PX-728, PX-729, PX-777,
PX-888, PX-888K, PX-V6 |
| WOUXUN | KG-659, KG-669, KG-679, KG-689, KG-699, KG-801, KG-816, KG-818, KG-819,
KG-833, KG-889, KG-UV6D , KG-UVD1P |
| QUANSHENG | TG-2AT, TG-22AT, TG-25AT, TG-42AT, TG-45AT, TG-46AT, TG-6A, TG-K4AT,
TGK4ATUV,TG-UV2 |
| Feidaxin | FD-A380, FD-55, FD-56, FD58, FD-68, FD-98, FD-278, FD-288, FD-289,
FD-390, FD-760, FD-780 , FD-790, FD-850, FD-880, FD-890 (FD-288, FD-268-Earpiece only) |
| JINGTONG | JT-988, JT-N98 |
| WEIERWEI | V-1000, VEV-3288, VEV-3288S, VEV-V16, V8 |
| WACCOM | WUV-5R, WUV5RE-PLUS , WUV5R-UU , WUV-6R |
| TYT | TH-446, TYT-777, TYT-800, TYT-888, TYT-900, TH-F2, TH-F5, TH-F7, TH-F8,
TH-UVF8D, TH-UVF1,TH-UVF9 |
| RONGSHEUNG | RT-626,RS-958,RT-966, RS-999, UV-8R |
| MYT | MYTQ1V , MYTQ1U |
| NANFONE | NF-669 |
| GALAXY | G6700, G-6800, |
| Ronson | RT-6000, RT-6100, RS-LY8, RS-H86 |
| HUITONG | HT910 , HT911 |
| QYT | UV9A-UU |
| KIRISUN | PT558 , PT560 |
| Y-7 Compatible Radio Models | |
| YAESU | FT-270 ,FT-277 , HX-471 ,VX-6R/E , VX-7R /E , VX-120 , VX-127 ,VX-170 , VX-177 , |

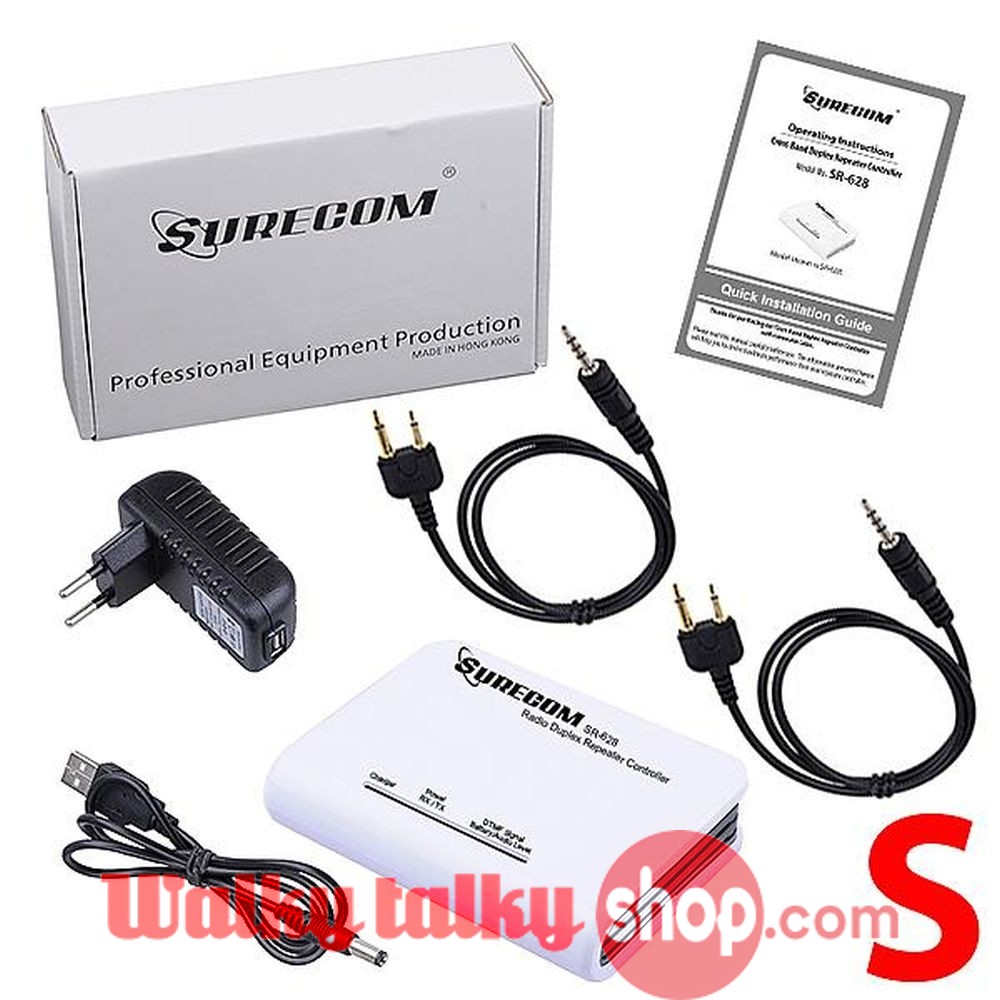

EACH UNIT PACKAGE CONTAIN
1 x SR628 Duplex Repeater Controller
1 x 100-240V power supply unit
2 x Connect cable
