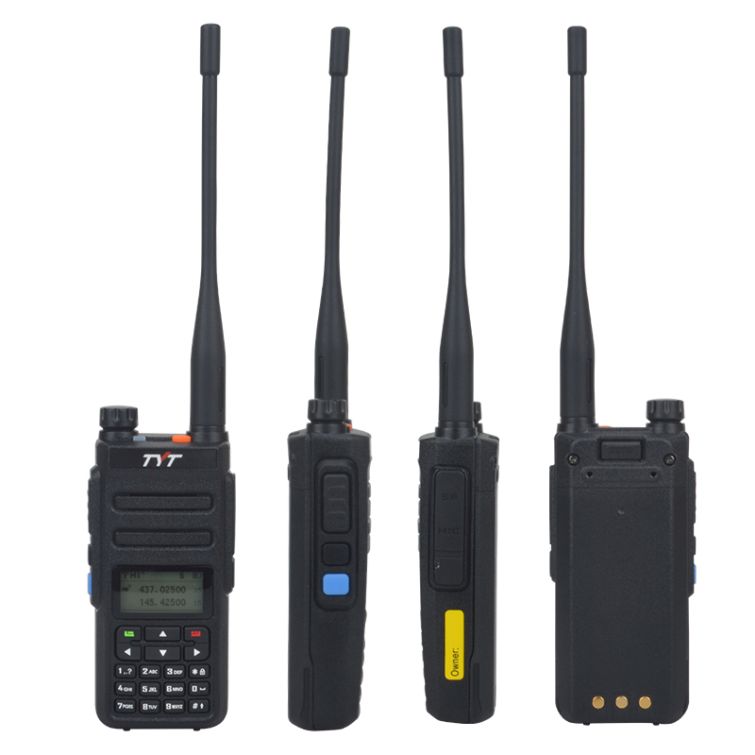

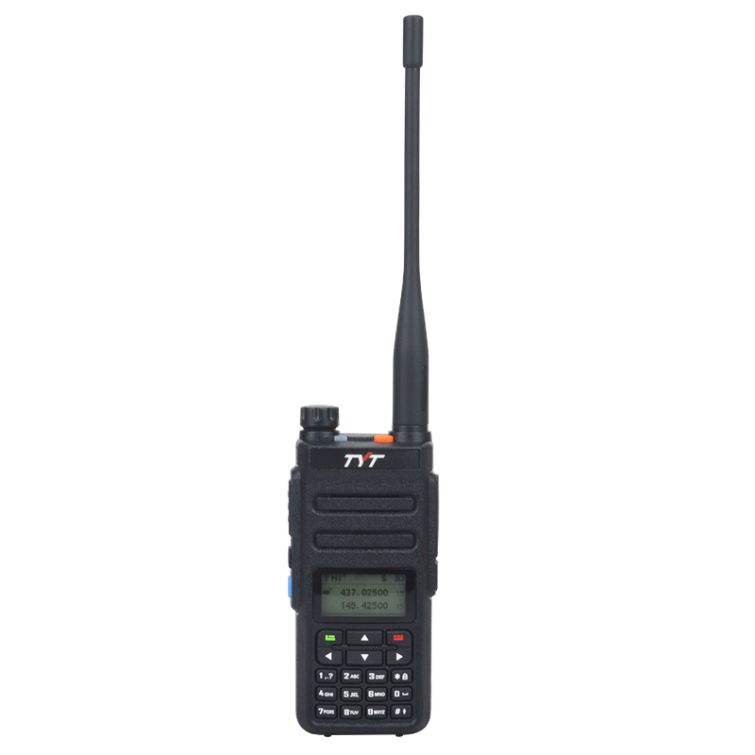

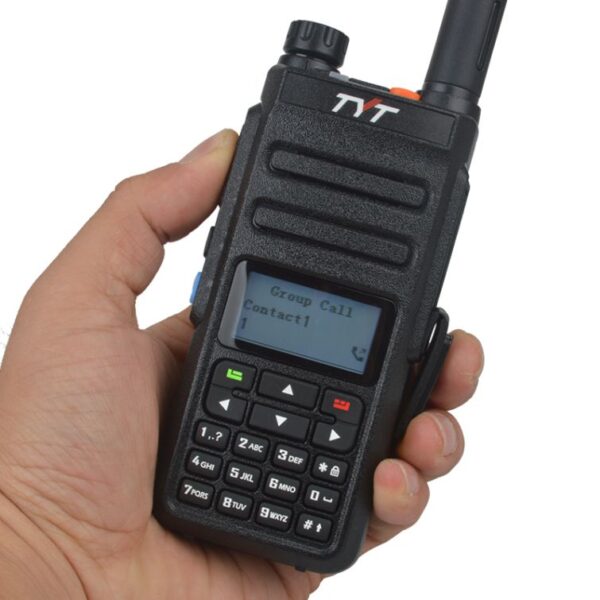

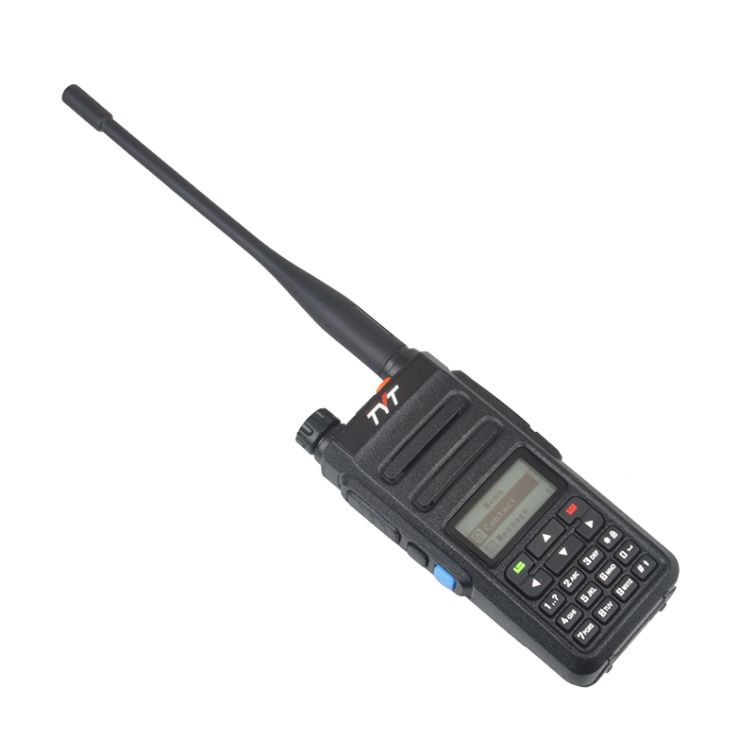

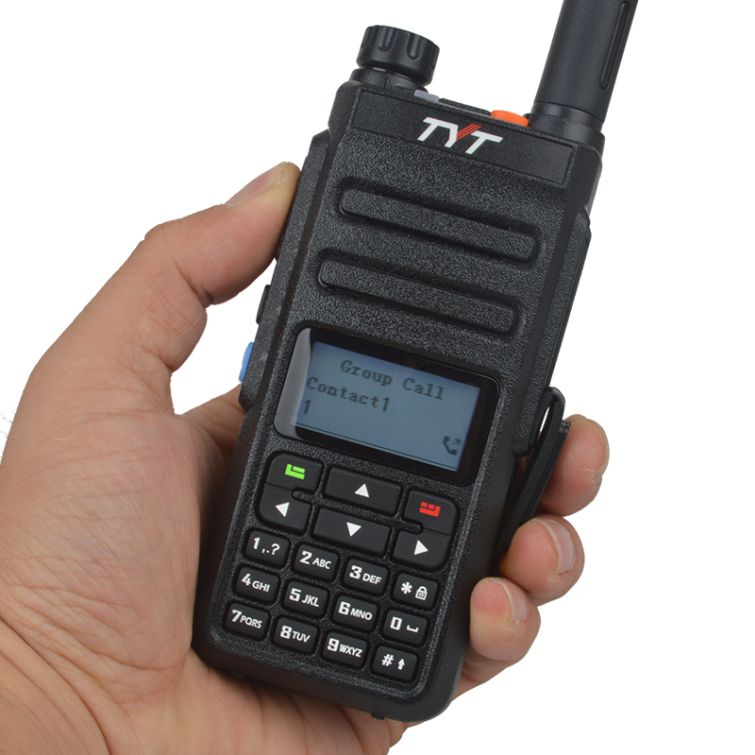

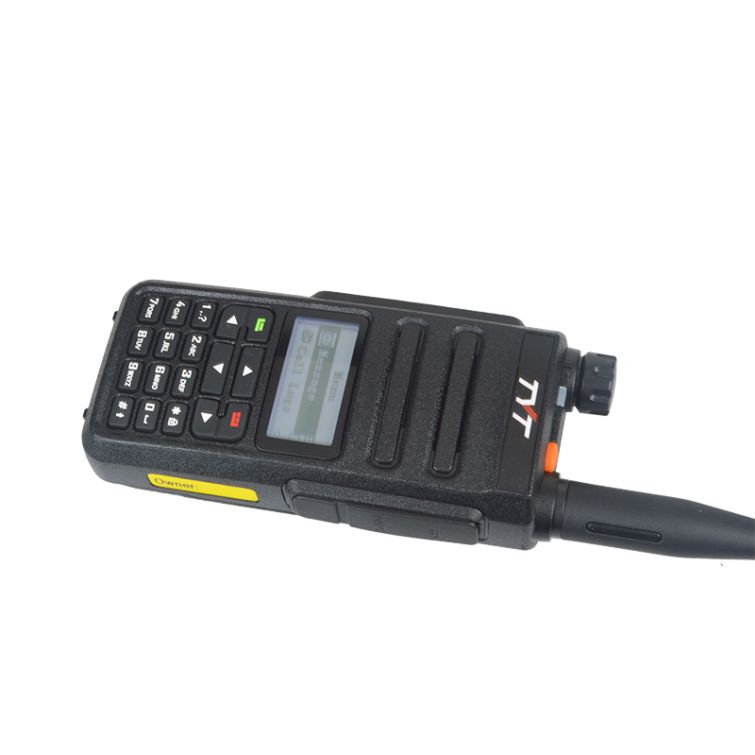

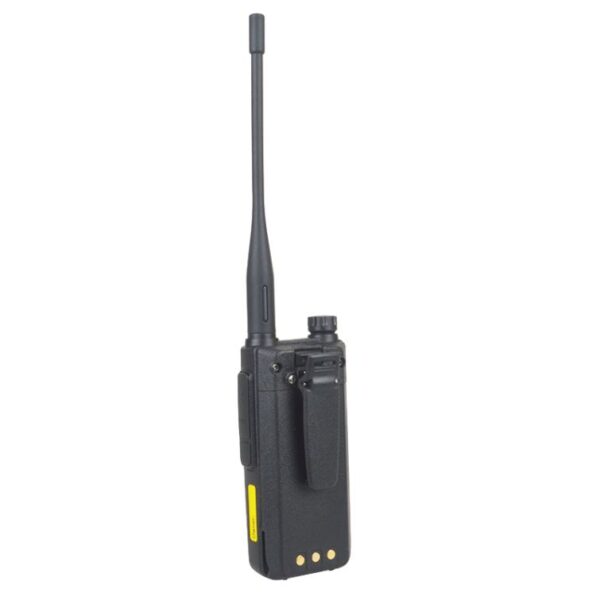

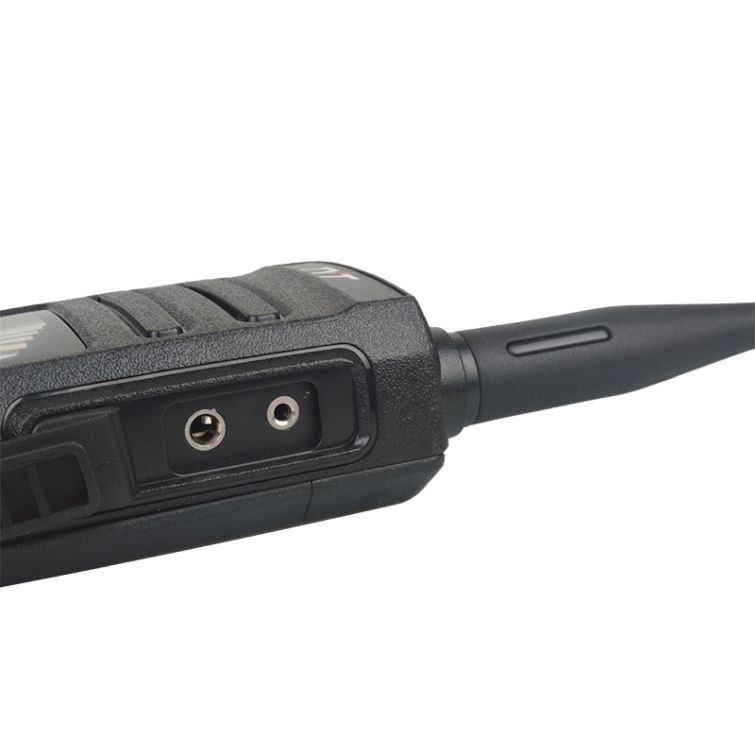

TYT MD-760 dmr walkie talkie UHF VHF Dual band 136-174MHz 400-470MHz AMBE+2TM 5W 1024CH Dual time slot digital DMR handheld talkie walkie

Features:

Vocoder Type: AMBE+2TM

Dual time slot for point to point

Dual time slot for repeater

5Watt Output power

Dual band VHF:136-174MHz, UHF:400-470MHz

CTCSS/DCS

Programmable CTCSS/DCS

Wide band/narrow band selectable

En-tone detection

DTMF encode/decode

PTT ID

Password

Firmware update

Call detection

Call prompt

Remote monitor/Emergency alarm

Contact view and edit

Call info vide and edit

SN Equipment identity code for device verification

Pc programmable function

Specifications:

General
Frequency Range	Dual band, VHF:136-174MHz & UHF:400-470MHz
Channel	1024
Frequency Stability	±1ppm
Operating Temperature	-30°c ~+60°c
Voltage	7.4V DC
Receiver
Analog Sensibility	0.2uV @12dB SINAD
Digital Sensibility	0.25uV (BER:5%)
Adjacent channel selectivity	≤-60dB@12.5KHz
Co-channel rejection	≥65dB
Spurious response	≥70dB
Audio response	+1~-3dB
Rated audio distortion	≤5%
Audio power	1W
Modulation noise	≥45dB@25KHz/≥40dB@12.5KHz
Transmitter
Power Output	High:5W, Low:1W
Transmit Current	Analog≤ 1.6A, Digital ≤0.9A
Standby Current	0.15A
FM Modulation mode	11K Ø F3E @12.5KHz 14K Ø F3E @20KHz 16K Ø F3E @25KHz
4FSK digital mode	12.5KHz(data only):7K60FXD 12.5KHz(data and voice): 7K60FXW
Modulation distortion	≤5%
Hum and noise	≥45dB@25KHz/≥40dB@12.5KHz
Adjacent channel power	≤-60dB@12.5KHz
Audio Response	+1~-3dB
Antenna port spurious	6KHz-1GHz: ≤ -36dBm 1GHz-12.75GHz: ≤-30dBm
Digital Protocol	ETSI-TS102 361-1,-2,-3

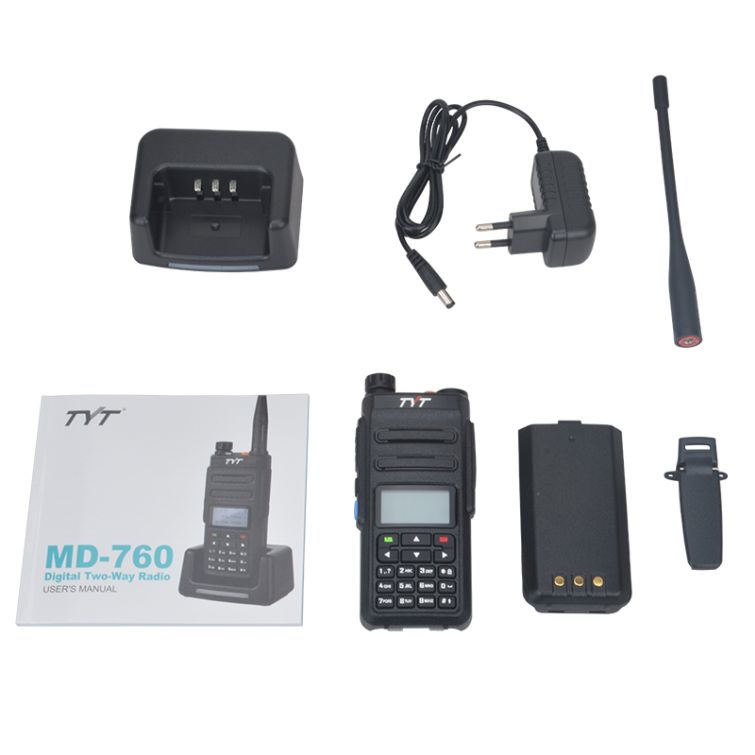

Packaging contains:

1× MD-760 Dual band DMR Digital Radio

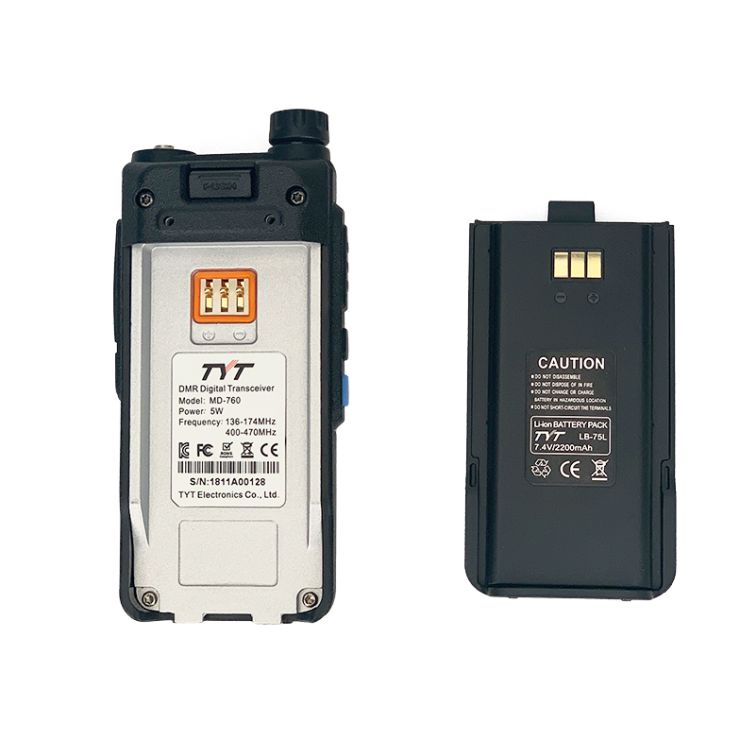

1× LB-75L 2200mAh Li-ion Battery Pack

1× Antenna

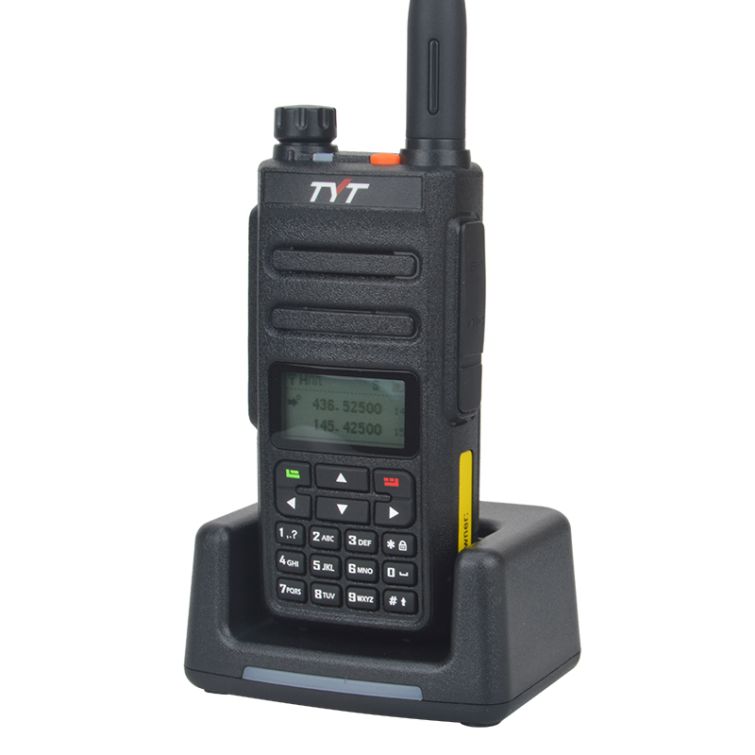

1× Desktop Charger

1× AC Adapter

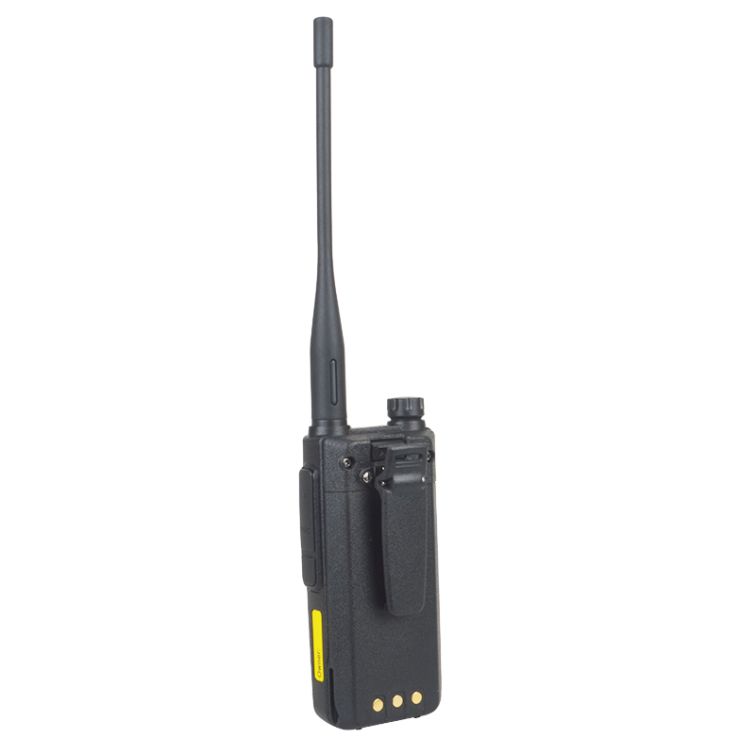

1× Belt Clip

1× English User Manual

1× PTT Headset
