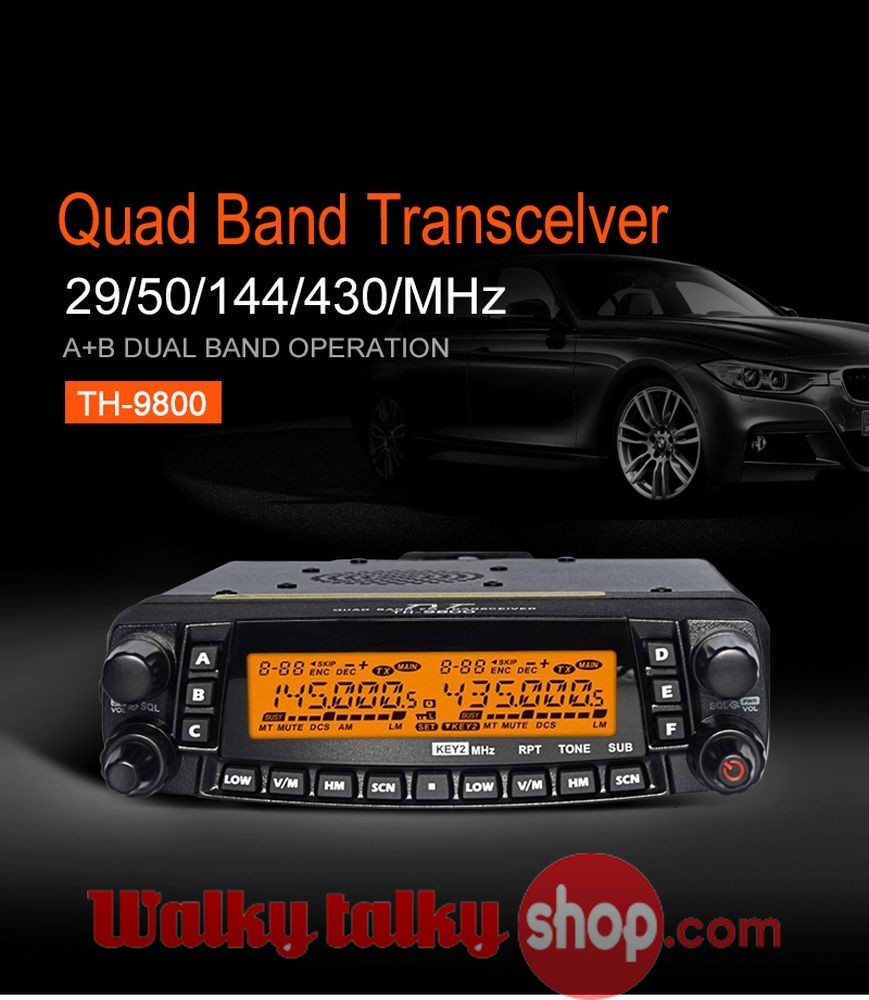

TYT TH-9800 Quad Band Mobile Transceiver Car Radio Station
Features/Functions
| Cover 29/50/144/430 MHz four transmitting bands |
| Wide band AM receiving and FM receiving for 26-33MHz, 47-54MHz, 108-180MHz, 320-512MHz, 750-950Mhz(except cell phone) |
| Independent controls for each left and right band |

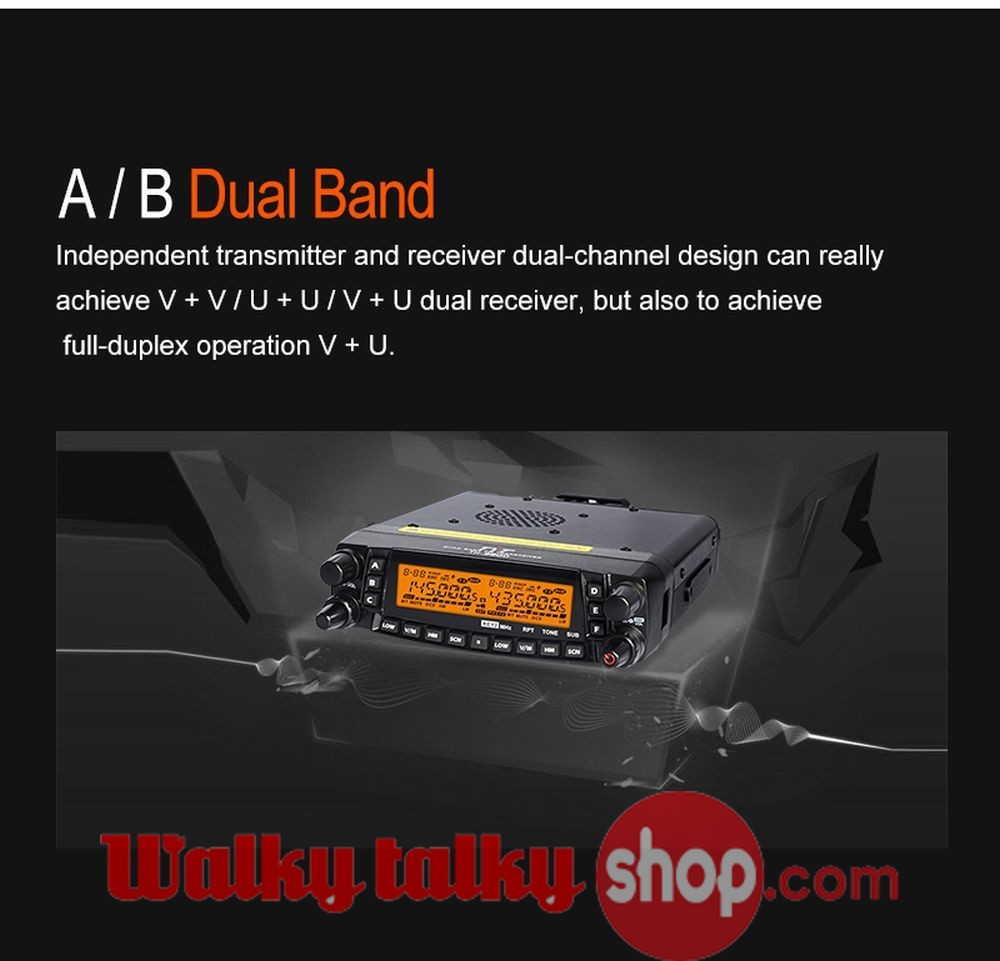

| V+V, U+U, V+U simultaneous receive capability |

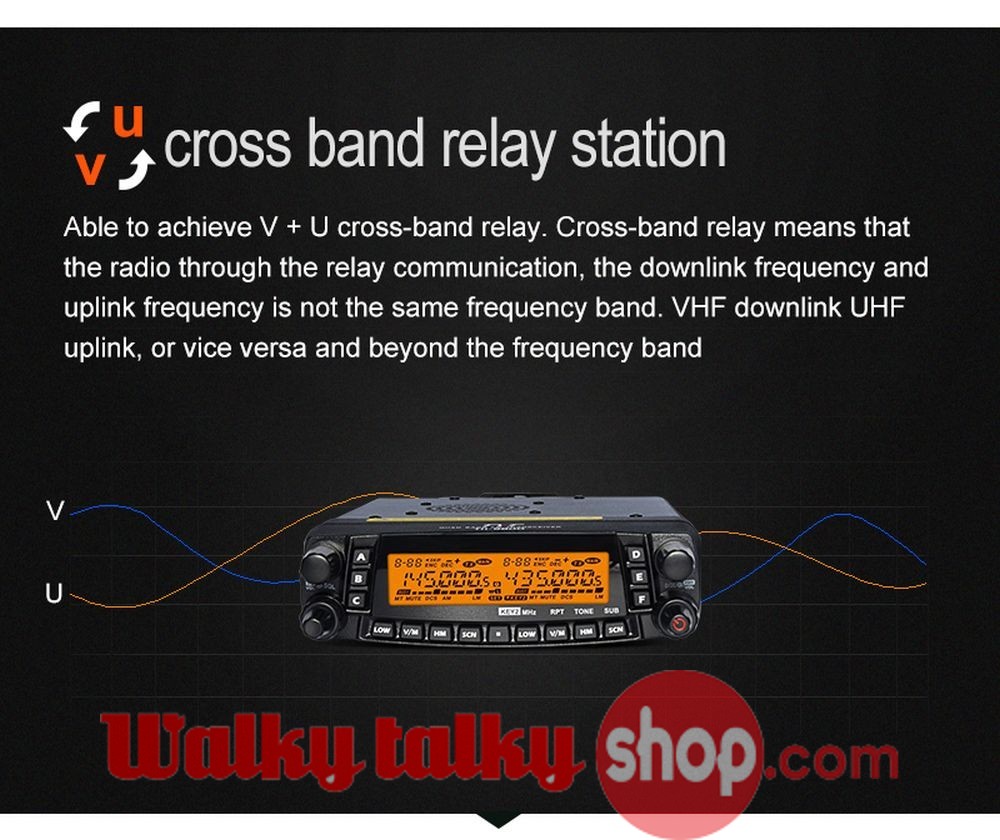

| Built-in V+U cross-band repeater and full duplex capability |
| 800 memory channels and independent setting per channel |

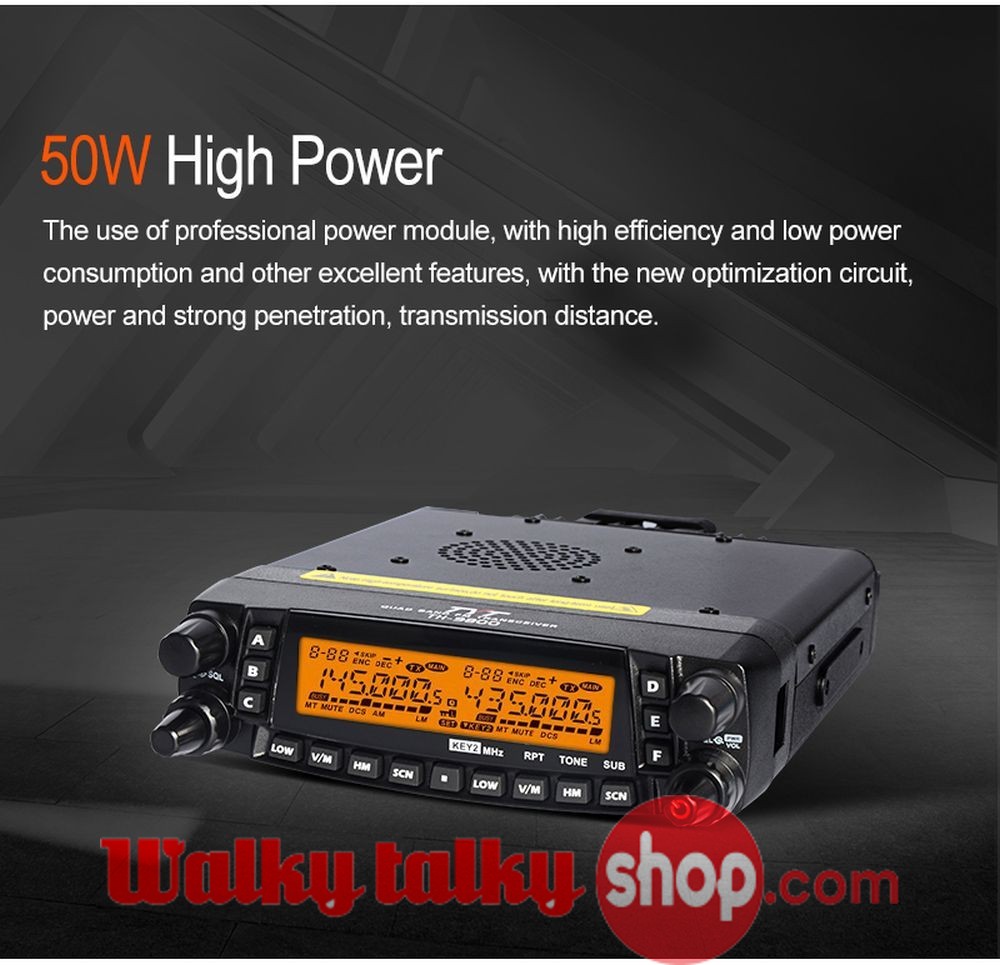

| 50W of high power output for VHF band and 40W for UHF band |
| Standard 50 groups of CTCSS tone & DCS code capability |
| DTMF/2-Tone/5-Tone for selective calling |
| Voice compander and encryption scramble |
| Automatic Repeater Shift(ARS) |

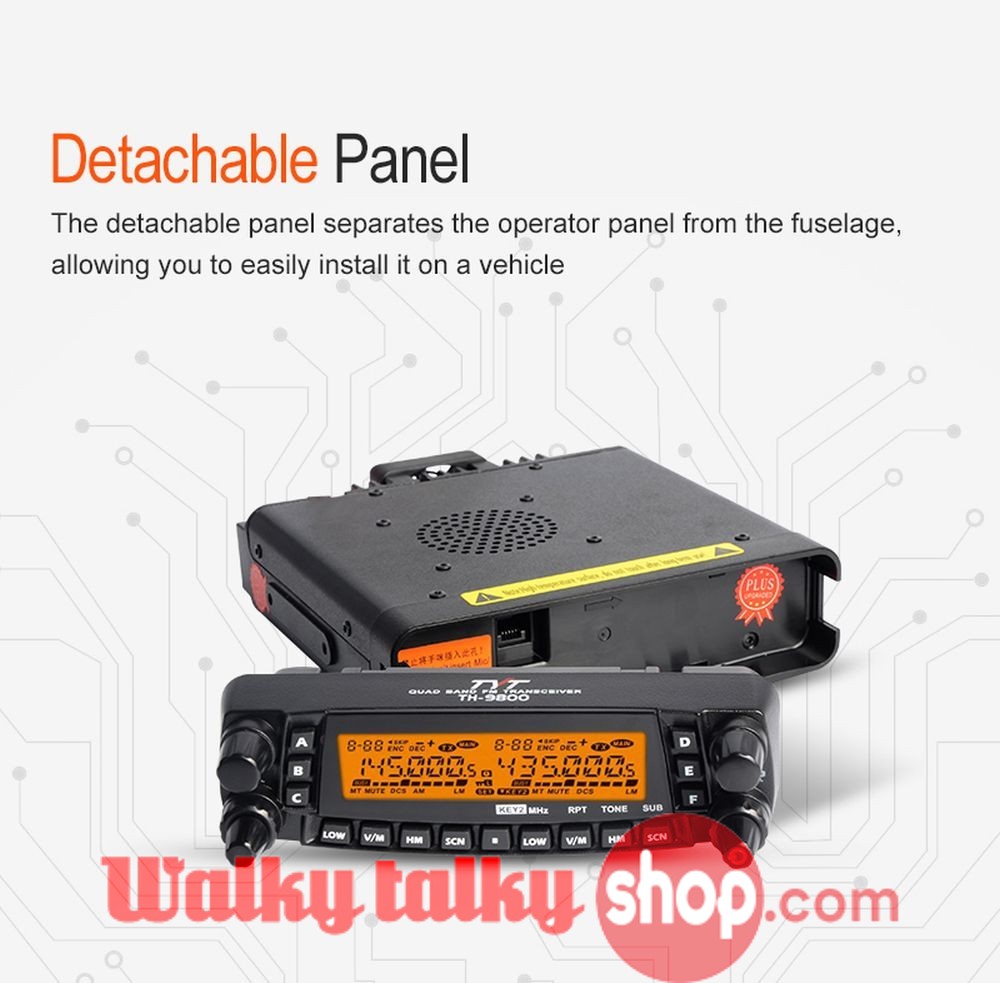

| Detachable front controller and remote mounting capability |

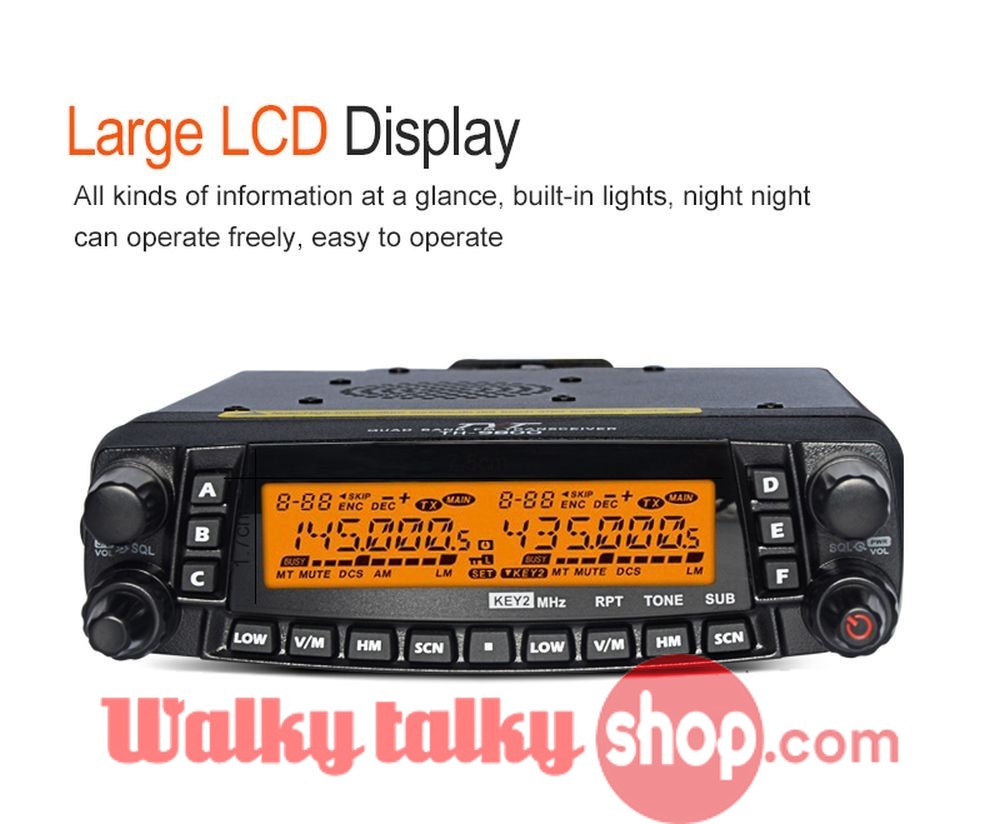

| Ultra-size LCD dual display screen |

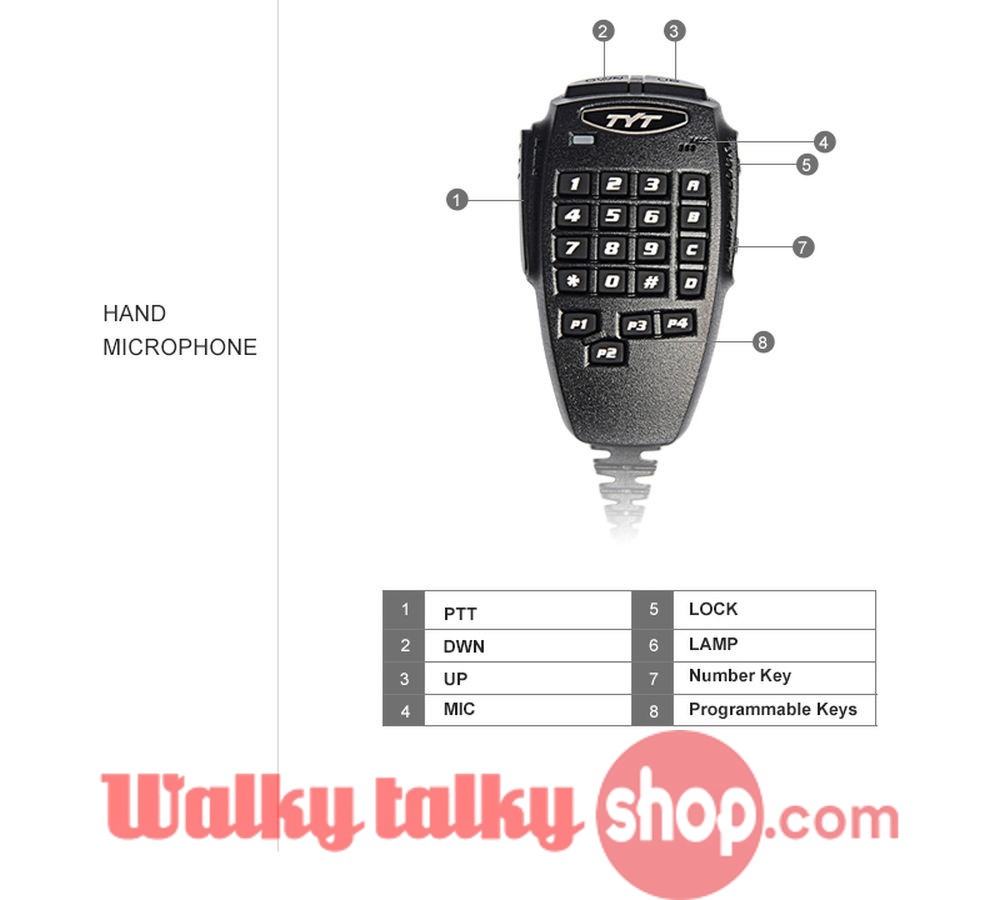

| User-programmable microphone keys |
Technical Parameters

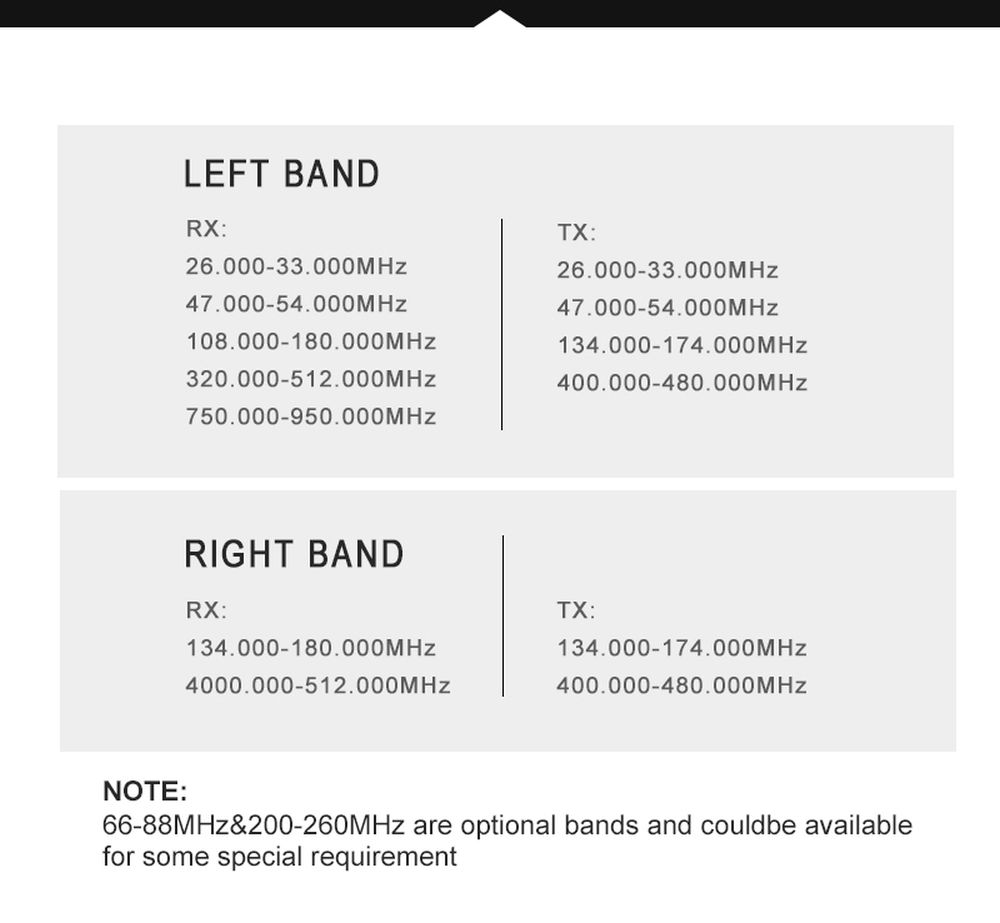

Frequency Range(Default) Note: 66-88MHz&220-260MHz are optional bands and could be available for some special requirement. |
Left Band RX:26.000-33.000MHz, 47.000-54.000MHz, 108.000-180.000MHz, 320.000-512.000MHz TX:26.000-33.000MHz, 47.000-54.000MHz, 134.000-174.000MHz, 400.000-480.000MHz Right Band RX:134.000-180.000MHz, 400.000-512.000MHz TX:134.000-174.000NHz, 400.000-480.000MHz |
Channel Steps |
2.5/5/6.25/7.5/8.33/10/12.5/15/25/30/50/100KHz |
Modes of Emission |
FM |
Antenna Impedance |
50 Ohms,unbalanced (Antenna Duplexer built-in) |
Frequency Stability |
±5ppm |
Operating Temperature Range |
-4οF to +140οF |
Supply Voltage |
13.8V DC(±5%) |
Current Consumption |
RX:0.5A(Squelched) TX:8.5A |
Case Size(W×H×D) |
140×41.5×168mm |
Weight |
1.2kg |
Transmitter |
|
Output Power |
50/20/10/5W (29/50/144MHz) 40/20/10/5W (430MHz) |
Maximum deviation |
±5KHz |
Spurious Radiation |
<-60dB (29MHz:<-50dB) |
Modulation Distortion |
<3% |
Microphone Impedance |
2kΩ |
Receiver |
|
Intermediate Frequencies |
49.95MHz/450KHz (left band) 38.85MHz/450KHz (right band) |
Sensitivity(for 12dB SINAD) |
<0.2μV |
Squelch Sensitivity |
<0.16μV |
Selectivity |
12Khz/30KHz |
Maximum AF Output |
2W@8Ω for 5%THD |

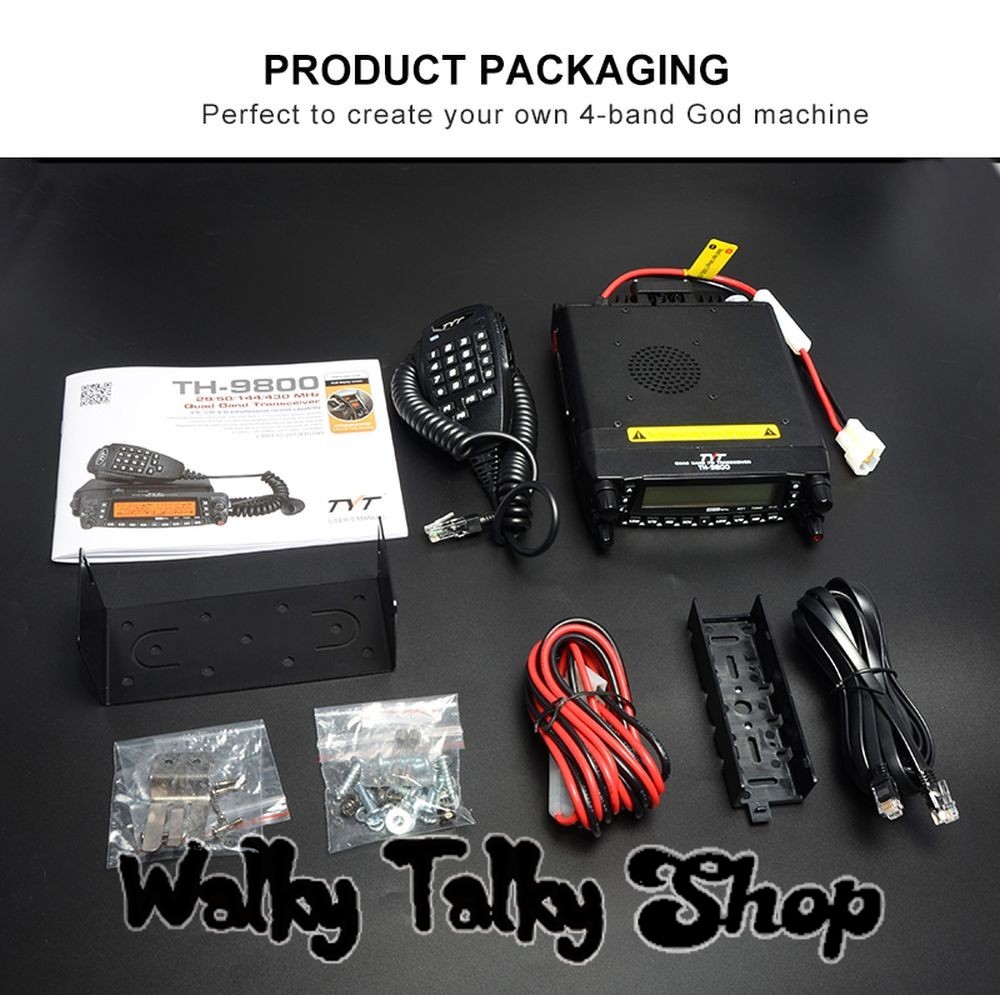

Package Units
1× Radio unit

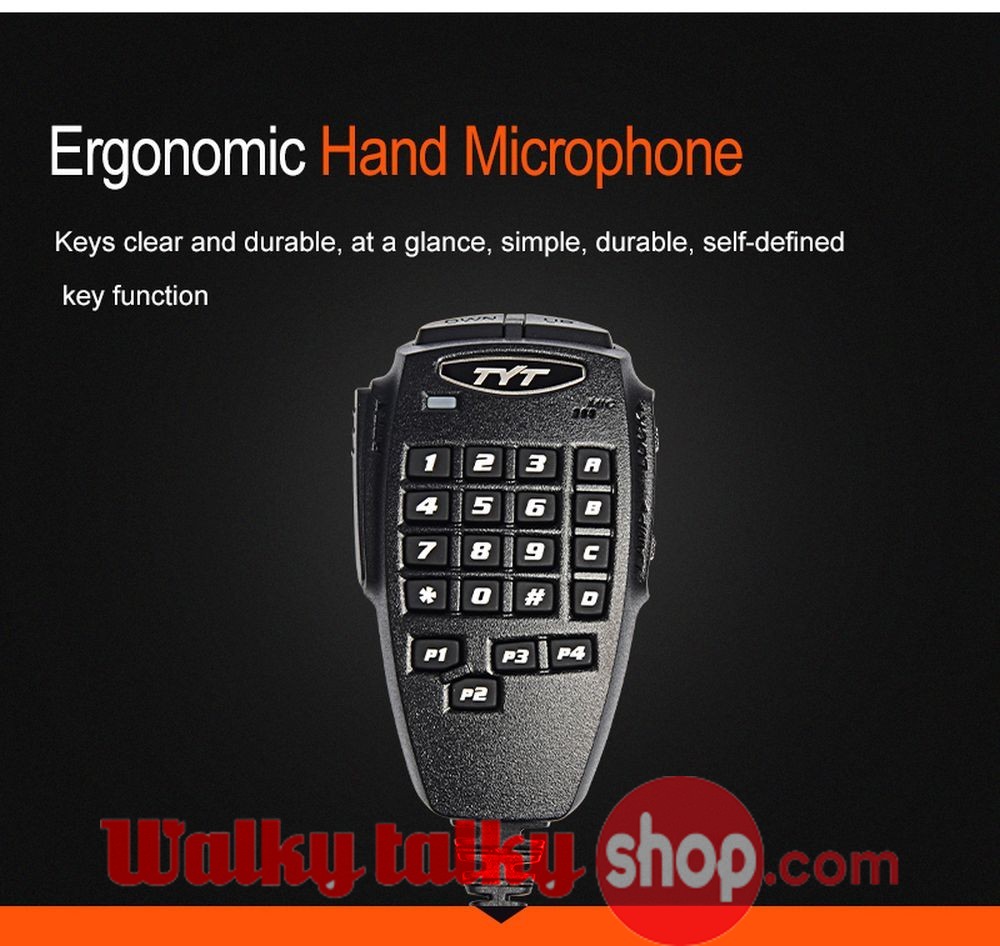

1× Keypad DTMF microphone
1× Radio body mounting bracket
1× DC power cable with fuse holder
1× Front controller mounting bracket
1× Screw packs
1× Protection fuses
1× User manual
1× Programming Cable
