TYT TH-F8 UHF VHF Walkie Talkie

Description

This is a brand new TYT TH-F8 (2/5 Tone) radio.

TH-F8 is a well-received amateur radio and it is good looking, nice design and excellent performance.

It has 1750Hz, scrambler, FM radio, 2×128 memory channels, 2/5 tone…etc. advanced functions.

Specifications

Item number: TH-F8

Frequency Range: UHF 400-470Mhz , VHF 136-174Mhz

Channel No: 128

Frequency Stability: ±2.5ppm

Antenna: High gain antenna

Antenna Impedance: 50Ω

Operating Voltage: DC 7.2V

Mode of operation: Simple or semi-duplex

Dimension（W x H x D）: 100 x 52 x 32 mm

Weight: 250g（including battery, antenna）

Functions

1. Single band, dual display, dual standby
2. A/B band independent operation
3. 128 groups channels storage
4. Shortcut menu operation mode
5. VFO & Memory channels scan
6. Emergency Alarm
7. Tri-color background light selectable
8. 0~9 grades VOX selectable
9. PTT & ANI ID
10. FM radio and 25 stations storage
11. Voice companding
12. CTCSS/DCS coder & tone searching
13. Repeater access 1750Hz burst tone
14. Wire clone & PC programmable
15. Wide/Narrow Band(25kHz/12.5kHz)
16. Transmitter time-out timer(TOT)
17. High/Low TX power selectable
18. Busy channel lock-out(BCLO)
19. DTMF encoder & decoder(optional)
20. groups scrambler (built-in)
21. 2/5 tone encoder & decoder (built-in)
22. Remote skill/stun/activate (built-in)

Transmitter

Output power: >=4W(H) >=0.5W(L)

Modulation Mode: 16kΦF3E / 11kΦF3E

Maximum deviation: ＜5kHz(Wide) / ＜2.5kHz(Narrow)

Spurious Radiation: ＜7μW

Adjacent Ch. power: <=-65dB(Wide) / <=-60dB(Narrow)

Pre-emphasis characteristics: 6dB

Current: <=1.6A(5W)

CTCSS/DCS deviation

0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)

Intermediation sensitivity: 8-12mv

Intermediation distortion: ＜10%

Receiver

RF Sensitivity: -122dbm(12db SINAD)

Audio power: >=0.5W

Audio Distortion: <=10%

Intermediation: <=-65dB(Wide) / <=-60dB(Narrow)

Selectivity: <=-65dB(Wide) / <=-60dB(Narrow)

Spurious Rejection: <=-65dB

Blocking: >=85dBuv/m

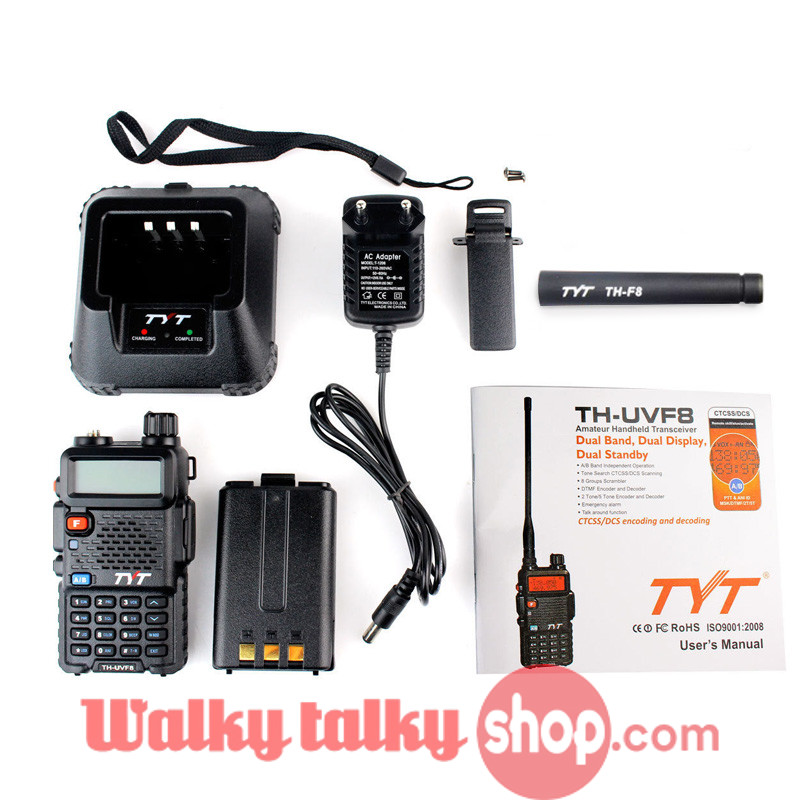

Package

1x TYT TH-F8 Two-Way Radio

1x 7.4V 1600mah Li-ion Battery Pack

1x Antenna

1x Desktop Charger

1x Belt Cilp

1x AC adapter

English manual
