TYT TH-UV3R Handheld Walkie Talkie Dual Band Dual Display Dual Standby

Sale!

TYT TH-UV3R Handheld Walkie Talkie Dual Band Dual Display Dual Standby

$62.00

& Free Shipping

TYT TH-UV3R Handheld Walkie Talkie Dual Band Dual Display Dual Standby

Main Functions:

 Compact and easy to operate  Chinese and English voice prompt
 Voice scrambler  Emergency alert
 COMP function  Channel name editing
 Dual watching function  VOX function
 CTCSS/DCS scanning  Wide/Narrow Band(25kHz/12.5kHz)
 Full frequency coverage  1750Hz tone
 Battery capacity management  Power-on protection function
 Progammable multifunction key  FM radio and 25 radio stations memory
 Wire clone & PC programmable  Transmitter time-out timer(TOT)
 Repeater offset  Priority channel scan
 USB charging  Automatic power off(APO)
 End of tone  0-9 grades voice sensitivity

Specification:

Item number TH-UV3R
General
Frequency Range 70-108MHz(FM Receive only)



136-174MHz/400-470MHz

Channel No. 108
Frequency Stability ±2.5ppm
Antenna High gain antenna
Antenna Impedance 50Ω
Operating Voltage DC 3.6V
Mode of operation Simple or semi-duplex
Dimension(W x H x D) 92 x 48 x 24 mm
Weight 107g(including battery, antenna)
Transmitter
Output power ≥2W(H)   ≥0.5W(L)
Modulation Mode 16kΦF3E / 11kΦF3E
Maximum deviation <5kHz(Wide) / <2.5kHz(Narrow)
Spurious Radiation <7μW
Adjacent Ch. power ≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics 6dB
Current ≤1.6A(5W)
CTCSS/DCS deviation 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity 8-12mv
Intermediation distortion <10%
 Receiver
RF Sensitivity -122dbm(12db SINAD)
Audio power ≥0.5W
Audio Distortion ≤10%
Intermediation ≤-65dB(Wide) / ≤-60dB(Narrow)
Selectivity ≤-65dB(Wide) / ≤-60dB(Narrow)
Spurious Rejection ≤-65dB
Blocking ≥85dBuv/m

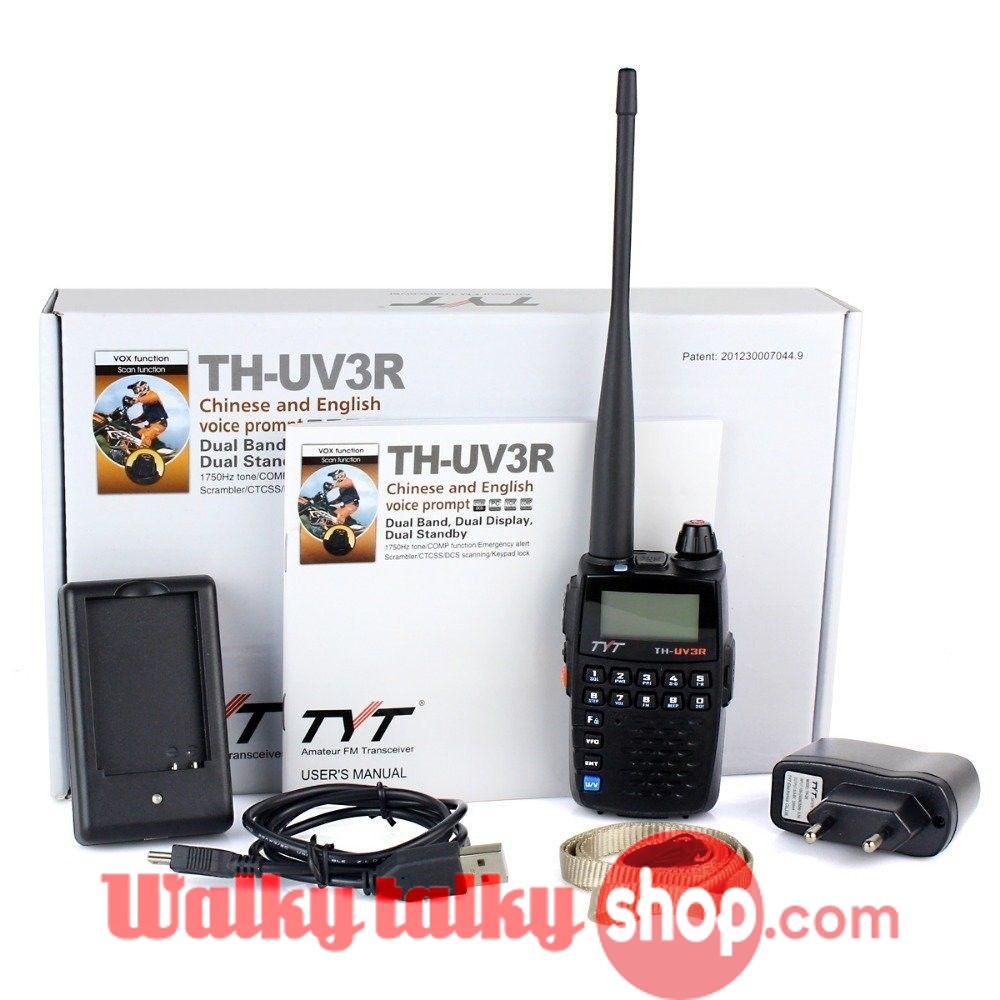

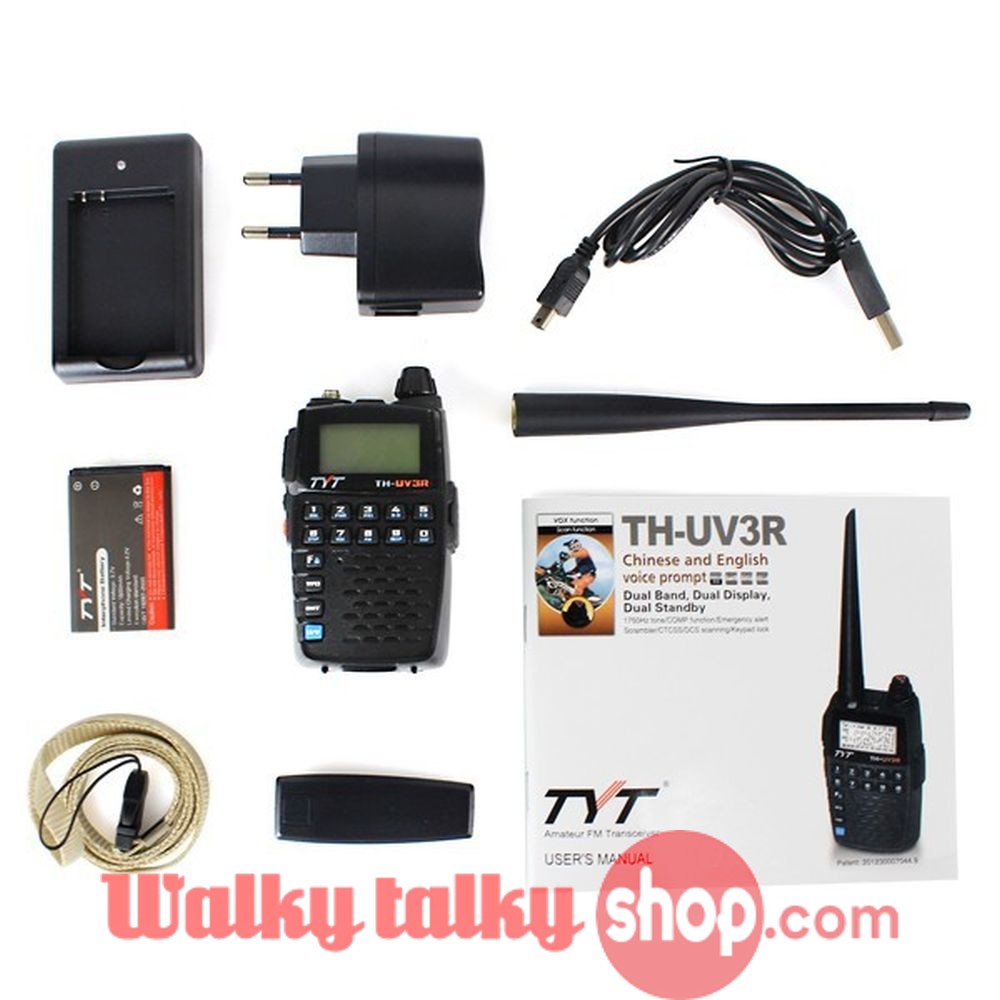

Package Including :

  • 1x TYT TH-UV3R Dual-Band Radio (136-174 / 400-470MHz )
  • 1x 3.7V 1500mah Li-ion Battery Pack
  • 1x SMA-F Antenna
  • 1x Belt Clip
  • 1x English Manual
  • 1x Wrist strap

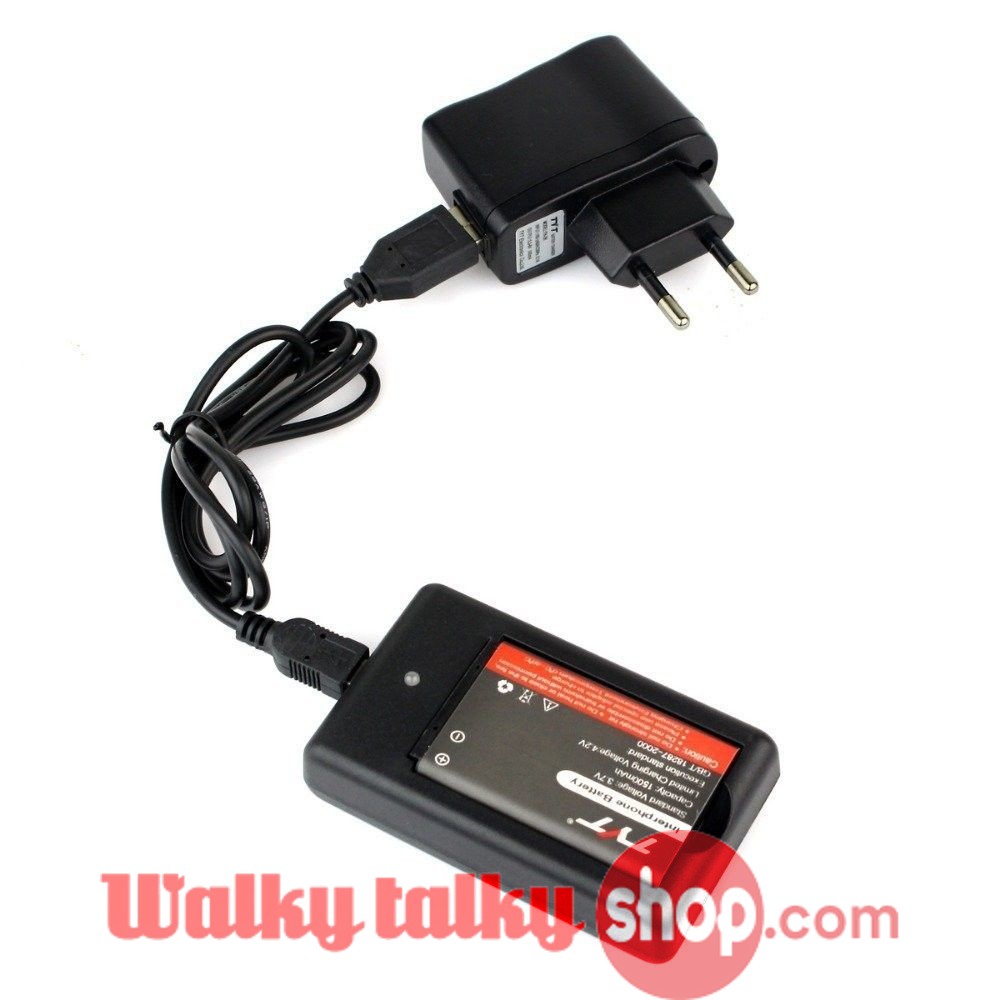

  • 1x Desktop Charger ( 100V ~ 240V )

Weight 1 kg
Dimensions 280 × 200 × 80 cm

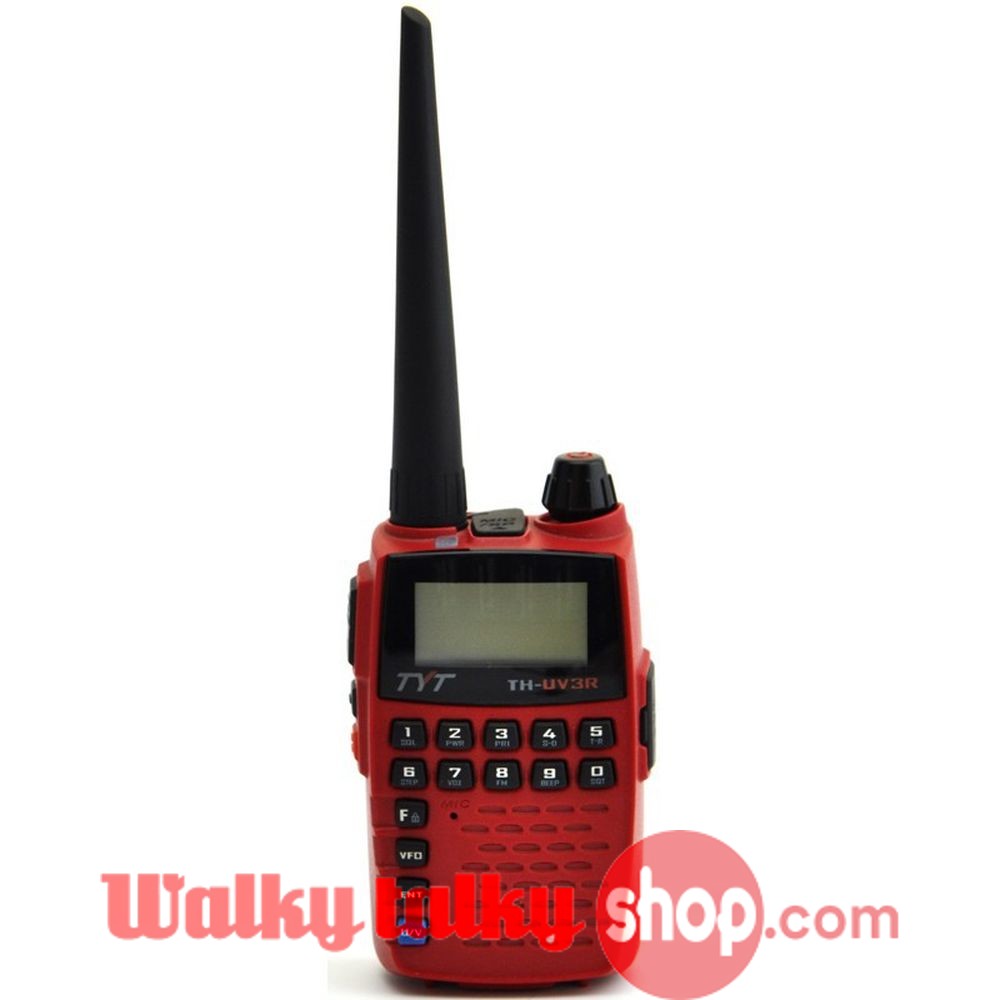

Color

Black, Red, Camouflage
