Function:
Dual Band, Dual Display, Dual Frequency, Dual Standby
- Dual PTT keys
- Frequency Range: 136-174MHz & 400-520MHz
- A/B band independent operation
- 128 groups channels storage
- Shortcut menu operation mode
- VFO & Memory channels scan
- Emergency Alarm
- Tri-color background light selectable
- 0~9 grades VOX selectable
10.PTT & ANI ID
11.FM radio and 25 stations storage
12.1750Hz Brust
13.Tone Time-out Timer
14.Channel Monitor
15.Battery Saver
16.Keypad Lock
17.Channel Step: 2.5/5/6.25/10/12.5/25KHz
18.Low Battery Alert
19.ROGER SET
20.Emergency Alert
21.25KHz/12.5KHz Switchable
22.FM Radio (65.0MHz-108.0MHz)
23.Large LCD Display
24.LED Flashlight
25.Hight /Low RF Power Switchable
26.Voice companding
27.50 CTCSS/ 104DCS coder & tone searching
28.PC programmable
29.Wide/Narrow Band(25kHz/12.5kHz)
30.Transmitter time-out timer(TOT)
31.High/Low TX power selectable
32.Busy channel lock-out(BCLO)
Specification:
Brand | BaoFeng |
Function introduction | LCD has a dual display function |
Automatic search and display functions of CTCSS/DCS signaling | |
The new radio | |
Flashlight lighting function | |
U-U, V-V, U-V function | |
The channel name edit function | |
Dual band intercom function | |
Computer programming function | |
VOX voice function | |
Frequency, channel scanning | |
Channel scanning table editing function (which can be freely selected channel involved in scanning) | |
General index | |
The frequency range | |
FM | 65-108MHz (radio, can receive, cannot transmit) |
VHF | 136.000-174.00MHz (VHF, transmitting and receiving are) |
UHF | 400-520.00MHz (UHF, transmitting and receiving are) |
Memory channels | Up to 128 channels |
Working voltage | 7.4V DC 2800mAh Long battery |
Step frequency | 2.5/6.25/10/12.5/20/25KHz |
Frequency stability | + 2.5PPM |
The 50 ohm antenna | |
Size | (110mm x 58mm x 32mm) (height x width x thickness) |
Emission | |
Output power | Triple: 8W/ 4W/ 1W |
Current | less than 1.4A (4W) |
Modulation sensitivity | 8-12mV |
Modulation distortion | <10% |
Modulation restrictions | |
<5KHz broadband, narrowband <2.5KHz | |
The sub audio / digital sub audio frequency offset | |
0.75KHz + 50Hz, 0.37KHz + 30Hz | |
The stray radiation | <7 W |
Modulation mode | 16K phi F3E/11K phi F3E |
Modulation characteristics | 6dB/ per times frequency increasing |
Receiver | |
Reference sensitivity | -122dBm (12dB SINAD) |
Audio Power | 1W |
Audio distortion | <10% |
Modulation of receiving bandwidth | 5K |
Clutter suppression | greater than or equal to 65dB |
Adjacent channel selectivity (broadband, narrowband) | = 65dB = 60dB |
Intermodulation (broadband, narrowband) | = 60dB = 55dB |
Blocking | = 85dB |
Standard configuration | a host, antenna, battery charger root block, a sleeve, a hand belt clip and lanyard a, book, package box a.
|
Package included:

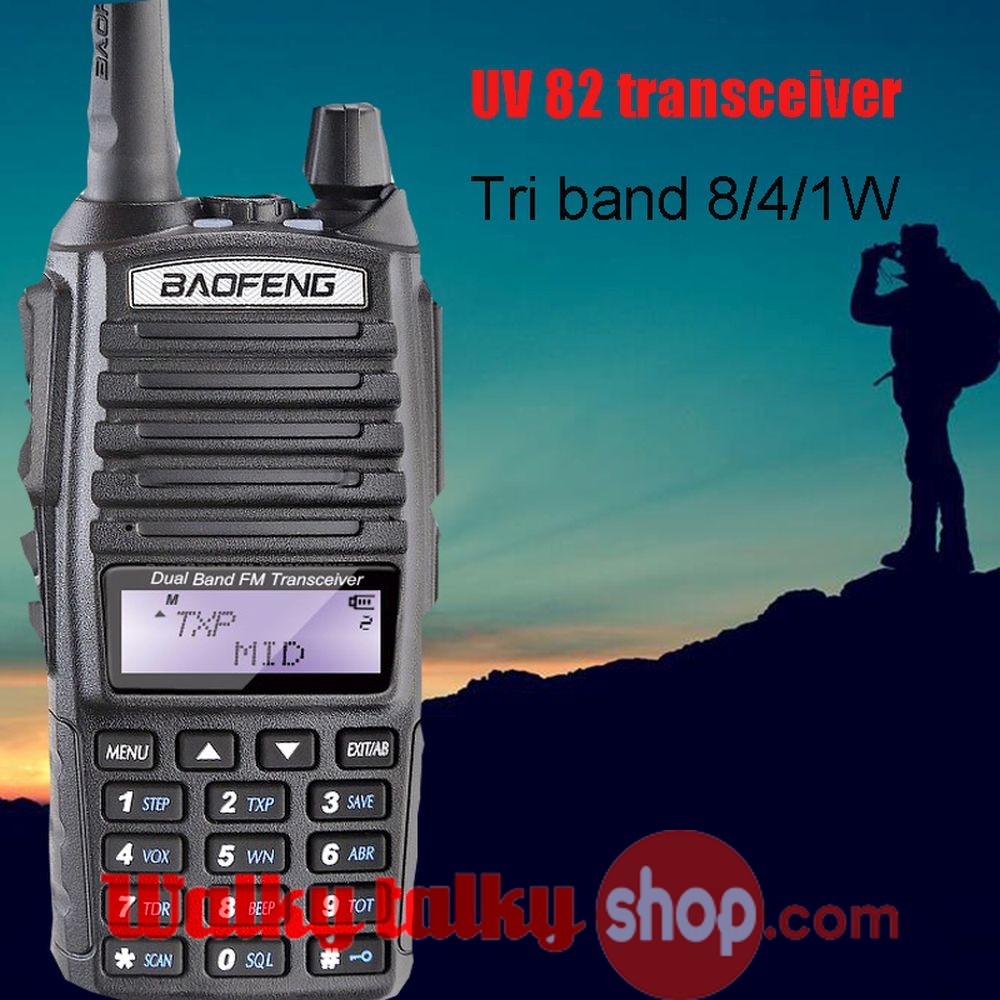

1 Baofeng UV-82 Triple-power 1W/4W/8W Transceiver
1 x 7.4V 2800mAh Li-ion Battery Pack.
1 x Antenna
1 x Dual PTT Earphone
1 x Belt Clip
1 x Hand Strap
1 x AC Adapter
1 x Desktop Charger (100V~240V)
1 x User Manual
