TYT TC-3000A High Power 10W VHF UHF Professional FM Transceiver

Sale!

TYT TC-3000A High Power 10W VHF UHF Professional FM Transceiver

Original price was: $93.00.Current price is: $67.00.

& Free Shipping

TYT TC-3000A Professional 2-ways Radio 10W 3600mAh

High power 10W enables father communication distance

High-capacity battery ensures longer standby

Scramber to make your communication be more confidental

Two antenna, high gain and common provides great flexibility while working

Features

  • 3600mAh polymer Li-ion Battery
  • 260 hours ultra long standby time
  • CTCSS/DCS non-standby code
  • High/Low power selectable
  • English/Chinese Voice prompt
  • VOX sensitivity adjustable
  • 10W/5W power switch with side-key operation
  • 10 Watt ultra-high output power
  • High/Low voltage TX selection
  • PC program protection
  • COMP/Scrambler
  • Voice companding function
  • Bandwidth selectable(12.5/25kHz)
  • Battery save function
  • 1750Hz tone
  • Squelch adjustment function
  • End-tone elimination
  • Receiving alarm
  • Time-out-timer(TOT)
  • Side-key assignment
  • Low-battery alert
  • Busy channel lock
  • VOX transmitting
  • Scanning

Specification

All of our items are brand News
Model TC-3000A
Frequency Range UHF 400-520MHz / VHF 136-174MHz
Channel capacity 16
Max Output power High:10W/Low:5W
Operating Voltage 7.2V DC
Antenna Impedance 50 ohm
Working Temperature -20°C—+50°C
Frequency Spacing 12.5kHz/25kHz
Max Battery capacity 3600mAh
Color Black
Dimension(Exclude antenna) 133x59x36mm
Weight(Include Battery) 272g
Feature
3600mAh polymer Li-ion Battery Yes
260 hours long standby time Yes
CTCSS/DCS non-standby code Yes
High/Low power selectable Yes
English/Chinese Voice prompt Yes
VOX sensitivity adjustable Yes
10W/5W power switch with side-key operation Yes
10 Watt ultra-high output power Yes
High/Low voltage TX selection Yes
PC program protection Yes
COMP/Scrambler Yes
Voice companding function Yes
Bandwidth selectable(12.5/25kHz Yes
Battery save function Yes
1750Hz tone Yes
Squelch adjustment function Yes
End-tone elimination Yes
Receiving alarm Yes
Time-out-timer(TOT) Yes
Side-key assignment Yes
Low-battery alert Yes
Busy channel lock Yes
VOX transmitting Yes
Scanning Yes
Specification
Working mode Simplex or semi-duplex
Modulation type 16KF¢3E
Spurious radiation <=7.5µW
Modulated noise <-40dB
Modulation distortion <55
Frequency stability 5ppm
Max Fr. Deviation <=±5kHz
Current <=2600mA
Audio response +6.5—14dB
Adjacent Ch. Power >=65dB
Intermediation sensitivity 8-12mv
Receiver
Sensitivity <=0.2V
Occupied bandwidth <=16kHz
Selectivity >=65dB
intermediation >=55dB
Audio power 1W
Audio distortion <=5%
Frequency stability 5ppm
Curent 80mA(when standby)
220mA(when working)
Audio response +7—12.5dB

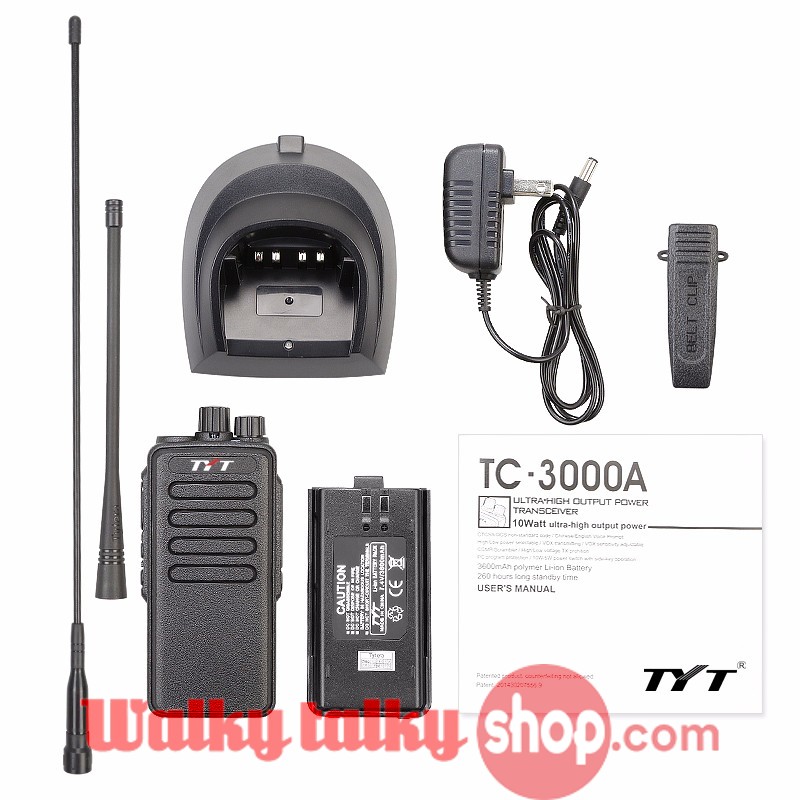

Package contents

1x Portable Radio

2x Antenna(High gain antenna and Common antenna)

1x Polymer Li-ion Battery Pack

1x Charger

1x Belt Clip

1x User s Manual

Weight 1.1 kg
Dimensions 400 × 300 × 100 cm
Frequency Range

UHF 400-520MHz, VHF 136-174MHz
