Dual band, Dual display , Dual standby
1750Hz tone
COMP function
FM radio function, can store up 25 radio channles
Reverse frequency function
VOX transmitting
TOT(Time-out timer)
CTCSS/DCS scanning
DTMF encoding and decoding

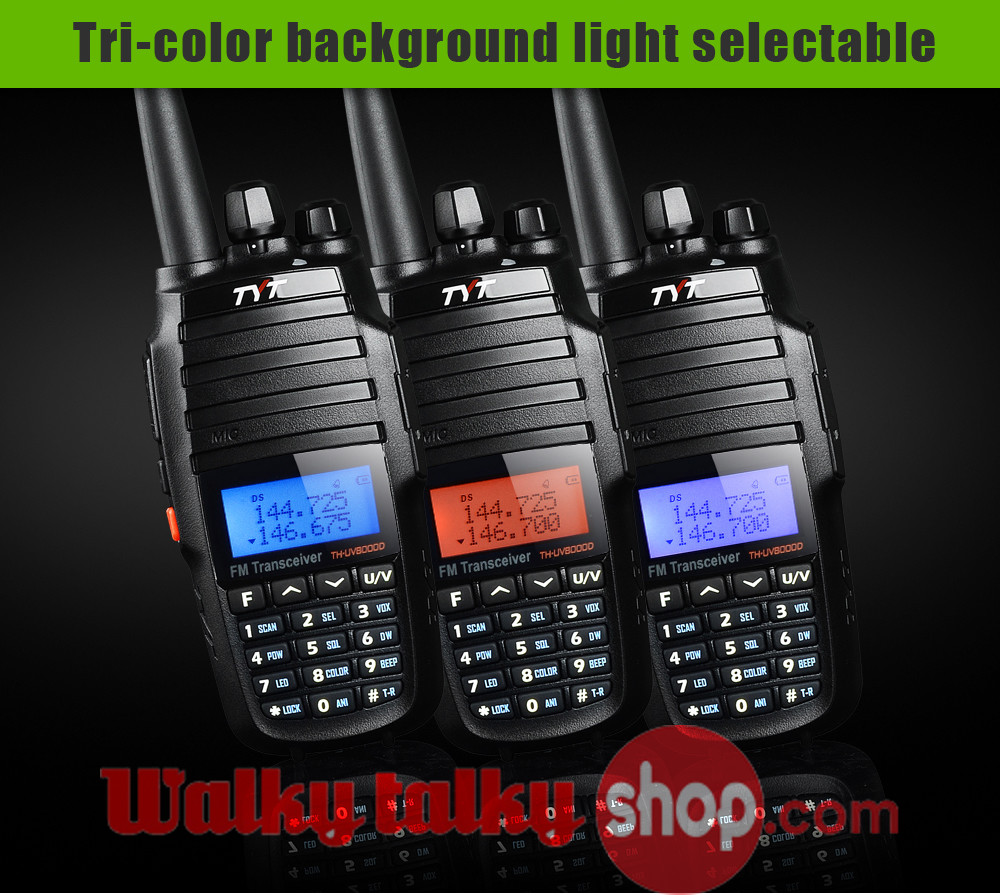

Tri-color background light selectable
Remote Kill/Stun/Activate/Revive
Cross-band repeater function
Non-standard CTCSS/DCS input
General | |
Frequency range | VHF:136~174MHZUHF:400~520MHZ |
Frequency Stability | ±2.5PPm |
Operating voltage | DC 7.2V (Rechargeable Li-ion battery) |
Channel NO. | 128 |
Antenna impedance | 50 ohm |
Mode of operation | Simplex or semi-duplex |
Battery capacity | 3600mAh |
Color | Black |
Dimension(Exclude antenna) | 13x6x3.5cm |
Weight | 291g |
Receiver | |
RF Sensitivity | -122dBm(12dB SINAD) |
Audio power | >0.5W |
Audio distortion | <10% |
Blocking | >=85dB |
Intermediation | >=60dB, >=55dB |
Selectivity | >=65dB, >=60dB |
Spurious rejection | >=65dB |
Transmitter | |
Output power | <=10w, >=5W |
Modulation mode | F3E |
Maximum deviation | <5KHz/<2.5KHz |
Adjacent Ch. power | <=-65dB/ <=-60dB |
Spurious radiation | <7µW |
Pre-emphasis characteristics | 6dB |
Current | <=2.8A(10W),<=1.8A(5W) |
CTCSS/DCS deviation | 0.55KHz±20.15KHz, 0.4KHz±20.1KHz |
Intermediation sensitivity | 8~12mV |
Intermediation distortion | <5% |

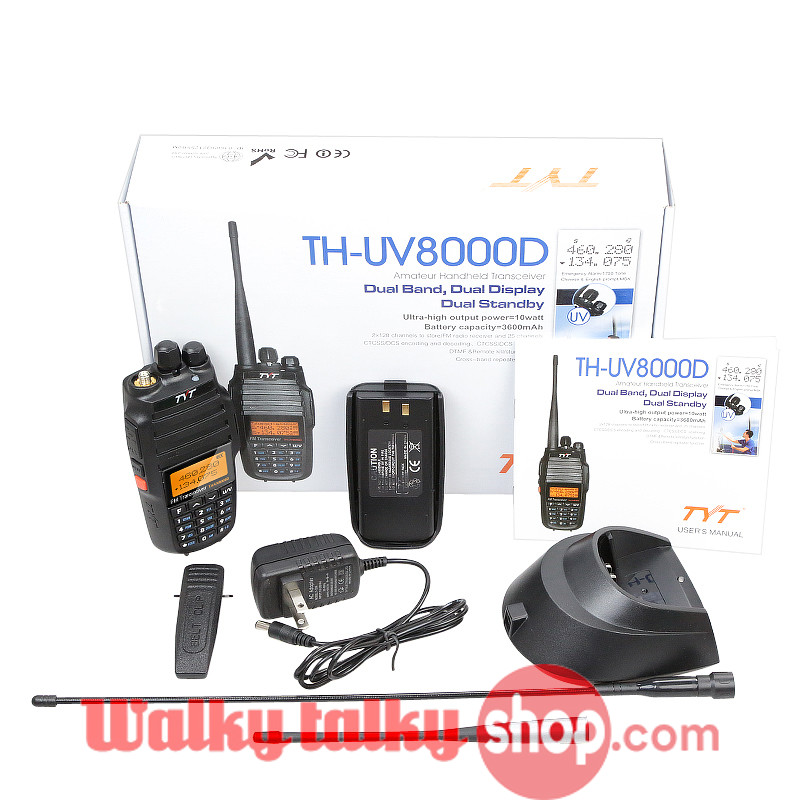

Package list :
- 1 x TYT TH-UV8000D Cross Band Version
- 2 x Antennas (17cm /36cm)
- 1 x Li-ion battery pack
- 1 x Charger
- 1 x Belt clip
- 1 x Lanyard
- 1 x User`s manual
- 1 x PTT earpiece
