Specifications:
1. Hidden display
2.199 storage channels
3. Power: 5W
4. Computer software programming, software read and write encryption
5. Frequency range: 136-174MHz / 400-480MHz
6.CTCSS / DCS function (non-standard analog audio software programming function)
7. Chinese and English voice prompts
8.DTMF
9. Large capacity lithium battery pack
10. Frequency hopping function
| General | |
|
Frequency Range |
400-480MHZ |
| Operation Voltage | DC7.4V |
| Channel Capacity | 199 |
| Antenna | Integrated antenna |
| Antenna impedance | 50Ω |
| Dimension | 135*65*30MM |
| transmit | |
| Output power | 5W |
| The maximum deviation | ≤±5KHz |
| Residual radiation | <-60dB |
| Current | ≤1000mA |
| Receiver | |
| Sensitivity | <0.25μV(12dB SINAD) |
| Squelch Sensitivity | <0.2μV |
| Intermodulation | 50dB |
| Audio Power | 500mW |
| current | ≤100mA |
| Squelch current | 20mA |

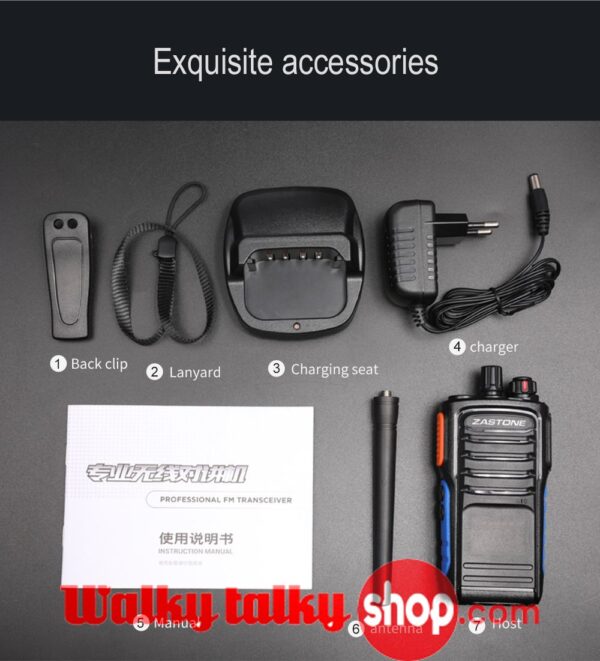

Package Units
1x Radio
1x Back clip
1x Lanyard
1x Charging seat
1x Charger
1x Manual
1x Antenna
