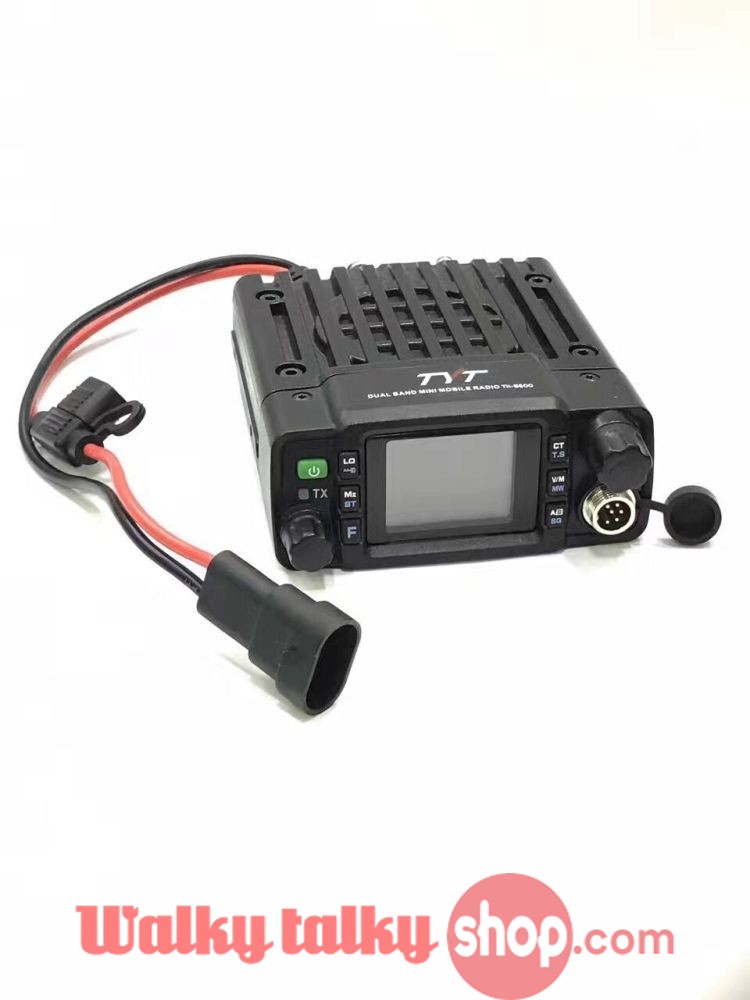

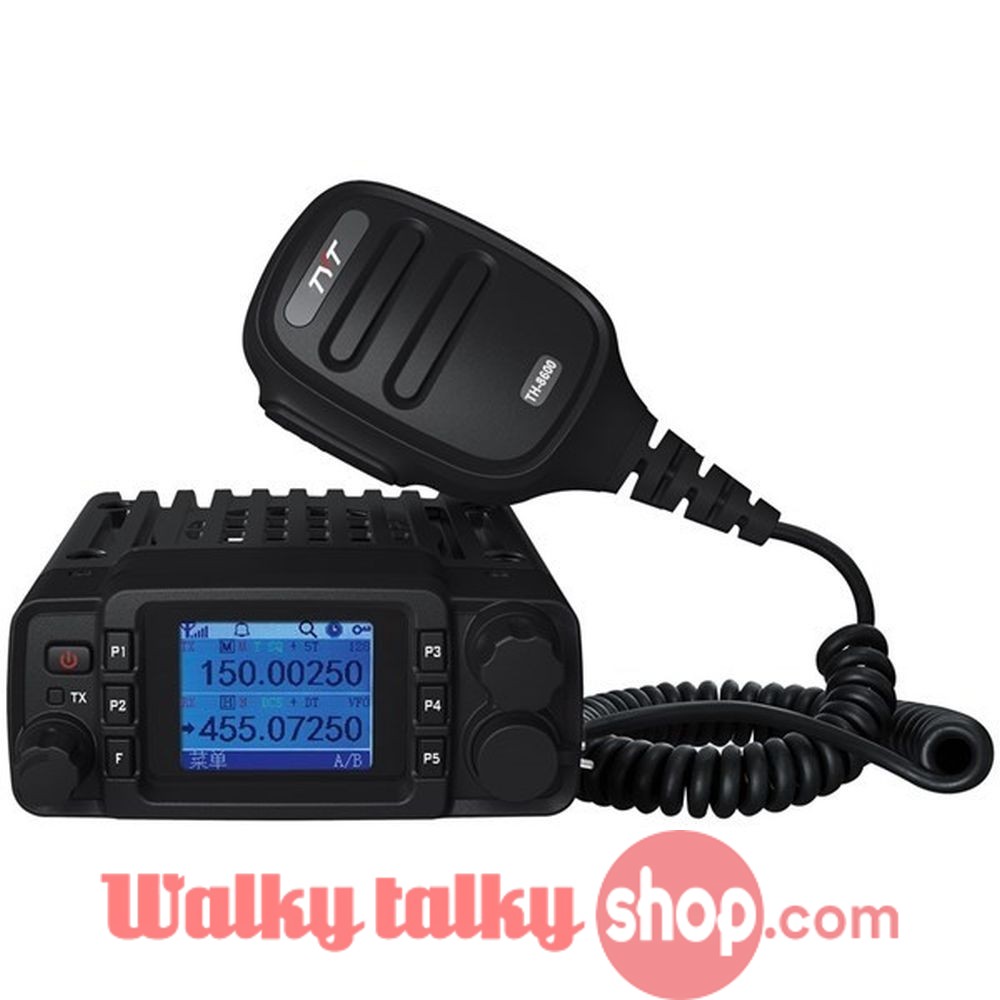

Tytera TYT TH-8600 Dual Band Mini Mobile Transceiver Two Way Radio
Includes Programming Cable & Software, not waterproof version.
The TH-8600 is a powerful dual band, dual display and dual standby transceiver with 20 watts of power on 400-470MHz UHF and up to 25 watts on 136-174MHz VHF frequencies. It has 200 programmable channels and four programmable function keys so you can maximize flexibility and minimize distraction while you operate RX/TX at the wheel.
The TH8600 features CTCSS and DSC encode/decode, DTMF encoding/decoding, priority channel scanning, and dual band reception. It also features 2Tone/5Tone decoding and encoding, remote kill/stun/activate and a 1750Hz burst tone.
With all these options, one thing is clear. The TYT TH-8600 was made for QUAD and motorcycle action. It’s perfect for almost any compact on or off-road vehicle. Now you can get it for yours.
The Tytera TH-8600 comes with hand microphone, mobile mounting bracket, mobile power cord, an owner’s manual and a one year manufacturer warranty from Tytera.
Features:
· 200 Memory Channels
· Dual Band
· 136-174MHz VHF Frequencies
· 400-470MHz UHF Frequencies
· Repeater Capable
· 20W (UHF)/25W (VHF) Transmit Power
· Power Selectable
· Memory Channel
· Channel Scan
· Priority Scan
· Skip Channel
· Dual Watch
· Busy Channel Lockout
· Talk Around
· CTCSS/DCS Encode/Decode
· Backlit Color LCD Display
· Channel Name Edit and Display
· LED Status Light
· Auto Power Off
· Timeout Timer
· 3.5mm Speaker Port
· Cloning Capable
· PC Programmable (Requires Optional Cable)
· Four Programmable Function Keys
· Internal Speaker
· Hand Microphone
· Cooling Fan
· Submersible
· DTMF Encoding and Decoding
· Stun/Kill/Activate
· Reset
Item number |
TH-8600 |
General |
|
Frequency Range |
136-174MHz/400-470MHz |
Channel No. |
200 |
Frequency Stability |
±1ppm |
Operating Temperature |
-30℃~+60℃ |
Operating Voltage |
13.8V DC |
Dimension |
107mm*125mm*45mm |
Transmitter |
|
Output power |
25W |
Transmitting Current |
4A@13.8V |
Standby Current |
0.2A@13.8V |
FM Modulation |
Wide band:16K0F3E |
Narrow band:11 K0F3E |
|
Modulation distortion |
<5% |
FM Hun and Noise |
≥45dB@25KHz |
Adjacent Ch. power |
≥60dB@12.5KHz |
Audio response |
+1~-3dB |
Receiver |
|
Sensitivity |
0.2μV |
Adjacent Ch. Selectivity |
60dB@12.5KHz |
Intermodulation |
≥60dB/≥65dB |
Spurious Rejection |
≥70dB |
Audio response |
+1~-3dB |
RF Sensitivity |
-122dbm(12db SINAD) |
Audio Distortion |
<5% |
FM Hun and Noise |
≥45dB@25KHz |
Rated audio |
4W |

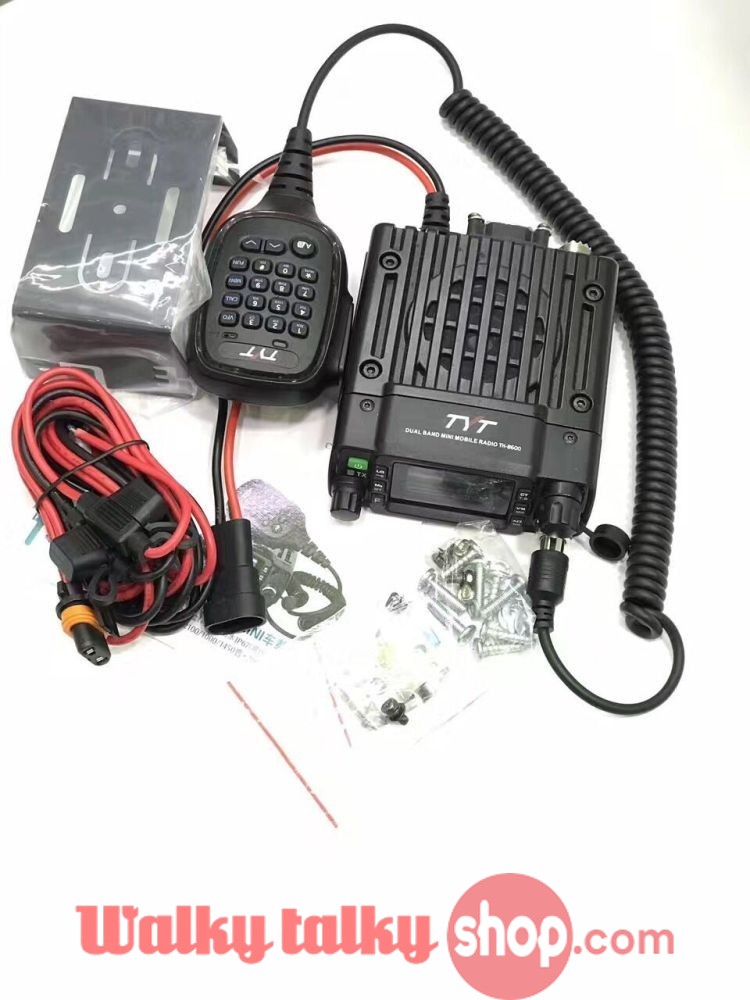

Each Unit Package Contain:
Tytera TYT TH-8600 Dual Band Mini Mobile Two Way Radio

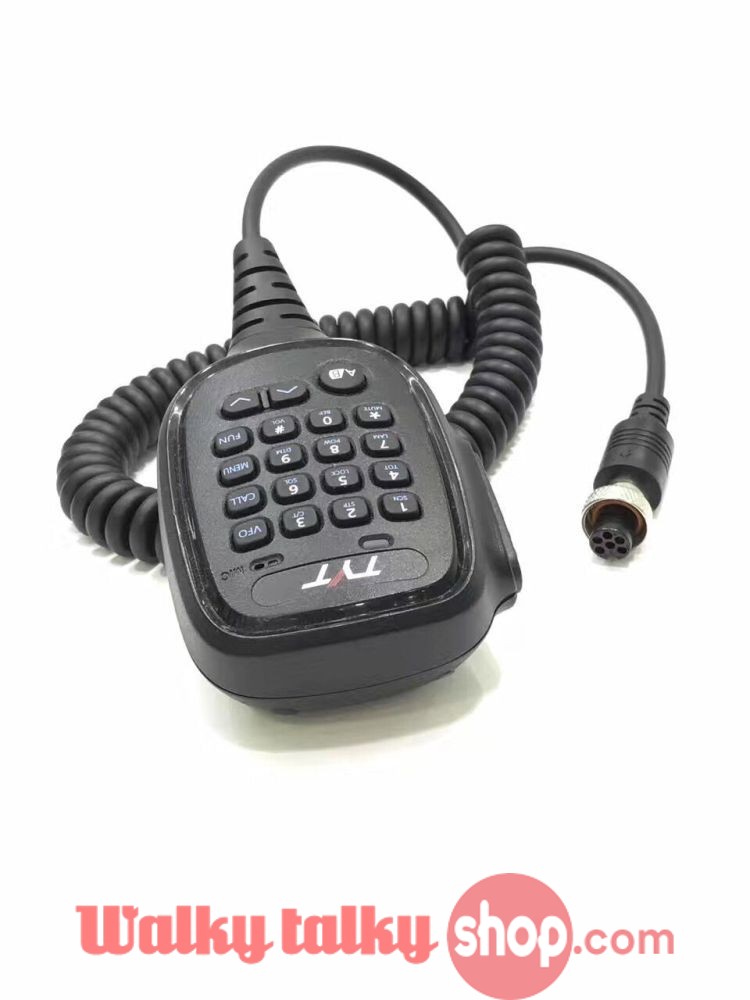

Hand Microphone
Mobile Mounting Bracket
DC Power Cable
Programming Cable & Software
Owners Manual
Tytera TH-8600 Specifications
- Dimensions: 125mm (W) × 45mm (H) × 107mm (D)
- Antenna Connector Type: SO-239 (UHF Female)
