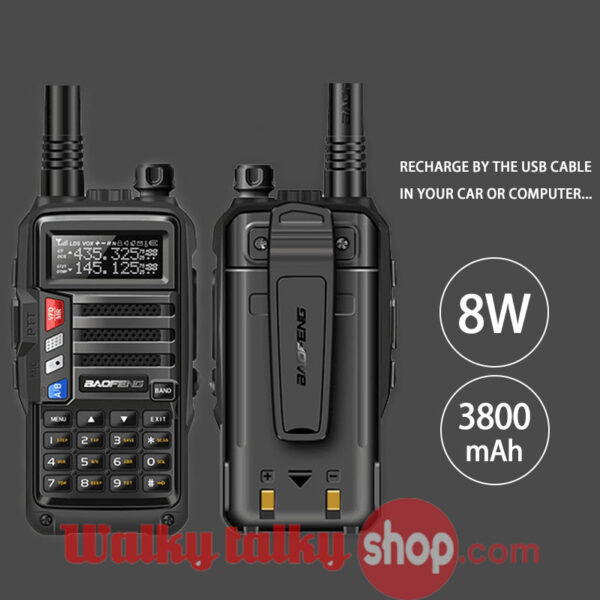

Baofeng AS53 3800mAh 8W 10KM Dual Band Ham Radio For Hunt Forest City

Sale!

Baofeng AS53 3800mAh 8W 10KM Dual Band Ham Radio For Hunt Forest City

Original price was: $70.00.Current price is: $42.00.

& Free Shipping

Baofeng AS53 3800mAh 8W 10KM Dual Band Ham Radio For Hunt Forest City Upgrade 5R

[iframe src=”https://cloud.video.taobao.com/play/u/3829362394/p/1/e/6/t/10301/50232656350.mp4″ width=”100%” height=”500″]

Feature:

1.   100% Brand New & Never Used

2.   Dual-band handheld transceiver with display function menu on the display “LCD”

3.   DTMF encoded

4.   Lithium-ion battery with high capacity

5.   Commercial FM radio receiver (65MHz~108MHz)

6.   Incorporates 105 codes “DCS” and 50privacy codes “CTCSS” programmable

7.   Function “VOX”(voice operated transmission)

8.   Alarm function

9.   Up to 128 memory channels

10.   Broadband (Wide)/Narrowband (Narrow), selectable

11.   High/low power selectable

12.   Display illumination and programmable keyboard

13.   Function “beep” on the keyboard

14.   Dual Watch/dual reception

15.   Selectable Frequency Step

16.   Function “OFFSET” (frequency offset for repeater access)

17.   Battery saving function

18.   Timer transmission “TOT” programmable

19.   Selecting the Scan Mode

20.   Busy Channel Lock

21.   Built-in RX CTCSS/DCS scan

22.   Built-in LED flashlight

23.   Programmable by PC

24.   Level Threshold “Squelch” adjustable from 0 to 9

25.   Cross band reception

26.   Tone end of transmission

27.   Built-in key lock

Specification:

                                             General
Frequency range VHF:136MHz-174MHz(Rx/Tx)
UHF:400MHz-520MHz(Rx/Tx)
65MHz-108MHz(Qnly commercial FM radio reception)
Memory channels Up to 128 channels
Frequency stability 2.5ppm
Frequency step 2.5/5/6.25/10/12.5/25KHz
Antenna impedance 50 OHM
Operating temperature -20°C-60°C
Supply voltage Rechargeable Lithium-Ion 7.4V
Battery Capacity 2800mAh
Consumption in standby <=75mA
Consumption in reception 380mA
Consumption in transmission <=1.4A
Mode of operation Simplex or semi-duplex
Dimensions 110x58x32mm
Weight 130g(approximate)
                                           Transmitter
RF power 8W/1W
Modulation type FM
Emission class   16K  øF3E/11KøF3E(W/N)
Maximum deviation <=±5KHz/<=±2.5KHz(W/N)
Spurious emission <-60dB
                                           Receiver
Receiver sensitivity 0.2µV (at 12 dB SINAD)
Inter modulation 60dB
Audio output 1000mW
Adjacent channel selectivity 65/60dB

Package include:

·        1 X Baofeng AS53 Portable radio

·        1 X Inductively loaded antenna

·        1 X 2800mAh Li-ion battery pack

·        1 X LI-ion charger

·        1 X Belt clip

·        1 X The Sling

·        1 X User’s manual

Note:

With  optional methods to charge the battery. But the standard does not include the USB cable and car charger cable.

If any questions Or bulk order, please contact Ms. Amy Huang:

Email:   mail@walkytalkyshop.com

WhatsApp / Skype: +86-13860123881

Tel: 86(592)5995025

Fax: 86(592)3720556

Weight 1 kg
Dimensions 300 × 200 × 100 cm
Color

Black, Silver
