| Main Functions: |

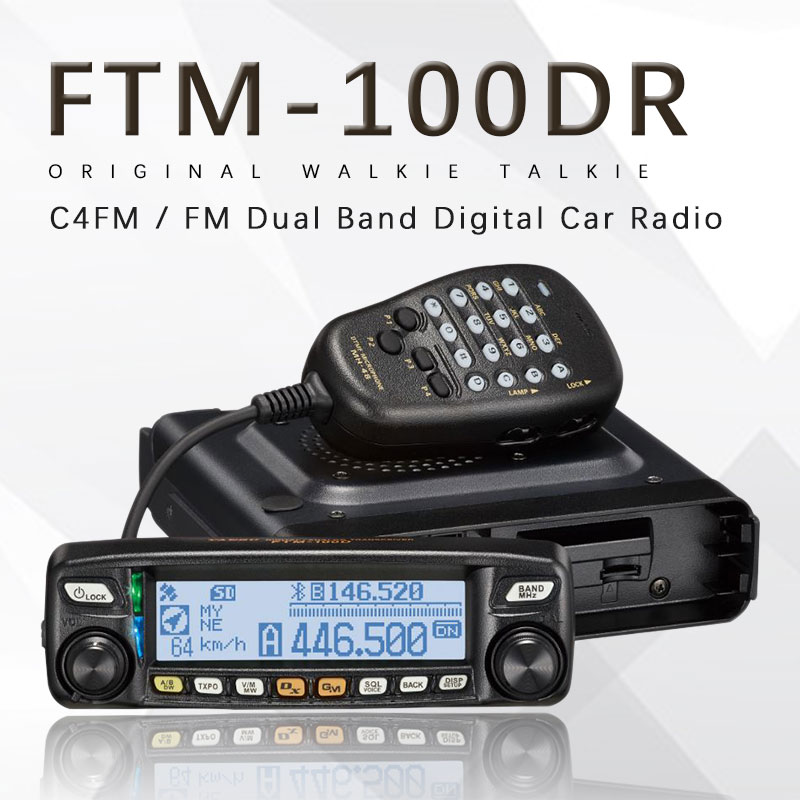

| FTM-100DR dual-band C4FM / FM Digital Car Radio |
| 2 m / 70 cm dual band C4FM / FM Digital Car Radio |
| 50 W 12.5 kHz C4FM / FM dual-band Digital Car Radio |
| – C4FM digital 12.5 kHz bandwidth |
| – V/D mode, voice FR mode, data FR mode and analog FM mode |
| C4FM digital signal and traditional analog signal recognition based on AMS (automatic selection mode) function |
| – Intelligent navigation *1 |
| – Digital group call mode |
| – Support advanced VoIP functions based on amateur radio WIRES-X |
| – Free creation of WIRES-X chat room (need to choose HRI-200) |
| – High power RF output 50 W/ 20 W/ 5 W for 144/430 MHz band |
| – 160 x 40 dot matrix white LED backlight full dot matrix display |
| – Built-in highly sensitive 66ch GPS antenna (front panel) |
| – Receiving and forwarding image data *2 |
| DSQ (Digital squelch code) signal |
| – 1200 BPS / 9600 BPS APRS functionality |
| – Broadband receiving 108 MHz – 999.99 MHz*3 |
| – Bright colourful mode / dynamic state indicator light shows the state of reception |
| – Built-in microSD card slot |
| – Built-in high stability + 2.5 ppm TCXO |
| – Bluetooth profile free mode (need to select accessories BU-2 and BH-2A) |
| – Voice wizard and recording function (need to select accessories FVS-2) |
| *1 does not support backtracking capabilities. |
| *2 can’t connect MH-85A11U snapshots. |
| *3 does not support the simultaneous reception of the A band and the B band. |
| Receive: |
| 108-137 MHz (Aeronautical band) |
| 137-174 MHz (144MHz HAM) |
| 174-400 MHz (GEN1) |
| 400-480 MHz (430MHz HAM) |
| 480 – 999.99 MHz (GEN2) |
| Launch: |
| 137-174 MHz |
| 400-480 MHz |
| (only amateur band) |
| Circuit Type: |
| Double superheterodyne |
| Modulation methods: F1D, F2D, F3D, F7W |
| Radio frequency output power t:50 W/20W/5W (144/430MHz) |
| Channel: 1040 |
| Appearance size (W x H x D): |
| Radio device: 140 x 45 x 164 mm without knob and fan |
| Controller: 140 x 45 x 29 mm without knob |
| Package Contents: |
| 1. DTMF microphone MH-48A6JA |
| 2. USB line |
| 3. Install the bracket |
| 4. Fuse DC power cord |
| 5. Operation manual |
| 6. Safety Guidelines |
| 7. Warranty card |
