Zastone ZT889G Satellite Location Real 10 Watts Walkie Talkie Big LCD With GPS Function
Function:
1, GPS positioning + ranging + location sharing
2, Night mode
3, Backlight mode
4, Duplex different segments, same segment transfer function
5, Duplex working mode
6, 1.77 inch color screen Chinese and English voice prompts
7, High-capacity polymer battery

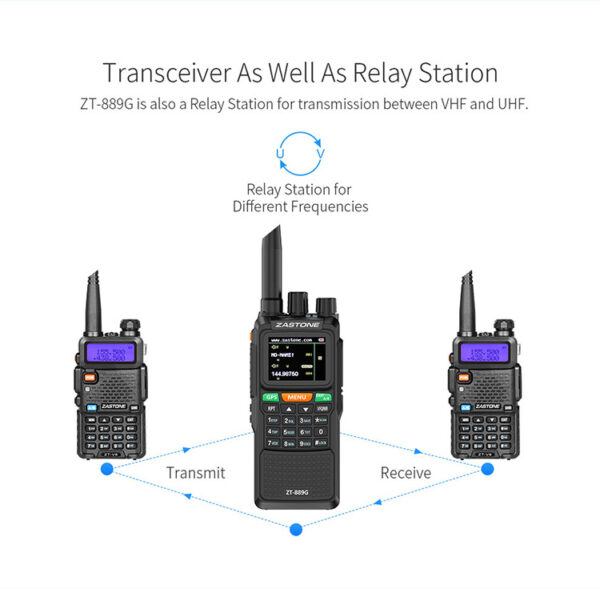

8, Cross-segment transfer to achieve long-distance communication
9, Priority channel real-time monitoring function
10, Selective call, group call, group call function
11, VOX sound control emission function
12, High, medium and low power (10W / 5W / 1W)
13, Highlight LED emergency lighting function
14, Side button setting
15, Non-standard analog sub audio self programming function
16, Relay 1000, 1450, 1750, 2100HZ
17, Chinese and English voice report
18, Chinese and English programming software
19, GPS precise timing and stopwatch function 16 channel selection
20, Wide and narrow bands are available (25KHZ / 12.5KHZ)
21, Chinese and English voice report
22, Number of memory channels: 999 groups
|
Specification
|
|
|
General Specifications:
|
|
|
Product Name
|
GPS 10W Walkie Talkie Radio
|
|
Frequency Range
|
VHF:134-174MHz UHF:400-520MHz
|
|
Channel Capacity
|
16
|
|
Battery
|
3000mah
|
|
Operated Voltage
|
8VDC
|
|
Operated Temperature
|
-10°～+50db
|
|
Antenna Impedance
|
50Ω
|
|
Dimensions (L×W×H) (with battery,without antenna)
|
132.7*56*36MM
|
|
Weight (with battery/antenna)
|
0.93KG
|
|
Communication Range
|
3-10KM
|
|
Receiving:
|
|
|
Sensitivity
|
≤0.2uv
|
|
Bandwidth
|
16KHZ
|
|
Selectivity
|
≥65db
|
|
Intermodulation
|
≥55db
|
|
Maximum audio output power
|
1W
|
|
Audio distortion
|
≤5%
|
|
Frequency limit
|
5ppm
|
|
Receive current
|
Standby 80mA,Talking 220mA
|
|
Response
|
+7~-12.5dB
|
|
Standard
|
26.000MHZ
|
|
Transmitting
|
|
|
Power
|
10W
|
|
Modulation
|
16KF 3E
|
|
Stray RF:
|
≤7.5uW
|
|
Noise:
|
<-40dB
|
|
Distortion
|
<5%
|
|
Frequency deviation
|
≤±5KHZ
|
|
Transmit current
|
≤2300mA
|
|
Response
|
+6~-14dB
|
|
Channel power
|
+7~-12.5dB
|
|
Sensitivity
|
8-12mv
|
