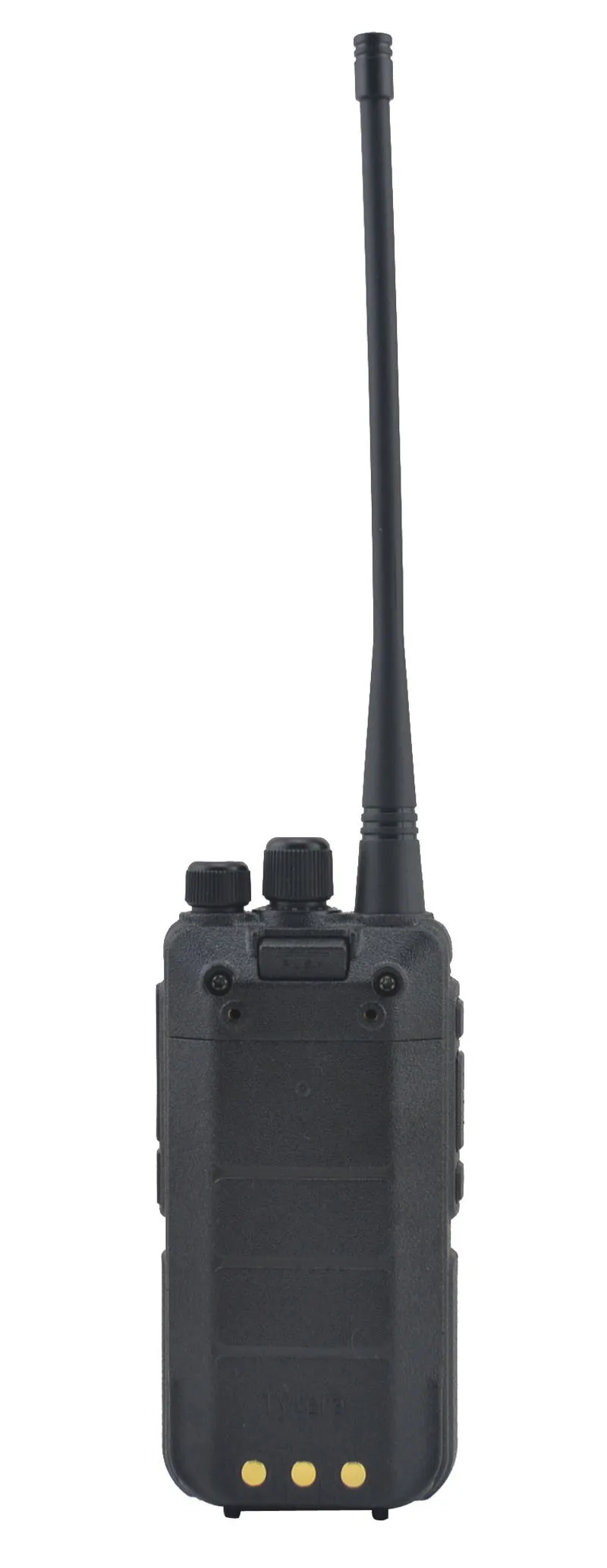

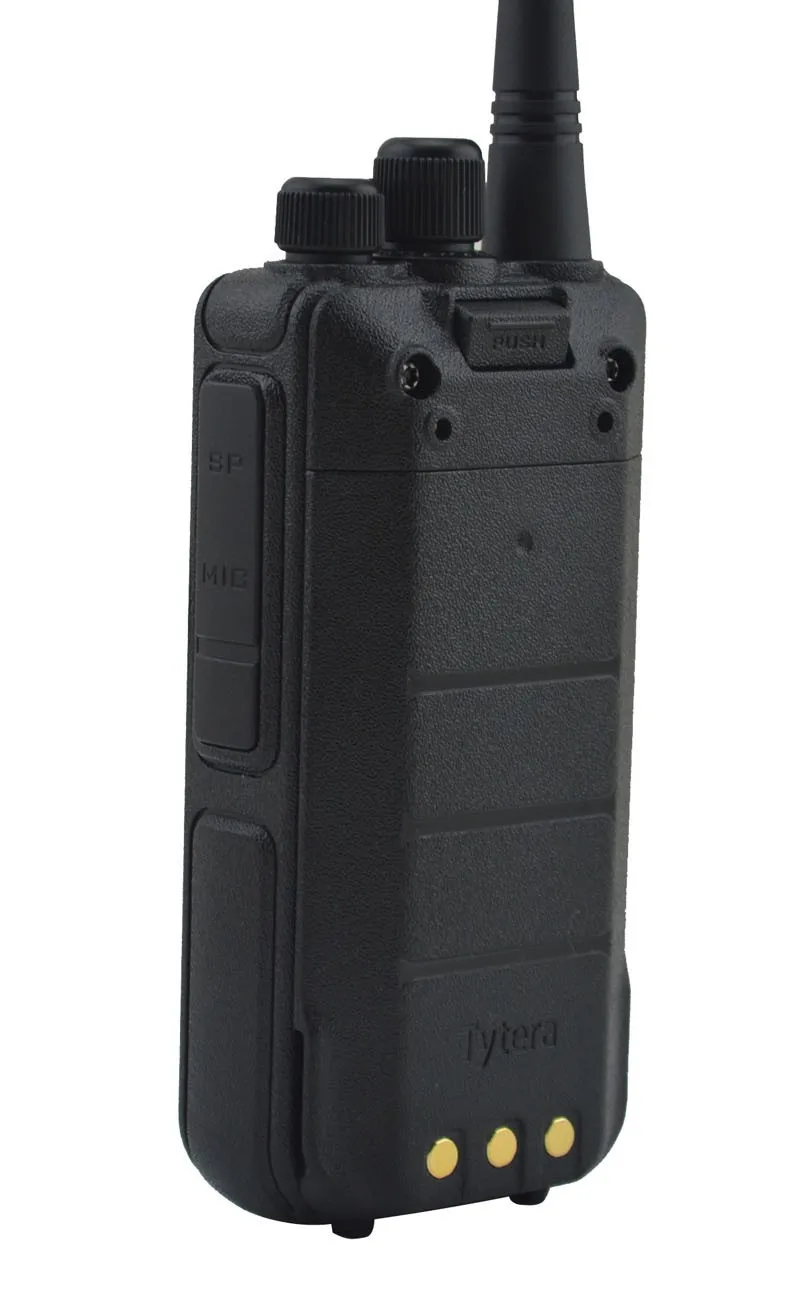

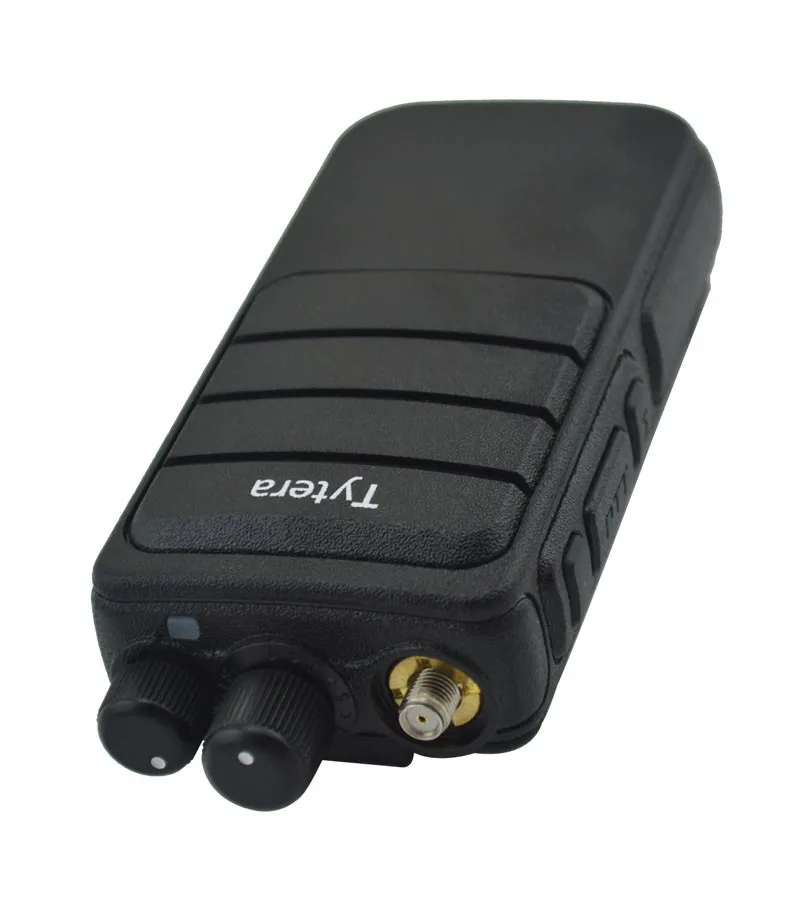

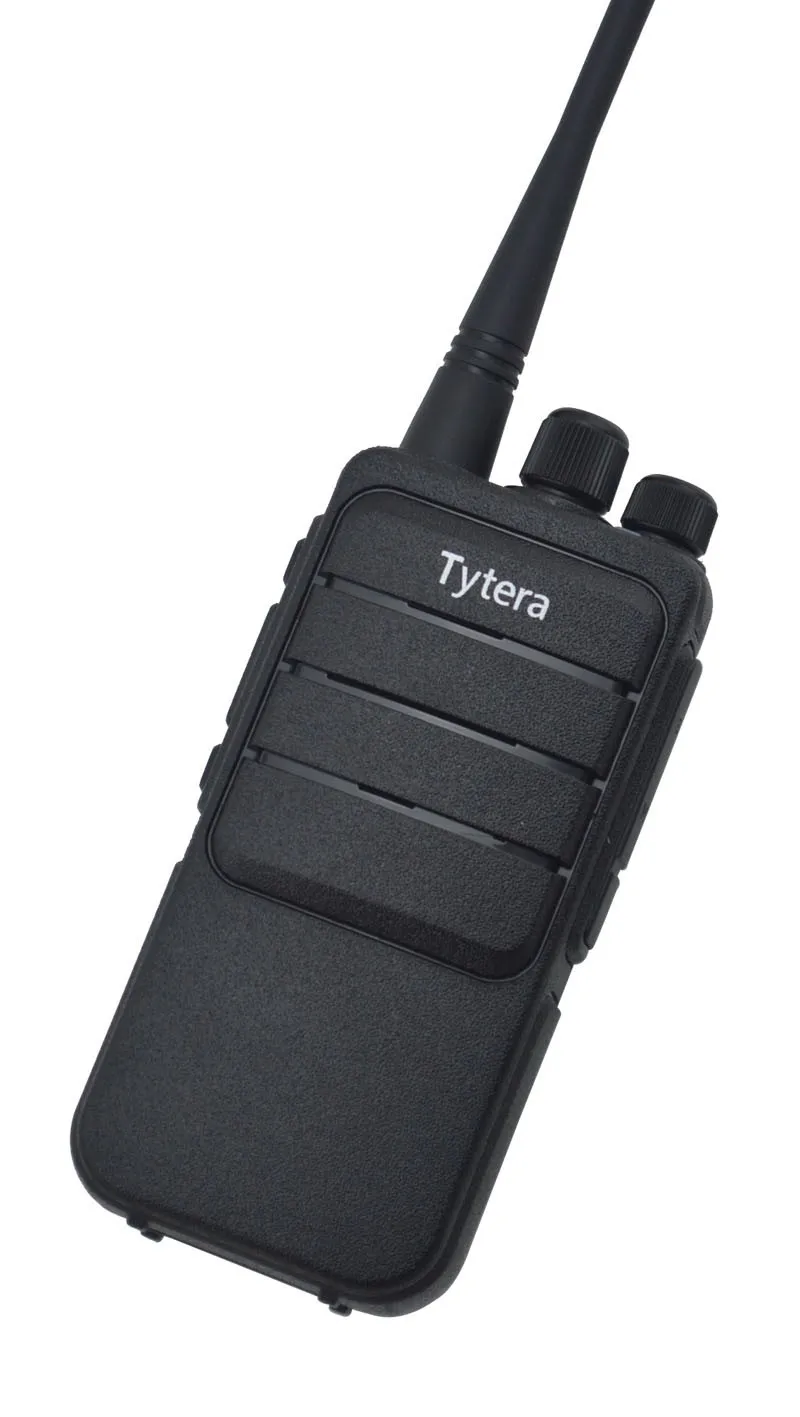

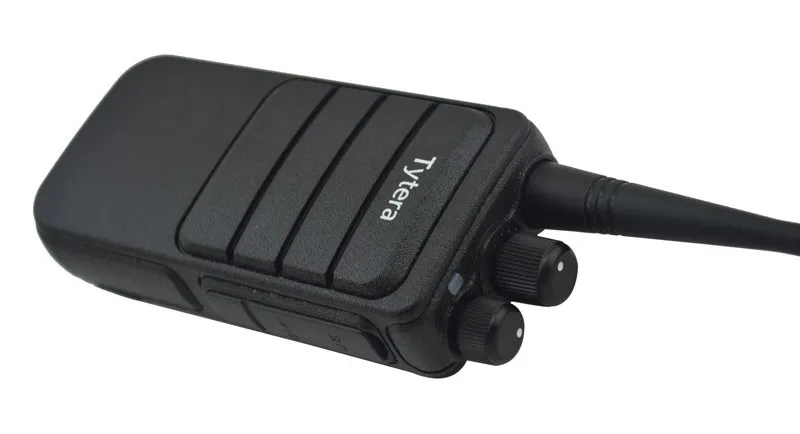

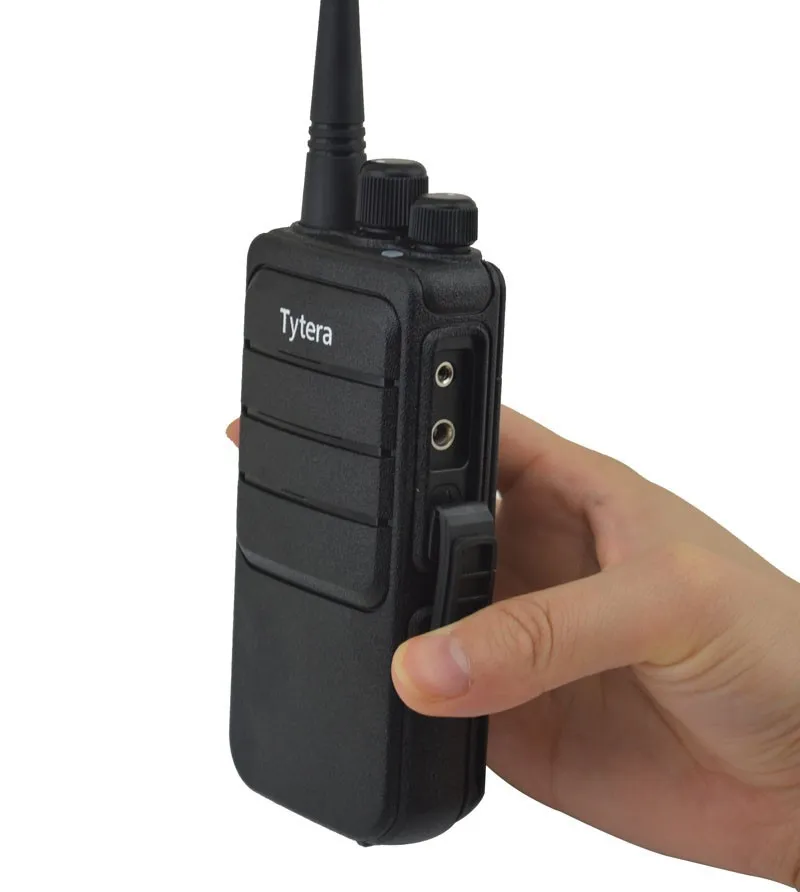

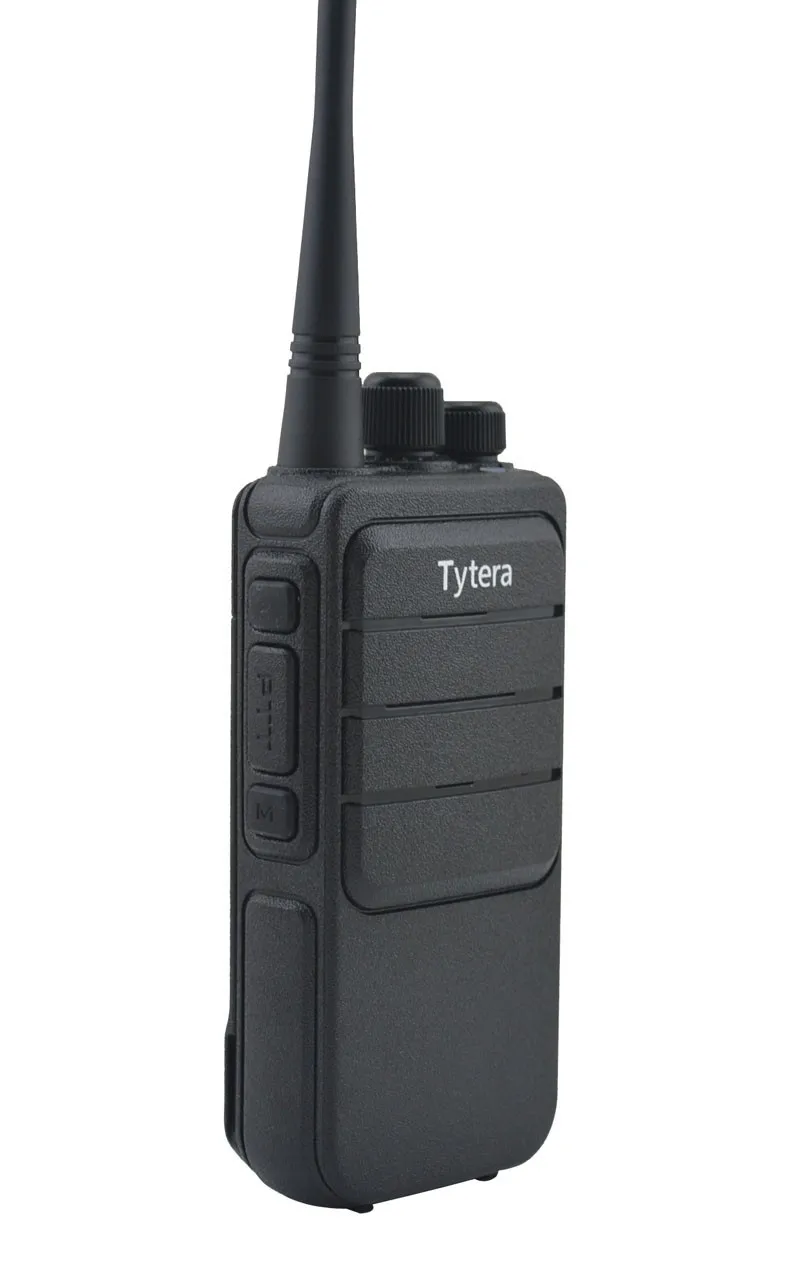

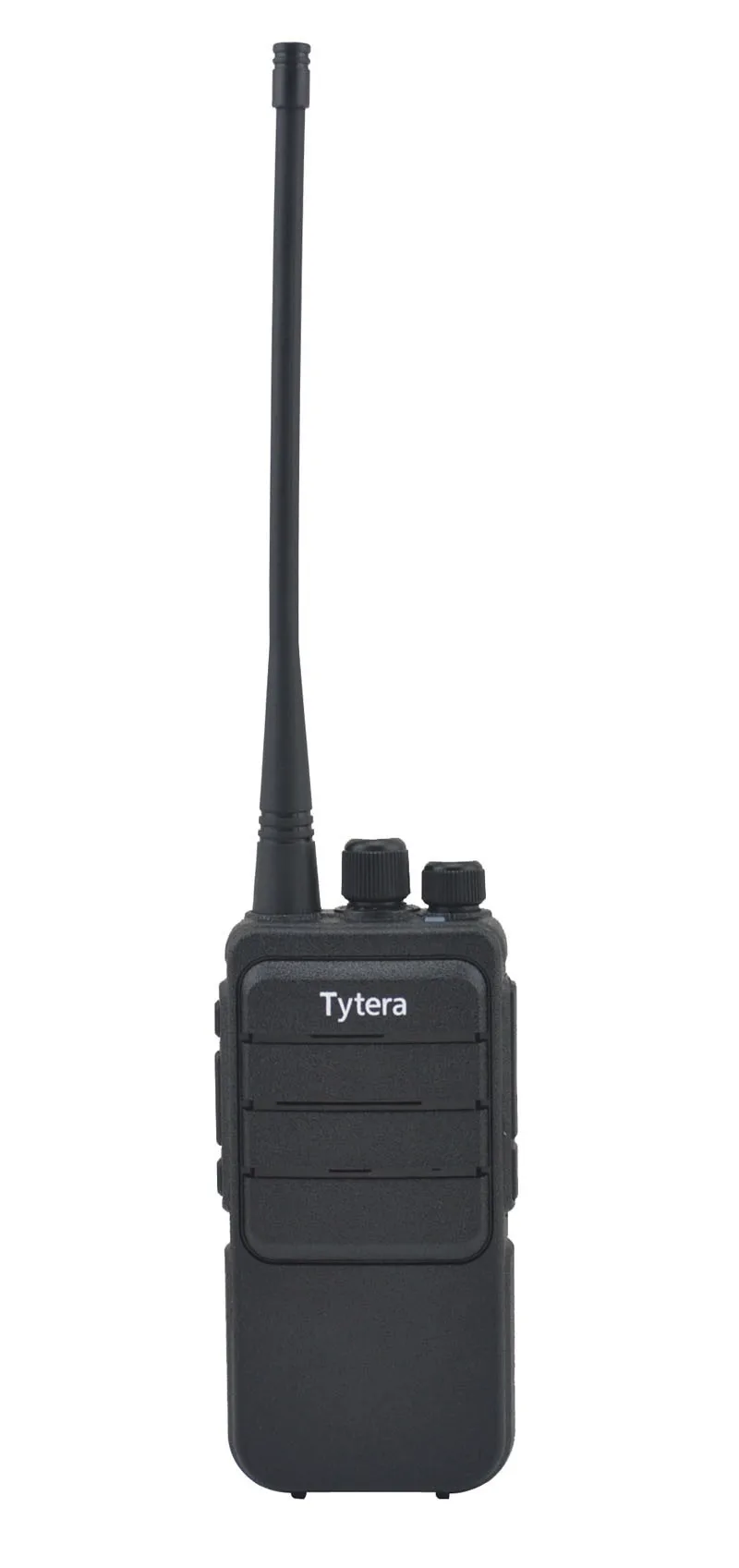

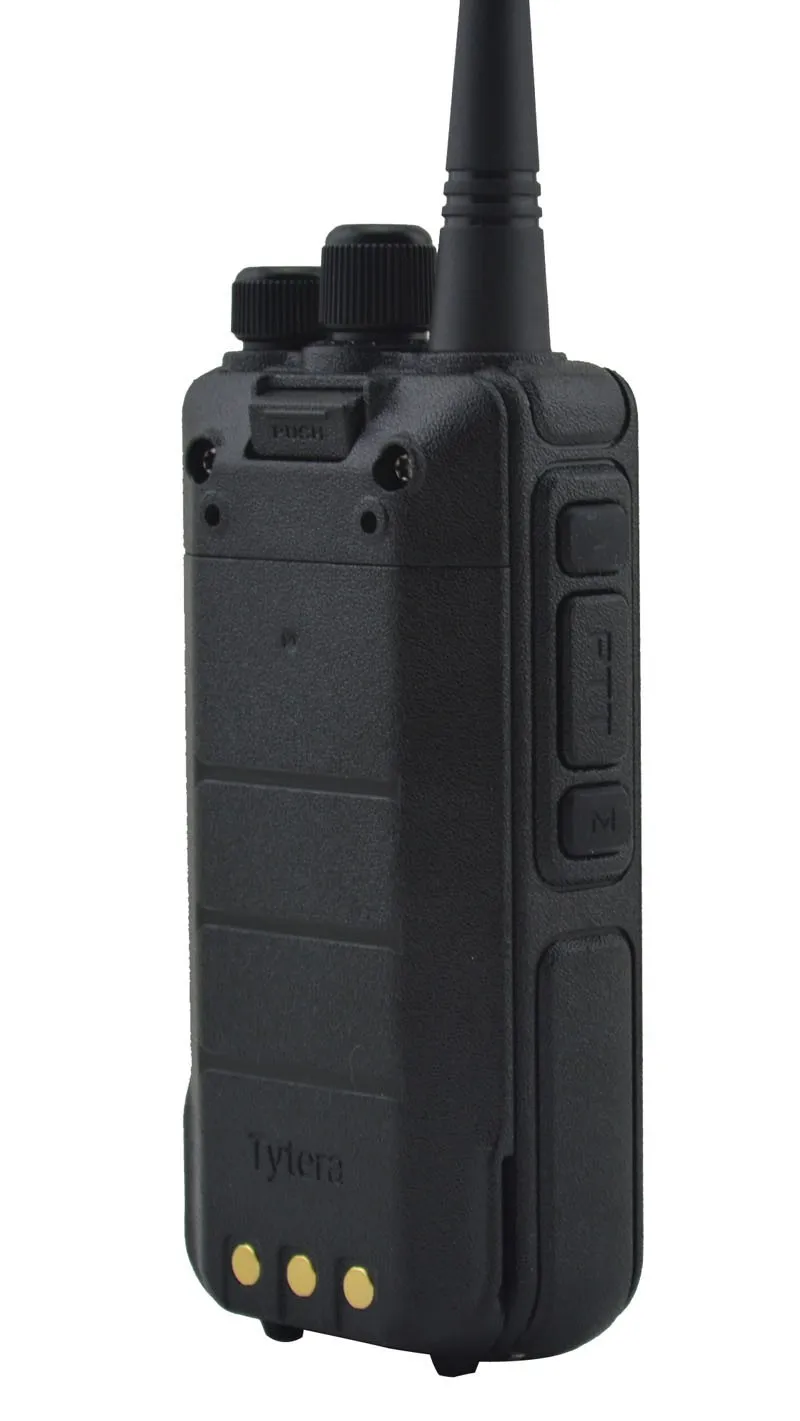

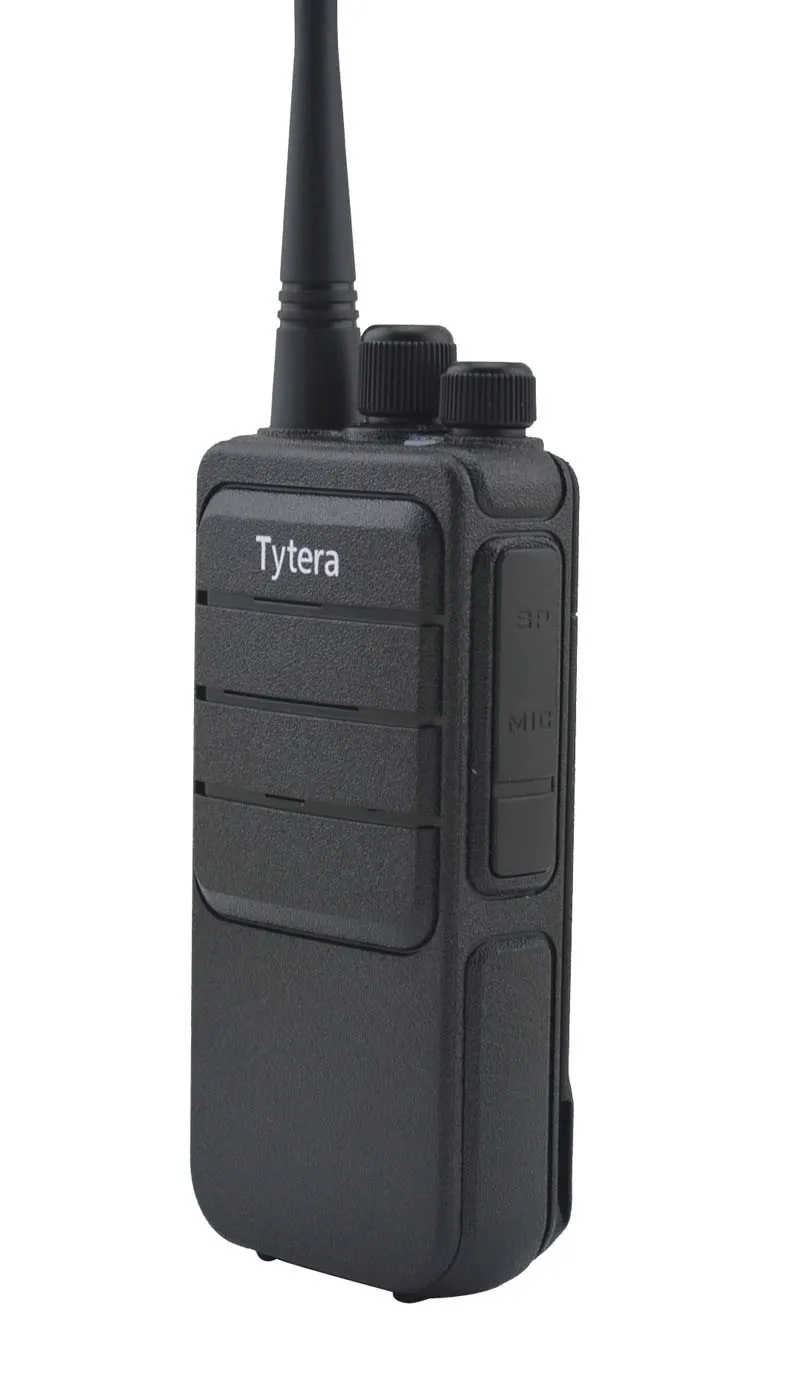

TYT Tytera MD-280 UHF 400-480MHz DMR Digital Portable Two-way Radio
TYT first DMR digital radio,using Time-Division Multi-Access(TDMA)digital technology which doubles the numberof users on a single licensed 12.5KHz channel.It complies with DMR digital protocol,can work with Motorola Radio.

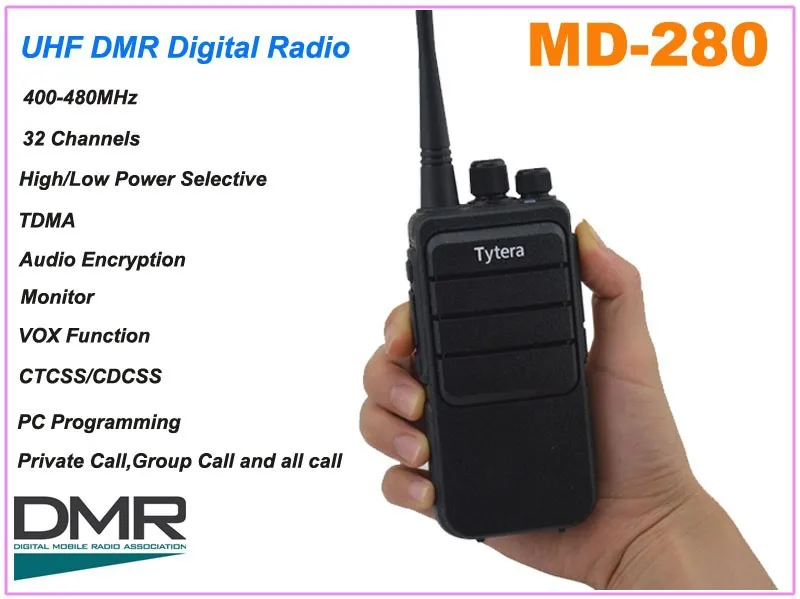

Main Function:
High/Low power selective
Monitor
Vox Function
Lone work
End-tone Elimination
Voice Encryption
TOT
Private call,group call and all call
Chinese/English voice prompt
32 channels
Wide/Narrow bandwidth selectable
Channel Scanning /Priority Scanning
Emergency Alarm
Talkaround function
Programming multifunction key
Built-in CTCSS/DCS
Specifications:
General | |
Frequency Range | 400-480MHz |
Channel Capacity | 32 |
Working Voltage | 7.4V |
Battery Capacity | 2800mAh |
Working Temperature | -20°c~+50°c |
Antenna Impedance | 50 ohm |
Size | 128*61*38mm |
Transmittance | |
Output Power | UHF High:5W
UHF Low:0.5W
|
FM Modulation | 16K Ø F3E |
Transmitting Current | ≤2600mA |
FM Noise | -40dB |
Adjacent Power | ≥65dB |
Audio Response | +6.5~-14dB |
Audio Distort | <5% |
Modulation Sensitivity | 8~12mv |
Receiver | |
Sensitivity | 0.2μV |
Intermodulation | ≥55dB |
Channel Selectivity | ≥65dB |
Receiving Current | Standby80mA,Working 220mA |
Audio Response | +7~12.5dB |
Audio Power | 1W |
Audio Distortion | ≤5% |
Standard Frequency | 16.800MHz |

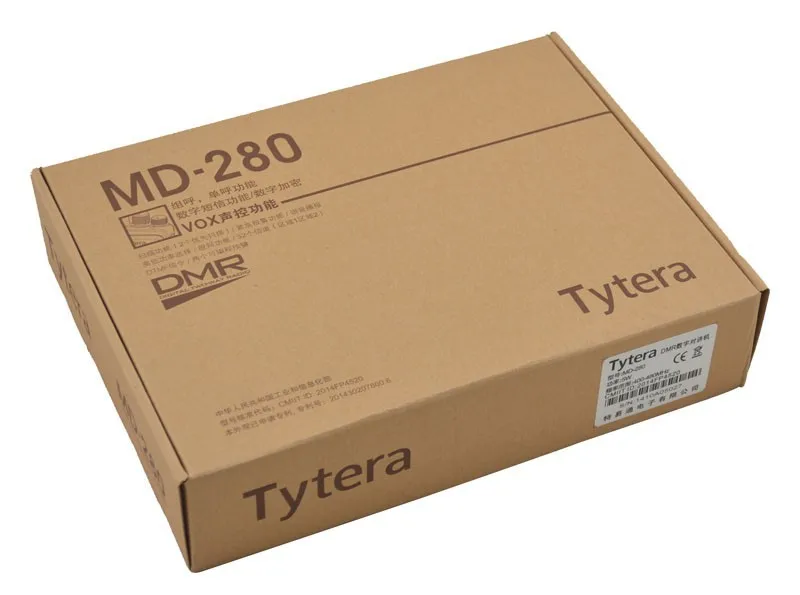

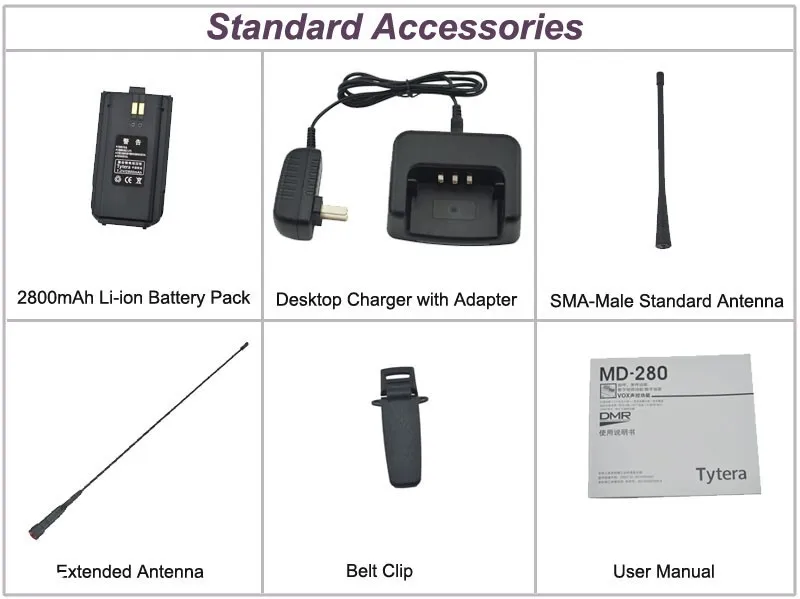

Package Contents:
1× MD-280 UHF Digital Radio
1× 2800mAh Li-ion Battery Pack
1× Desktop Charger with Adapter
1× SMA-Male UHF Standard Antenna
1× Belt Clip
1× Sma-Male UHF extended Antenna
1× User Manual
Weight | 0.6 kg |
---|---|
Dimensions | 300 × 300 × 100 cm |
