TYT Tytera MD-390 with GPS IP67 Waterproof DMR HT WalkieTalkie VHF 136-174MHz UHF 400-480MHz Handheld Two Way Radio

Enter the digital age in style with the Tytera MD-390 DMR Digital Portable Two Way  Radio ! The MD-390 offers amazingly clear, full quieting digital voice communications without walloping your wallet. It operates in analog and digital modes so you can ease into the realm of DMR at your leisure without leaving the comfort of good old analog. It operates on 400-480MHz frequencies (UHF model) or 136-174MHz VHF (VHF model) at up to 5 watts and uses Time-Division Multiple-Access (TDMA) digital technology to double the number of users on a single 12.5kHz channel at either high or low power.

The MD 390 has an impressive 1000 channels to start you off right. It has a two-color LED, built-in CTCSS/DCS, channel scan, priority scan and a DTMF keypad with full access to a menu of all its powerful features.

Need calling features? The MD-390 has Private Call, Group Call and All Call for all the flexibility expected from true a digital radio. Add in a lone worker mode, power save mode, low power alarm, and emergency alarm and you have a feature packed portable that rivals comparable DMR radios at twice the price!

But for all its amazing features, the most notable is the display. The TYT MD-390 is equipped with a color LCD display that is large, clear, and easy on the eyes. It gives text, graphics and text messages a professional ambience that rivals many other digital handheld radios costing hundreds more!

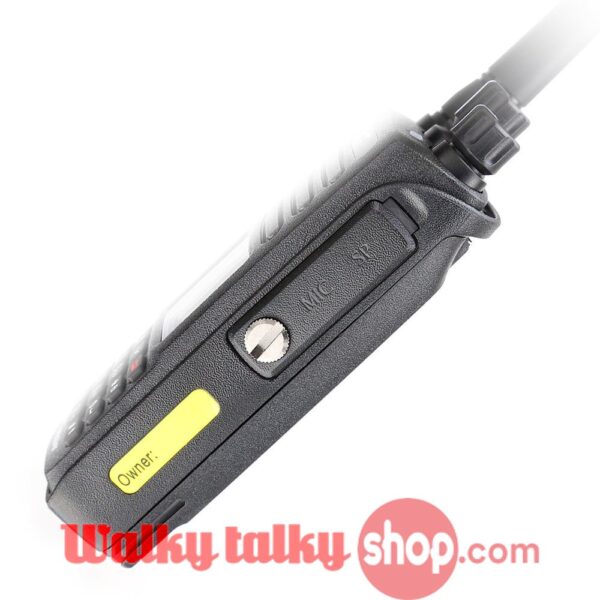

As for accessories, no worries. The MD-390 uses a standard Kenwood 2-pin (K1) connector, so you can add headsets, earbuds, speaker mics and other audio accessories as needed.

The Tytera MD-390 digital radio uses  Digital Mobile Radio  (DMR) Tier 2 Standard protocol. It is compatible with the popular MOTO TRBO series Tier I and II using standard encryption, as well as other makes and models of DMR supported radios. It is also compatible with any existing analog two-way radio operating on the supported UHF frequencies for easy migration to digital technology.

Features:

Frequency band: VHF: 136-174MHz / UHF: 400-480MHz

Large Capacity Battery with 2200mAh:

Continuous use for about 2 hours; Normal use for about 9-12 hours; Standby time

for about 150 hours

IP67 waterproof function: can stay for about 30 minutes 1m underwater

1000 channels

Remote kill/stun/activate

Voice prompt

Power-on protection

Color LCD display

Text messages in digital mode

Encryption function

Built-in CTCSS/DCS

Up to 1000 channels

Priority scan

Compatible with Mototrbo Tier I&II

DTMF decoding and encoding

Updated software available for new features

Private call, group call, all call in digital mode.

Operate in both Digital & Analogue mode, allows easily migrate from analogy to digital

Provide clearer voice communications in digital mode, throughout the coverage area.

GPS function

Specification:

General Specification:

Frequency Range: VHF: 136-174MHz  UHF: 400-480MHz

Channel: 1000 Channels

Channel Spacing: 12.5KHz

Operating Voltage: 7.4V

Battery Type: Li-ion

Operating Temperature: -30+60

Store Temperature: -40+85

Antenna Impedence: 50Ω

Audio Output Power: ≤1000mW 16Ω

Battery Capacity: 2800mAh standard Li-ion Battery

Dimemsion (H*W*D): 131mm*61mm*36mm(Not Including Antenna)

Weight: 258g

Transmitter:

Output Power: High: ≤5W (HI)   Low: ≤1W (Low)

Frequency Stability: ±1.0PPM

Adjacent Channel Power: ≤-60dB

Free Time Slot Power: TDMA: ≤57dBm

Hum and Noise: -40dB 12.5KHz

Spurious Radiation: Antenna: 9KHz-1GHz  ≤-36dBm

1GHz-12.75GHz    ≤-30dBm

FM Modulation Mode: 12.5KHz: 11K0F3E

4FSK Digital Mode: 12.5KHz(data ony): 7K60FXD

12.5KHz(data + voice): 7K60FXE

Modulation Maximum Deviation: 2.5JHz 12.5KHZ

Nonactive Slot Power: -57dBm

Receiver:

Analog Sensibility: 0.35uV/ -116dBm(20dB SINDA)

0.22uv/ -120dBm (Type)

Digital Sensibility:  0.3uV/ -117.4dBm(BER 5%)

0.22uV/ -110dBm(BER 1%)

Co-channel Rejection: ≥-12dB

Rated Audio Power: 1W

Rated: Audio Distoration: 3%(Type)

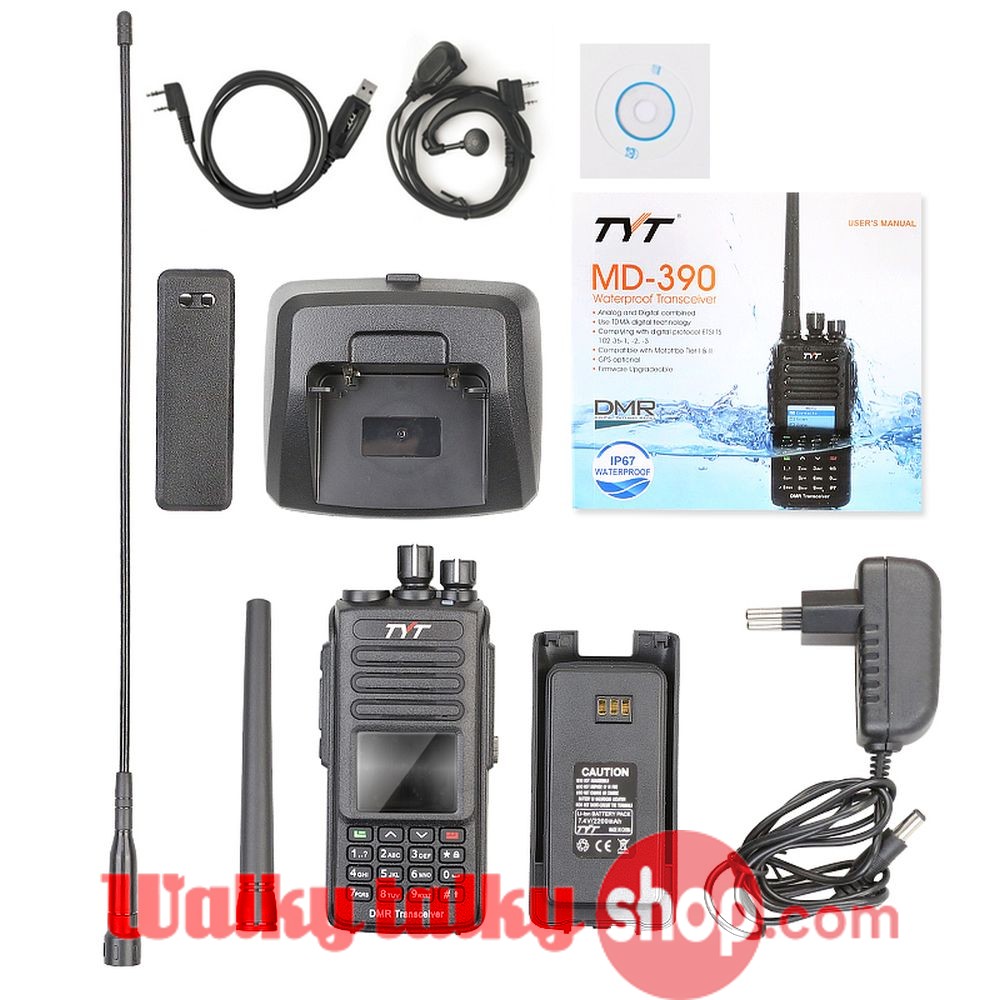

Each Unit Package Contain:

1* MD390 Waterproof DMR with GPS function

1* 36cm Long Antenna

1* 12cm Short Antenna

1* 2800mAh Li-ion Battery

1* Belt Clip

1* Charger with AC Power Adaptor (suit for your country)

1* High Quality Earphone

1* Base

1* English User Manual

1* USB Programming Cable for MD-390
