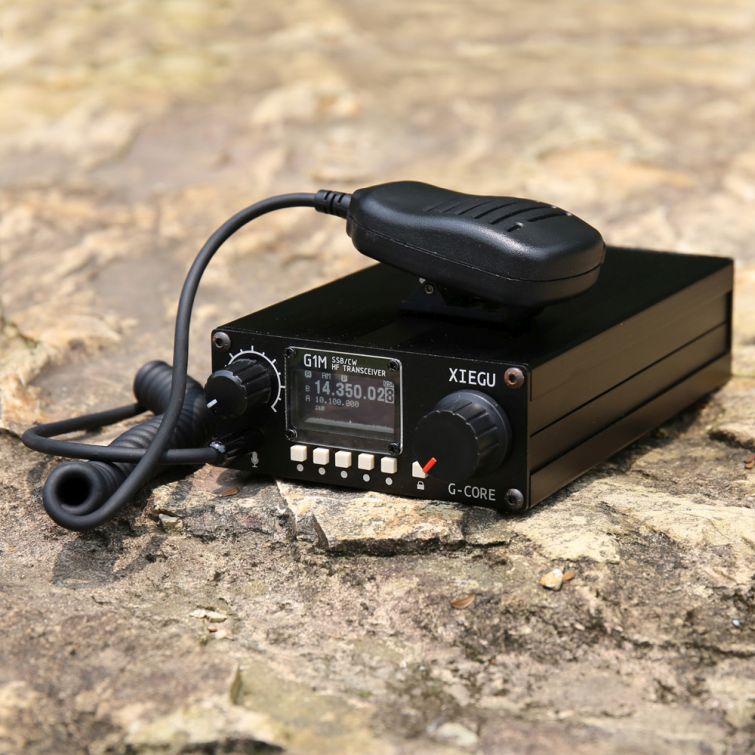

XIEGU NEW G1M HF Transceiver SSB/CW 0.5-30MHz 10km CB Ham Radio

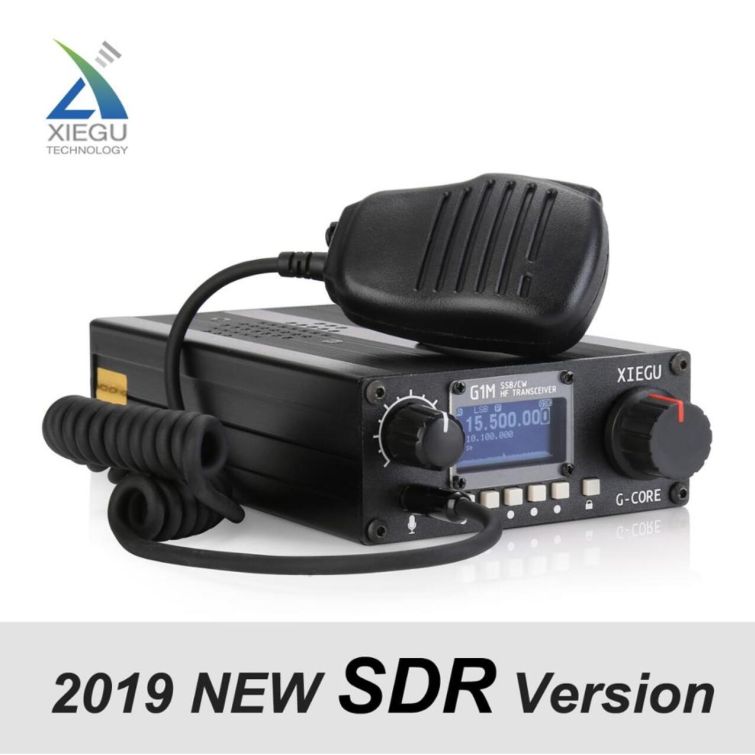

XIEGU G1M HF Quad Band Portable SDR Transceiver QRP SSB CW AW 0.5-30MHz Mobile Radio
XIEGU G1M HF Quad Band Portable SDR Transceiver QRP Short-Wave 5W SSB CW AW 0.5-30MHz Mobile Radio Amateur Walkie Talkie Ham Two Way Radio
[Mini Five Watt QRP Transceiver] – Receiving Capability 0.5-30 MHz General Coverage and transmitting capabilities on four most popular amateur radio bands, the G1M is a highly portable QRP transceiver and has a clear and bright OLED screen.

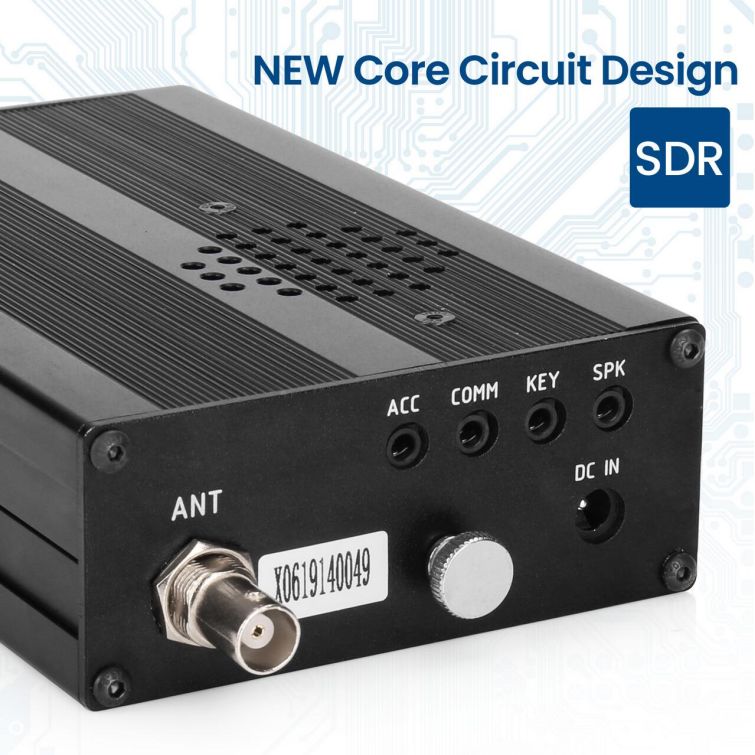

[NEW SDR Core Circuit Design] – With SDR structure, the G1M’s core is based on 16 bit-CODEC sampling and has excellent performance in a compact size.

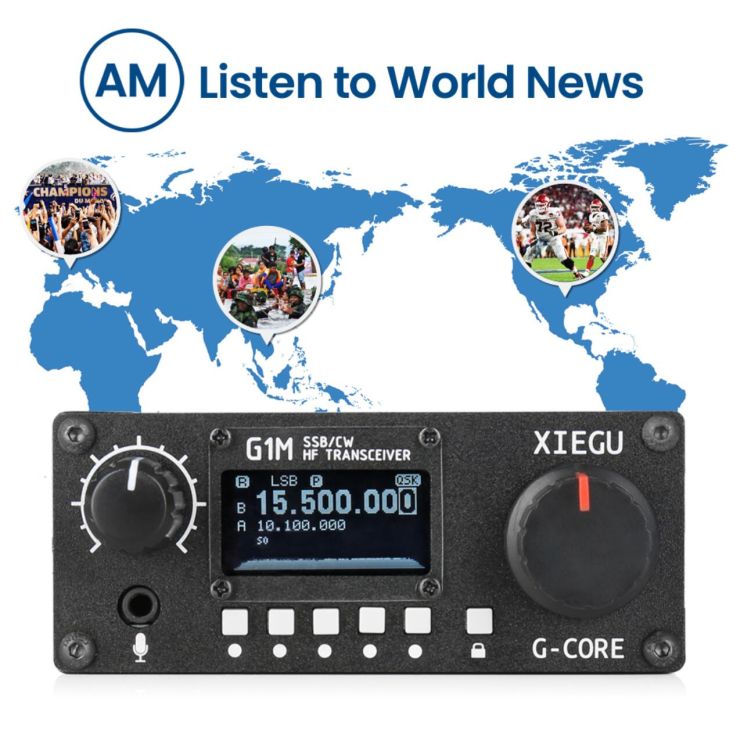

[NEW AM Receiving Mode] – The newly added AM receiving mode allows you to listen to news radio from around the world.
[CW Reception] – The 800Hz narrowband CW digital filter makes Morse Code transmissions easier and clearer to decode.
[NEW Spectrum Display] – The G1M uses an bright OLED display screen that displays all status information, which provides high convenience of the user. The screen effect is kindly clear even in sunlight.
[Warranty Note] – We provide a 1 year warranty on the Xiegu G1M. As usual, if you modify the radio’s hardware, the warranty is void.
• High Performance SDR Core Circuit Design
• Bright OLED Display + Spectrum Display
• NEW AM Broadcast Receiving Mode
• NEW Added CW Trainer Function
• Adaptive Speech Noise Reduction processing
• HF Continuous ReceiverTuning
• Supports Data Communication Mode
• Supports Connection interfacing with PC
• Supports Manual / Automatic CW Key operation for Straight or Iambic Keys (see below)
• Supports Connection with XPA125 / XPA125B / XPA20 Amplifiers- (Is this currently true??)
• Adjustable AGC Control
Note: Please do not randomly change the settings of the factory configuration menu, or the whole machine may be damaged or function abnormally!
The G1M Supports Connection with a PC: With 3.5mm socket, G1M can connect to a computer for data modes using aftermarket soundcards. As an example Tigertronics Inc. sells a G1M kit developed with a G1M user, for data modes, others are available as well.
Also, via new interfaces G1M can easily connect to the XPA125/XPA125B /XPA20 amplifiers.
Clear OLED Display: All the function changes are clearly shown on the display. The screen is clear even in sun.

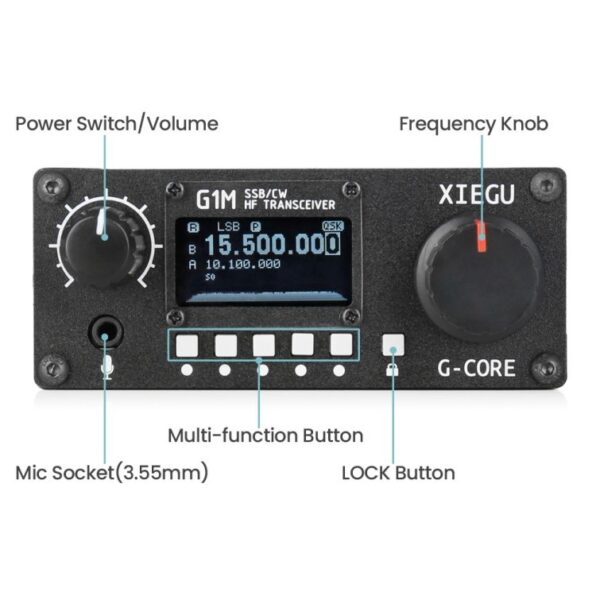

Support Key Mode Selection: You can choose manual or automatic mode, left-hand mode or right-hand mode as you desire via multi-function buttons.
|Operating Mode||SSB/CW/AM(AM is only used to receive broadcasts)|
|Receiving Sensitivity||0.45uV 12dB SINAD|
|Transmit Power||5W 13.8V DC|
|Frequency Stability||±1.5ppm (30 minutes after turning on the power)|
|Audio Output Power||0.5W|
|Operating Voltage||12～15V DC|
|Stand-by Current||0.5A max|
|Transmitting Current||2.5A max|
|Wavelength||short-wave including four amateur radio bands|

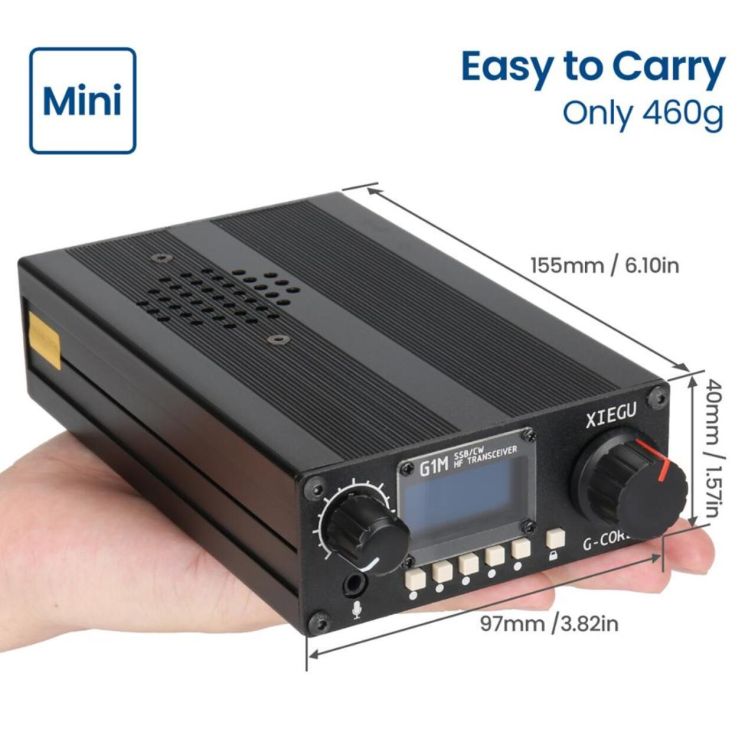

|Case Size||97*40*155 (mm)|
|Certification||CE, FCC (ES190111036E)|

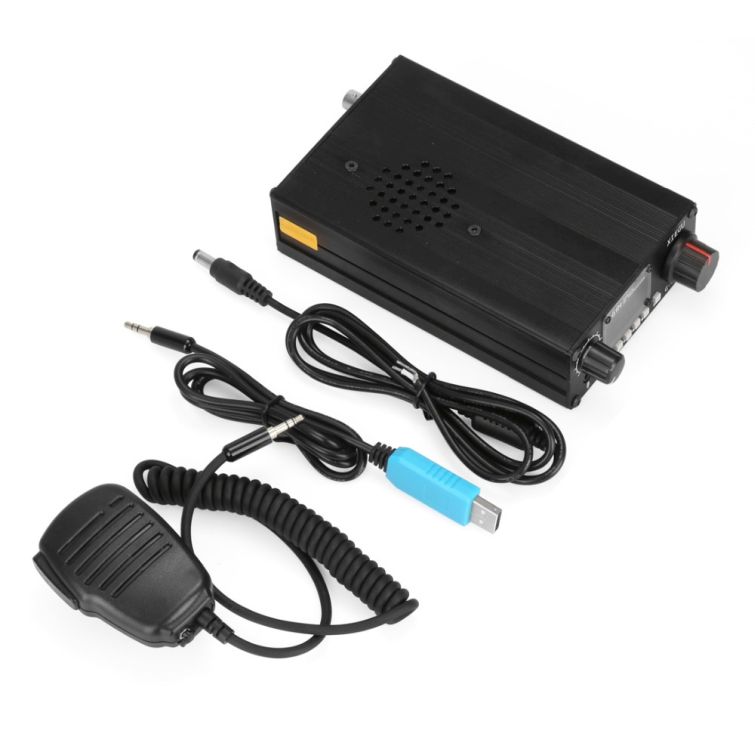

- 1x G1M HF Transceiver
- 1x Speaker Mic
- 1x Coaxial Power Cable
- 1x English Manual
- 1x Certificate
- 1x Warranty Card
|Dimensions||250 × 200 × 100 cm|
