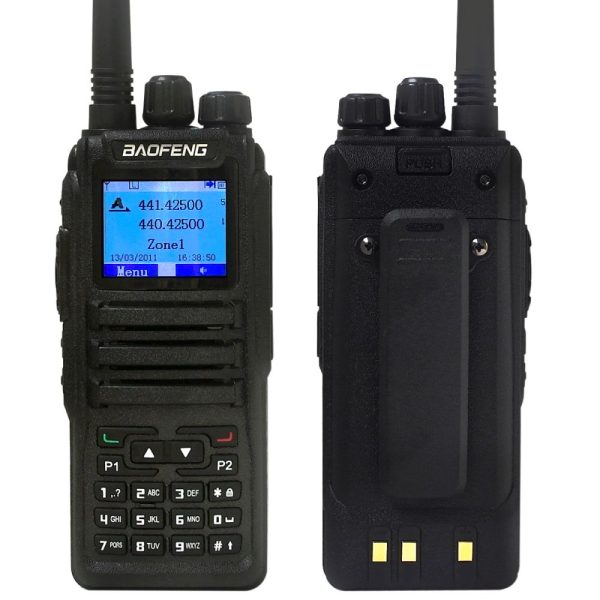

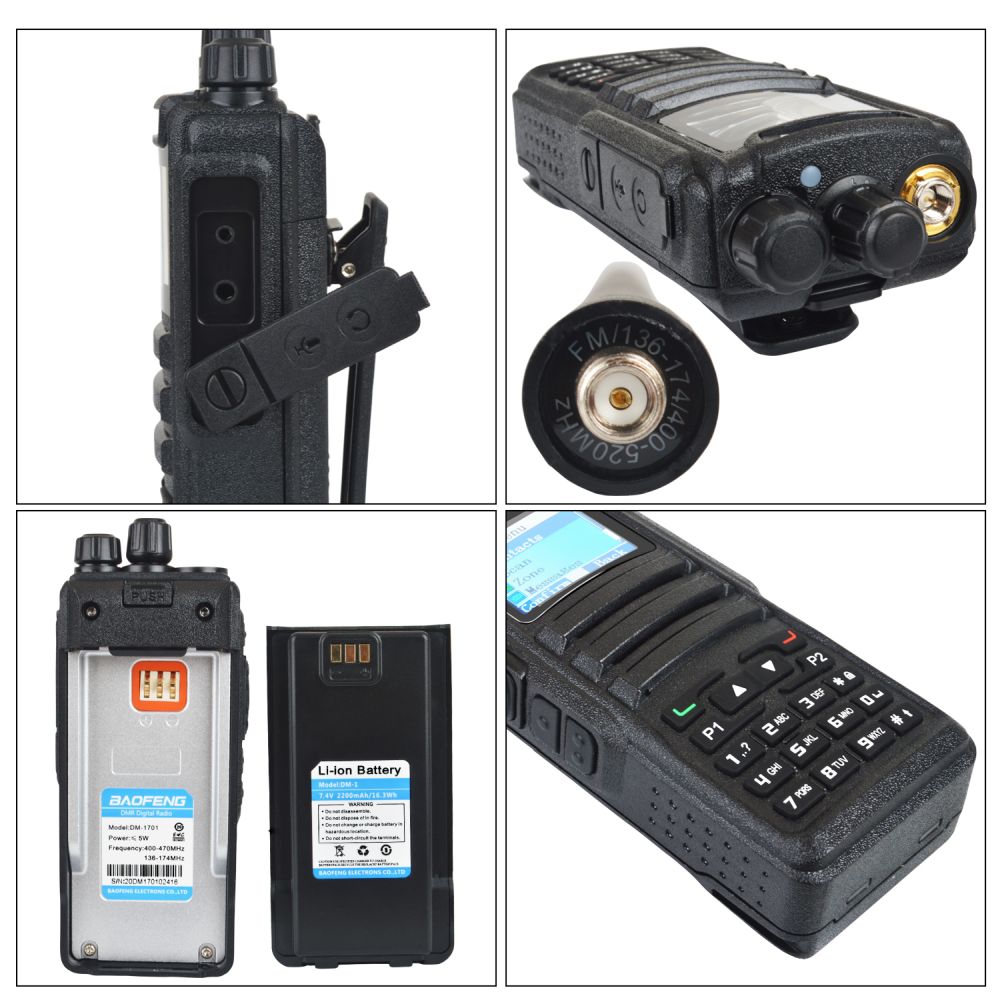

Baofeng DMR DM-1701 RD-5R Open GD77 Dual Mode Analog And Digital Walkie Talkie Tier 1+2 Dual Time Slot Ham Two Way Radio

Perfect support for opengd77 programs

✧ [Digital & Analog Compatible] – FCC Part90 Certification ID: 2AJGM-DM1701. The DM-1701 is compatible with digital and analog modes, including dual band VHF/UHF coverage of 136-174 and 400-470 MHz. It has up to 3,000 Channels, 10,000 Digital Talk Groups and 120,000 Contacts.

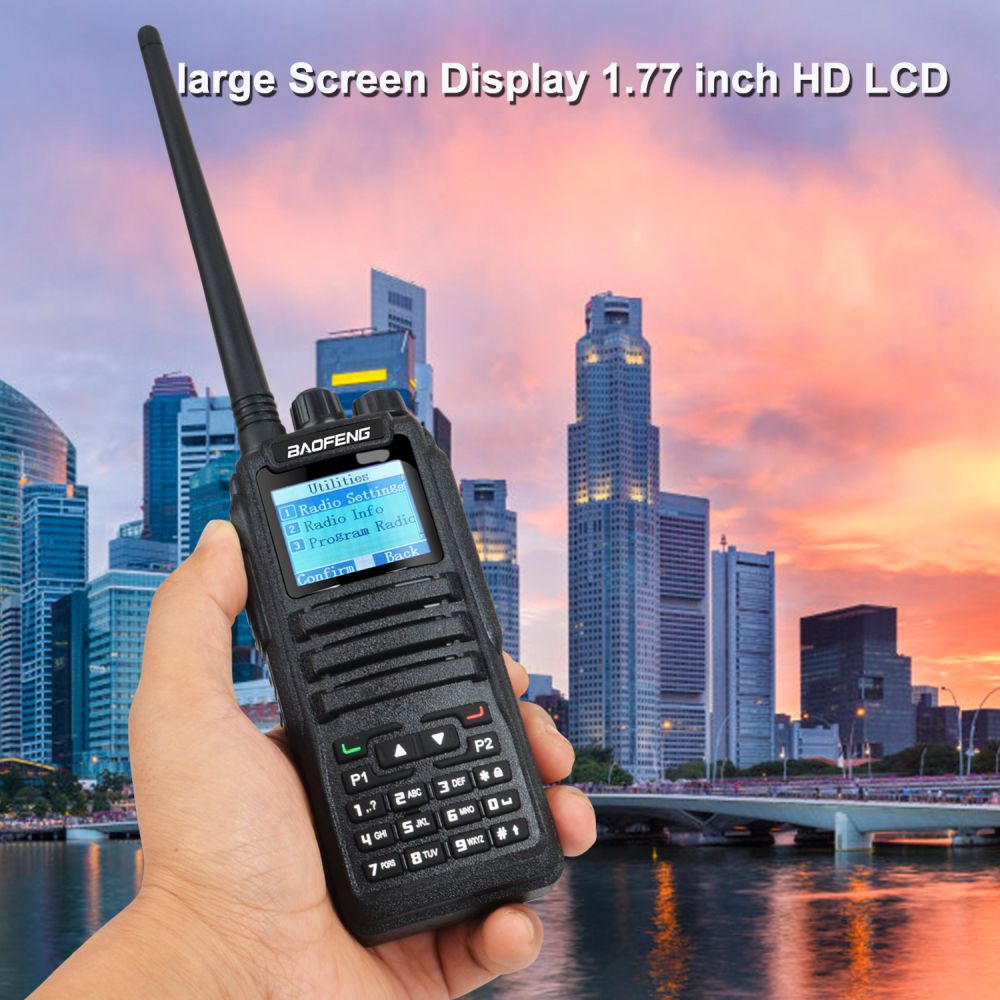

✧ [Multi-function & 1.77′ color TFT Display] – The DM-1701 offers to scan analog and digital channels, manual programming, DTMF, VFO, SMS, emergency alarm, digital monitor mode, CTCSS and CDCSS, color codes and DMR encryption. There are 5 customized keys for faster access to those features.

✧ [Updated Software & Firmware Support] – The DM-1701 CPS supports mass editing, users can make complex application requirements, which makes it easier to write code plugs. Firmware and software upgrading for new functions are life-time-free.

✧ [DMO True 2 Time Slot]– Direct mode dual slot communication achieves two groups of calls at a frequency point at the same time so that the communication efficiency is doubled and frequency resources are saved. Compatible with MOTOTRBO Tier I & II and other DMR radios.

OpenGD77 Firmware Supported Baofeng Walkie Talkie DM-1701 Digital DMR Tier II Dual Time Slot Dual Band VHF136-174MHz & UHF 400-480MHz DMR Digital and Analog Dual Working Modes Portable Ham Amateur Two Way Radio

Features:

1. Support OpenGD77 Firmware Upgrading
2. Dual Band VHF 137-174MHz & UHF 400-480MHz
3. Analogue & Digital Two Working Mode
4. 1024 Storage Channel
5. Dual Time Slot, Tier I &II
6. Compatible with MOTOTRBO Hytera Tier II Radio and its repeater perfectly with Vocoder AMBE+2TM
7. Dual Display
8. VOX Function
9. Frequency Step:2.5/5/6.25/10/12.5/20/25/k
10. Scan
11. 16 groups color code selectable
12. 2200mAh 7.4V 16.3Wh High Capacity Li-ion battery Pack
13. SMS message
14. Support manually programming and PC programming
15. High/Medium/Low Power selectable
16. Frequency/Channel Mode Selectable

Specifications:

General:
Model Number	DM-1701
Working Voltage	7.4V
Frequency Range	VHF:136-174MHz UHF:400-470MHz
Frequency stability	±1.0ppm
Channel	Up to 1024
Type	Portable
Battery	1*2200mAh 7.4V Li-ion(included)
Maximum Range	5km-10km
Material	Plastic
Color	Black
Operating environment	-30℃-+60℃
Size(not including the antenna)	Approach.133*62*36mm
Weight:(including the battery and antenna)	Approach.300g
Transmitter:
Output power	High:5W Low:1W
Output consumption	Analog≤1.6A Digital≤0.9A
Standby current consumption	≤0.18A
Adjacent channel power	≤65dB ≤60dB
Audio response	+1~3dB
Digital Protocol	ETSI-TS102 361-1,-2,-3
Modulation distortion	≤5%
Receiver:
Analog receive sensitivity	-122dBm
Digital receive sensitivity	-120dBm
Audio power	1W
Audio distortion	<10%
Signal imitation	≥70dB
Audio response	+1~3dB
Receive current	≤380mA
Intermediation(wide/narrow)	≥62dB/≥58dB
Adjacent channel selectivity	≥65dB/≥60dB

Package Contains:

1 x Baofeng DM-1701 DMR Two way Radio

1 x 7.4V 2200mAh Li-ion Battery

1 x Antenna

1 x Power Adapter

1 x Battery Desktop Charger

1 x Belt Clip

1 x Hand Strap

1 x User Manual

1 x Headset
