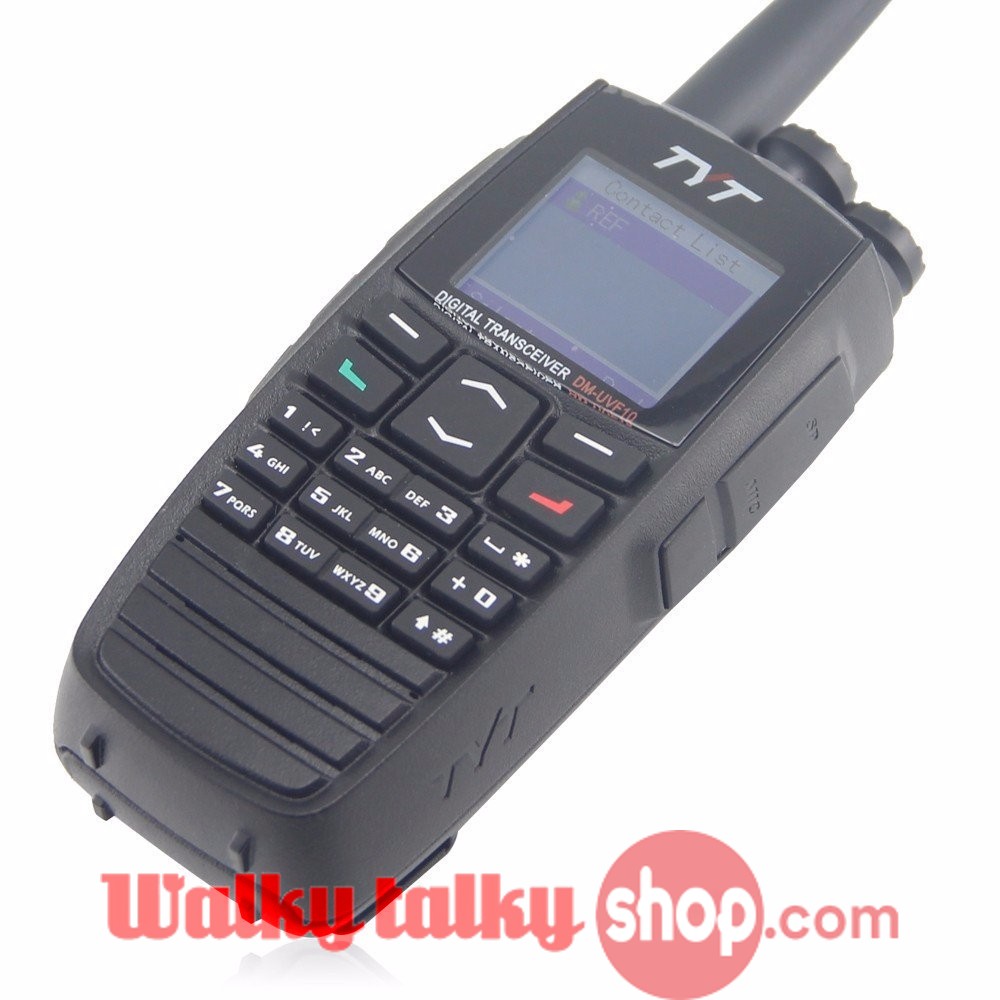

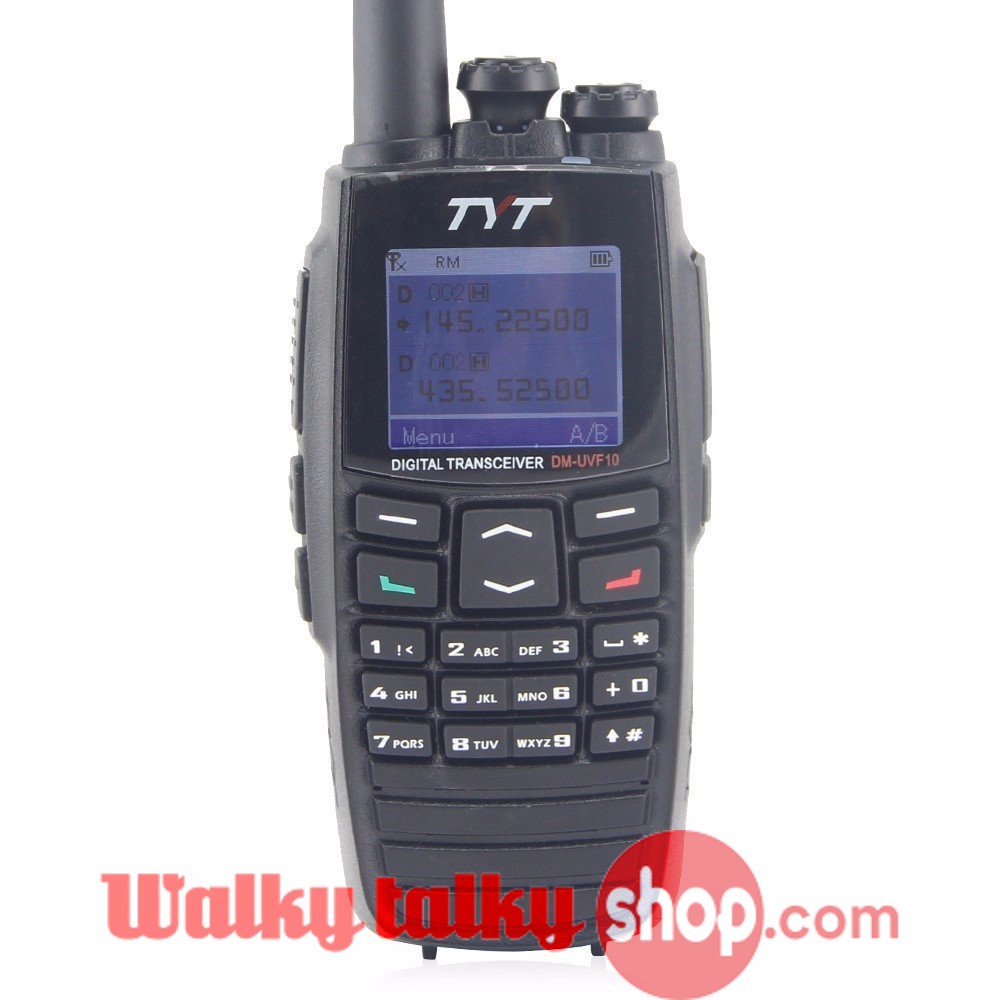

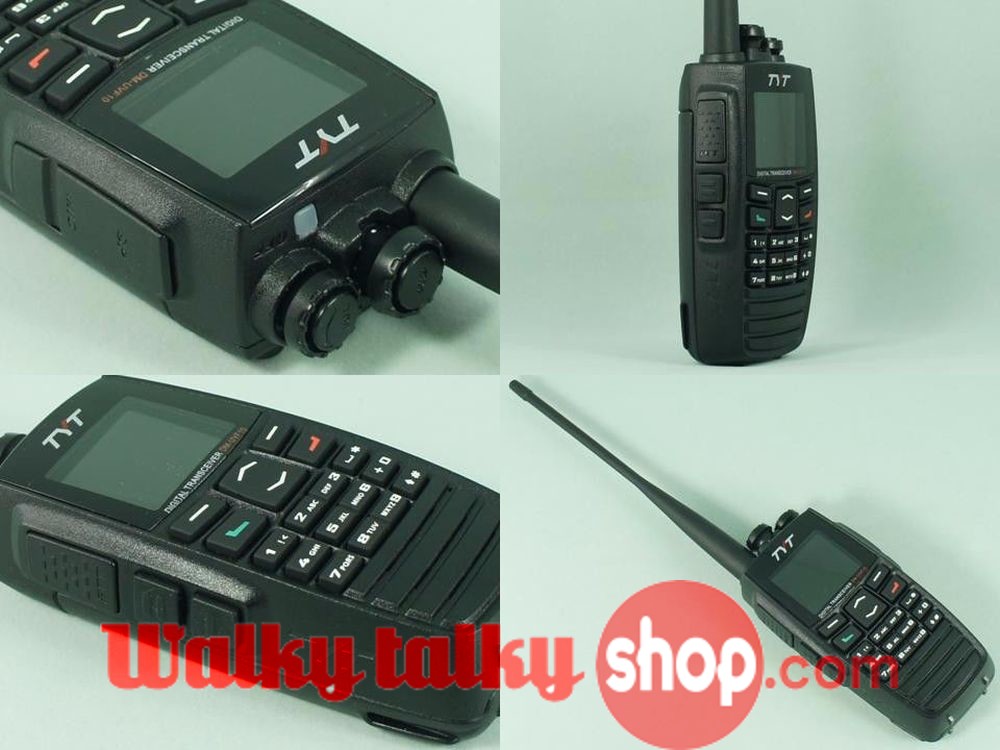

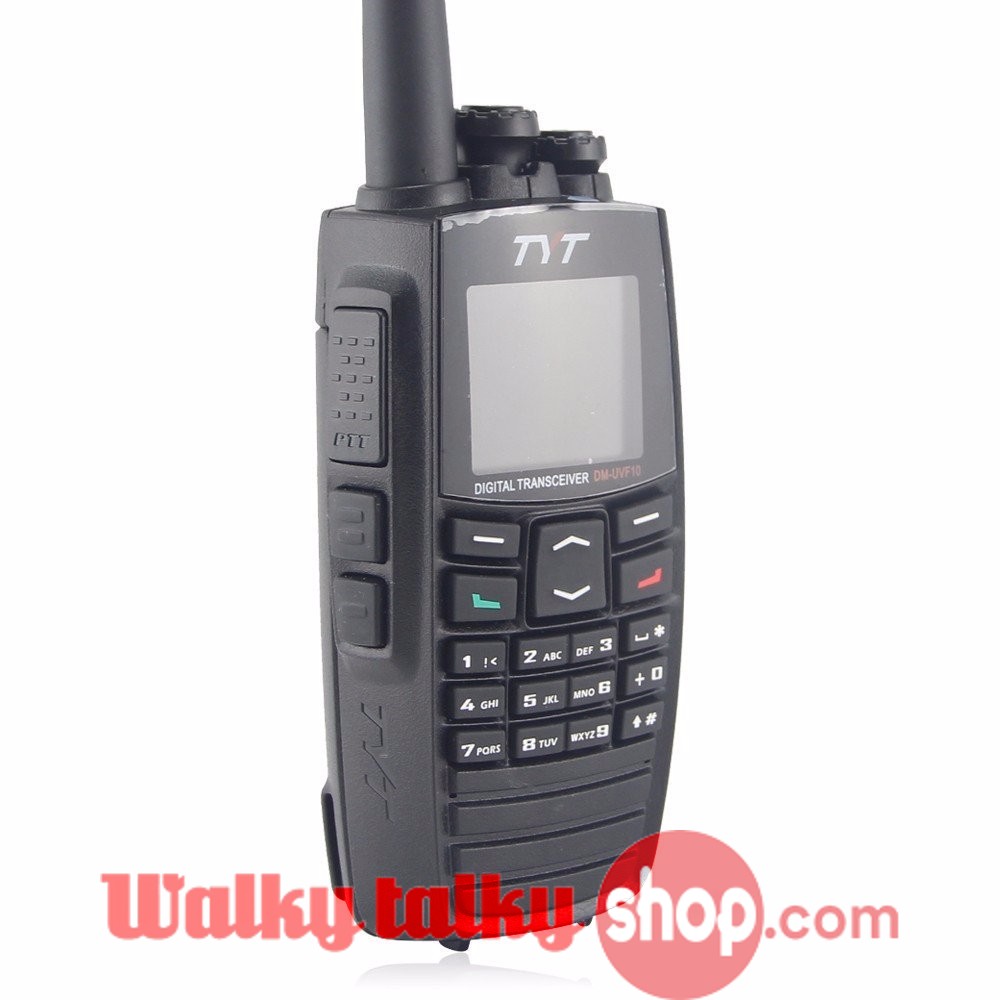

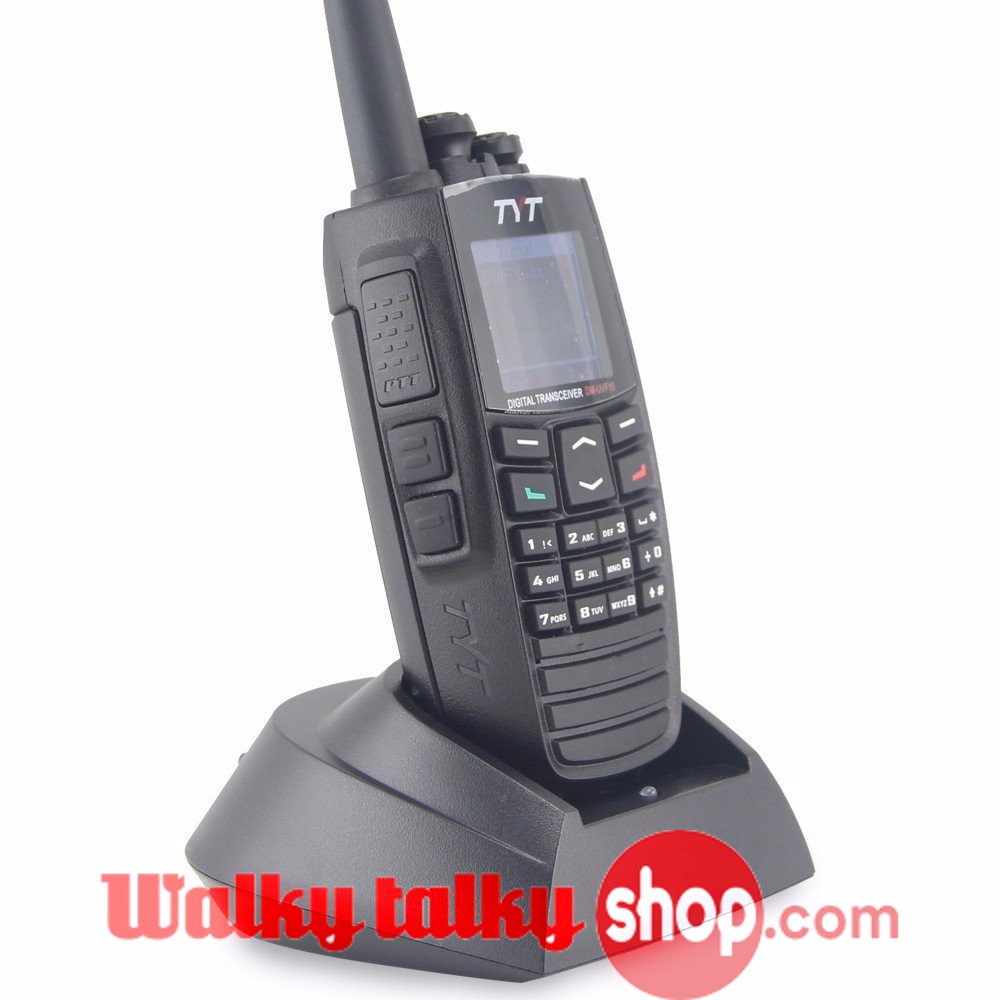

DPMR Dual Band Walky-Talky TYT DM-UVF10 Portable Digital Radio With GPS

Sale!

DPMR Dual Band Walky-Talky TYT DM-UVF10 Portable Digital Radio With GPS

Original price was: $219.00.Current price is: $144.00.

& Free Shipping

DPMR Dual Band Radio Stanice TYT DM-UVF10 (With GPS Function)

DM-UVF10 is a dual display, dual standby two-way radio, adopts high-technology and novel design, bringing you a stable, reliable and efficient communications service. It is especially convenient for Staff of Property Management and entertainment. DM-UVF10 adopts humanism design, making it smart in shape, advanced in function and flexible in operation, with function of DTMF, voice scrambler and voice compander, will satisfy you and can hardly tear yourself away from it. More fantastic function,DM-UVF10 will take you to enjoy them.

Main Features:

■Digital dual-band  ■Private call, group call,all call(Digital only)
■Color screen display  ■VOX function
■Dual display, dual standby  ■Backlight brightness setting
■Digital/Analog switch  ■TOT
■Voice scrambler  ■Busy Channel Lockout
■DTMF function  ■Emergency Alarm
■Remote kill,stun  ■FM radio
■Contact list editing, storing  ■High/Low Power Selectable
■Message Tx/Rx(Digital only)  ■Programmable multifunction side-key
■English&Chinese Standby prompt  ■CTCSS/DCS auto-scan



General Specification
Model DM-UVF10
Frequecy 400~470MHz, 136~174MHz
Channel Capacity 32 1000
Normal Operating Voltage 7.4V
Operating Temperature -30°C~+60°C
Store Temperature -40°C~+85°C
Weight 270g (estimate) With Standard Li-ion battery
Dimensions :H x W x D(mm) 113.5 X 54 X 33.5 With Standard Li-ion battery
Dust-protection and water resistant IP67
Battery Life in 5/5/90 Operating Mode
1700mAh Standard Li-ion battery Analog: 10hours; Digital: 14hours



Receiver
Frequency 400~470MHz/136~174MHz (Dual band)
Channel Spacing 12.5KHz
Frequency Stability +/- 1.0ppm
Analog Sensitivity 0.35uV/-116dBm(20 dB SINAD)0.22uV/-120dBm(Type)
Digital Sensitivity 0.3uV/-117.4dBm (BER 5%)0.7uV/-110dBm (BER 1%)
Intermodulation TIA603C:70dB ETSI:65dB
Adjacent Channel Selectivity TIA603C:65dB 12.5KHzETSI: 60dB 12.5KHz
Co-Channel rejection 12dB 12.5KHz
Spurious Response rejection TIA603C:75dB ETSI:70dB
Conducted spurious emission -57dBm< 1GHz,-47dBm > 1GHz
Blocking 84dB
Rated Audio Power 1W
Audio Response +1dB ~-3dB
Rated Audio Distortion 3%(Type)



Transmitter
Frequency 400~470MHz, 136~174MHz
Channel Spacing 12.5KHz
Frequency Stability +/- 1.0ppm
Power Low Power:1W,High Power:5W
Hum and Noise -40dB 12.5KHz
Conducted, radiated spurious emission -36dBm<1GHz, -30dBm>1GHz
Adjacent Channel Power -60dB12.5KHz
Adjacent Transient Channel Power -50dB12.5KHz
FM Modulation Mode 12.5KHz:11K0F3E
4FSK Digital Mode 12.5KHz(data only):7K60FXD12.5KHz(data+voice):7K60FXE
Modulation Maximum Deviation 2.5KHz 12.5KHz
Nonactive Slot Power -57dBm
Audio Response +1dB~-3dB
Audio Distortion 3%(Type)
Digital Protocol ETSI TS 102 361-1, -2, -3
Vocoder Type AMBE+2™

Each Unit Package Contain:

  • 1 x TYT DM-UVF10 (With GPS)
  • 1 x Li-ion Battery
  • 1 x 17cm Long Dual band Antenna.
  • 1 x 36cm Long Dual band Antenna.
  • 1 x ENG Manual
  • 1 x Charger with Adapter (Provide PSU plug for your Country)
  • 1 x Belt Clip.
  • 1 x PTT Earphone
Weight 1.1 kg
Dimensions 290 × 200 × 90 cm
