Estalky E966 Android DMR Waterproof IP68 & 4G LTE Multi Mode PTT Radio
Estalky E966 is an advanced push to talk Radio with multi-modes enables the collaboration of broadband and narrowband network.
E966 with M6 connector and Side Smart Key enables to connect with external RSM,Earphone and Body Camera.
Specail customized External body camera with infrared night vision function make E966 as professional body camera which allows PTT communication and video capturing simultaneous
Deploy big battery 4500mah maintain your working in safety and connection.
E966 multi mode poc radio embodied with cpu 2.0ghz which provide fast mission critical communication.
BROADBAND AND NARROWBAND CONVERGENCE
Estalky E966 is an advanced Push-to-Talk Radio with multi-modes enables the collaboration of broadband and narrowband network.
4INCH FULL GORILLA GLASS
4-inch industrial-grade HD touch screen can run Multiple application.

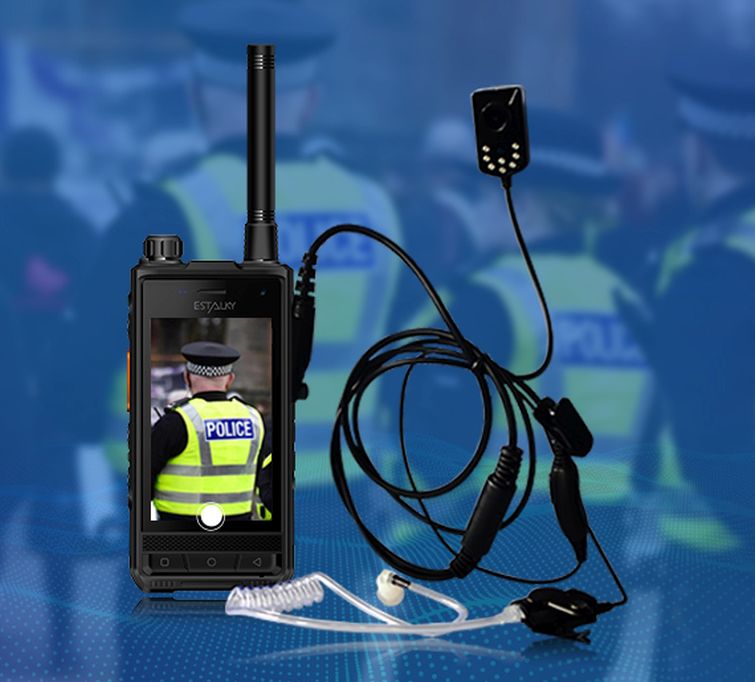

PROFESSIONAL M6 CONNECTOR ENABLES TO CONNECT WITH BODY CAMERA
Estalky E966 with M6 Connector enables to connect with external RSM,Earphone and Body Camera.
Special customized External body camera with infrared night vision function able to work in a dark envoironment easily,the connected headset and ptt button can work simultaneously and allow you to feedback and record the on-site situation in time while on duty.
QUICK SMART KEY
DMR and POC can be quickly switched through smart key,making communication smoother and work more efficient.
Specifications:
Feature | Technical Description |
1、HW SPEC | |
1.1 Main CPU & SW | |
CPU | MTK6761 Quad-Core |
Android | Android 8.1/Later 10.0 |
OS Language | Korean, Japanese ,English,Chinese,multi-languages… |
1.2 Memory | |
RAM+ROM | 2GB +16GB (Max optional 3G+32G) |
SD Card | 32GB |
1.3 LCD | |
LCD | TFT 4′ |
LCD resolution | 854 x 480 dpi WVGA |
LCD Colors | 16M color IPS TFT |
1.4 Touch | |
Touch type & size | 4′ / Capacitive |
Glass | Coning generation 3 |
Multi-touch | 5 point touch screen |
1.5 Sensor | |
Sensor | 3D Sensor,Light Sensor,Proximity Sensor,G-Sensor… |
1.6 Frequency/Bands | |
Network(GSM.WCDMA,FDD,TDD) | GSM:B2/B3/B5/B8 WCDMA:B1/B2/B4/B5/B8 FDD-LTE:B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B20/B28(AB) TDD-LTE:B38/B39/B40/B41 |
1.7 Camera | |
Front& Rear Camera | Back:8M with focus Front:5M Flash Light:real light |
1.8 Wi-Fi | |
IEEE802.11a | Yes (5G) |
IEEE802.11b | Yes(2.4G) |
IEEE802.11g | Yes(2.4G) |
IEEE802.11n | Yes(2.4G&5G) |
WIFI anternna Type | Wi-Fi & BT Coexistence Internal FPC antenna |
1.9 Bluetooth | |
Version | BT v4.0 with BLE BT2.1+EDR(Enhanced Data Rate) |
Power Level | (Max) Class 2 |
Operation distance | (Max) 10 meter |
2.0 GPS & A-GPS | |
GLONASS Support | Yes |
GPS Support | Yes |
AGPS Support | Yes |
2.1 Speaker & MIC | |
Output | Φ36mm,2.0W |
SPL | 95-110dB |
Receiver | 1506 |
MIC Type | Dual Mic with one noise reduction MIC |
MIC Sensitivity | -42dB±3 |
SIM card | Dual Micro-SIM card |
Vibrator | Yes |
2.2 USB | |
USB type | Type C |
USB | 2.0 |
USB:OTG | Yes |
Cable length | 1.0m |
2.3 Earjack Interface Type | M6 Connector |
2.4 Indicator LED | 3-colors(Red、Green、Blue) |
3、MD | |
3.1 Size | |
Height ( H * W * D ) | 142.5 x 72.5 x 25mm |
Weight | 311g |
IP code | IP68 |
Drop Test | 1.5m |
3.2 Key buttons | |
keys button | PTT,SOS,Channel Knob,Power,Volume,Smart Key(DMR/POC) |
4、 Battery | |
Battery type/capacity | Li-Po,4500mAh |
Charge,Date Interfaces | Type C |
Battery charging terminal | Battery charging terminal (For Cradle) |
5、 Charge, Data Interfaces | Type C |
5.1 Cradle Spec | |
Input voltage | DC 5V / 3.5A |
Output voltage | DC 5V / 1.3A DC 4.35V / 0.7A |
5.3 DMR | |
Channel Capacity | 16 |
Channel Spacing | 12.5/25kHz(Analogue) 12.5kHz(Digital) |
Transmitting Power | 0.5W/2W |
Operation Distance | TBD(MAX) |
Frequency Stability | ±0.5ppm |
Frequency Range | UHF 400-480MHz(Support VHF 136-176MHz) |
6、 Environmental Conditions | |
Operating Temperature ( -20℃ ~ 60℃) | -20℃ ~ 60℃ |
Storage Temperature ( -30℃ ~ 70℃) | -30℃ ~ 70℃ |
Humidity (20 ~ 90%) | 20 ~ 90% |
ESD (Contact: ±8KV / Air: ±12KV) | Contact: ±8KV Air: ±12KV |
RoHS 6 Compliant | Yes |
7、 Certification and safety spec | |
Europe | CE |
American | FCC |
