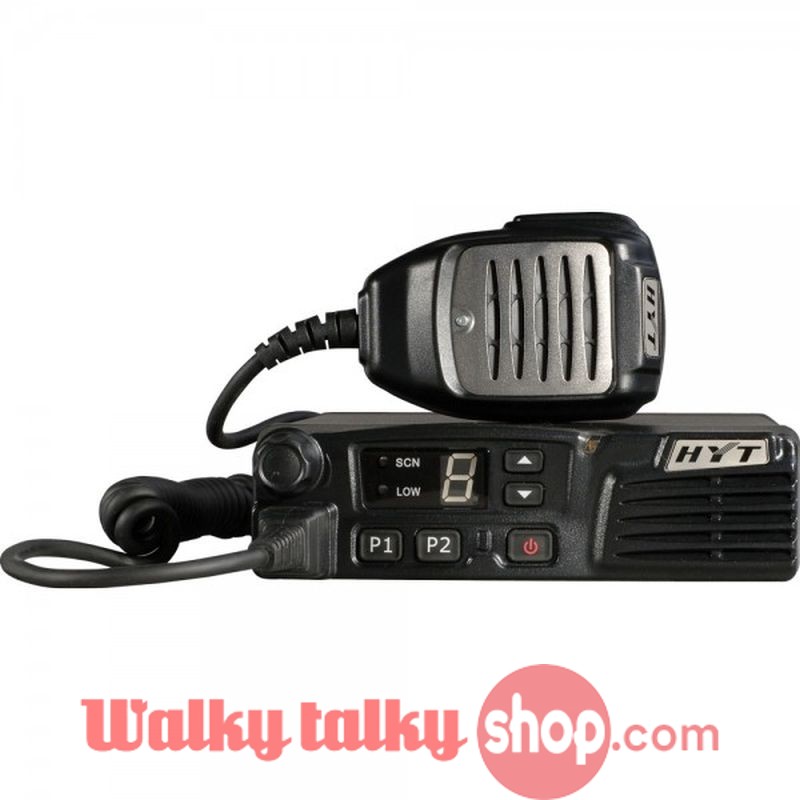

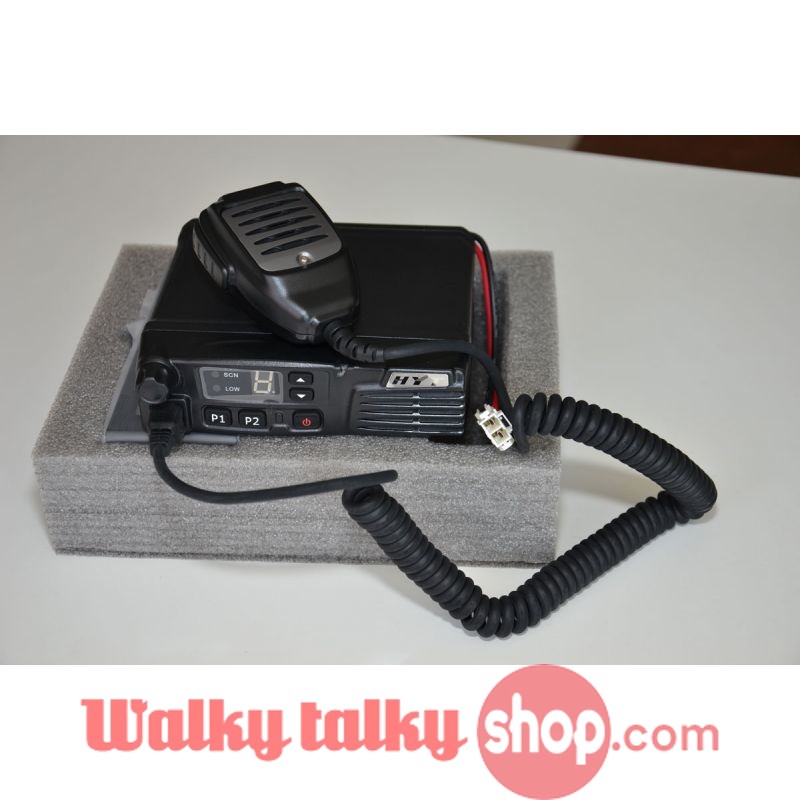

Hot Sale HYT TM-600 25W UHF VHF CB Mobile Radio
The high-performance, yet simple-to-use TM-600 mobile radio is created to give you the immediate, reliable communication you need to keep mobile teams working efficiently. HYT’s voice commander audio enhancement and a powerful 13W external speaker ensure superb clear, crisp sound, even in noisy environments. Its compact design makes these radios ideal when mounting space is a constraint.
Features
Frequency Range: UHF 400-470 MHz / VHF 136-174 MHz
8 Channels
RF Power Output 5W/25W
Password Protection
Built-In Scrambler
Public Address (PA)
Programmable Backlit Keys
Auto number identification
Built in modem
Emergency alarm
Stun and receive
Public address
Large LCD display
Lone worker
4-6 programmable back lit keys
Versatile scan
Wired cloning
Super Features
Compact Design
These compact mobile radios are ideal for mounting when space is constraint.
Wide-Band Coverage
These radios provide wide band capability for users requiring a large range of frequencies. VHF is 136-174 MHz and UHF is 400-470 MHz and 450-500 MHz.
Powerful Audio
HYT’s voice compander audio enhancement and a powerful 5W internal or 13W external speaker will provide superb clear, crisp sound, even in noisy environments.
Built-in Scrambler
Maintaining private and secure communications is increasingly important, with potentially sensitive information flowing back and forth. The scrambler feature provides enhanced security for your important and private communications.
Versatile Signallings
The TM-600 mobiles are packed with a full range of signalling capabilities, including CTCSS, CDCSS, DTMF Encode, 2-Tone, HYT exclusive HDC2400TM * & HDC1200TM * signaling
Password Protection
These radios have an internal password that helps protect the radio information and also helps to prevent unauthorized cloning of the radio.
Main Features
Public Address (PA)
The public address feature feeds microphone audio through a powerful PA amplifier to the external speaker, offering robust, out of vehicle, audio clarity.
8-Segment Numeric LED (TM-600)
The numeric 8 segment display indicates the channel of operation. LEDs also indicate channel scan and transmit power operation.
6 / 4 Programmable Backlit Keys
Provides immediate, easy access to your most often used features.
Radio Scan
The TM-600 scan offers priority channel scanning with nuisance channel delete and priority channel definition.
Wired Cloning / MSK Wireless Cloning
Allows users to quickly and easily duplicate one radio’s parameters into another radio.
UST (User Selectable Tone)
The user can select CTCSS/CDCSS codes via the programmed function key.
DTMF Function
The DTMF calling function offers flexible dialing procedures of aliasdialing, auto dial and redial as well as manual dialing. Customized, user friendly number storage can be used for your most often called numbers.
Built-in Modem *
The built-in 1200/2400bps MSK modulator offers data transmission capability.
Emergency Alarm
The emergency button allows for a transmission of a signal indicating an emergency situation.
*Due to continuous technology development, functions with a * mark contained in this catalog will be achieved by HYT in the future.
Specifications:
General | ||
Frequency Range | 136-174MHz; 400-470MHz | |
Channel Capacity | 8 (TM-600) 128 (TM-610) | |
Zone Capacity | 16 (TM-610) | |
Channel Spacing | 25/20/12.5KHz | |
Operating Voltage | 13.6V DC ±15% | |
Current Drain | Standby: | 0.5A |
Receive: | <2.0A | |
Transmit: | <5A(5W)/<8A (25W) | |
Frequency Stability | ±2.5ppm | |
Operating Temperature | -30°C~+60°C | |
Antenna Impedance | 50Ω | |
Dimensions (W×H×D) | 152mm×43mm×125mm | |
Weight | 1Kg | |
Transmitter | ||
RF Power Output | 5W /25W | |
Modulation | 16KΦF3E/11KΦF3E | |
Spurious and Harmonics | -36dBm < 1GHz -30dBm > 1GHz | |
FM Noise | >45dB (25/20KHz) >40dB (12.5KHz) | |
Audio Distortion | ≤3% | |
Receiver | ||
Sensitivity | 0.28/0.33/0.35 μV | |
Selectivity | 75/70/65dB | |
Intermodulation | 70/70/65dB | |
Spurious Response Rejection | 70dB | |
S/N (wide/medium/narrow) | >45dB (25/20KHz) >40dB (12.5KHz) | |
Internal Audio Power Output (Rated) | 5W (less than 5% distortion) 3W (less than 3% distortion) | |
External Audio Power Output (Rated) | 13W (less than 5% distortion) 10W (less than 3% distortion) |
Applicable Military Standards 810C/D/E/F
Applicable MIL-STD | 810C Methods Procedures | 810D Methods Procedures | 810E Methods Procedures | 810F Methods Procedures |
Low Pressure | 500.1 1 | 500.2 1,2 | 500.3 1,2 | 500.4 1 |
High Temperature | 501.1 1,2 | 501.2 1,2 | 501.3 1,2 | 501.4 1,2 |
Low Temperature | 502.1 1 | 502.2 1,2 | 502.3 1,2 | 502.4 1,2 |
Temp. Shock | 503.1 1 | 503.2 1 | 503.3 1 | 503.4 1 |
Solar Radiation | 505.1 1 | 505.2 1 | 505.3 1 | 505.4 1 |
Rain | 506.1 2 | 506.2 2 | 506.3 2 | 506.4 1,2 |
Humidity | 507.1 2 | 507.2 2,3 | 507.3 2,3 | 507.4 1 |
Salt Fog | 509.1 1 | 509.2 1 | 509.3 1 | 509.4 1 |
Dust | 510.1 1 | 510.2 1 | 510.3 1 | 510.4 1 |
Vibration | 514.2 8,10 | 514.3 1 | 514.4 1 | 514.5 1 |
Shock | 516.2 1,2,5 | 516.3 1,4 | 516.4 1,4 | 516.5 1,4 |
