HYT TC-610 5W Portable Two Way Radio 1200mAH standard battery portable two way radio
NOTE:
Frequency for your option :
UHF 400-420MHz or UHF450-470MHz or VHF136-174MHz or (470-480MHz)
-

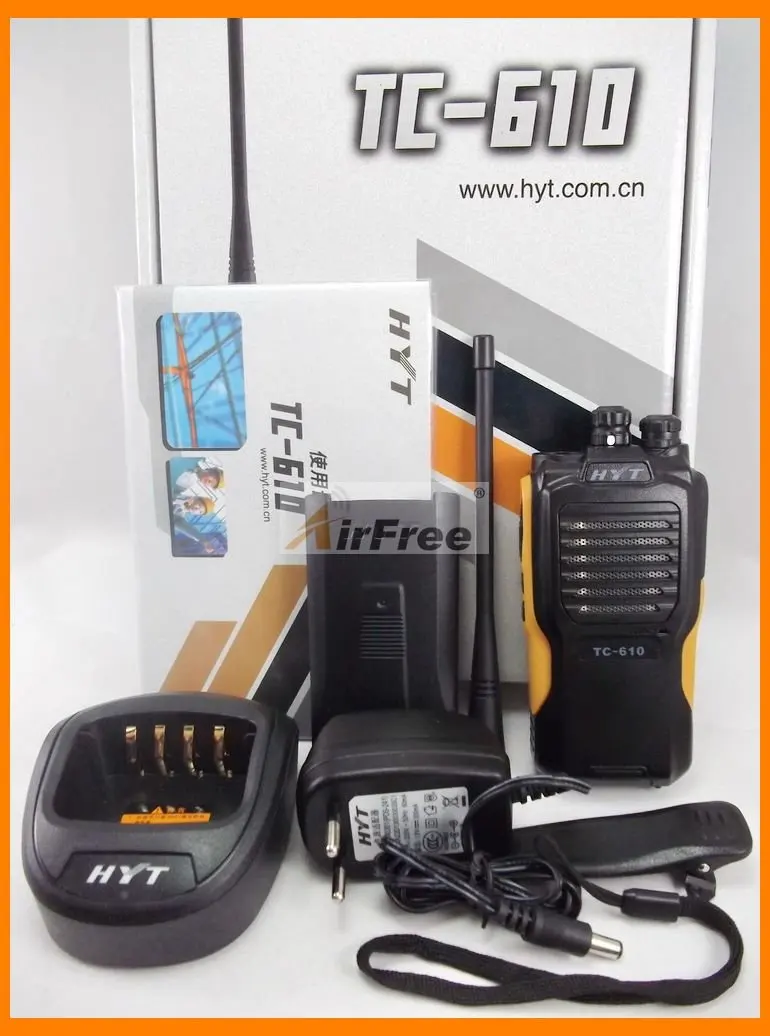

1 x HYT TC-610 Radio
-

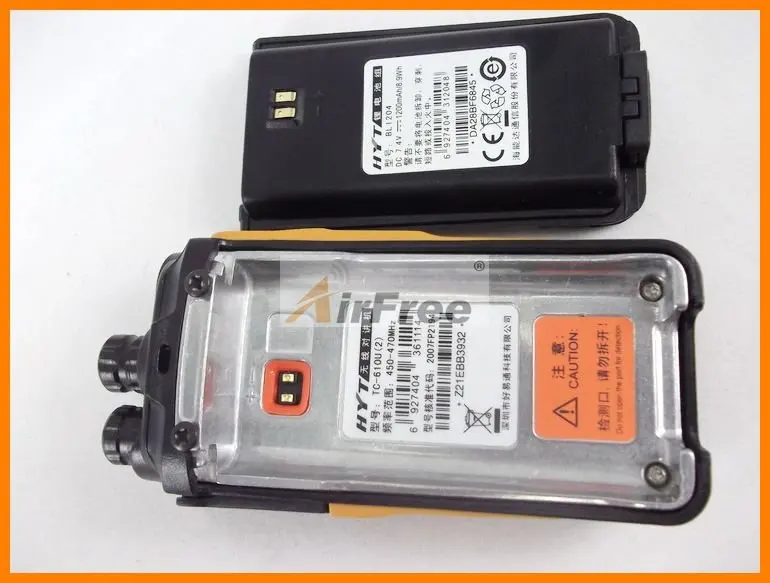

1 x Li-ion battery
-
1 x Antenna
-

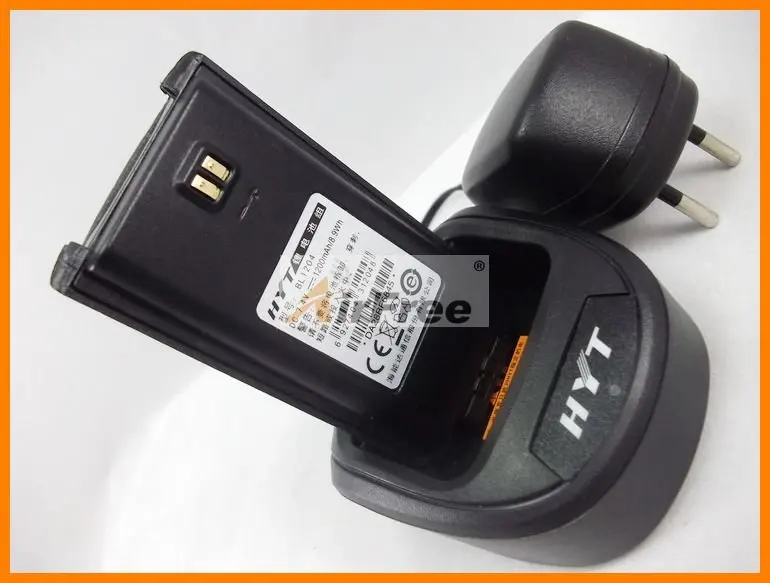

1 x Charger Base
-
1 x AC power Adapter with Euro or US Plugs
-
1 x Belt Clip
-
1 x Hand Strap
-
1 x User manual
Detailed Specification:
vhf uhf fm transceiver, Two-Way Radio, Walkie Talkie, Handheld Transceiver, 2 way radio, Interphone
Main function/ Features:
-
Voice prompt
-
PC Programming/Wireless Cloning Function
-
Alarm Function between the Units
-
16 channels
-
Output power:5W
-
Function and Features
-
Frequency:UHF 450-470MHz Output power:5W
-
16 channels
-
CTSS/DCS
-
Voice prompt
-
Auto battery saving function
-
PC Programming/Wireless Cloning Function
-
Alarm Function between the Units
Specification |
Ttransmitter |
Receiver |
|
|||
Frequency Range |
UHF 400-420MHz or UHF450-470MHz |
Output Power |
5W |
RF Sensitivity |
≤0.14uV |
|
Memory Channel |
16 |
Current |
<1.7A |
Silent Sensitivity |
≤0.13uV |
|
Channel Spacing |
5/10/12.5/25KHZ |
Modulation Sensitivity |
12MV |
Audio Frequency Power |
500mW |
|
Frequency Sensitivity |
±5PPM |
Modulation Deviation |
≤5% |
Audio Distortion |
≤10% |
|
Antenna Impedance |
50Ω |
Maximum Frequency Deviation |
≤5KHZ |
Modulation Receiver Bandwith |
≥2×5KHZ |
|
Dimension |
|
CTCSS Frequency Deviation |
0.75KHZ±50KHZ |
Spurious Rejection |
≥55dB |
|
|
|
Remanent Radiation |
≤7uW |
Selectivity |
≥65dB |
|
|
|
Modulation Mode |
16KΦF3E |
Intermodulation |
≥60dB |
|
|
|
Remanent Modulation |
≤-3.5dB |
Blocking |
≥85dB |
|
Applications
-
Service industry(Hotel, Restaurant, Supermarket, etc);
-
Security, Property Management;
-
Police, Firefighters, Education, Public Utilities;
-
Constrution Sites & Transportation;
-
Warehouse, Ports & Logistic Industry;
-
Manufacturing industry
Two way radio with compact and user-fricndly design
