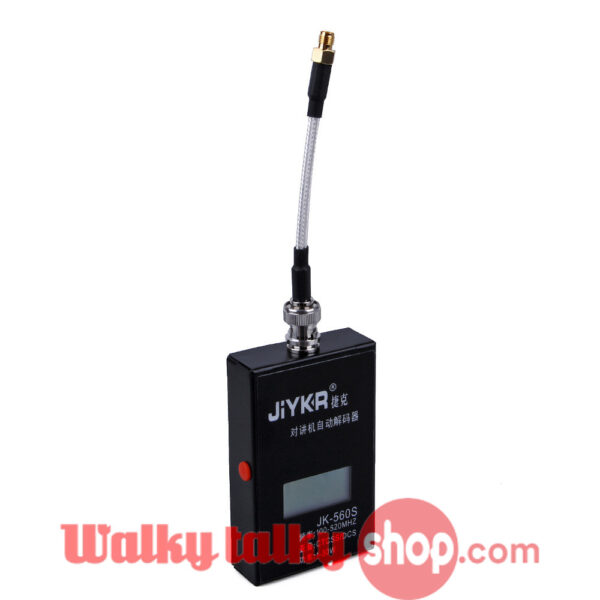

Mini Frequency Counter For Baofeng Portable Radio Decoder 100-520mhz CTCSS/DCS 1-30w JK560S

This frequency counter can continually test the analog radio signal (handhold radio,wireless phone, etc ) and digital radio signal, to display the frequency parameter with the signal strength.This is the best tools for the signal testing and radio maintenance.

Features:
– Frequency step : 200K (digital radio signal), 1K, 100Hz.
– Testing distance : UHF : 8m, VHF : 5m.
– Testing range : 100-520MHZ
– Antenna : pulling out antenna
– Battery : 9V 6F22
– Auto power off time : 1 mins. (except for the digital signal gear)
– Operation : the only one button with all functions
Mini frequency counter
Frequency step : 200k (digital radio signal), 1k, 100Hz.
Testing distance: UHF: 8m, VHF: 5m.
Testing range: 100-520MHZ
Antenna: pulling out antenna
Battery: 9V 6F22
Auto power off time: 2 mins. (except for the digital signal gear)
Operation: the only one button with all functions.
the 1st pressing to turn on
welcoming——release the button return to powering off mode
|——continually pressing
to choose the 200k step—release button , 200k mode for digital radio
|——continually pressing
to choose the 1k step — release button , 1k mode for faster testing
|——continually pressing
to choose the 100Hz step – release button, 100Hz mode for accurate testing
——continually pressing
turned on (1k or 100Hz mode) turned on (200k mode)|
press quickly and release normal pressing
to lock the screen display “Bye Bye”
press quickly again and release release the button, then power off.
unlock the screen
continually pressing for 2 sec or more
display “Bye Bye”
release the button, then power off.

Packing List:

-1× JK-560S Frequency Counter

-1× Antenna

-1× Converting Connector

-1× Connect Cable

-1× USB Charging Cable

-1× 110-240V Wall Adapter  (with adapter connector US/EU/UK/AU standard for your choice when need. )
