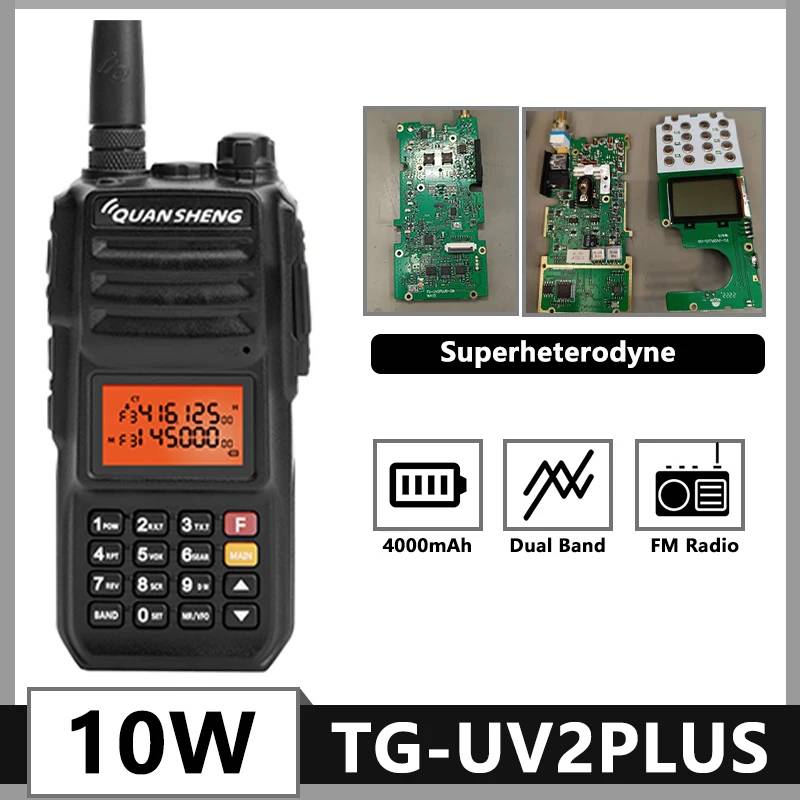

10KM QuanSheng TG-UV2 Plus Walkie Talkie
10W Long Range / 4000mah VHF/UHF Dual Band Two Way Radio
5-Bands
RX: FM Radio 88-108MHz /Police350-390MHz/UHF400-470MHz; 470-520MHz / VHF136-174MHz
TX:UHF400-470MHz / VHF136-174MHz /Police 350-390MHz
REAL 10 WATTS (10H)
WELCOME TO TEST THE POWER
Test Rsesult Feedback:
We tested and got10.1 Wwhen the trasmit frequecy is 430.000Mhz, please check the above images.
REAL 136-174MHZ/400-470MHZ
Question 2:
Answer:
General
Frequency Range:
RX: FM Radio 88-108MHz /Police350-390MHz/UHF400-470MHz; 470-520MHz / VHF136-174MHz
TX:UHF400-470MHz / VHF136-174MHz /Police350-390MHz
Frequency: 5PPm
Sensitivity: DC7.2V (Rechargeable Li-ion Battery )
Memory Channel: 200 Channels
Antenna Impedance: 50 ohm
Working Manner: Same Frequency Single Operation or Different Frequency Single Operation
Antenna Dispotion: Inductively Loaded Antenna
Dimension: 110mm x 56mm x 37mm
Transmitter |
|
Output Power: 10W
Modulation Mode(Wide/Narrow) :16KΦF3E/11KΦF3E Maximum Modulation Character: 6dB Maximum Spurious Radiation: <7uW Maximum Emission Current: <2.8A(H10) CTCSS/DCS Deviation(Wide/Narrow): 0.75kHz ±50Hz,0.37kHz±30Hz Modulation Sensitivity: 12mV Modlation Distortion: <5% |
Receiver | |
Sensitivity: -122dB (12dB SINAD)
Audio Frequency Power: 0.5W Audio Distortion: <10% Blocking:≥85dB Intermodulation (Wide/Narrow):≥60dB ≥55dB Adjacent Channel Selectivity:≥65dB ≥60dB Spurious Rejection:≥65dB |

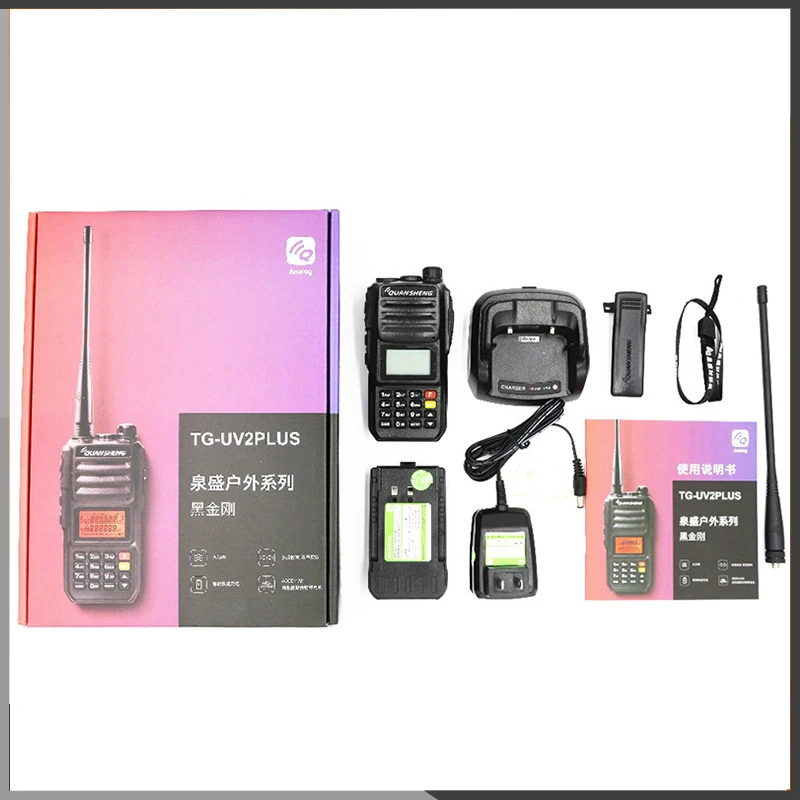

Package Included:
Note:
About Antenna SWR Value
The TG-UV2 Plus radio is designed with tri-band, UHF(470mhz to 520mhz), VHF (136mhz to 174mhz) and Police band (350mhz to 390mhz), that is why the SWR value is lower, it’s reasonable, and actually it does not affect the function, maybe nothing is perfect in the world, some customers keep buying this radio even though they complaint about the antenna SWR value, overall it’s a superior radio.
One more thing, if you don’t need the third band of police band, actually you can get an extra antenna with only dual band, which will be much better.
