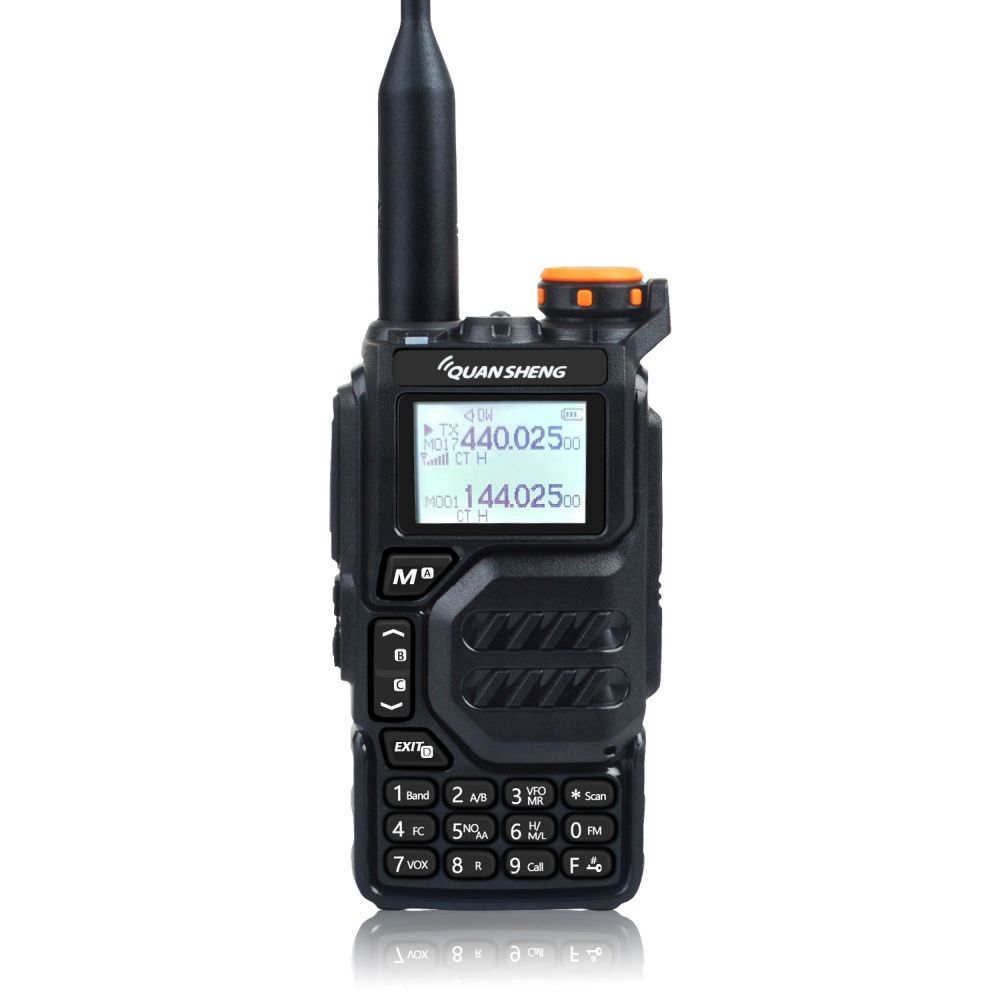

Quansheng Walkie Talkie UHF VHF UV-K5 50-600MHz Air Band DTMF Scrambler Type C Charger Wireless Frequency Copy NOAA FM Radio
Quansheng UV-K5 50-600MHz full band Receiving VHF 136-174MHz UHF 400-470MHz TX&RX both NOAA Weather Forecast Scrambler FM Wireless Frequency Copy Portable Two Way Radio Type C and Charger Cradle Charging 200Channels 5Watt
Features:
-10 Channels America NOAA weather forecast
-VHF UHF dual band Transmit and Receiver, 50-600MHz full band Receiving
– Frequency Range:
F1:50.0000-76.0000MHz(RX only)
F2:108-.0000-135.9750MHz(RX only)
F3:136.0000-173.9750MHz(TX and RX both)
F4:174.0000-349.9750MHz(RX only)
F5:350.0000-399.9750MHz(RX only)
F6: 400.0000-469.9750MHz (TX and RX both)
F7:470.0000-600.0000MHz(RX only)
FM Radio: 76.000-108.000MHz

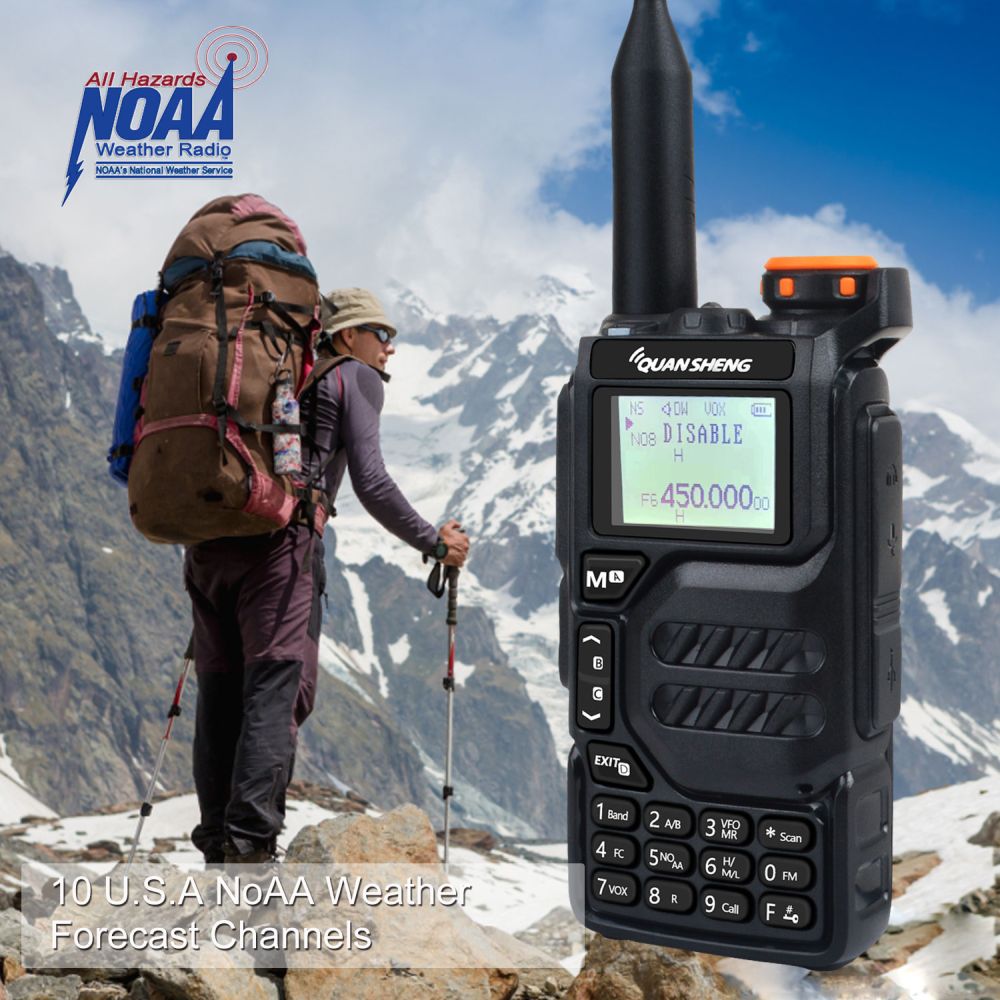

10 USA NoAA Weather Forecast Channels

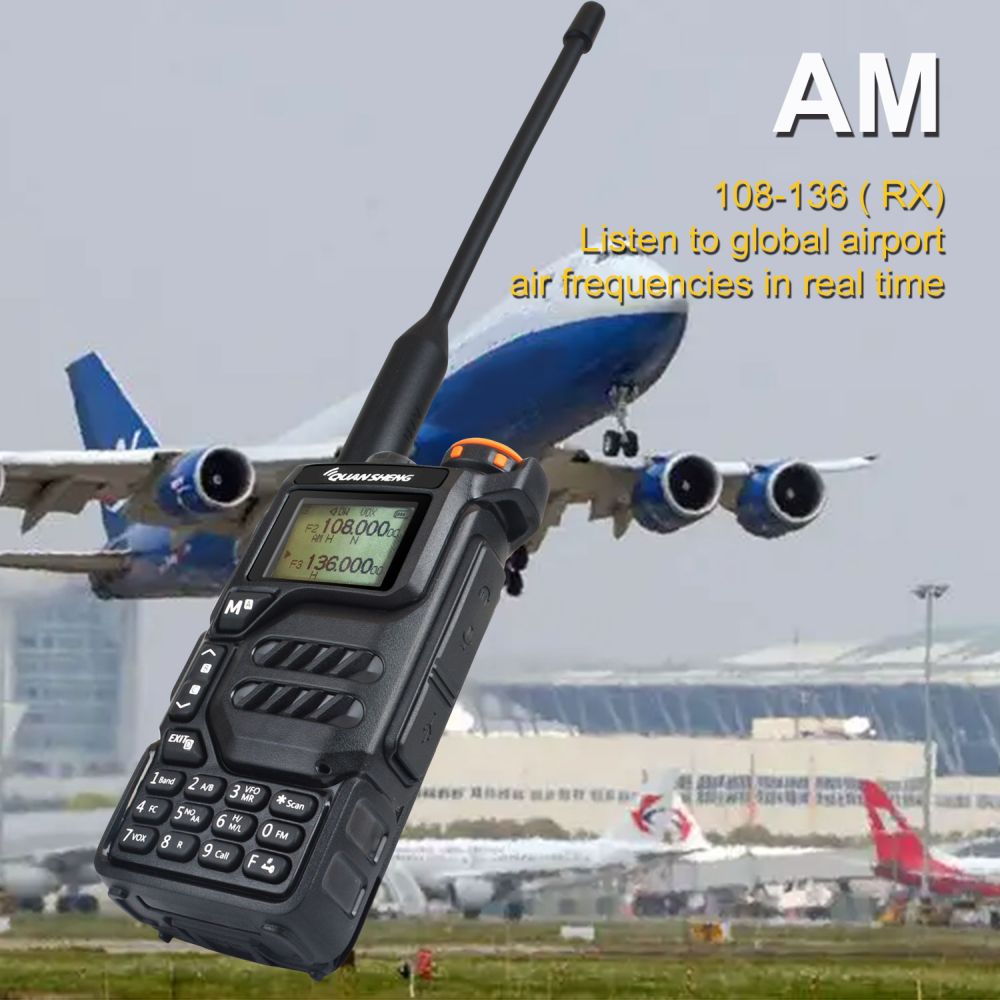

-Air Band Receiving
-Cross-band Communication

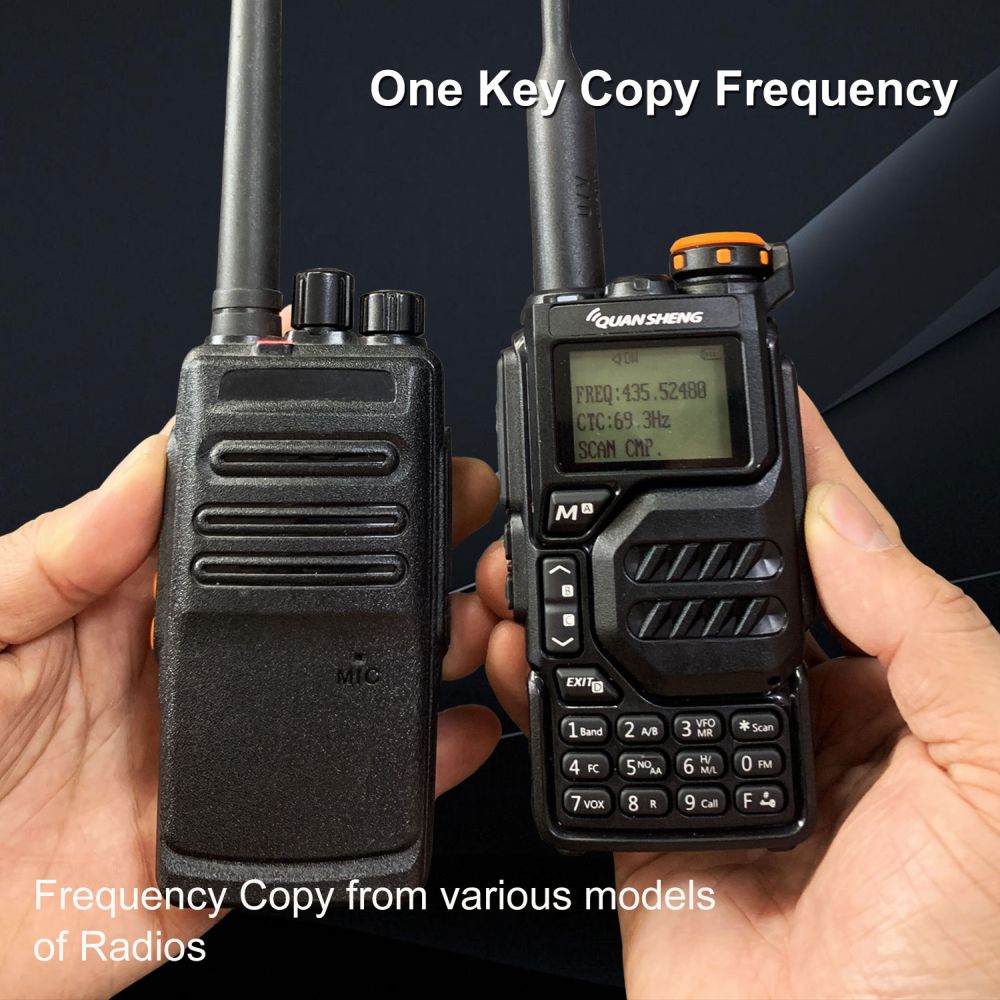

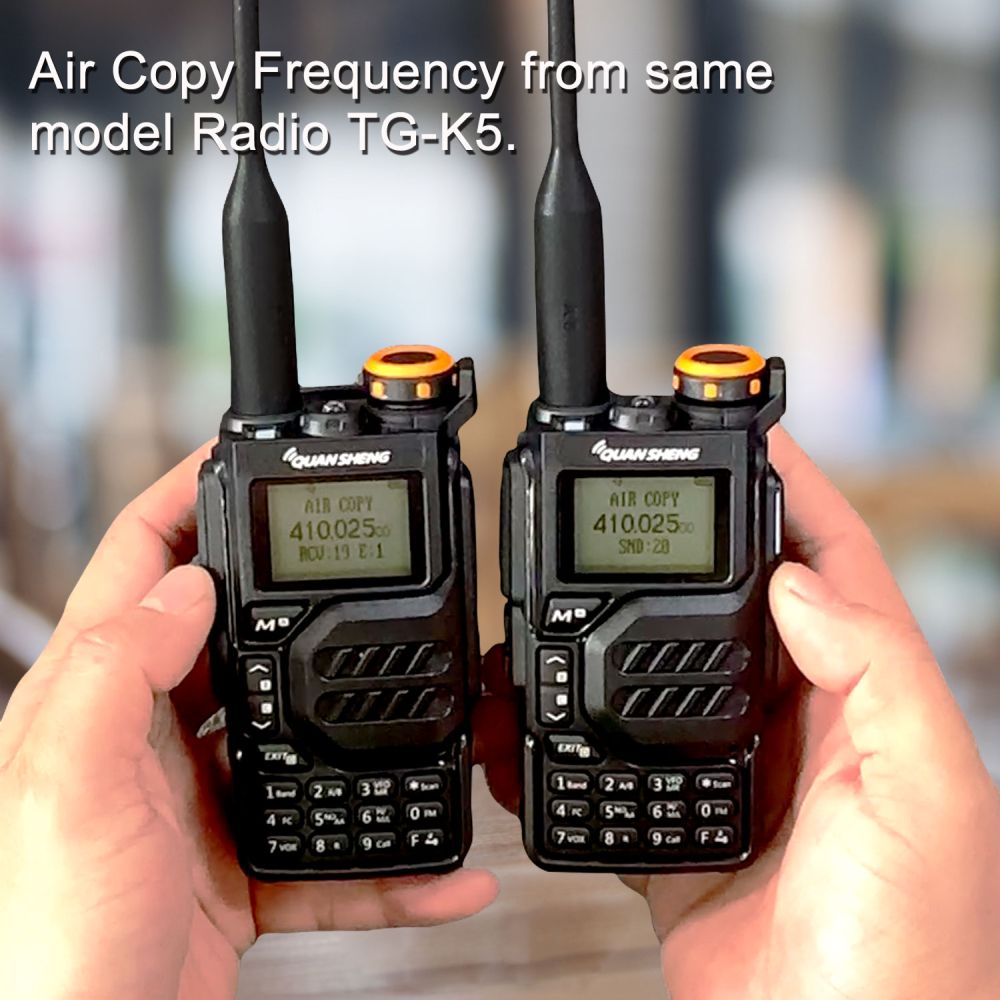

-Wireless Frequency copy from other radios
-Wireless Radio Replication from othe Quansheng TG-K5 Radios
-Auto/Manual Emergency Alert
-FM radio
-8-Group Scrambler
-Frequency/DCS/CTCSS Scan
-Digital Signal CTCC/DCS
-1600 mAh Rechargeable Li-ion Battery Pack

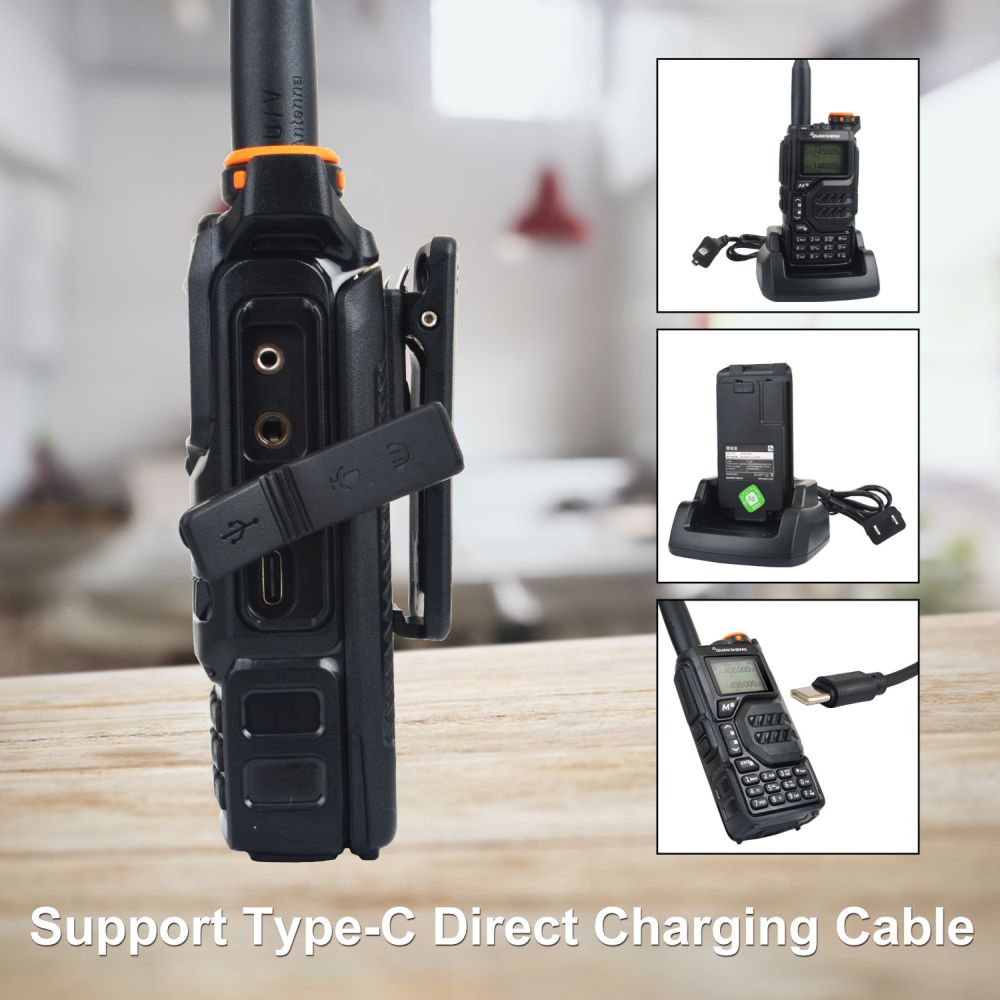

-TPYE C and Desktop Cradle Charging
-VOX (Voice operated Transmission)
-Dual BAND STANDBY
-DTMF AND 1750 Tone
-BUTTON F+ Button 3 to switch Channel mode to Frequency Mode
-200 Memory Channels

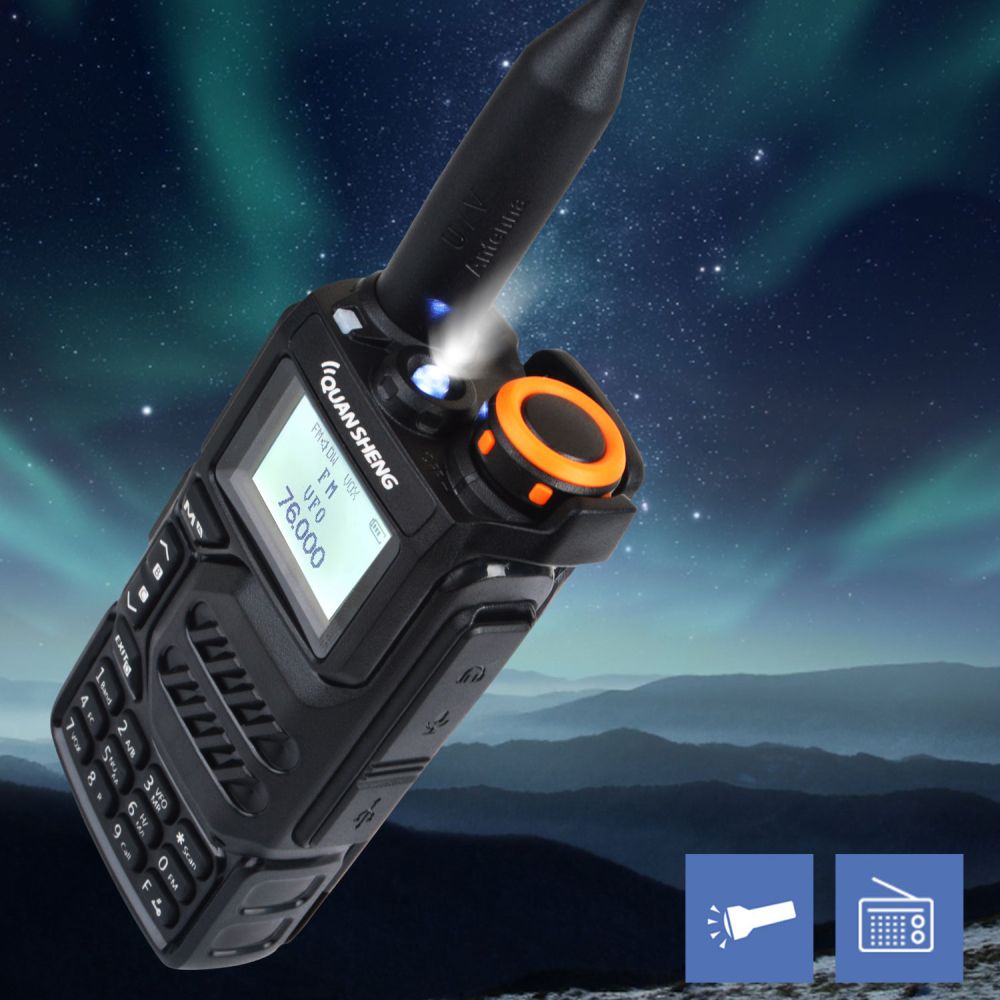

-Built-in high light Torch
Specifications:
General |
||
Memory Channel Number: |
200 |
|
Channel Number for FM Commercial Radio: |
20 |
|
NOAA Memory Channel Number: |
10 |
|
Frequency Stability : |
±1ppm |
|
Modulation : |
FM:16KΦF3E@25KHz/11KΦF3E@12.5KHz |
|

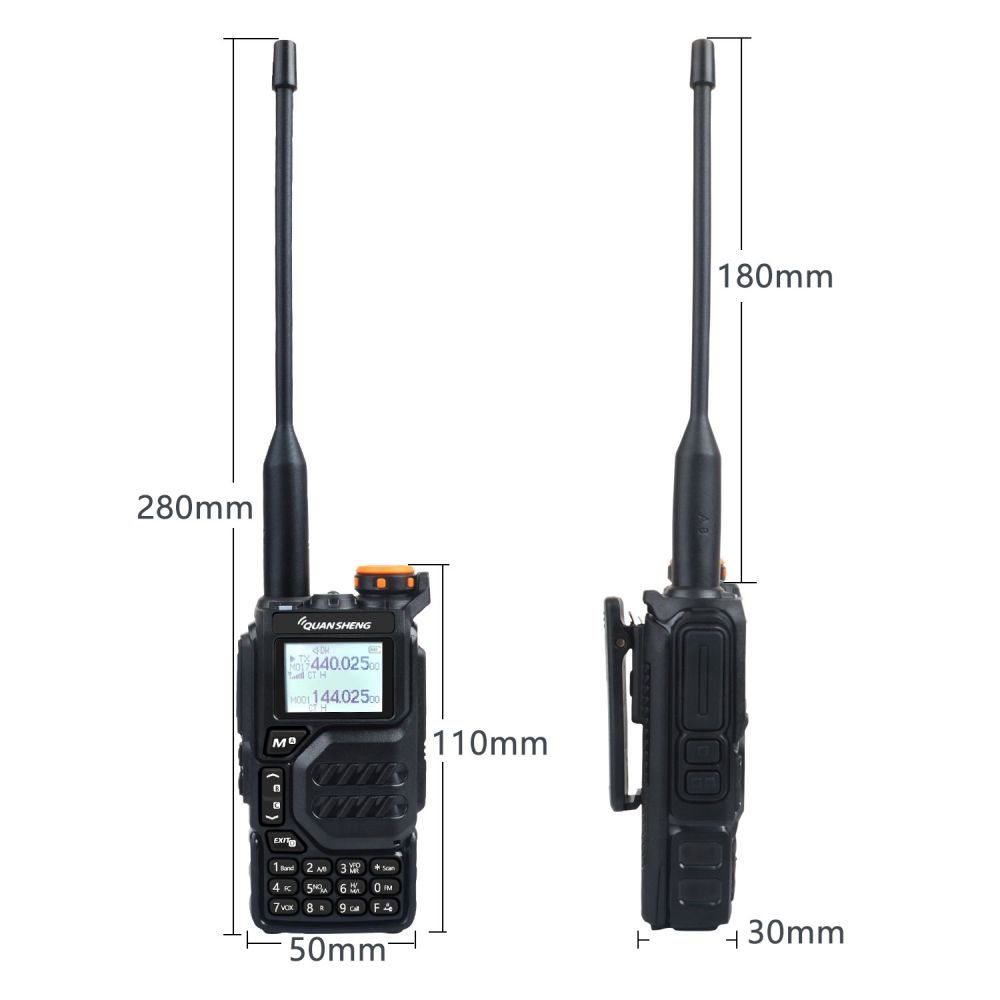

Dimension: |
115mm*60mm*37.5mm |
|
Weight: |
243g |
|
Working Temperature |
-20°c~ +60°c |
|
Antenna Impedance |
50 ohm |
|
Receiving Parts |
||
Referenced Sensitivity |
FM(12dB SINAD) |
F1 (50-76MHz): -121dBm F2(108-135.9975MHz):-121dBm F3(136-173.997MHz):-123dBm F4(174-349.9975MHz):-123dBm F5(350-399.9975MHz):-123dBm F6(400-469.9975MHz):-123dBm F7(470-599.9975MHz):-121dBm |
WFM(20dB SINAD) |
WFM(76-108MHz):-110dBm |
|
AM(10dB S/N) |
F2(108-135.9975MHz):-113dBm |
|
Audio Rated: |
≥0.5W |
|
Audio Distortion |
≤10% |
|
Transmission Parts |
||
Frequency Range: |
136-173.9975MHz |
400-469.9975MHz |
Output Power |
5W |
4W |
Working Current |
≤1.5A |
≤1.5A |
Max.Frequency Deviation |
≤5KHz(25KHz),≤2.5KHz(12.5KHz) |
≤5KHz(25KHz),≤2.5KHz(12.5KHz) |
Modulation Distortion |
≤5% |
≤5% |
Spurious Radiation |
≤7.5uW |
≤7.5uW |
Adjacent Ch. power |
70dB(25KHz),60dB(12.5KHz) |
70dB(25KHz),60dB(12.5KHz) |
Inter-modulation |
40dB |
40dB |
Note: Specifications are subject to change without notice due to technical improvement.

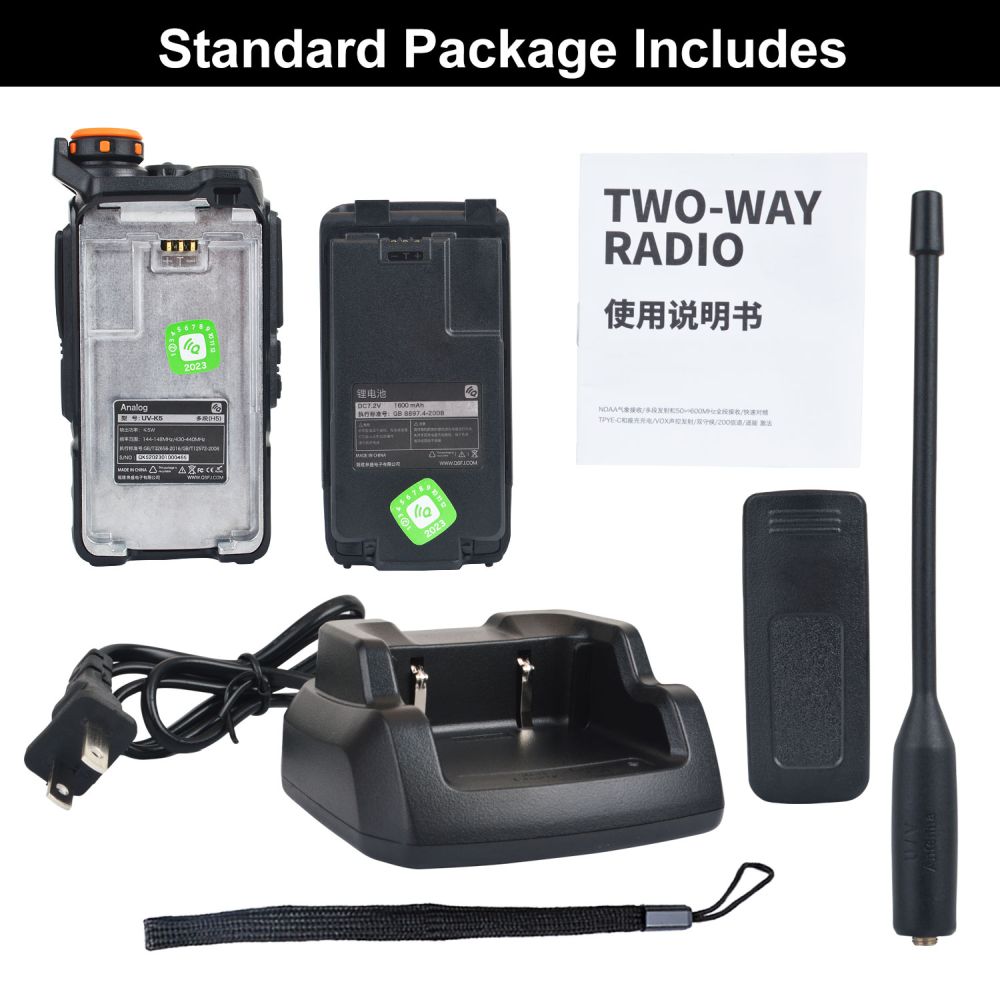

Package Contains:
1× UV-K5 Transceiver
1× 7.2V 1600mah Li-ion Battery Pack
1× SMA-Female Dual Band Antenna

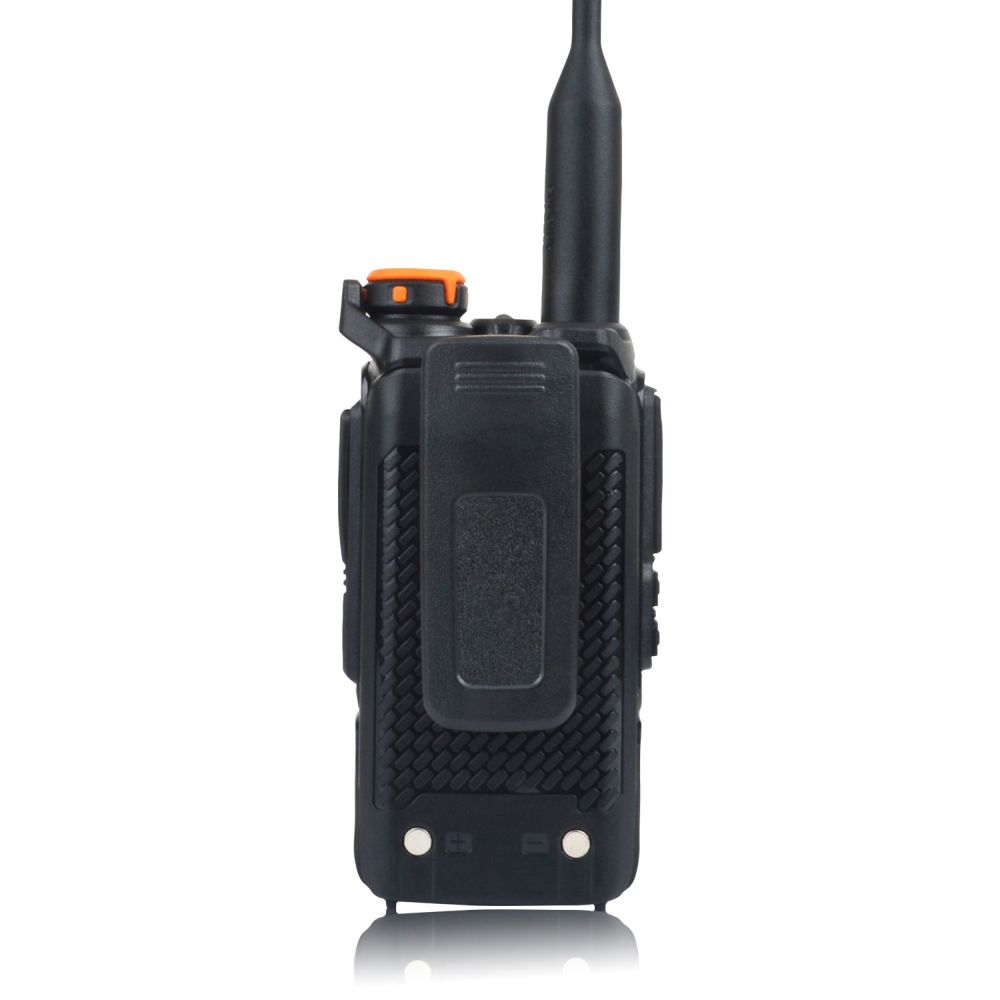

1× Belt Clip
1× ENG Manual
1× Desktop Charger ( 110V ~ 240V ) with Correct Adapter for your Country
1× Handstrap
