QYT KT-5000 VHF UHF Detachable Front Panel VOX Scrambler FM Mobile Radio

Sale!
, , ,

QYT KT-5000 VHF UHF Detachable Front Panel VOX Scrambler FM Mobile Radio

Original price was: $199.00.Current price is: $118.98.

& Free Shipping
Quantity Discount (%) Price
1 $118.98
2 - 4 1.76 % $116.89
5 - 9 4.22 % $113.96
10+ 7.56 % $109.99

QYT KT-5000 VHF UHF Dual Band Detachable Front Panel VOX Scrambler FM Mobile Radio

Walkie Talkie QYT KT-5000 25W 200 Channel VHF UHF Dual Band VOX Mini Color Screen Detachable Front Panel Scrambler FM Mobile Radio

Features:

– Power by 12V car cigarette lighter

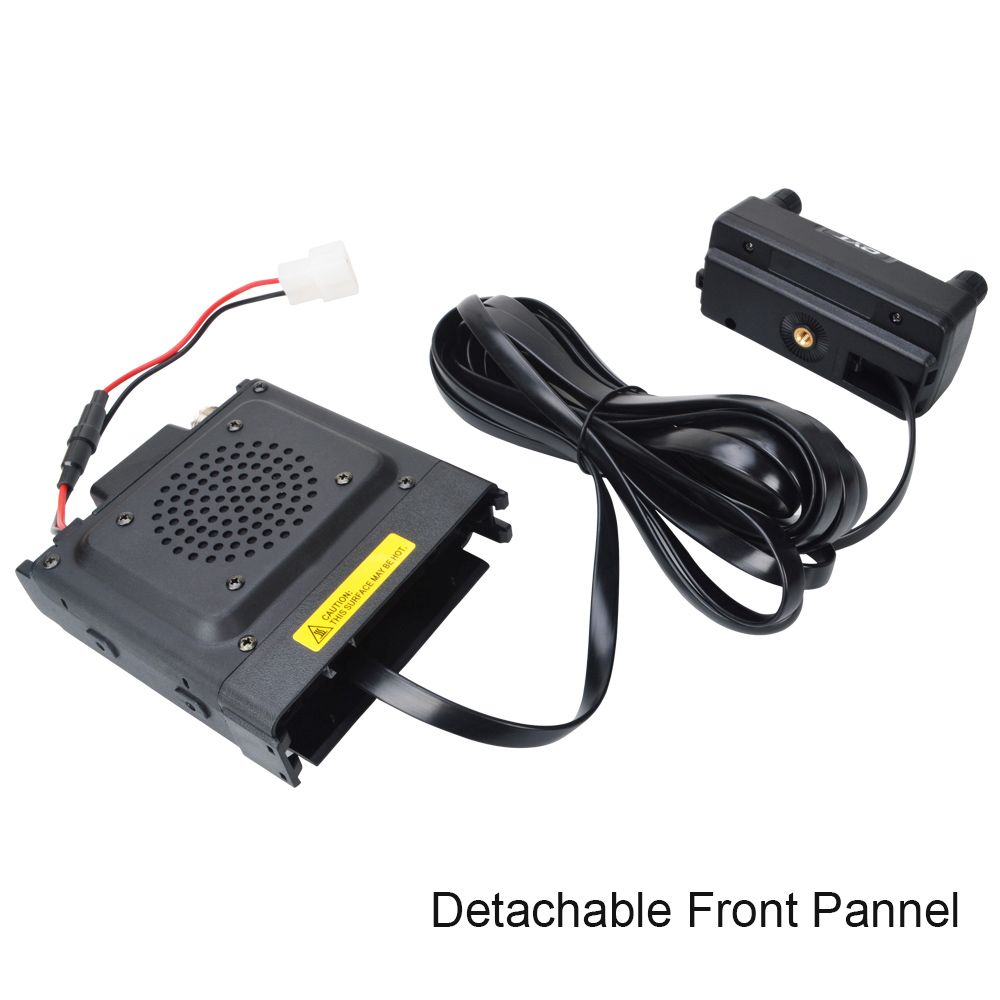

– Detachable front panel can be mounted at the most desirable operating position by a supplied 5 meter extendable connect cable

-Mini Size design, small as your palm

-Color Screen

-VOX function (Voice Operation Exchanged), Free your hands for a safety driving

-2.50/5.00/6.25/10.00/12.50/25.00KHz frequency space

-Scrambler

-Dual Band Standby working Mode (TMR)

-Carrier/CTCSS/DCS/DTMF/2TONE/5TONE

-200 Memory Channels

-VHF: 136-174MHz & UHF: 400-480MHz

-76-108.9MHz FM commercial Radio (Receiving only)

Specifications:

Item number

KT-5000

General

Frequency Range

DUAL Band: VHF:136-174MHz, UHF: 400-480MHz

Number of Channel

 200

Channel Spacing

25KHz(Wide Band) 20KHz(Mid-Band) 12.5KHz(Narrow Band)

Phase lock step

5KHz, 6.25 KHz, 10 KHz ,12.5 KHz, 25 KHz

Working Voltage

13.8V DC±10%

Squelch way

Carrier/CTCSS/DCS/5Tone/2Tone/DTMF

Frequency Stability

±2.5ppm

Operating Temperature

-20℃~+60℃

Dimension(W x H x D)

95(W) x 43(H) x 155(D)mm

Weight

500g

 Receiver

Broadband

Narrow band

Sensitivity

≤ 0.25μV

≤ 0.35μV

Channel choice

≥70dB

≥60dB

Intermodulation

≥65dB

≥60dB

Spurious Rejection

≥70dB

≥70dB

Audio response

+1~ -3dB(0.3~3KHz)

+1~ -3dB(0.3~2.55KHz)

Signal to noise ratio

≥45dB

≥40dB

Audio distortion

≤5%

Audio output power

≥2W±10%

 Transmitter

Broadband

Narrow band

Output power

25W/20W(VHF/UHF)

Modulation Mode

16KΦF3E

11KΦF3E

Channel Power

≥70dB

≥60B

Signal to noise ratio

≥40dB

≥36dB

Parasitic harmonic

≥60dB

≥60dB

Audio response

+1~ -3dB(0.3~3KHz)

+1~ -3dB(0.3~2.55KHz)

Audio distortion

≤5%

Each Set Package Contain:

1× QTY KT-5000 Mini Mobile Radio

1× Microphone

1× Car Power Cable

1× 5 Meter Extendable Connect Cable

1× Mounting Bracket

1× Screw Sets

1 × User Manual

Weight 1.6 kg
Dimensions 40 × 30 × 20 cm
