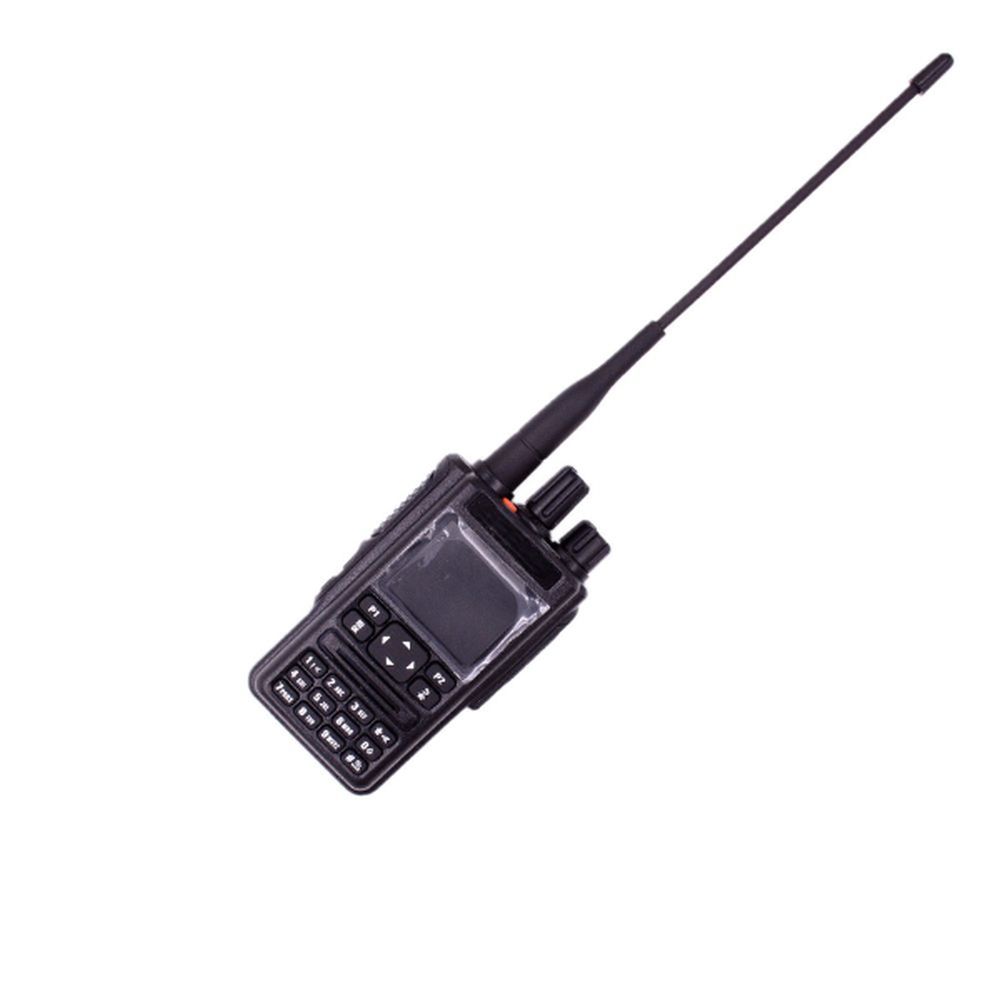

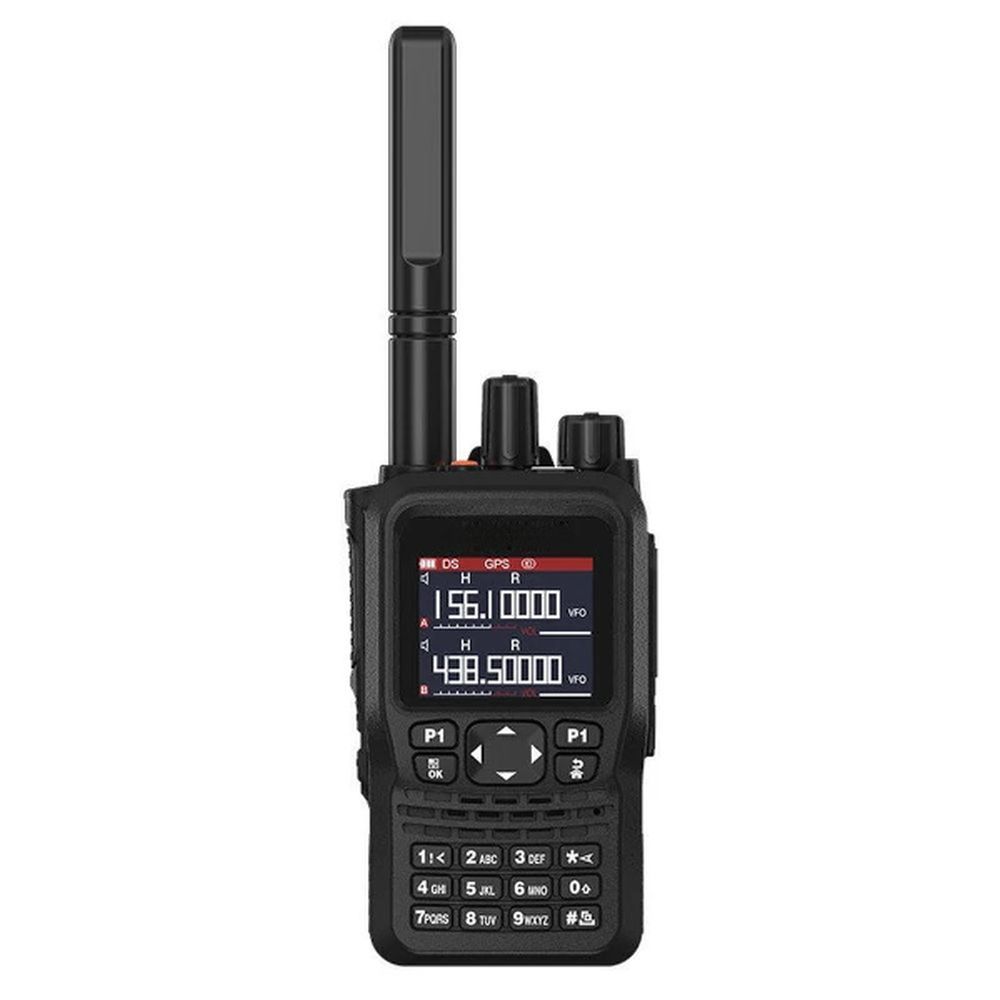

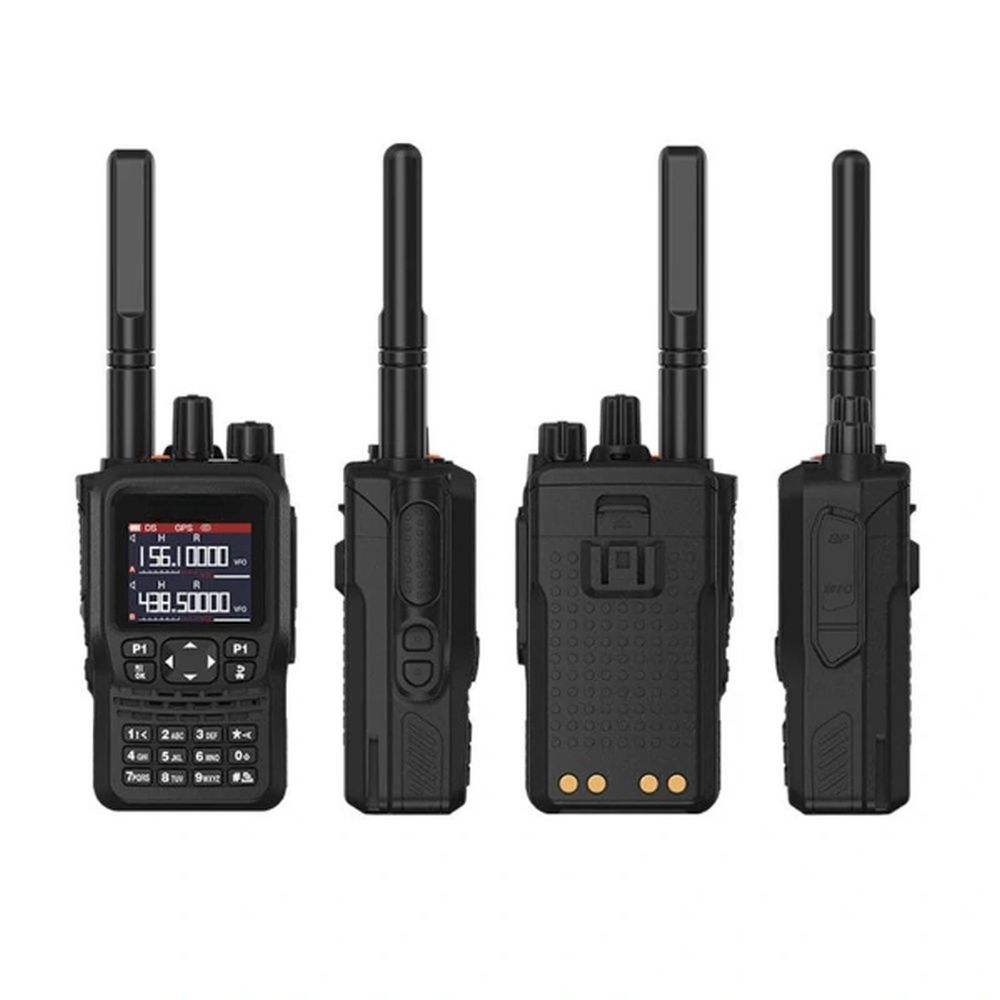

Talinfone 8800 GPS Two Way Radio APRS Bluetooth Program 136-520Mhz Walkie Talkie

Ham Two Way Radio Bluetooth Program GPS Location APRS 136-520Mhz Multiband Receiver USB Type-C Charge Wireless Comminactor

Function:

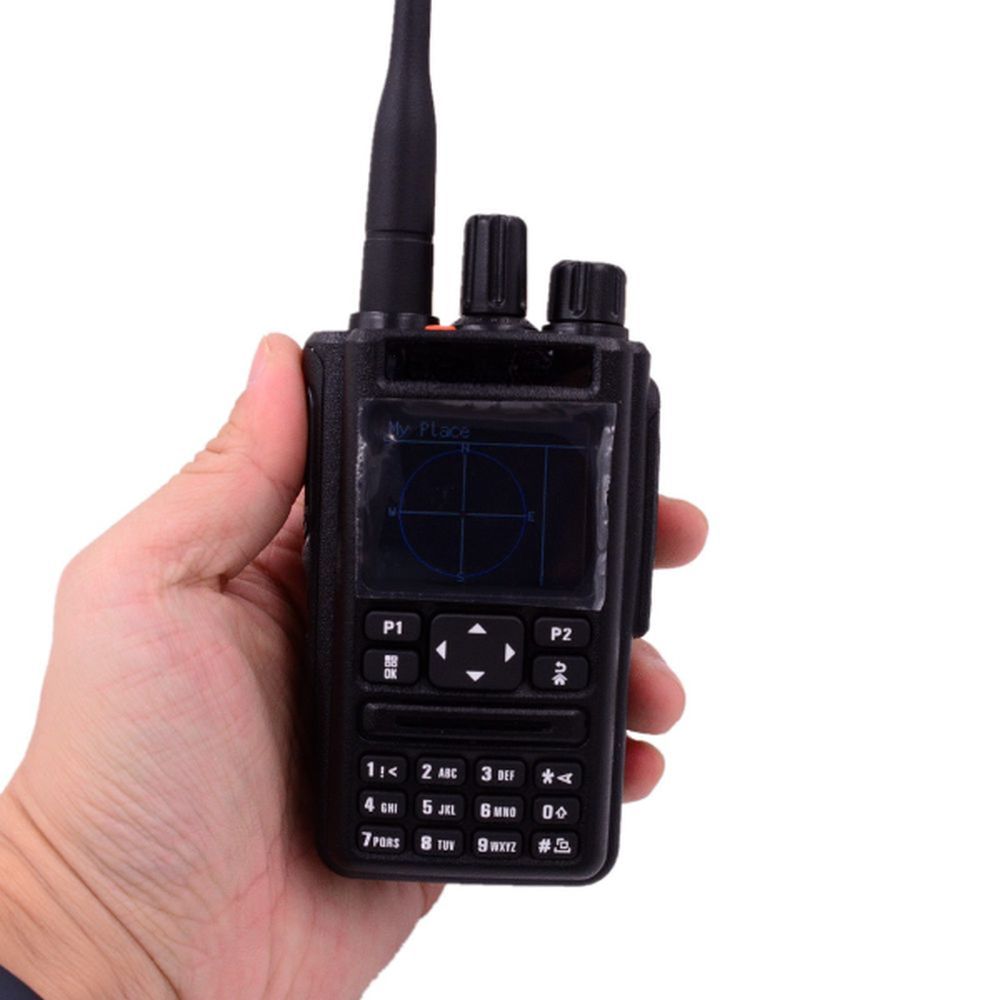

GPS:

North latitude, East longitude, Altitude

loction Sharing,Measuring Distance

Frequency Range: 6 Bands

76-108MHz(FM Radio RX)
136-174MHz(RX/TX)
175-220MHz(RX)
230-250MHz(RX)
330-350MHz(RX)
350-400MHz(RX/TX)
400-520MHz(RX/TX)
-Frequency /CTCSS Detection

-999 Memory Channel

-1.77inch LCD Color Display

-Non-CTCSS(60-260HZ)&DCS(D0000N/I-D777N/I)

-VOX Function

-Emergency Function

-Scan Function

-Battery Save

-Squelch Function

-PC Programming

-Monitor Function

-Low Power Prompt

-TOT(Time-out Timer)

-BCLO(Busy Channel Lock)

-DTMF Encoding/Decoding

-SOS

-Prior Channel Scanning

-CTCSS/DCS Scan

-Multi Single-Tone Pulse (1750Hz,2100Hz,1000Hz,1450Hz)

-Multi Keypad Lock Modes

-PTT ID

-Wide/Narrow Bandwidth Selection

-Operational voice prompt in Chinese and English

-Display interface in Chinese and English

-Stopwatch function

Specifications:

Intergration

Frequency Range

TX:136-174MHZ/400-520MHZ

RX:76-108MHZ
 136-174MHZ 230-250MHZ 350-400MHZ 400-520MHZ

Step:5/6.25/10/12.5/25/30/50/100KHz

Channel Number:512

Work Mode:F2D/F3E

Operating Temperature:-20°c to 60°c

Antenna Resistance:50Ω

Battery:7.4V DC 2800mAh

Weight:242g(with battery and antenna)

Size:123×65×36mm(without antenna)

Transmitter

Wide Bandwidth

Narrow Bandwidth

Type of Modulation
16K F3E

11K F3E

Adjacent Channel Power

≥70dB

≥60dB
Spurious

≥60db

≥60dB

Audio Response

+1~3dB(0.3~3KHz)

+1~3dB(0.3~2.55KHz)

Max Frequency Deviation

±25KHz

±12.5KHz

Frequency Stability

±2.5ppm

Audio Distortion

≤5%

Ouput Power

10W

Receiving

Wide Bandwidth

Narrow Bandwidth

Adjacent Channel Selectivity

≤70dB

≤60dB

Inter Modulation

≤65dB

≤60dB

Spurious Response

≤70dB

≤70dB

Audio Response

+1~3dB(0.3~3KHz)

+1~3dB(0.3~2.55KHz)

Signal to Noise Ratio

≥45dB

≥40dB

Audio Distortion

≤5%

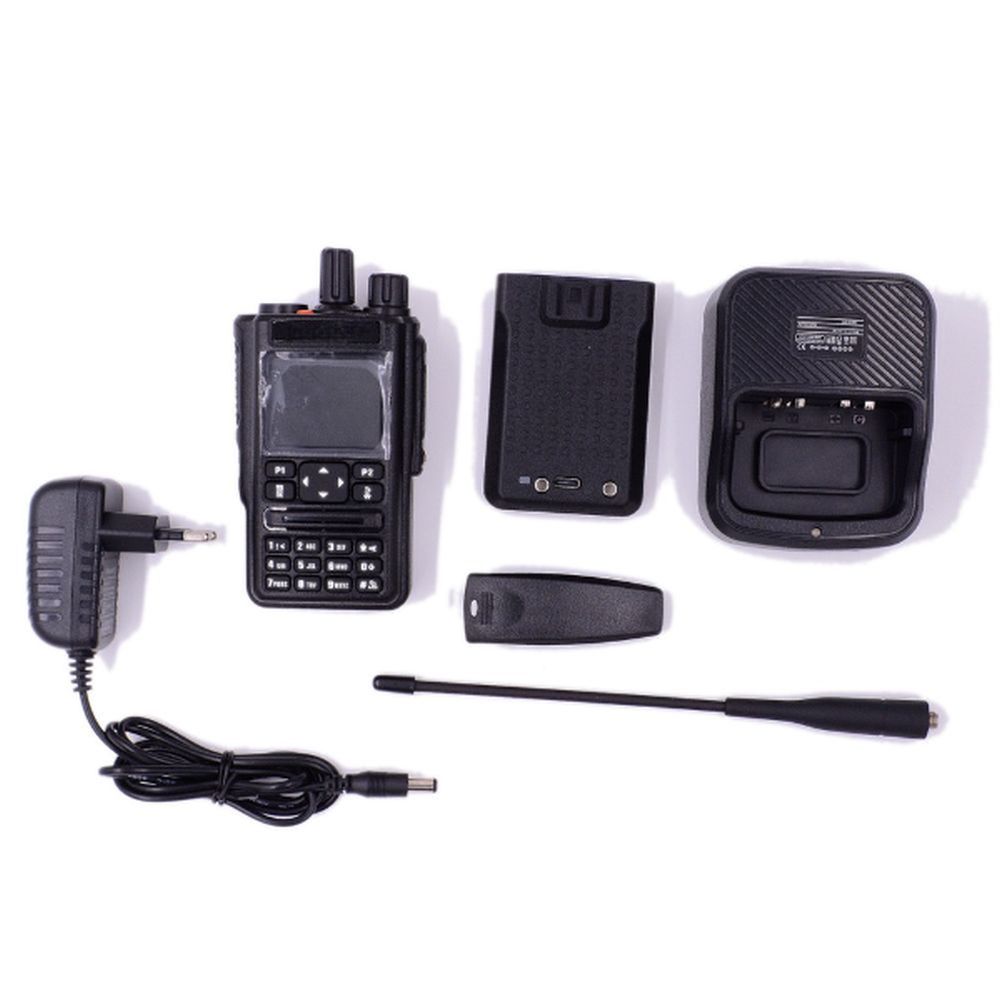

Package Contents:

1× 8800UV Radio GPS bluetooth program(support Android APP program)

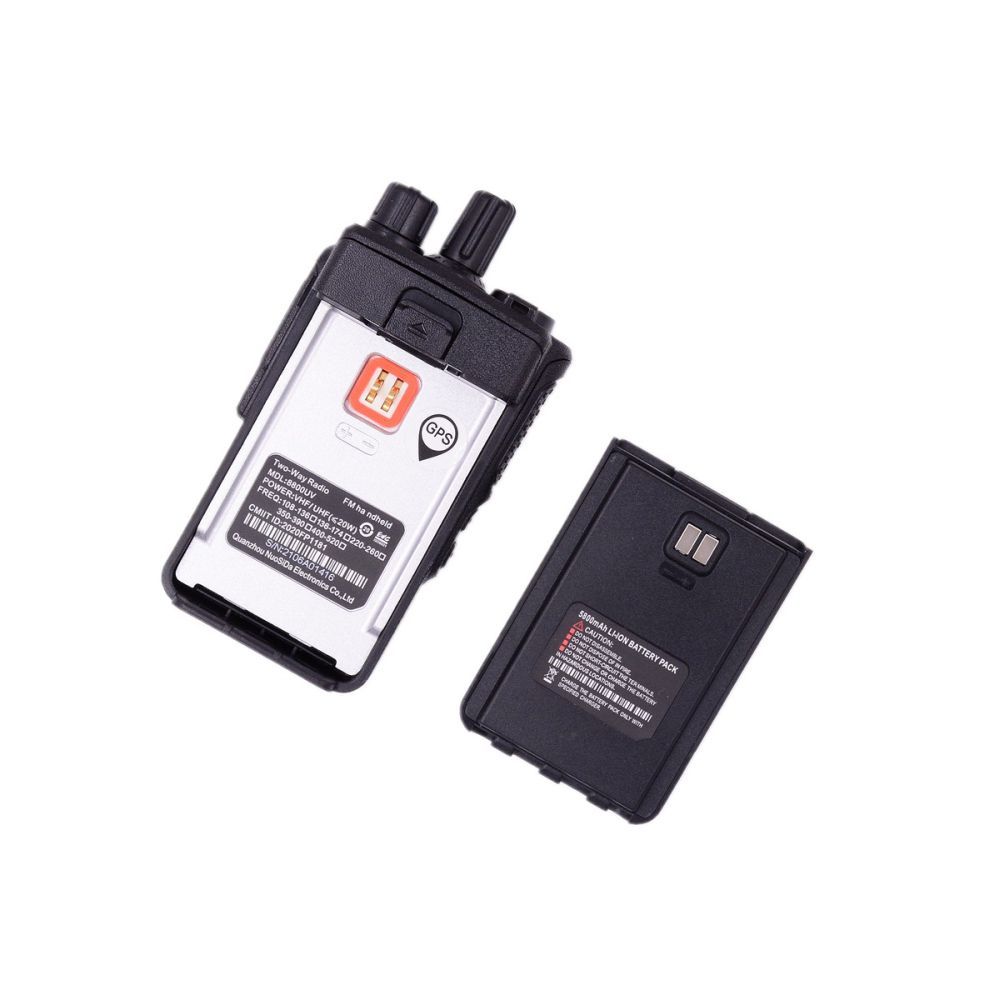

1× 2000mAh Li-ion Battery

1× Intelligent Charger

1× Belt Clip

1× SMA-Female Antenna

1× Handstrap

1× User’s Manual
