Wouxun KG-UV2Q High Powerful 7 bands/Air Band Handheld Radio

Sale!

Wouxun KG-UV2Q High Powerful 7 bands/Air Band Handheld Radio

Original price was: $235.00.Current price is: $180.00.

& Free Shipping

Wouxun KG-UV2Q High Powerful 7 bands/Air Band Handheld Radio Cross band Repeater Classic Circuit Walkie Talkie Upgrade KG-UV9D Plus

8W Powerful Dual Bands Transmission , Seven Bands Reception , Two Way Radio KG-UV2Q

[iframe src=”https://cloud.video.taobao.com/play/u/2218956733/p/1/e/6/t/10301/227495227042.mp4″ width=”80%” height=”500″]
1.  8W Powerful,3200mAh Li-ion Battery
High / Med / Low Power Settings (8W, 4W, 1W), 3200mAh High Capacity battery
2.  Dual Band , Cross Band Repeater , Large Color Screen
With two independent receivers for both UHF and VHF, you can listen to either the same or different bands simultaneously , large color screen can display more information
3.  Seven Bands Reception and Dual Bands Transmission
Wider frequency ranges meet different demands. The frequency range is from 76MHz to 965MHz, including FM radio and air band
4.  Classic Circuit , Excellent Performance
Mature circuit design and high quality electronic components, after years of use can still maintain stable performance
5.  Using High Quality Plastic and Rubber Material
High quality plastic can make the shell more robust and durable good rubber material can make the button has a good touch feel

Features:

-Frequency Range

TX:136-174MHz(FM) 400-512MHz(FM)

RX:108-136MHz (AM Band Receiving)

136-180MHz(FM)

230-250MHz(FM)

350-400MHz(FM)

400-512MHz(FM)

700-985MHz(FM)

-Twin Band Simultaneous Receiving (U-U,U-V,V-U,V-V)

-Separate Bands Duplex (U-V,V-U)

-DTMF Encoding/Decoding

-All Calls,Group Calls and Selective Calls

-Stun,Kill,Monitor and Inspection

-CTCSS/DCS Scan

-Programmable Non-Standard CTCSS/DCS

-Multi Scan Modes: Programmable Scanned Frequency Range (only available in Frequency Mode),Channel Groups Scan (only available in Channel Mode)

-Multi Functions Programmable for Side Keys, Programmable Transmission Function on Sub-Frequency(Side Key Function Programmable)

-English Voice Guide

-Priority Scan, Priority Channel Setting

-Twin Band Simultaneous Scan

-Multi Power Save Modes

-Auto Power-OFF Timer (APO)

-Three Output Power Levels:

High / Med / Low Power Settings (8W, 4W, 1W)
-Multi Single-Tone Pulse (1750Hz,2100Hz,1000Hz,1450Hz)

-Multi Keypad Lock Modes

-PTT ID

-Wide/Narrow Bandwidth Selection

-Backlight Brightness Selection



Specifications:

Intergration
Frequency Range TX:136-174MHz(FM) 400-512MHz(FM)

RX:108-136MHz (AM Band Receiving)

136-180MHz(FM)

230-250MHz(FM)

350-400MHz(FM)

400-512MHz(FM)

700-985MHz(FM)



Step 2.5/5/6.25/10/12.5/25/30/50/100KHz
Channel Number 999
Work Mode F2D/F3E
Operating Temperature -20°c to 60°c
Antenna Resistance 50Ω
Voltage 7.4VDC
Weight 490g
Size 124.5×61.49×33.88(mm)
Transmitter Wide Bandwidth Narrow Bandwidth
Type of Modulation 16K F3E 11K F3E
Adjacent Channel Power ≥70dB ≥60dB
Spurious ≥60db ≥60dB
Audio Response +1~3dB(0.3~3KHz) +1~3dB(0.3~2.55KHz)
Max Frequency Deviation ±5KHz ±2.5KHz
Frequency Stability ±2.5ppm
Audio Distortion ≤5%
Ouput Power H:8W,M:4W,L:1W
 Receiving Wide Bandwidth Narrow Bandwidth
Adjacent Channel Selectivity ≤70dB ≤60dB
Inter Modulation ≤65dB ≤60dB
Spurious Response ≤70dB ≤70dB
Audio Response +1~3dB(0.3~3KHz) +1~3dB(0.3~2.55KHz)
Signal to Noise Ratio ≥45dB ≥40dB
Audio Distortion ≤5%
Audio Power Transceiver≤500mW
Sensitivity 108-136MHz (AM)-106dBM SINAD 13db

136-180MHz(AM)-119dBM SINAD 13db

230-250MHz(AM)-116dBM SINAD 13db

350-400MHz(AM)-119dBM SINAD 12db

400-512MHz(AM)-119dBM SINAD 13db

700-985MHz(AM)-96dBM SINAD 13db





Package Contents:

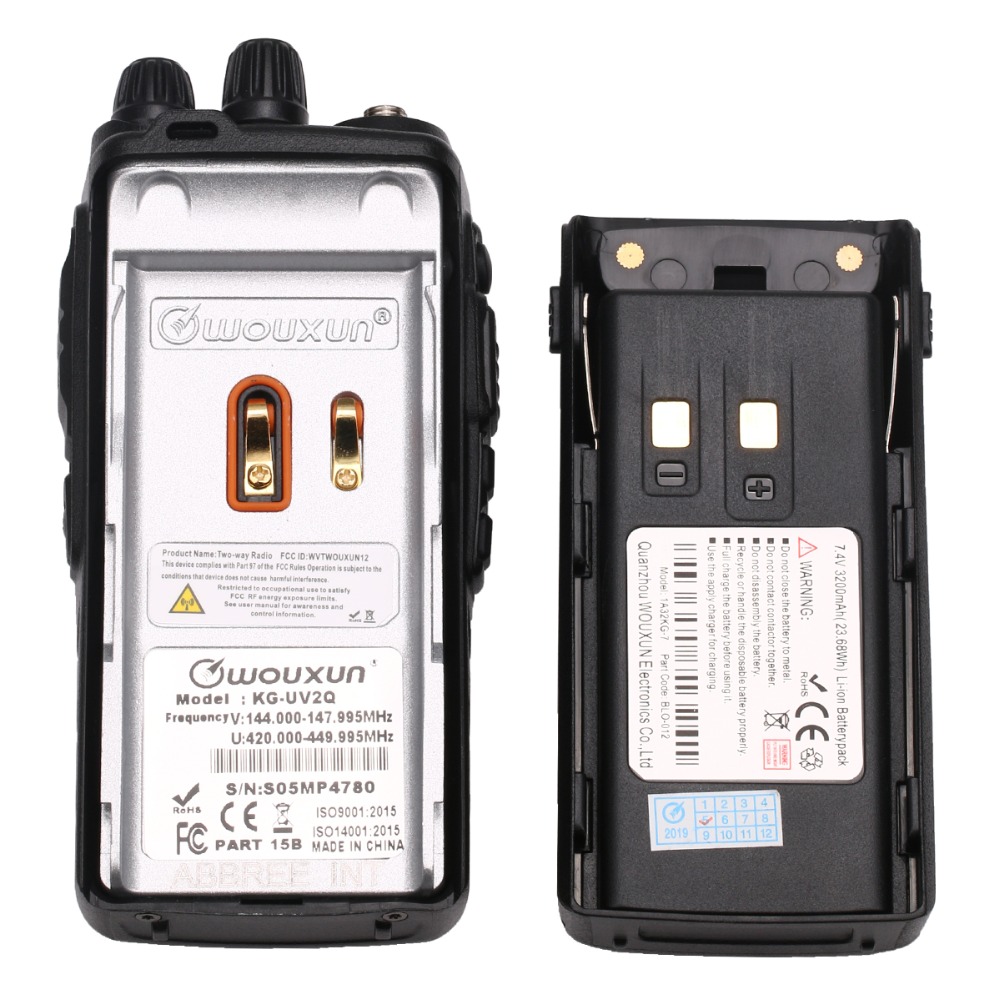

1× KG-UV2Q Radio Body

1× 3200mAh Li-ion Battery

1× Intelligent Charger

1× Belt Clip

1× SMA-Male Antenna

1× Handstrap

1× User’s Manual

Weight 1 kg
Dimensions 400 × 300 × 100 cm
