Alinco DJ-W10 Specification
This new VHF handheld transceiver packs a lot of performance into a MIL-spec* rugged polycarbonate body. Designed to resist splash and dust*, the DJ-W10 features professional grade specs such as 1W audio output, 2.5ppm frequency stability, capable of operating 136-174MHz range at 5W with 50 tone-squelch, DCS or DTMF/ANI in 128 programmable-channels or VFO; keep in touch for retails, construction, factory, warehouse, in a theme-park, shopping mall, exhibition hall, hotel…where you need reliable communications for business, the DJ-W10 is a cost effective alternative to a mobile/cell phone!
*MIL-STD-810G shock/vibration compliant
*IP54 Dust & Splash-proof compatible.
128 channels to program operating parameters via PC utility software
Channel, Name tag and VFO (Frequency) display modes selectable
Comes with a rechargeable Li-Ion pack, desktop quick-charger and high-performance whip antenna
Ergonomically designed compact body 59.0W x 98.0H x 35.0D mm or 2.32W x 3.86H x 1.38D inches (w/o projections, approx.), weighs approx.227g or 8.01oz inclusive of battery pack and antenna
3 types of Scan functions (VFO/Memory channels/Priority), 50 CTCSS, 116 DCS and 4 Tone-burst tones
Backlit, Dot Matrix LCD screen with alphanumeric name tag
Microphone and speaker ports
FM radio receiver
Internal VOX
Voiceprompt in English
Remote-Kill/Stun/Waken
Analog scrambling
Voice Compander
Narrow FM
Repeater-reverse
Auto-Power-OFF
Busy-ChannelLockout
Time-Out-Timer
-Frequency : [TX/RX] 136.000 – 173.995 MHz
[RX Only] 76-108 MHz
– Mode : F3E (16K0F3E/11K0F3E / RX Only WFM)
– Progammable Channels : 128 Channels
– Frequency Stability : 2.5ppm
– Power Supply Requirement : 7.4V DC
– Dimensions : 59W x 98H x 35D mm
Transmitter :
– Output Power : Approx. 5/2/0.5W
– Modulation System : Variable Reactance FM
– Spurious Emissions : Less Than -36 dB
– Max Frequency Deviation : 5kHz / 2.5kHz
Receiver :
– Receive System : Double Conversion Superheterodyne
– Inter Mediate Frequencies : 38.85MHz
– Sensitivity (12dB SINAD wide/Narrow)
– Selectivity : -6dB: -6dB: Wide12kHz / Narrow 10kHz
– Audio Output Power : 1000mW (8Ohm / Max)

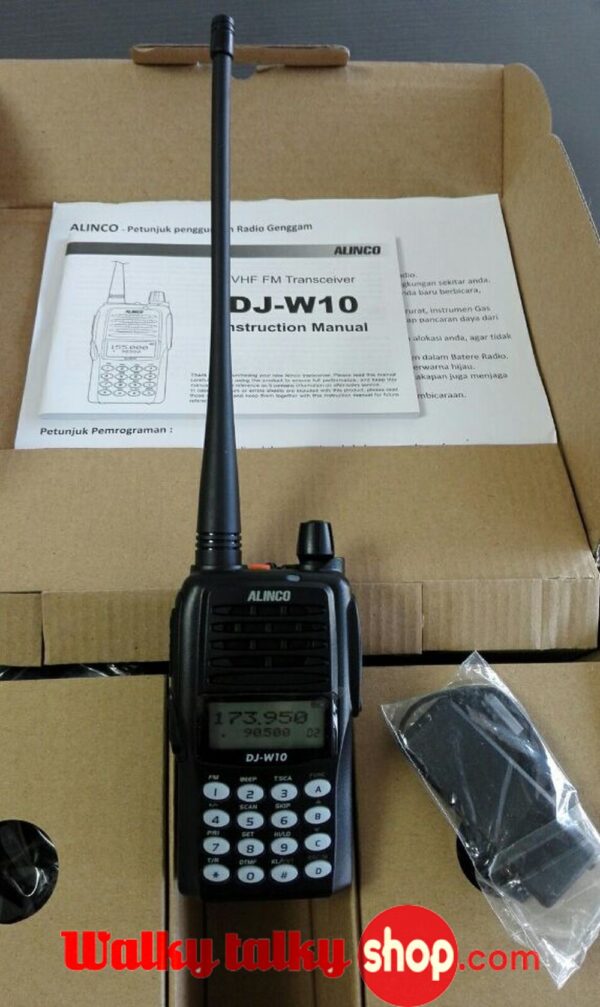

Each Package Included:
- 1 x HT Alinco DJ-W10
- 1 x Antenna
- 1 x Battery
- 1 x Charger
- 1 x Belt Clip
- 1 x Guide Book
