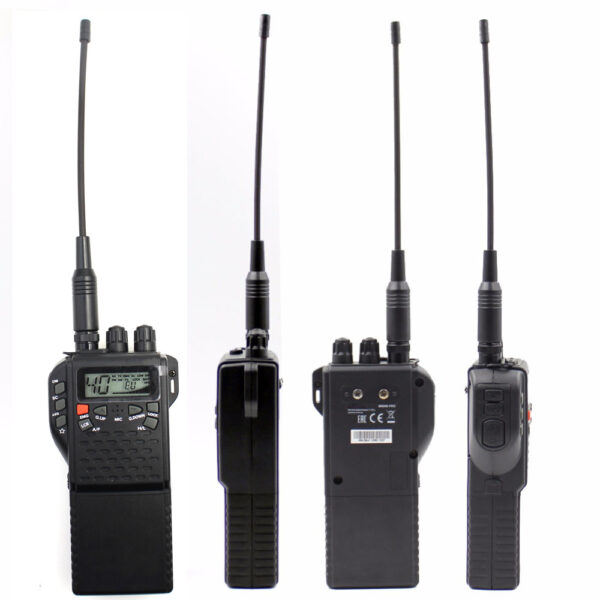

CB Radio 27MHz MR999 PRO CB-270 Walkie Talkie with LCD diaplay 40 Channel AM FM Radio CB270 26.965 – 27.860MHz

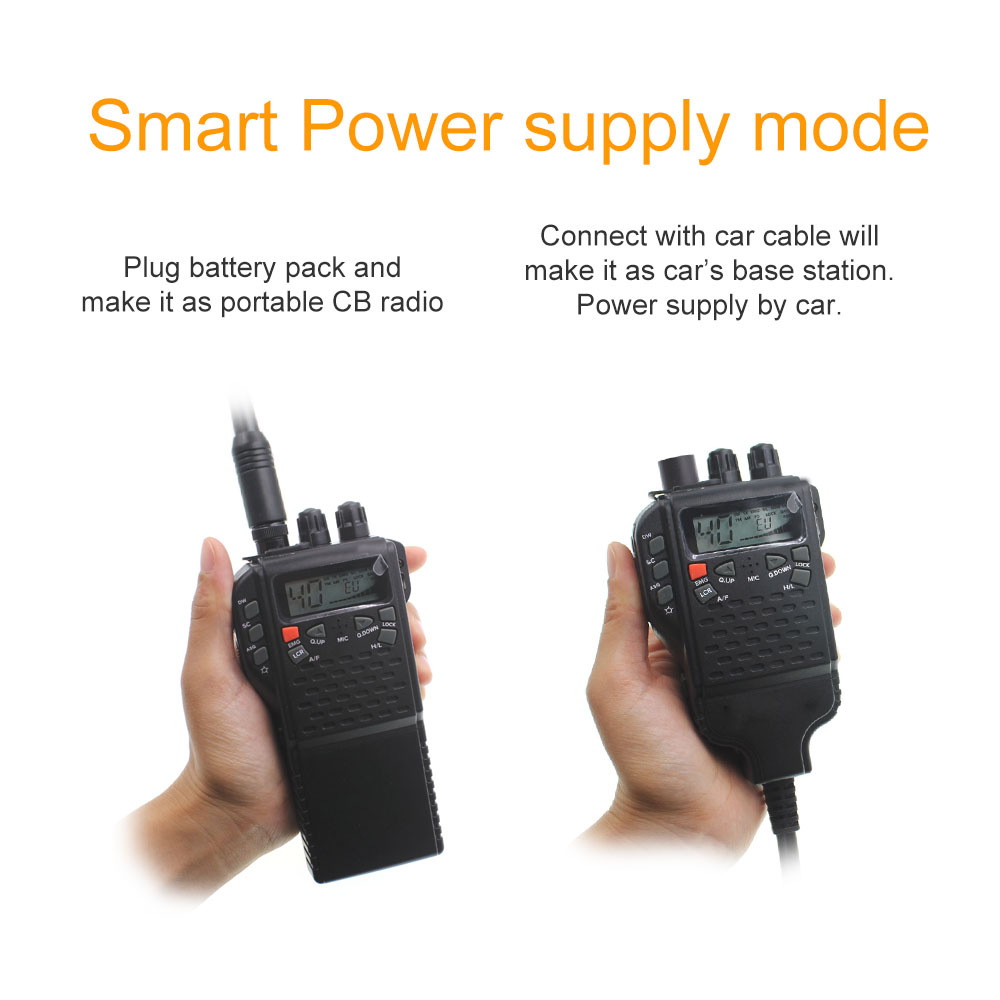

This radio battery voltage is above 8V, they can work well.
CB270 is Citizens’ Band radio free license Radio support RX & TX,use 26-27MHz fixed channel do not need program you can use.
Quick Details
| Place of Origin: |
China (Mainland)
|
Brand Name: | Model Number: |
CB Radio CB-270
|
|
| Type: |
Vehicle Mouted
|
Dimensions: |
30*70*140mm
|
Frequency Range: |
26.565-27.99125MHz
|
| Storage Channel: |
40
|
Talk Range: |
More than 5km
|
CB Radio Channel Spacing: |
10KHz
|
| Operating mode: |
F3E(FM); A3E(AM)
|
Antenna impedance: |
50 ohm
|
Loudspeaker: |
0.5W 8ohm
|
| Audio frequency response: |
400-2400Hz
|
Current Drain: |
900mA
|
Weight: |
220g(without battery)
|
| Dimension: |
30*70*140mm
|
Sample Service: |
Yes
|
CB-270 China Dual Frequency Standby 27MHz Ham Antenna CB Radio
Specification
| Channel | 40FM |
| Frequency range | 26.565-27.99125MHz |
| Operating mode | F3E(FM); A3E(AM) |
| Antenna impedance | 50 ohm |
| Loudspeaker | 0.5W 8ohm |
| Microphone | condenser type |
| Power supply | 7.2-13.2 nom 12V |
| Dimensions | 30*70*140mm |
| Weight | 220g(without battery) |
Receiver
| Sensitivity at 10dB S/N | 0.5uV(AM); 0.25uV(FM) |
| Selectivity | more than 60dB |
| Squelch range | 0.25V-500uV |
| Audio output power | 0.5W 8ohm (10% distortion) |
| Distortion at 1000uV | 3% |
| Audio frequency response | 400-2400Hz |
| Spuriour response | More than 60dB |
| Current drain at standby | 100mA when the save mode is off |
| 45mA when the save mode is on |
Transmitter
| RF Output power | Duty cycle 10% 4W AM/FM |
| Frequency Tolerance | 0.005% |
| Harmonic Suppression | More than 70dB |
| Current Drain | 900mA |
| Modulation | AM 90% (±5%) |
| FM dev.2.0KHz |

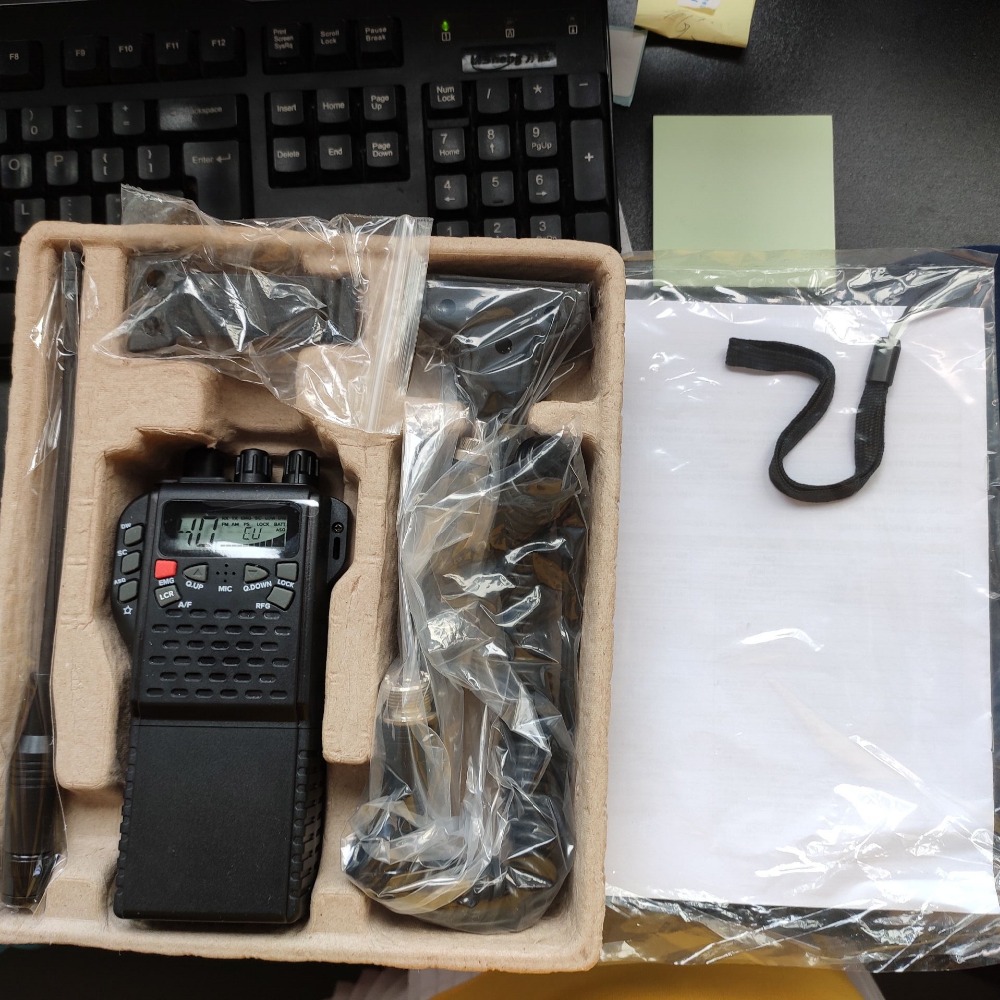

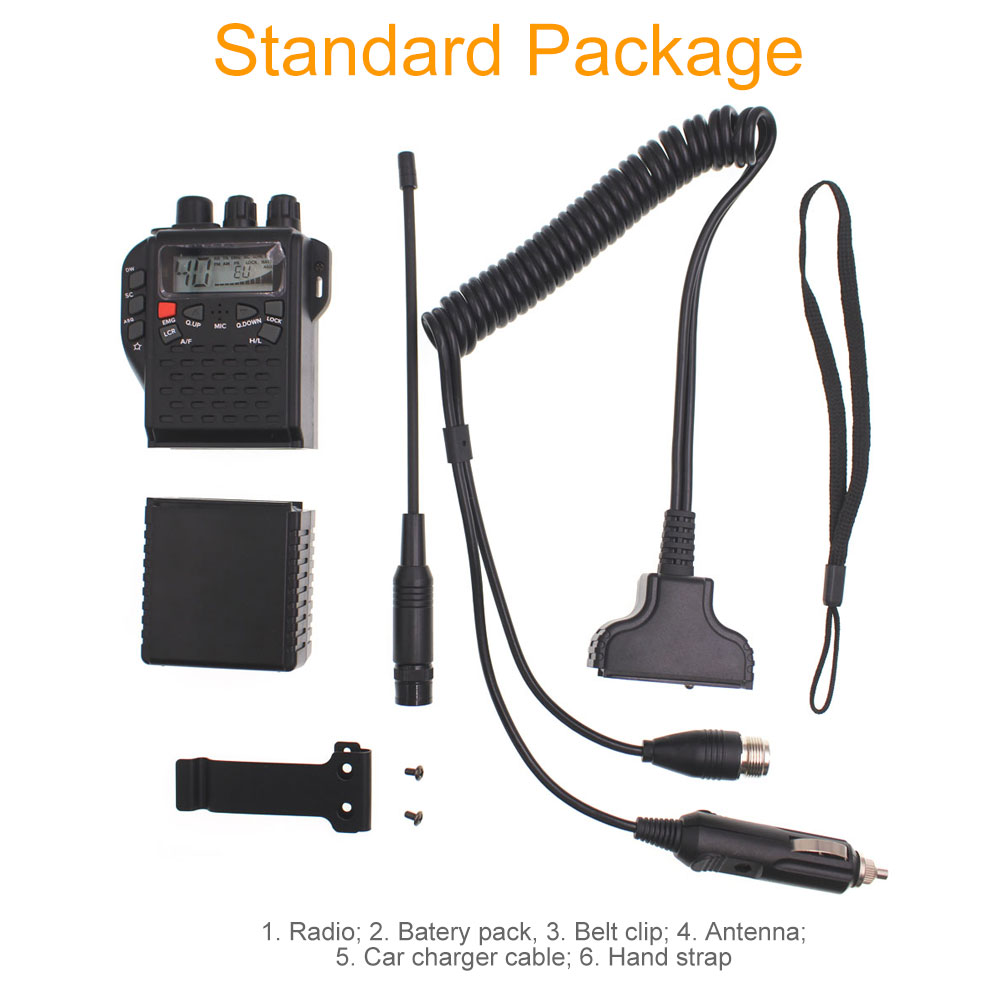

Package Contact:
1 x Radio

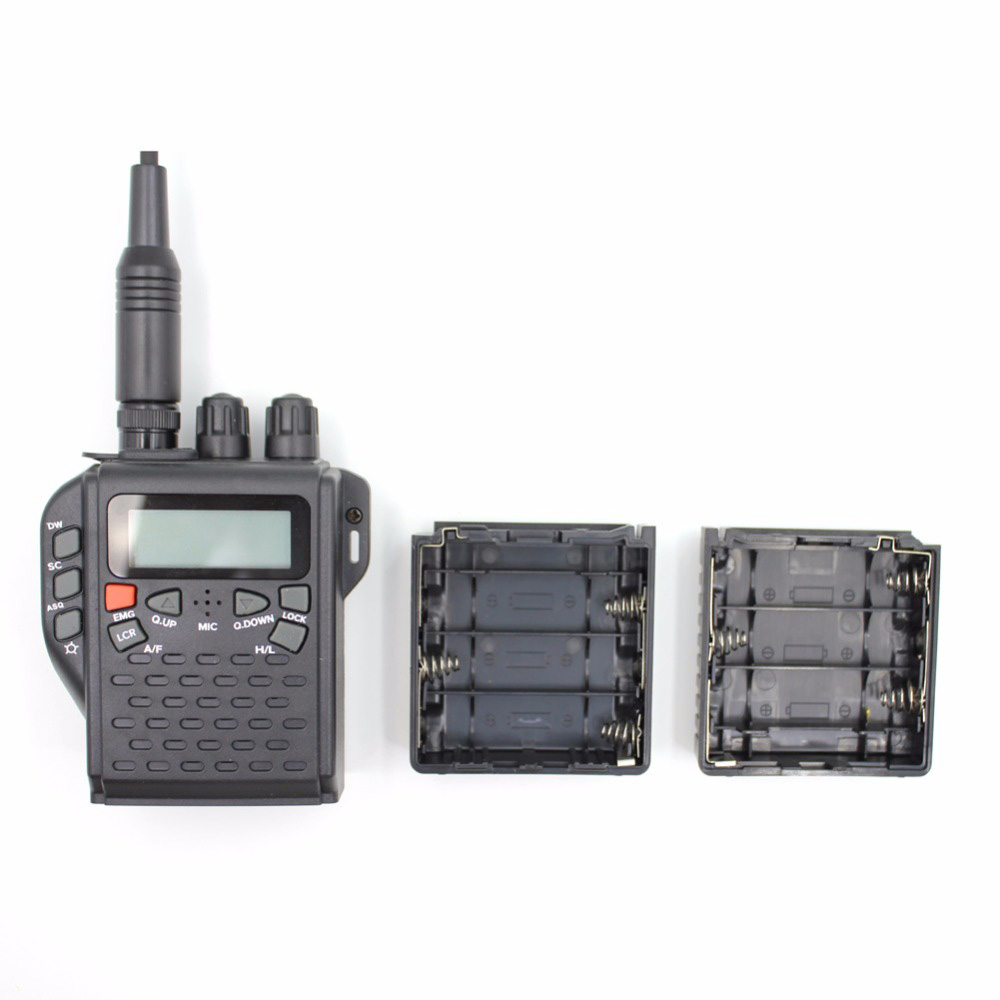

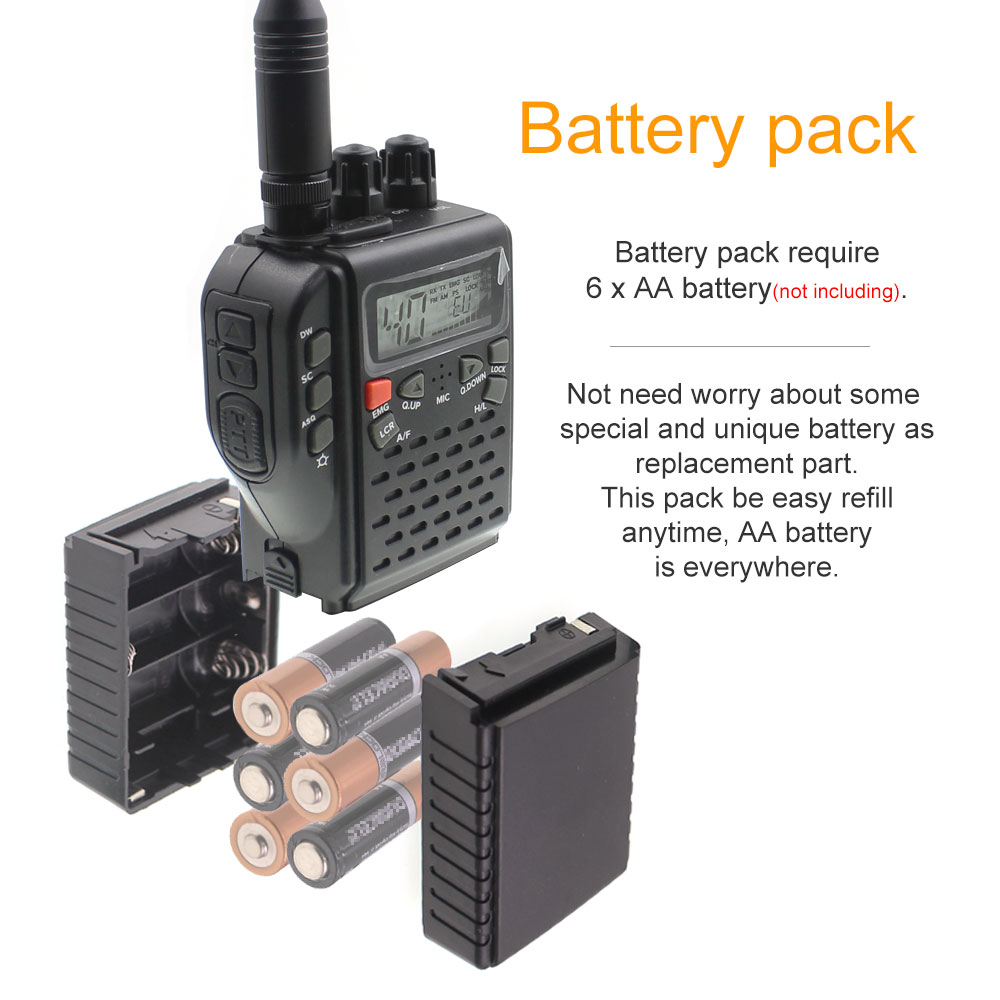

1 x Battery Pack
1 x Belt Clip
1 x Antenna

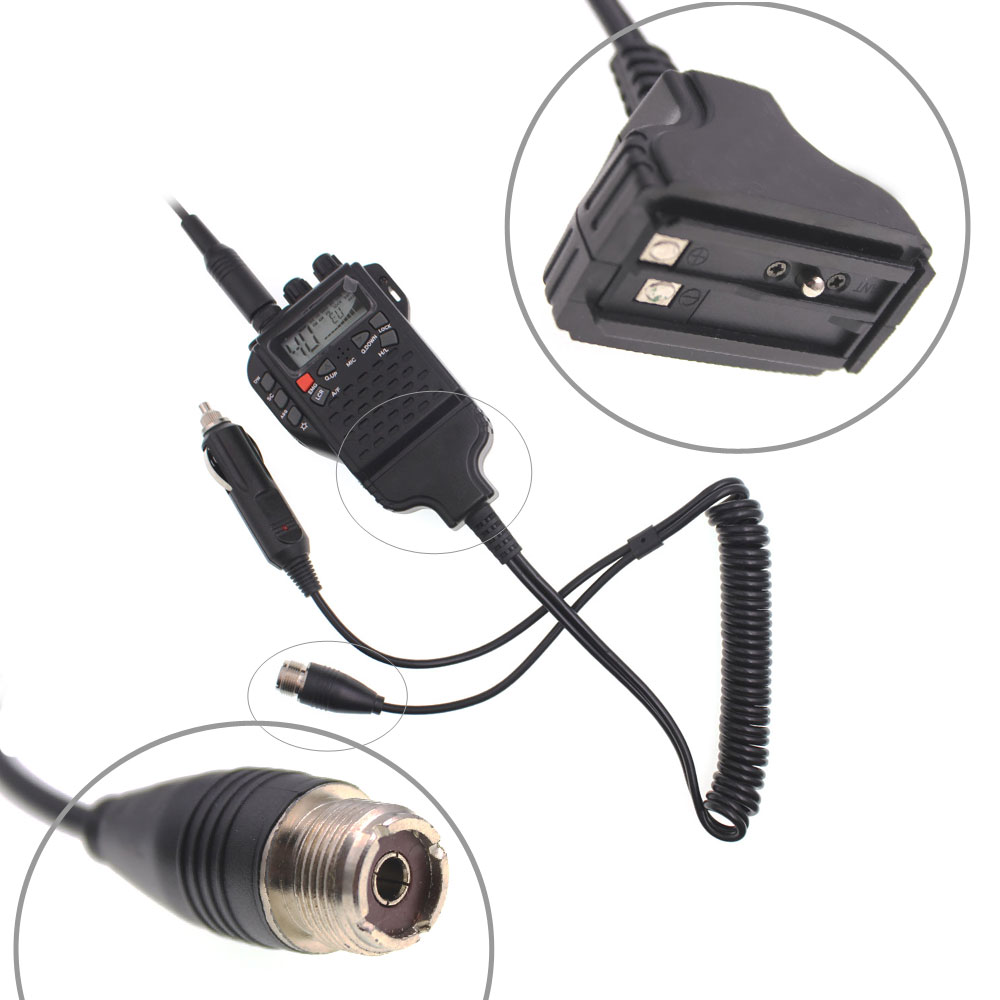

1 x Car Charger Cable
1 x Hand Strap
